| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX/IECEX/CE/EMC |
| Model Number: | SKY3000 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 100 pieces/day |
| Model Number:: | SKY3000 | Sensor Principle: | Electrochemical, Catalytic Combustion, PID |
|---|---|---|---|
| Measure Range: | Customized | Resolution: | Customized |
| Response Time: | ≤30 Seconds | Precision: | ≤±2%F.S Except For Special Gases |
| Working Hours: | More Than 15 Hours In Continuous Pumping Mode | Disaply: | Monochrome Graphics (160 X96) ,screen Can Be Automatically Flipped |
| Language: | Chinese/English/ Russian | Backlight: | The Backlight Time Can Be Manually Set, And Will Be Turned On Automatically When An Alarm Is Issued |
| High Light: | Pump Suction Gas Leakage Detector,H2S CO Gas Leakage Detector,Pump Suction Toxic Gas Detector |
||
Pump Suction H2s Co Toxic Gas Leakage Detector for Air Protection
Product Profile
SKY3000 is an IECEX/ATEX/EMC certified portable multi gas detector with a rating of IP67. It is suction type with built-in pump and sensors used from world top brands, ensuring fast response and high accuracy. The standard data logging function to export data to PC and no need software.
It has optional function with wireless communication so user can access to real-time data and alarm status remotely.
Functions:
1. Simultaneous upto 5 gases can be monitored, multiple numerical display including real-time data, TWA, STEL, MAX, MIN multiple numerical.
2. The screen can be automatically turned 180 degrees, which is convenient for viewing in special operating environments
3. Pump suction and diffusion dual use, to provide operators with more reliable protection
4. With a water trap filter, it can effectively filter water, oil, dust and other impurities. It can also be used in harsh industrial environments such as coal mines and petroleum fields.
Specifications
| Gas Detected | H2S CO | ||
| Detection principle | Electrochemical | ||
| Sampling Method | Pumping suction | ||
| Measure Range | 0-100,500,1000,2000ppm | ||
| Resolution | 0.1ppm,1ppm | ||
| Precision | ≤±2%F.S except for special gases | ||
| Response Time | ≤30 seconds | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%F.S/year | Display | LCD dot matrix display |
| Operating language | Chinese/English | Gas unit | Units are switchable |
| Temperature | -20℃-50℃ | Humidity | 0-90%RH |
| Explosion-Proof | IECEx: Ex ia IIC T4 Ga ATEX: II 1G Ex ia IIC T4 Ga | Degree of protection | IP67 |
| Alarm mode | Sound, light, vibration | Environmental pressure | 86～106Kpa |
| Dimensions | 157*84.5*59.5mm | Weight | 365g |

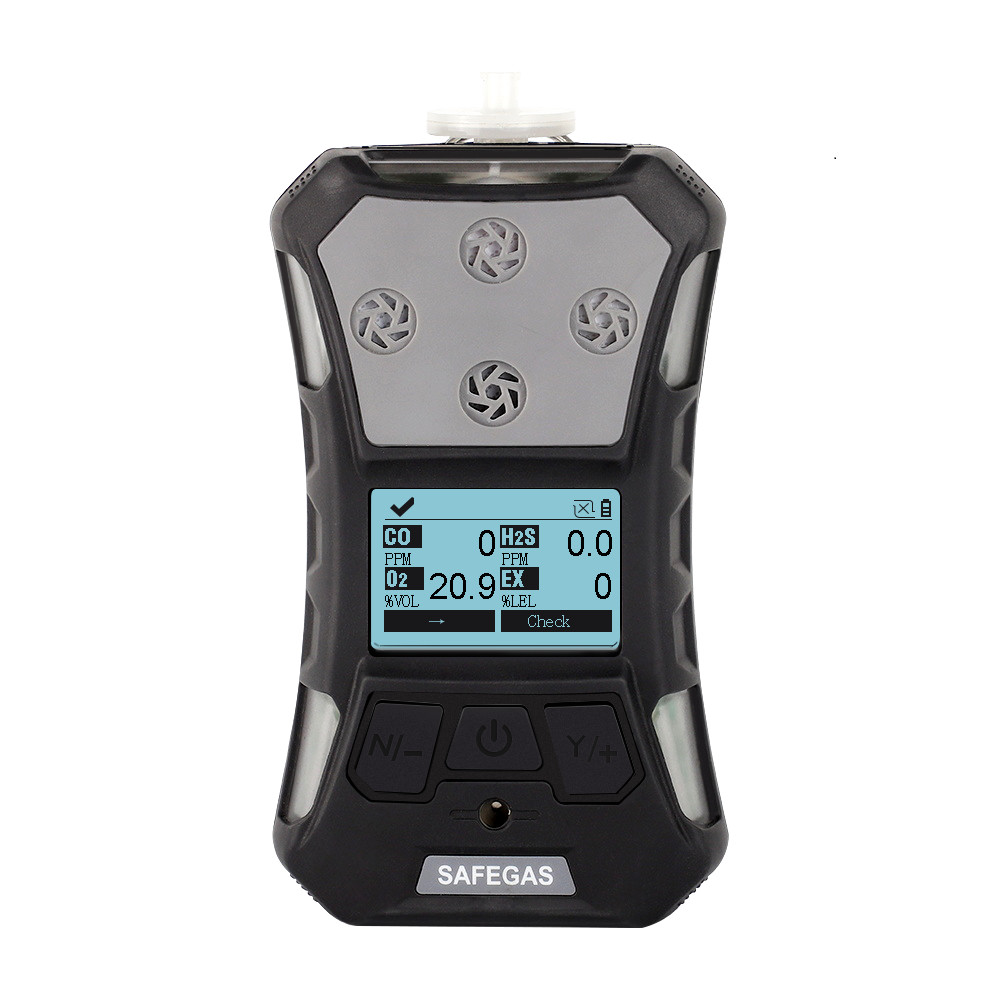

Product picture
Engineer wearing SKY3000 in the detecting site

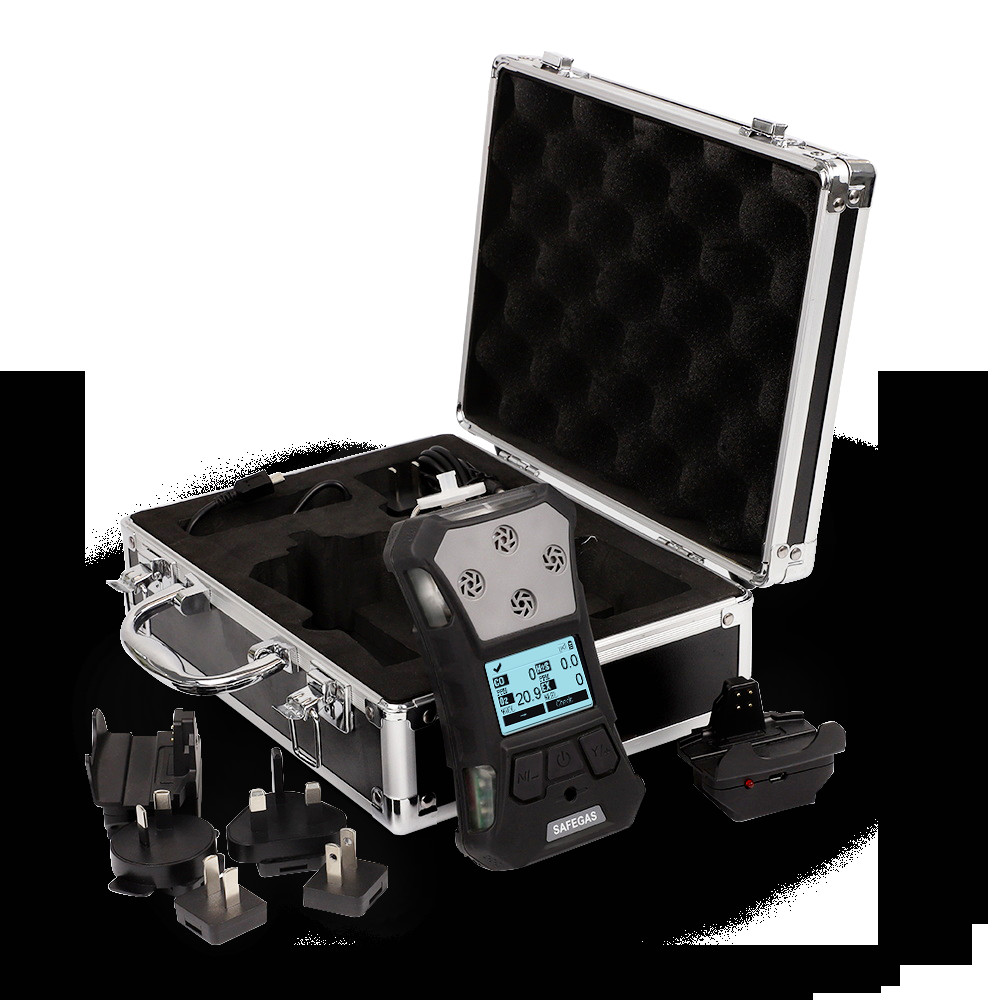

Accessories & Configuration List
Standard Accessories
SKY3000
Aluminum suitcase
A charging adapter
User Manual
Qualification/Calibration certificate
Filter
Storage function(USB cable)
Optional Accessories
Probe
Tube
Bluetooth App

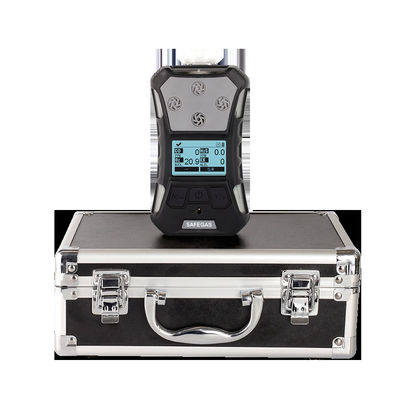

Product package: Aluminum Case
