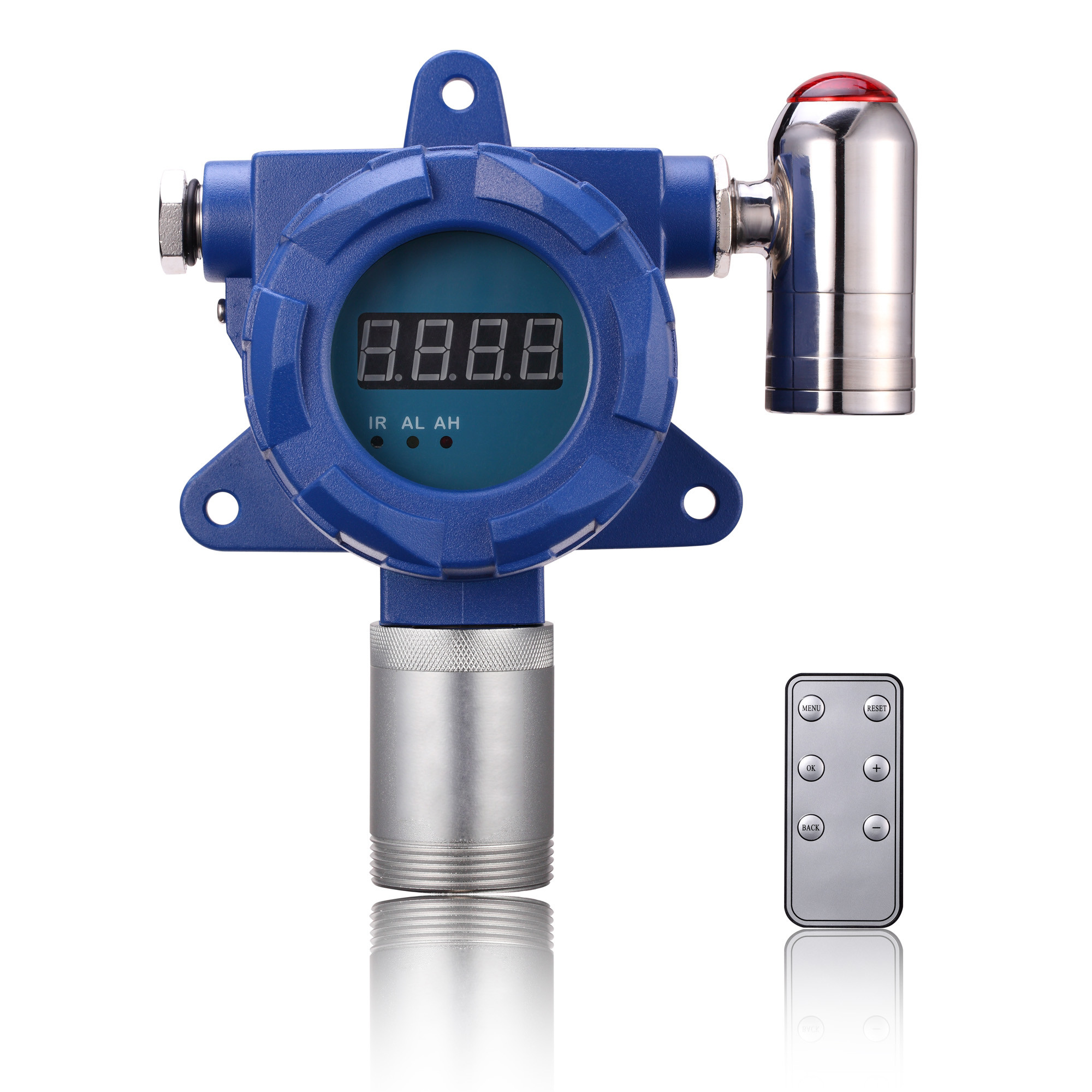

H2 0-100%Lel Catalytic Combustion Fixed Type Wall Mounted Gas Detector With Alarm Light

YT-95H-A series is a 24-hour continuously monitoring fixed single-gas detector, which is the hot-selling and cost-effective type of products. YT-95H-A has standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output, making it compatible with most control systems. It is with infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.

Gas detected H2 Detection principle Catalytic combustion Install method Wall-mounted, piping type, flow-type (according to the detected environment) Measure range 0-100%lel Resolution 1%lel Precision ≤± 1-2% FS Signal output 4-20mA, 0-5V, RS485, relay(optional) Response time ≤10S Recovery time ≤10S Repeatability ≤±1% Linearity error ≤±1% Zero shift ≤±1%(FS/year) Display High-light nixie tube display Connection mode G1/2 external thread explosion-proof flexible pipe Unit %VOL Temperature -20 to 50°C Humidity 0-95%RH Explosion-proof II 2G Ex db IIC T6 Gb IP65 Degree of protection IP65 Alarm Sound, light Operating time 24H Dimensions 180*150*90mm Weight ≤2kg







What is our advantage

1.As a professional manufacturer of gas detectors, we controls the whole process from design-development-production-sales, ensuring the consistency of product quality. We have more than 100 patents of independent intellectual property rights in design and development; In production, we have skilled technical workers and a complete industrial line, can grasp the production and quality of products throughout the process; In addition, our company has rich sales experience in overseas, the professional sales team can provide customers with 7*24h service.



2.We have a professional R&D team, who have been engaged in the gas detection industry for about 25 years, with absolute professional technical knowledge and a lot of experience in dealing with technical problems, to provide after-sales service for customers.



3.We implement a strict quality management system and produce gas detectors based on the principle of quality first, so we have been recognized by authoritative organizations and obtained ISO9001 and ISO14001 certifications to provide customers with safe and environmentally friendly products.



4.Our products have obtained IECEx and ATEX explosion-proof certification, so our detectors can be used in hazardous areas such as mines, underground and oil plants, etc. We are the first and only manufacturer in China to obtain this certification. Products without explosion-proof certification are prohibited to be used in hazardous areas.

5.As our core components, IC or sensors are used imported brands such as Honeywell, CITY and Alpha, etc., which make our products with high precision and stabilize the life of the products. It ensures the accuracy of detection and escorts the life safety of customers.



6. Our complete product line and stable inventory provide customers with fast delivery time. We can ship it out within 3 days for the quantity of less than 10 pieces. Even for the mass production of 100 pieces, we can complete within half a month.
