| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Safegas |
| Certification: | IECEX/ EMC/ ATEX/ CE |
| Model Number: | Micmeta |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 1-3 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 1000 pieces/month |
| Model Number: | MicMeta-M4 | Sampling Mode: | Diffusion |
|---|---|---|---|
| Sampling Principle: | Electrochemistry, Catalytic Combustion | Measuring Range: | Customized |
| Resolution: | Customized | Alarm Type: | Sound+ Vibration + Light |
| Color: | RED & BLACK | Instrument Size: | 113*60*32mm (L*H*W) |
| Gross Weight: | 200g (with Battery) | ||
| High Light: | Handheld LPG Gas Leakage Detector,Customized LPG Gas Leakage Detector,LPG Leakage Detector For LEL |
||
Energy Exploitation Usage Handheld LPG Leakage Gas Detector for LEL CO O2 H2S
Product overview
MicMeta, a multi-gas detector, boasts certifications from IECEx, ATEX, and EMC, making it an ideal choice for coal mine operations. Its compact and lightweight design, featuring two user-friendly buttons, ensures ease of use. The device comes with an explosion-proof rating of Ex ia I Ma and Ex ia IIC T4, and an IP68 rating, providing robust protection against dust and water. MicMeta is compatible with standard gas types such as carbon monoxide (CO), hydrogen sulfide (H2S), oxygen (O2), and lower explosive limit (LEL), and can be customized to detect hundreds of different gases. It offers wireless functionality for remote data access, and its built-in data logger enables the direct export of real-time data and alarm events to a personal computer (PC). In summary, MicMeta is a sophisticated multi-gas detector that combines user-friendly operation, versatile detection capabilities, and easy data access.
Product specification
| Sampling method | Diffusion |
| Gas type | LEL CO O2 H2S |
| Measure range | Customized |
| Resolution | Customized |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Disaply | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |

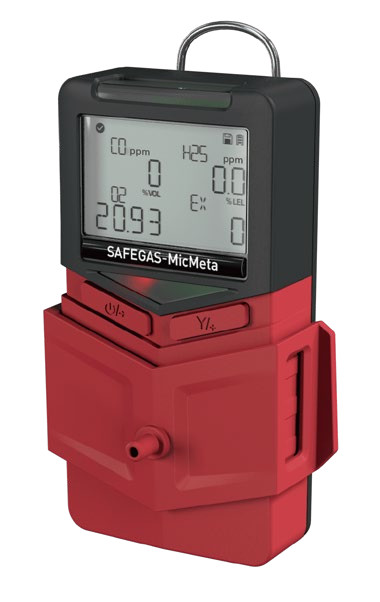

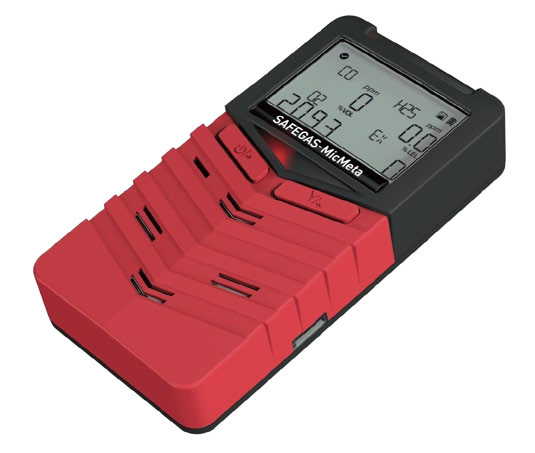

Product picture
Product advantages
Compact and Lightweight: This sturdy and long-lasting device is designed for optimal portability and convenience, making it effortless to carry and operate.
User-Friendly Operation: The device boasts an ergonomic design with a simple two-button interface for easy operation.
Bright Visual Alarm: A broad-angle visual alarm LED display ensures excellent visibility, enabling easy identification and response to alarms or notifications.
Superior Dust and Water Resistance: With an IP66/IP68 rating for dust and water resistance, the device provides maximum protection against dust and water intrusion, guaranteeing reliable performance in harsh conditions.
Durable Construction: The robust build of the device can endure drops of up to 1.5 meters, offering enhanced durability and longevity, even under intensive use.
EMC Tested: The device has successfully passed EMC anti-static interference tests, ensuring dependable performance in a variety of environments, both static and dynamic.
Ergonomic Design: The device features a comfortable, wear-resistant back clip that can be easily attached to clothing or belts, offering additional convenience and ease of use.
