| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX/IECEX/CE/EMC |
| Model Number: | SKY3000 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 100 pieces/day |
| Model Number:: | SKY3000 | Sensor Principle: | Electrochemical, Catalytic Combustion, PID |
|---|---|---|---|
| Measure Range: | Customized | Resolution: | Customized |
| Response Time: | ≤30 Seconds | Precision: | ≤±2%F.S Except For Special Gases |
| Working Hours: | More Than 15 Hours In Continuous Pumping Mode | Disaply: | Monochrome Graphics (160 X96) ,screen Can Be Automatically Flipped |
| Language: | Chinese/English/ Russian | Backlight: | The Backlight Time Can Be Manually Set, And Will Be Turned On Automatically When An Alarm Is Issued |
| High Light: | LPG Gas Detector For Mining,Honeywell Sensor LPG gas detector,4In1 Multi Gas Meter |
||
Air quality monitor honeywell sensor LPG gas detector for mining multi 4 in 1 gas meter
Product Profile
SKY3000 is an IECEX/ATEX/EMC certified portable multi gas detector with a rating of IP67. It is suction type with built-in pump and sensors used from world top brands, ensuring fast response and high accuracy. The standard data logging function to export data to PC and no need software.
It has optional function with wireless communication so user can access to real-time data and alarm status remotely.
Functions:
Specifications
| Gas Detected | Customerized | ||
| Detection principle | Customerized | ||
| Sampling Method | Pumping suction | ||
| Measure Range | Customerized | ||
| Resolution | Customerized | ||
| Precision | ≤±2%F.S except for special gases | ||
| Response Time | ≤30 seconds | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%F.S/year | Display | LCD dot matrix display |
| Operating language | Chinese/English | Gas unit | Units are switchable |
| Temperature | -20℃-50℃ | Humidity | 0-90%RH |
| Explosion-Proof | IECEx: Ex ia IIC T4 Ga ATEX: II 1G Ex ia IIC T4 Ga | Degree of protection | IP67 |
| Alarm mode | Sound, light, vibration | Environmental pressure | 86～106Kpa |
| Dimensions | 157*84.5*59.5mm | Weight | 365g |

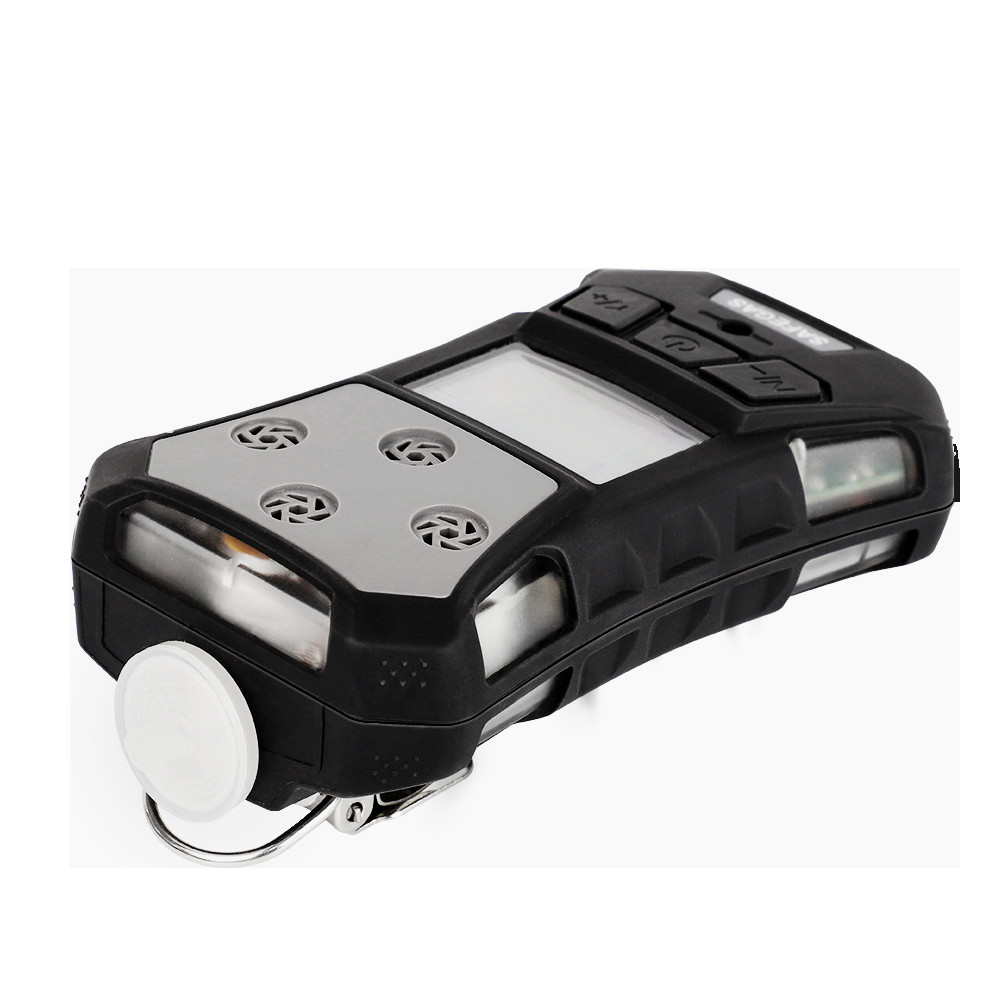

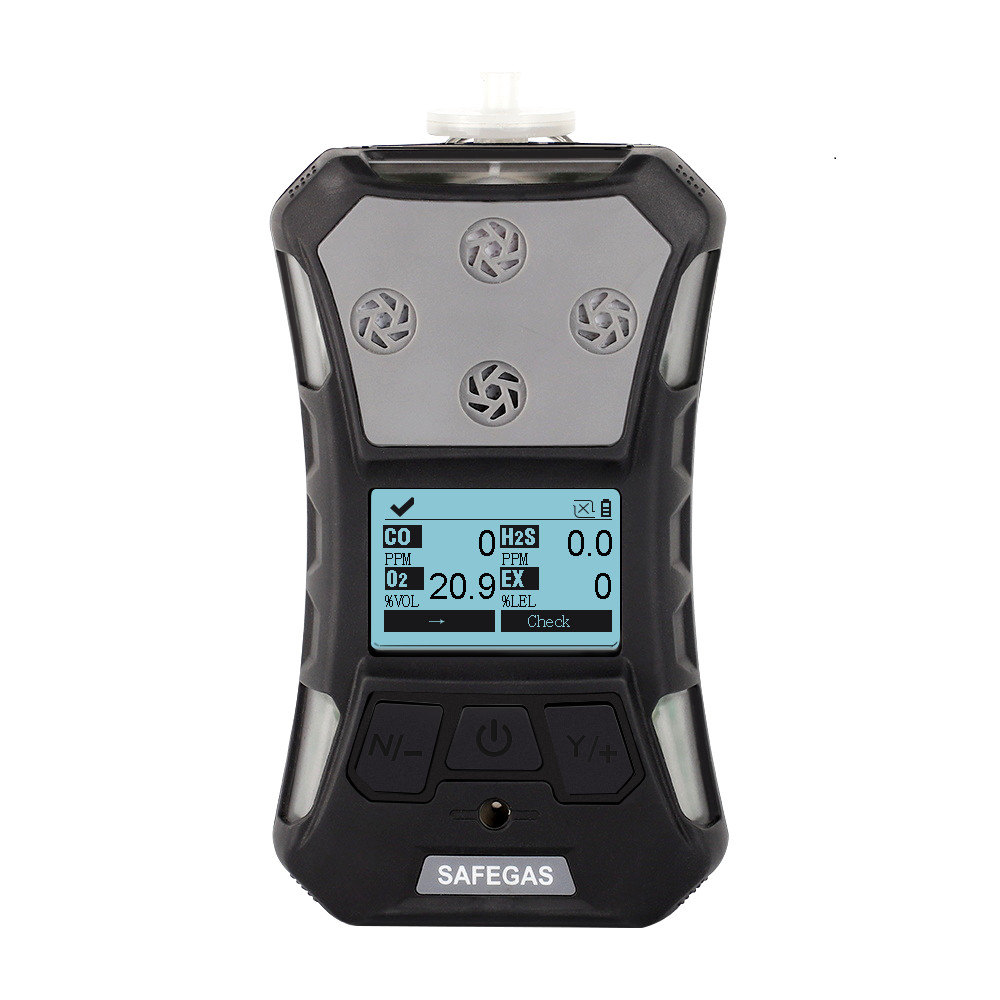

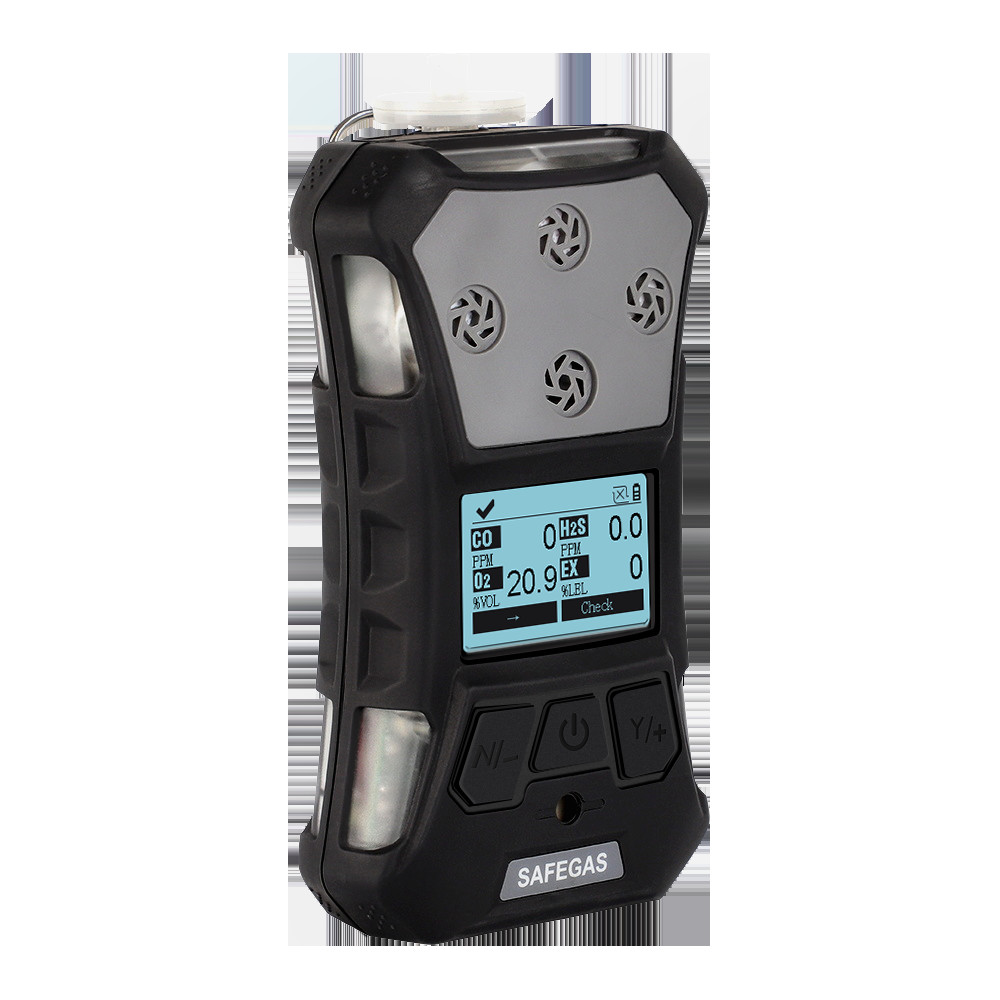

Product picture
Engineer wearing SKY3000 in the detecting site
Accessories & Configuration List
Standard Accessories
SKY3000
Aluminum suitcase
A charging adapter
User Manual
Qualification/Calibration certificate
Filter
Storage function(USB cable)
Optional Accessories
Probe
Tube
Bluetooth App
Application
Petrochemical & Chemcial Industry, Municipal Engineering & Utilities, Agricultral & Environmental Protection, Electronic, Food & Pharmaceutical Industry, Other Industries.
Used in coal mines, Used in sewers and underground areas, applied in Oil & Gas industries like Shell or Petros, applied in confined spaces like warehouse, ships, factories,ect.
More Application
Furniture, Floor, Wallpaper, Coating, Gardening, Interior Decoration and Renovation, Dyestuff, Papermaking, Pharmacy, Health Care, Foodstuff, Antiseptic.
Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw Material, Sample, Technological Process, Livestock Farm, Refuse Processing Plant, Perm Place.
Bio-pharmaceutical Plant, Green Household, Livestock Breeding, Green House Cultivating, Warehouse Logistics, Brewing And Fermentation, Agricultural Production.
