Name: Micmeta Honeywell Sensor 4 In 1 Multi Gas Detector IECEX ATEX CE Certificated
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: Micmeta
Price: 2,137.00 USD
Availability: InStock

Detail Information

Model Number:	Micmeta	Sampling Method:	Diffusion
Testing Principle:	PID, Catalytic Combustion, Electrochemistry	Measure Range:	Customized
Resolution:	Customized	Alarm Type:	Sound, Light, Vibration
Color:	Red And Black	Size:	1136032
Net Weight:	200g
Highlight:	Honeywell Sensor Multi Gas Detector , Multi Gas Detector IECEX Certificated

Product Description

Micmeta Honeywell sensor multi 4 in 1 gas detector IECEX ATEX CE certificated

Product overview

MicMeta is an IECEx/ATEX/EMC certificated multi gas detector with a rating of IP68. With explosion proof grade Ex ia I Ma, Ex ia IIC T4, MicMeta can be used in coal mines. It’s light weight, small size and with 2 buttons for easy use. The standard gas type is multi 4 (CO H2S O2 LEL) gases and also support hundreds of gases for optional customization. It’s with wirelessfunction so user can access todata remotely. With standard data logger, real time data and alarm events can be export to PC directly.

Product Advantages

IP66/IP68 water & dust resistant and 1.5 meters drop resistant case, rugged and durable designs
Compact, lightweight, small size with back clip, ergonomic and wearable design
Standard man down alarm, password protection, ID identification function
Real time value, TWA, STEL, MAX, MIN multiple numerical display
With self-test function, which can improve safety by automatic self-test
One press to restore factory settings
Support firmware upgrade remotely
With docking station to perform daily bump test and calibration (Optional)
Wireless data transmission including Lora, Bluetooth (Optional)
With rechargeable lithium polymer battery, extended 24hour battery runtime
Support PPM and mg/m3 gas unit switch by one key

Product specification

Sampling method	Diffusion
Gas type	Customized
Measure range	Customized
Resolution	Customized
Response time	≤60S (T90)
Precision	≤±5%FS or ±10% (depends on the specific sensor
Language	Chinese/English
Automatically test and calibrate after power-on	Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit	PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system
Disaply	Segment code LCD display
Calibration platform	Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional)
Data record	1000 sets data records and 100 sets events records
Alarm	95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable.
Battery	3.7V rechargeable lithium battery, battery capacity 2300mA
Working hours	Standby time 18h, charging time <6h
Wireless transmission	Bluetooth transmission function (optional), Lora transmission function (optional)
Explosion-proof grade	CNEX:Ex ia IIC T4 Ga
(EU regulations)	2004/108/EC(EMC), 94/9/EC(ATEX), CE
Protection grade	IP66/IP68
Working temperature	-20°C~55°C
Humidity	0-95%RH (non-condensing)
Environmental pressure	86～106Kpa
Size	1136032mm (length * width * height)
Weight	200g (with lithium battery)

Compact and Lightweight: This sturdy and long-lasting device is designed for optimal portability and convenience, making it effortless to carry and operate.

User-Friendly Operation: The device boasts an ergonomic design with a simple two-button interface for easy operation.

Bright Visual Alarm: A broad-angle visual alarm LED display ensures excellent visibility, enabling easy identification and response to alarms or notifications.

Superior Dust and Water Resistance: With an IP66/IP68 rating for dust and water resistance, the device provides maximum protection against dust and water intrusion, guaranteeing reliable performance in harsh conditions.

Durable Construction: The robust build of the device can endure drops of up to 1.5 meters, offering enhanced durability and longevity, even under intensive use.

EMC Tested: The device has successfully passed EMC anti-static interference tests, ensuring dependable performance in a variety of environments, both static and dynamic.

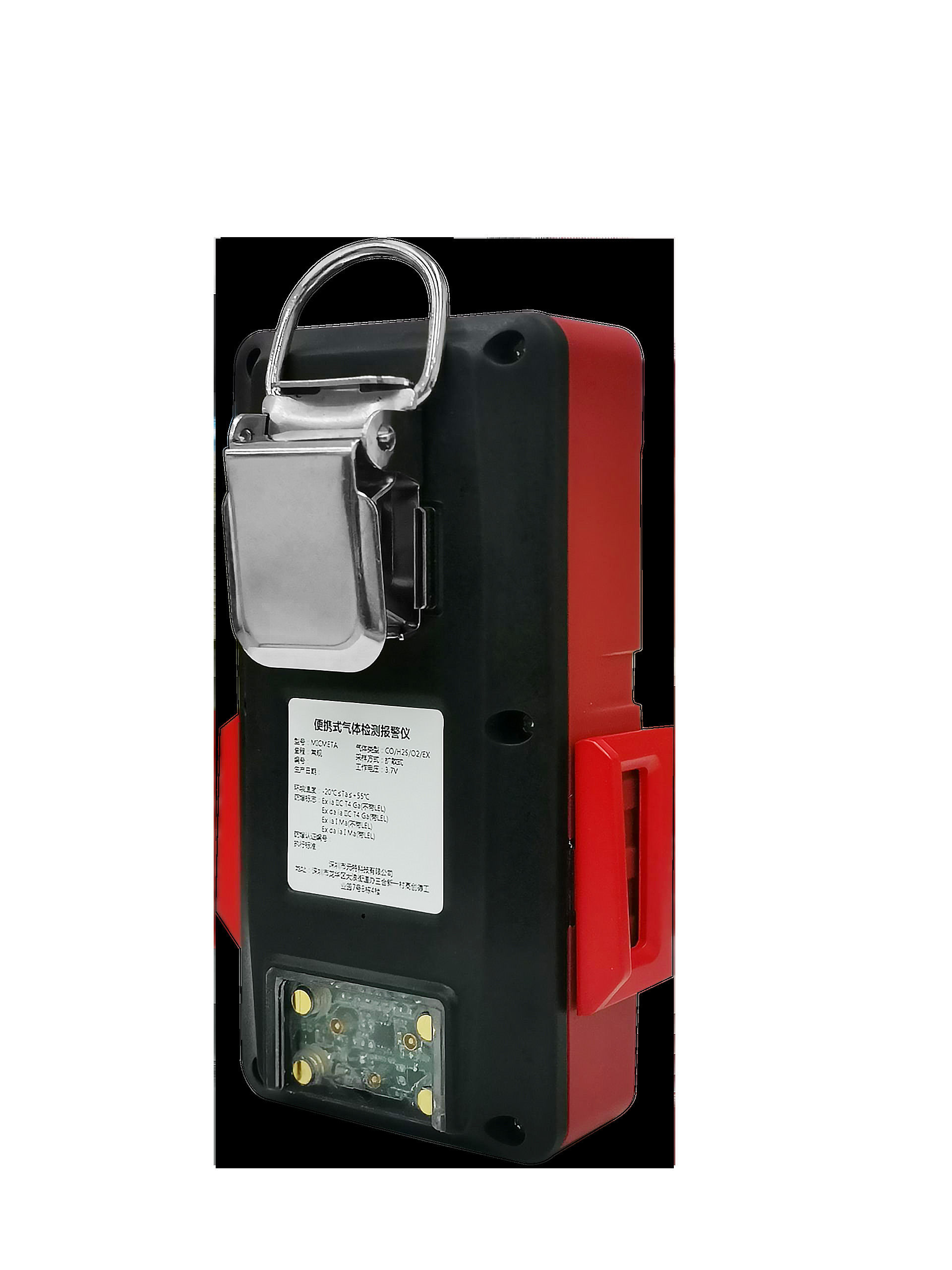

Ergonomic Design: The device features a comfortable, wear-resistant back clip that can be easily attached to clothing or belts, offering additional convenience and ease of use.

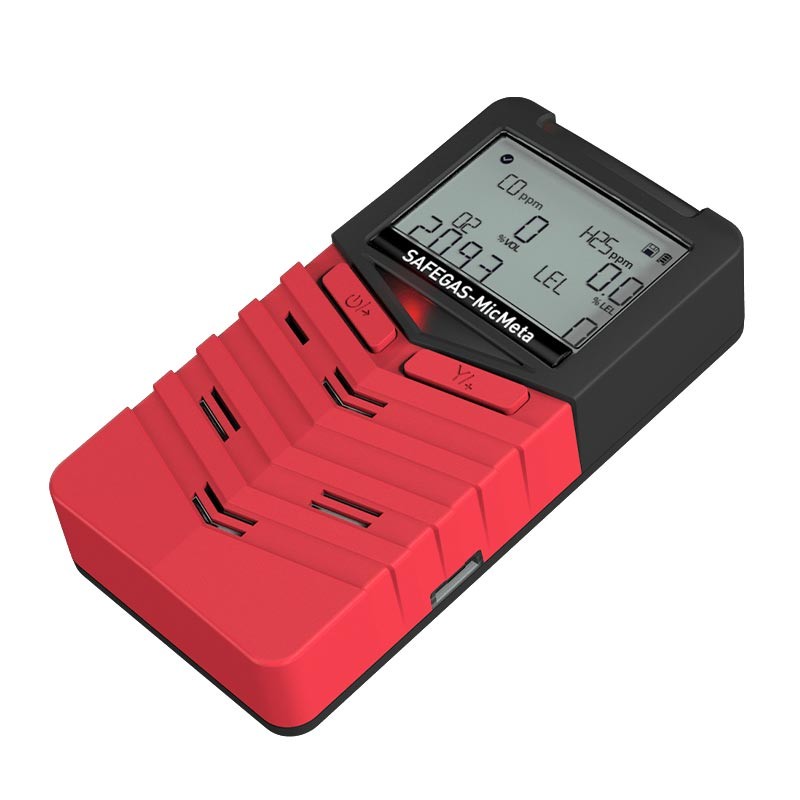

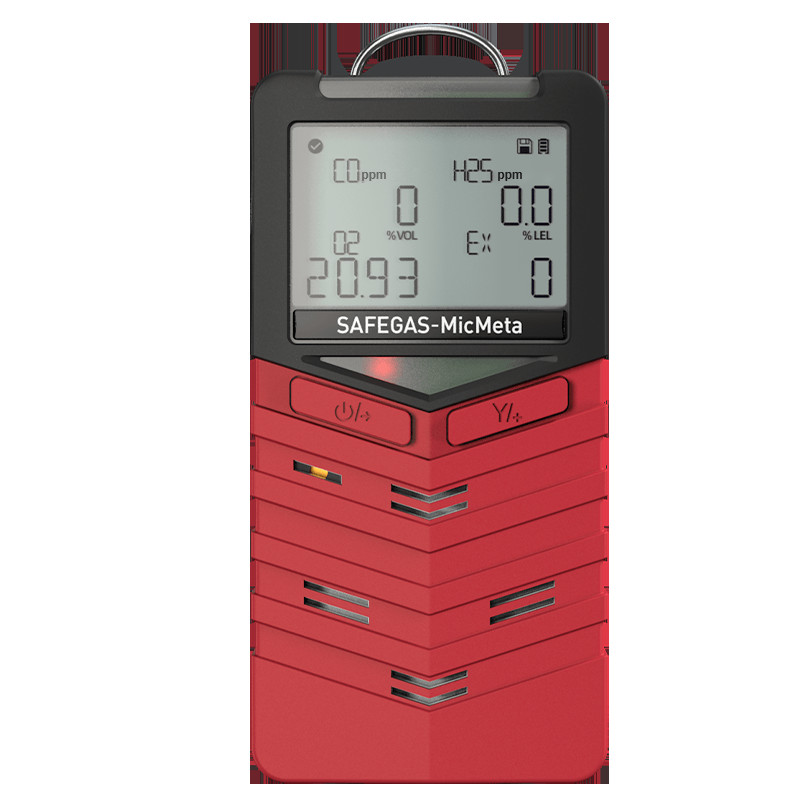

Product picture

Product Application

Oil,

Chemical,

Medicine,

Energy,

Environmental Protection,

Electronic,

Municipal Engineering,

Agriculture and Forestry,

Household Appliances,

Tag:

Place of Origin:	Shenzhen, China
Brand Name:	Safegas
Certification:	ATEX，CE，IECEX, EMC
Model Number:	Micmeta

Minimum Order Quantity:	1 Pc
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	3-5 working days
Payment Terms:	Western Union, T/T,Credit card
Supply Ability:	100 pieces/week
