Model Number: | SKY3000 | Sensor Principle: | Electrochemistry |
---|---|---|---|
Measure Range: | 0-1ppm, 0-10ppm | Resolution: | 1ppm, 0.1ppm, 0.01ppm, 0.001ppm. |
Response Time: | ≤30 Seconds (T90) | Precision: | ≤±2%F.S |
Working Hours: | More Than 15 Hours In Pumping Mode Continuously | Disaply: | LCD (160 X96) ,180° Rotate |
Language: | Chinese, English, Russian | Backlight: | Turned On Automatically When Alarming, The Backlight Time Can Be Manually Set |
Highlight: | Safety Protection Phosgene COCL2 Gas Detector,COCL2 Gas Detector Preventing Poisoning |

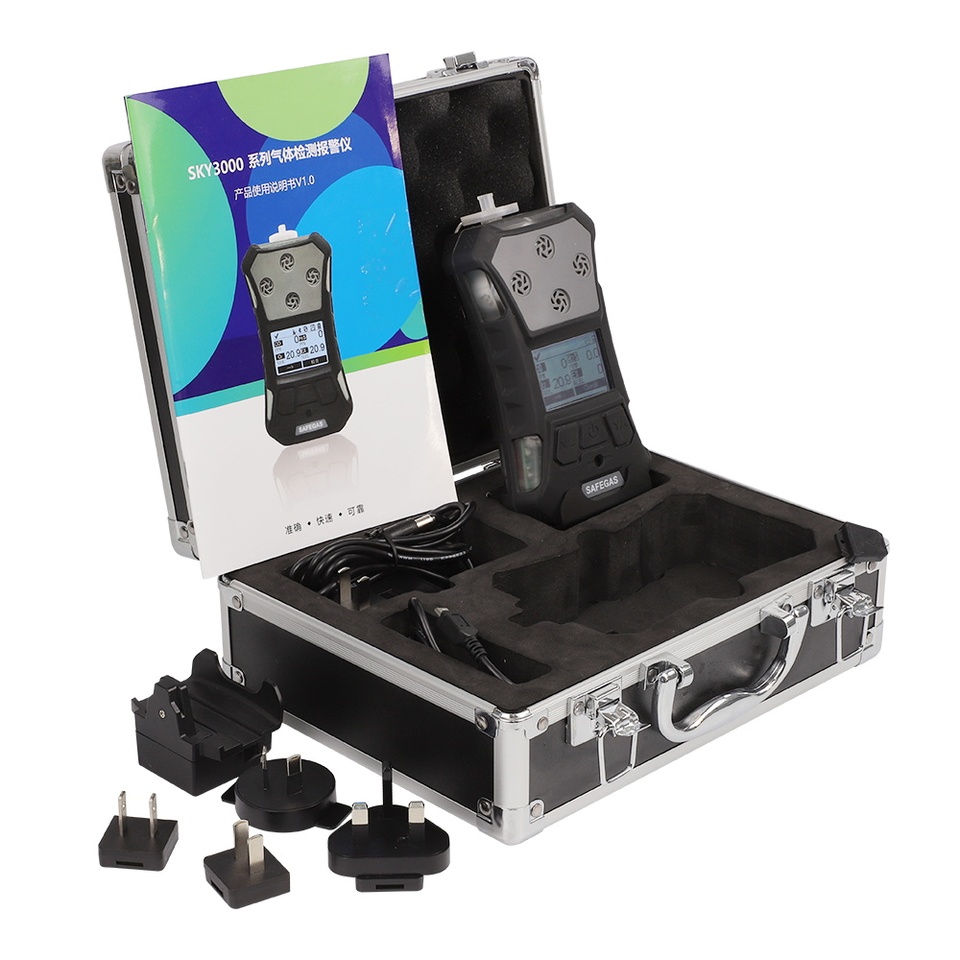

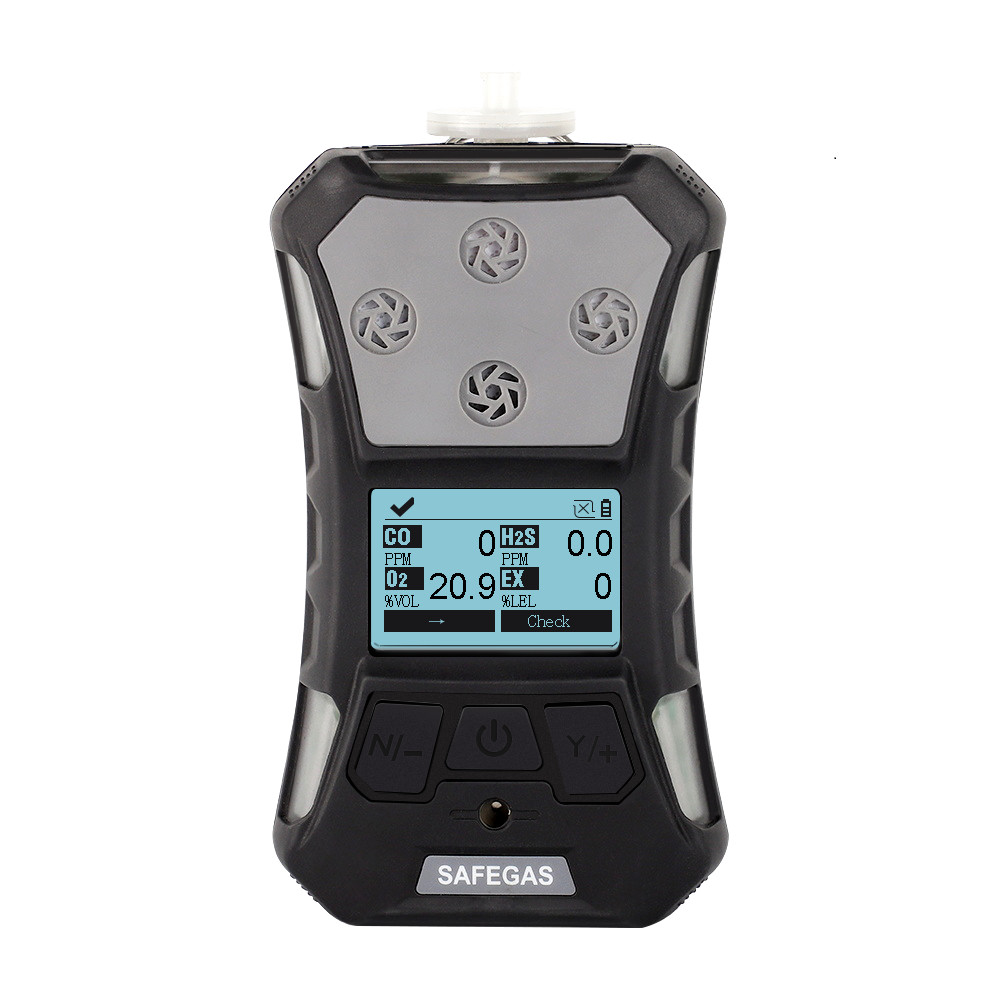

Safety Protection Phosgene COCL2 Gas Detector for Preventing Poisoning
Company profile
Established in 2010, YuanTe Technology, a high-tech enterprise based in Shenzhen, is committed to the research, development, manufacturing, and servicing of a diverse range of products. Our corporate mission, “to identify all harmful elements and safeguard the joy of life,” is a principle we hold dear. In response to national standards and market needs, we have successfully developed numerous top-tier gas detectors, alarms, and other related equipment.
Specifications
Gas Detected | Phosgene COCL2 | ||
Detection principle | Electrochemistry | ||
Sampling Method | Pumping suction | ||
Measure Range | Customized | ||
Resolution | Customized | ||
Precision | ≤±2%F.S except for special gases | ||
Response Time | ≤30 seconds | Recovery Time | ≤10S |
Repeatability | ≤±1% | Linearity error | ≤±1% |
Zero shift | ≤±1%F.S/year | Display | LCD dot matrix display |
Operating language | Chinese/English | Gas unit | Units are switchable |
Temperature | -20℃-50℃ | Humidity | 0-90%RH |
Explosion-Proof | IECEx: Ex ia IIC T4 Ga ATEX: II 1G Ex ia IIC T4 Ga | Degree of protection | IP67 |
Alarm mode | Sound, light, vibration | Environmental pressure | 86~106Kpa |
Dimensions | 157*84.5*59.5mm | Weight | 365g |
