| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Safegas |
| Certification: | IECEX, EMC, ATEX ，CE |
| Model Number: | Micmeta-BCL3 |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 1-3 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 1000 pieces/month |
| Model Number: | Micmeta-BCL3 | Sampling Mode: | Diffusion |
|---|---|---|---|
| Sampling Principle: | Electrochemistry | Measuring Range: | Customized |
| Resolution: | Customized | Alarm Type: | Sound, Vibration, Light |
| Color: | RED & BLACK | Instrument Size: | 113*60*32mm (L*H*W) |
| Weight: | 200g (with Battery) | ||
| High Light: | Personal Boron Trichloride BCL3 Gas Monitor,IP68 BCL3 Gas Monitor,BCL3 Gas Monitor Industrial Detection |
||
Diffusion IP68 Personal Boron Trichloride BCL3 Gas Monitor for Industrial Detection
Product overview
MicMeta is a multi-gas detector that holds certifications from IECEx, ATEX, and EMC, and carries an IP68 rating. It has an explosion-proof rating of Ex ia I Ma and Ex ia IIC T4, making it apt for use in coal mines. Its design is compact and lightweight, featuring two user-friendly buttons. The device can detect standard gases such as CO, H2S, O2, and LEL, and also supports customization for hundreds of other gases. It provides wireless functionality for accessing data remotely, and its built-in data logger enables the direct export of real-time data and alarm events to a PC.
Product specification
| Sampling method | Diffusion |
| Gas type | BCL3 |
| Measure range | Customized |
| Resolution | Customized |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Disaply | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |

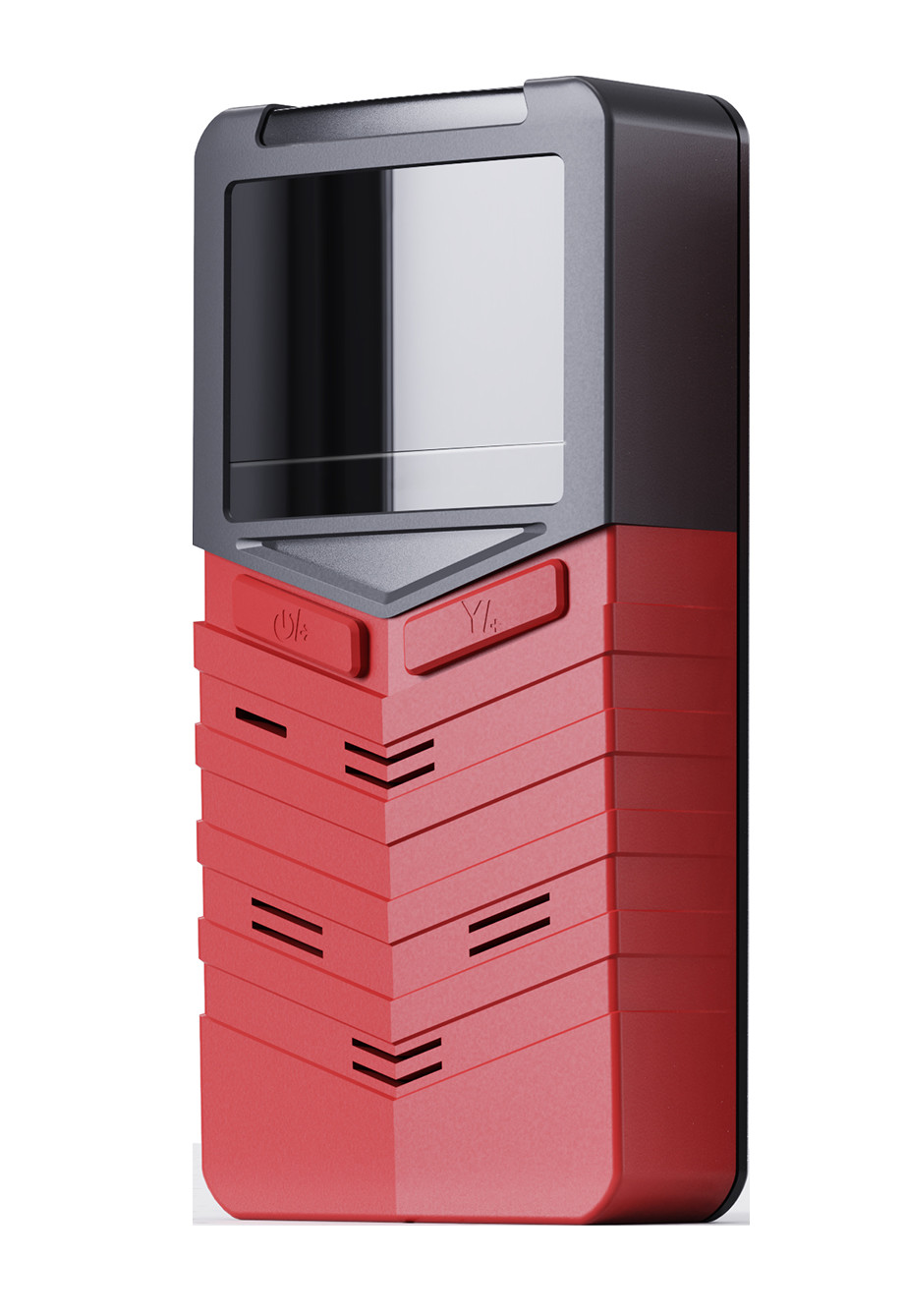

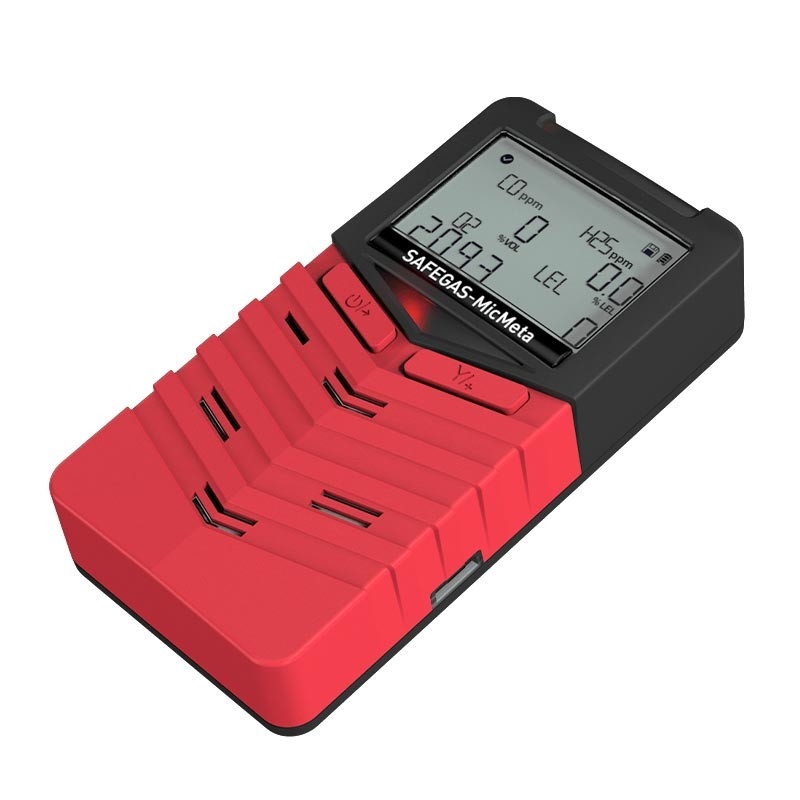

Product picture
Product advantages
Product application
Industrial Safety
Environmental Monitoring
Healthcare Applications
Automotive Industry
Mining and Mining Operations
Food and Beverage Production
Chemical Industry
Greenhouse Gas Monitoring
Oil and Gas Exploration
Wastewater Treatment
etc.
