| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX, IECEX, CE, SIL |
| Model Number: | SG100 |
| Minimum Order Quantity: | 1 Pcs |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase Packing |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 100 pieces/day |
| Product Model: | SG100-CH4O | Range: | 0-100%LEL |
|---|---|---|---|
| Resolution: | 1%LEL | Sampling: | Diffusion Mode |
| Testing Principle: | According To Gas Types | Instrument Color: | Black |
| Remote: | Infrared Remote Control/ Magnetic Bar | Net Weight: | 1kg |
| Size: | 157.8*128.8*69.6 Mm (L*H*W) | Signal Transmission: | RS485, 4-20mA, And Relay |
| High Light: | 316 Stainless Multi Gas Detector,Multi Gas Detector For Toxic Gases |
||
Fixed CH4O Methanol Gas Detector to Prevent Explosion with 0-100%LEL Range
Product Overview
The SG100 gas detector is an intelligent and hot-swappable device that ensures seamless maintenance post-installation. It offers continuous monitoring of toxic gases, oxygen, and combustible gases. The device holds IECEx and ATEX certifications, indicating an explosion-proof level of Ex db IIC t6gb/Ex db IIC t6gb/Ex da db IIC t6gb. It is equipped with a 3-wire 4 to 20 mA analog output relay and supports HART and RS485 Modbus protocols, making it compatible with most control systems. Its magnetic rod design simplifies menu navigation in explosive environments.
Why Choose Us?

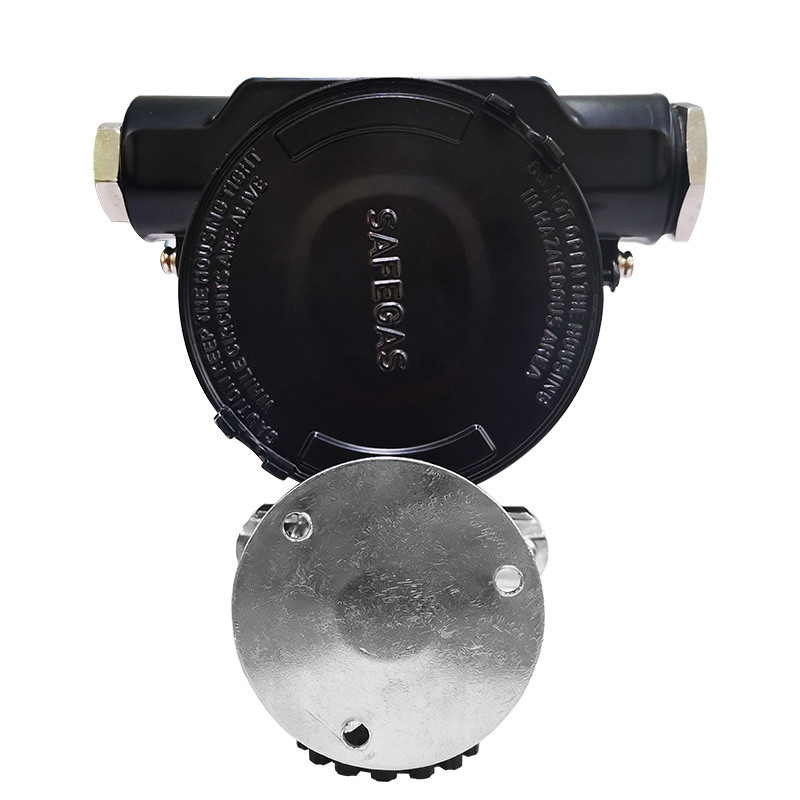

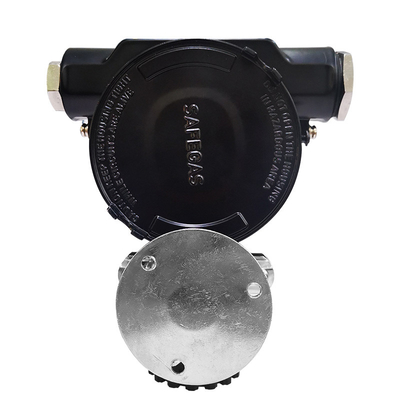

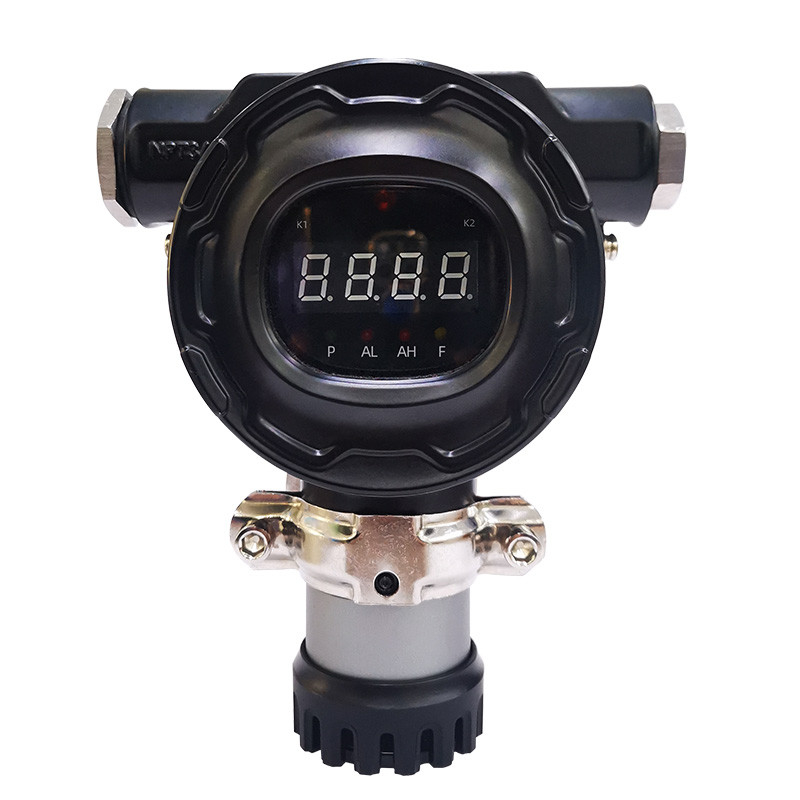

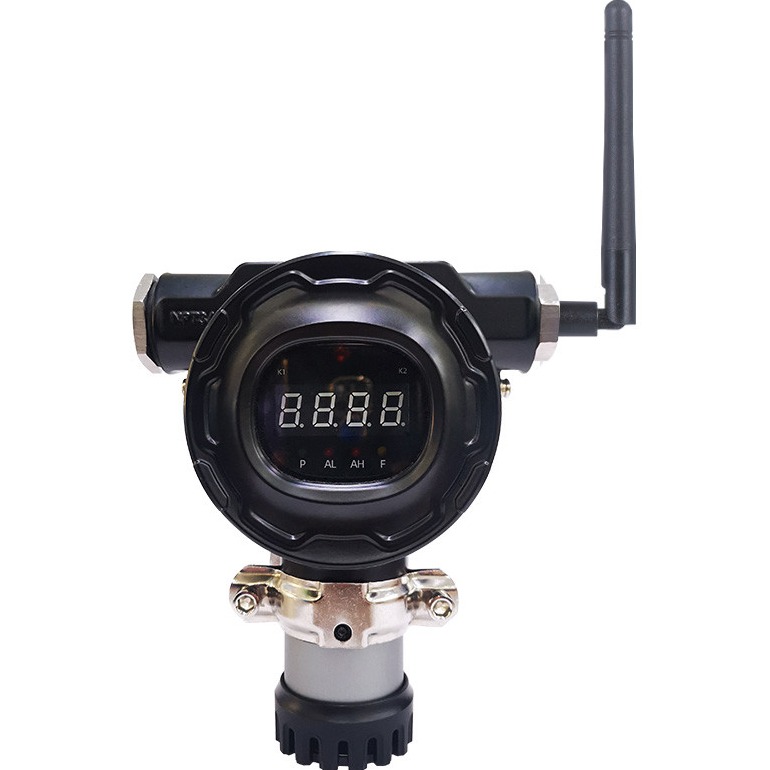

Picture details
Specification
| Detected Gas | CH4O/Methanol |
| Measure Range | 0-100%LEL |
| Install Method | Wall-mounted |
| Output signal | 4-20mA, 1-5V, 2-10V, RS485, RS232, relays, HART (optional) |
| Precision | ≤±1%F.S. (to be specialized) |
| Zero shift | ≤±1%(F.S./year) |
| Display | 4 digits Nixie tube display. |
| Connection mode | G3/4 external thread explosion-proof flexible pipe |
| Thread Size | Standard M20*1.5, 3/4NPT |
| Temperature | –20℃～50℃ (electrochemistry principle), –40℃～70℃ (catalytic combustion principle) |
| Humidity | 10-95%RH (non-condensing) |
| Explosion-Proof | Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb |
| Degree of protection | IP66/IP67 |
| Material | Sensor housing: aluminum alloy or 316 stainless steel |
| Power | 12-24V DC |
| Dimensions | 158×129×70mm |
| Weight | ≤1kg |
| Approval | CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX |
| Warranty | 12 months |
