Fixed 6 In 1 Gas Leak Detector IP66 With Pump Diffusion Sampling

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX,CE,IECEX
Minimum Order Quantity: 1 piece
Price: Negotiable
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, Credit Card
Supply Ability: 100 pieces/week
Detail Information
Model Number: YT-98H-A/D Detected Gas: To Be Specified
Sensor Principle: Electrochemical, Catalytic Combustion, Infrared, Etc Measure Range: To Be Specified
Resolution: To Be Specified Install Method: Wall-mounted
Power Supply: 12-24V DC Net Weight: 3.4 KG
Product Size: 286*202*96mm Warranty: 12 Month
High Light:

Gas Leak Detector IP66

,

Gas Leak Detector With Pump Diffusion


Product Description

Wall Mounted 6 In 1 Gas Leak Detector IP66 With Pump/Diffusion Sampling​



Fixed 6 In 1 Gas Leak Detector IP66 With Pump/Diffusion Sampling

Product overview



The YT-98H-A/D, part of the YT-98H-D/YT-98H-D-A series, is a fixed gas detector capable of detecting 1-6 types of gases simultaneously and continuously. It holds IECEx and ATEX certifications and features a non-contact magnetic wand design, making it suitable for installation and operation in hazardous areas. The detector supports 3-wire 4-20mA, HART, RS485 Modbus relay output, ensuring compatibility with most control systems. Additionally, it offers optional wireless data transmission, allowing users to view real-time data remotely on devices such as laptops and mobile phones.

Product advantage

  1. The device can simultaneously detect up to 6 different types of gases. This feature is particularly useful in complex and multi-gas environments, reducing the need for multiple installations and saving both time and effort.
  2. It features a 2.4-inch industrial-grade high-definition color screen with a resolution of 320*240 and a wide viewing angle of 120 degrees.
  3. Equipped with a wireless module, the device can upload data to the cloud platform, environmental protection bureaus, or other platforms. It also provides an SMS reminder function. The transmission signal is not limited by distance, allowing real-time viewing on mobile phones and computers. (This feature is optional)
  4. The device comes with a full software automatic verification function and zero calibration function, ensuring more accurate and reliable gas monitoring.
  5. It outputs a standard 4-20mA current signal, RS485 modbus signal, and one set of relay signal.
  6. It includes a standard infrared remote control, which can be used to remotely control the detector and modify its settings.
  7. The device features a sound and light alarm function, which triggers an alarm when the alarm point is reached. (This feature is optional)

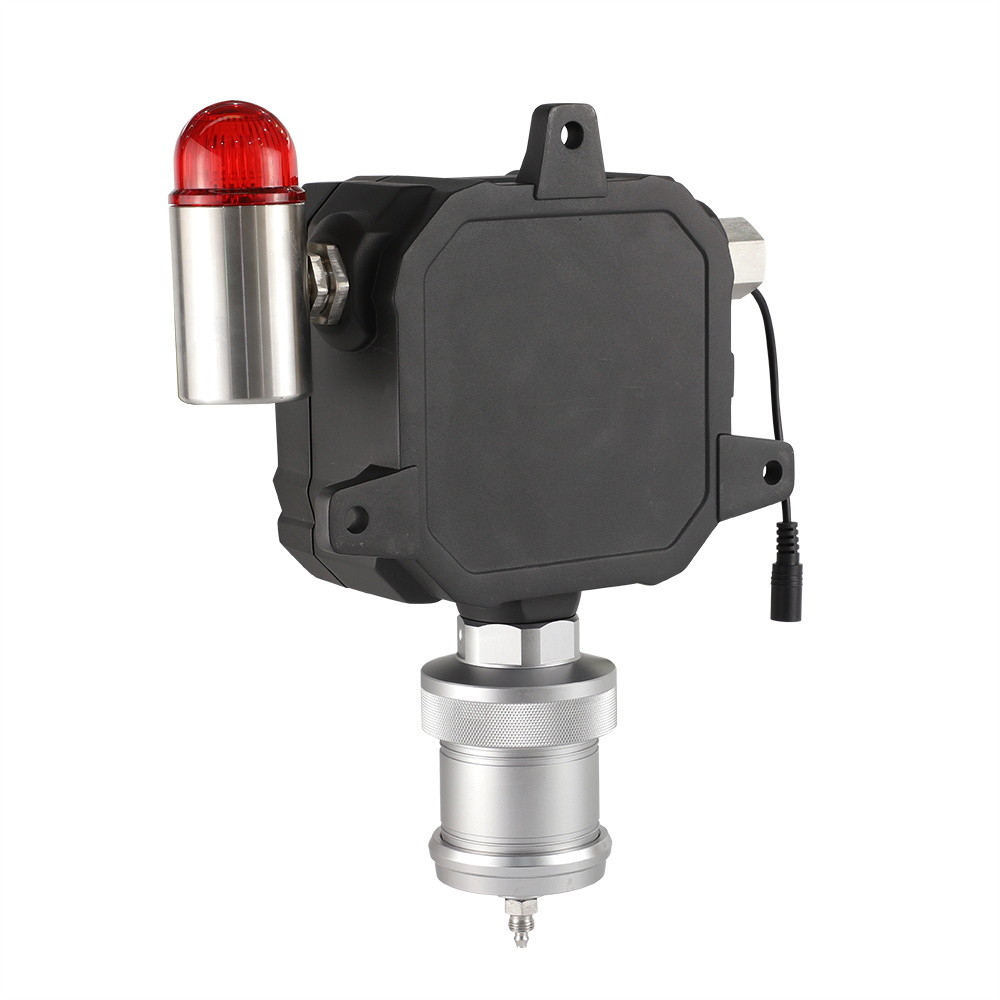

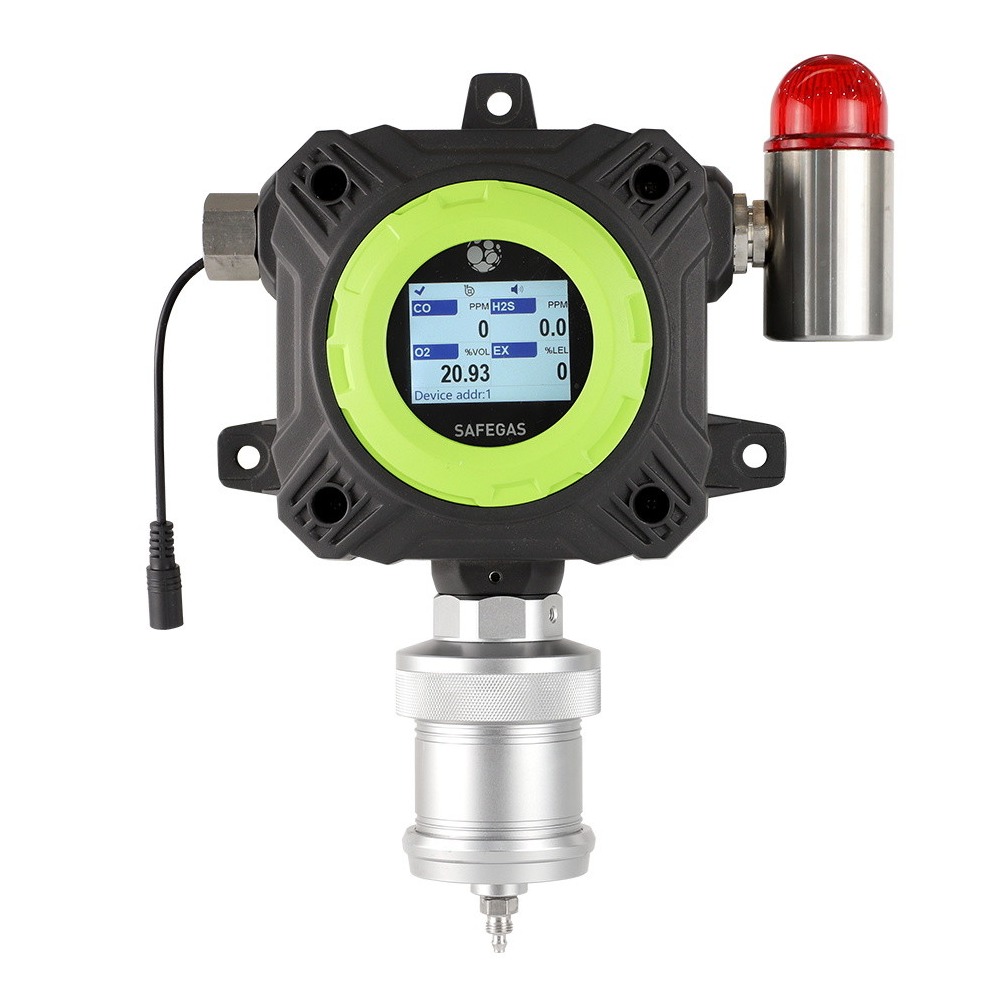

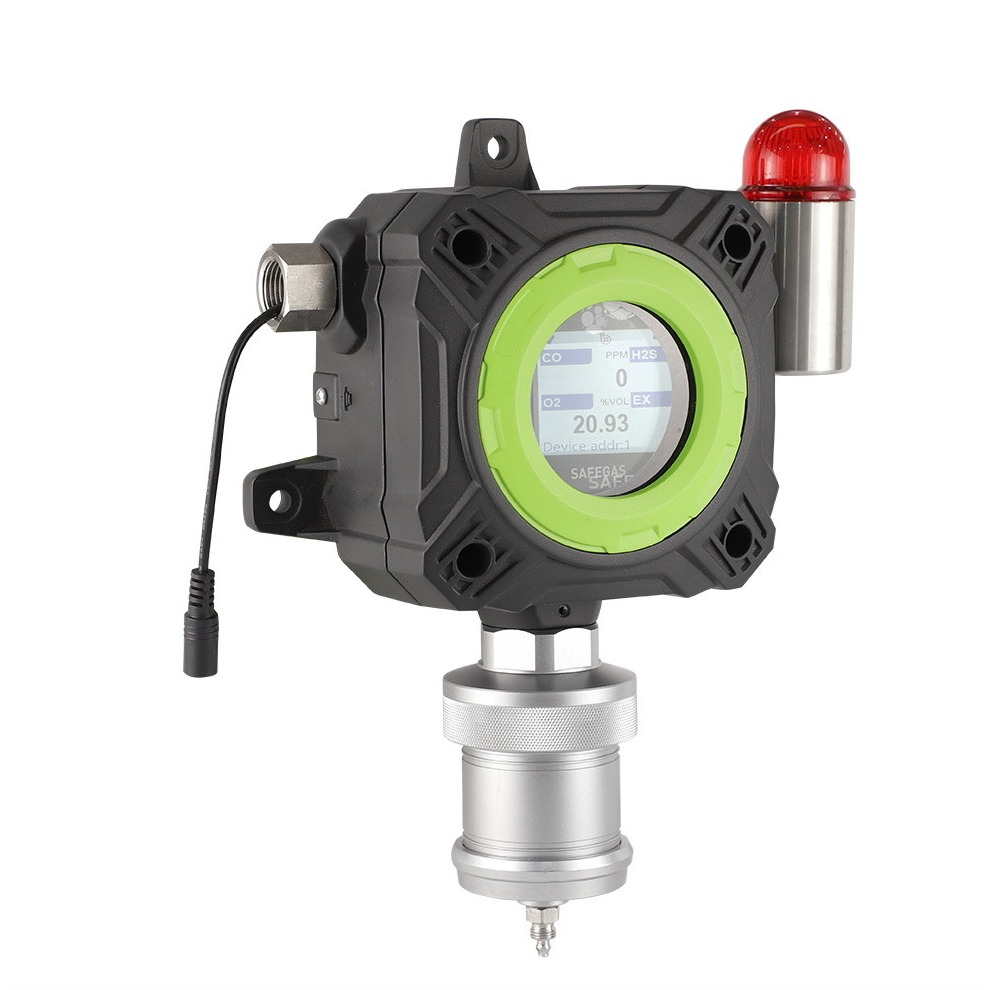

Product picture

Fixed 6 In 1 Gas Leak Detector IP66 With Pump Diffusion Sampling 0Fixed 6 In 1 Gas Leak Detector IP66 With Pump Diffusion Sampling 1

Specification



Gas detected To be specified
Detection principle Electrochemical, Catalytic combustion, Infrared, PID etc
Install method Wall-mounte (according to the detected environment)
Measure range To be specified
Resolution To be specified
Precision ± 2-5% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display
2.4 inch color display, resolution 320*240
Wireless output (optional):
Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)
Unit ppm, mg/m³, %vol
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof Ex db ⅡCT6 G6 Degree of protection IP66
Alarm Sound, light
Language:
Chinese / English
Dimensions
286*202*96mm
Weight 3.4kg



Our advantage



  1. We guarantee a response to all inquiries within a 24-hour timeframe.
  2. We offer OEM services for expedited delivery. The goods can be dispatched within a span of 3 days.
  3. We provide a one-year warranty and lifelong maintenance for all our customers.
  4. Our team will offer technical support, with our engineers ready to assist in resolving any issues you may encounter.
  5. All products undergo a thorough inspection for packaging and are issued a certificate of conformity prior to shipment.
  6. As a manufacturer with our own factory, we have specialized in gas detection for approximately 16 years. We warmly welcome you to visit our factory.
  7. All our sensors are imported from Europe, featuring first-class brand sensors known for their rapid response speed and high accuracy.



Note

  • Payment Terms: We accept a variety of payment methods including Visa, MasterCard, electronic checks, wire transfers, Western Union remittances, and Alipay.
  • Shipping Method: The detector can be shipped via various carriers such as DHL, FEDEX, UPS, TNT, or by air freight.
  • Packaging: The product is securely packed in aluminum luggage and cardboard boxes to ensure its safety during transit.
  • Certifications: We hold several certifications including ATEX, IECEX, CE, ISO, CNEX explosion-proof, and CMC. If you require any additional certifications, we are more than willing to assist you.
