| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX, IECEX, CE, SIL |
| Model Number: | SG100 |
| Minimum Order Quantity: | 1 Pcs |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase Packing |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 100 pieces/day |
| Product Model: | SG100-B2H6 | Range: | 0-10ppm, 0-50ppm (To Be Specified) |
|---|---|---|---|
| Resolution: | 0.01ppm (To Be Specified) | Sampling: | Diffusion Mode |
| Testing Principle: | Electrochemistry | Instrument Color: | Black |
| Remote: | Infrared Remote Control/ Magnetic Bar | Net Weight: | 1kg |
| Size: | 157.8*128.8*69.6 Mm (L*H*W) | Signal Transmission: | RS485, 4-20mA, And Relay |
| High Light: | B2H6 Diborane Gas Detector,Wall Mounted Diborane Gas Detector,10ppm Toxic Gas Detector |
||
Wall-Mounted B2H6 Diborane Gas Detector in Electronics Industry with 0-10ppm Range
Product Overview
The SG100 gas detector, an intelligent and hot-swappable device, ensures seamless maintenance post-installation, continuously monitoring toxic gases, oxygen, and combustible gases. Certified by IECEx and ATEX, it boasts an explosion-proof rating of Ex db IIC t6 gb/Ex db IIC t6 gb/Ex da db IIC t6 gb. The detector comes equipped with a 3-wire 4 to 20 mA analog output relay, supporting both HART and RS485 Modbus protocols for compatibility with the majority of control systems. Additionally, its magnetic rod design facilitates menu navigation in explosive environments, adding to its versatility and user-friendliness.
Why Choose Us?

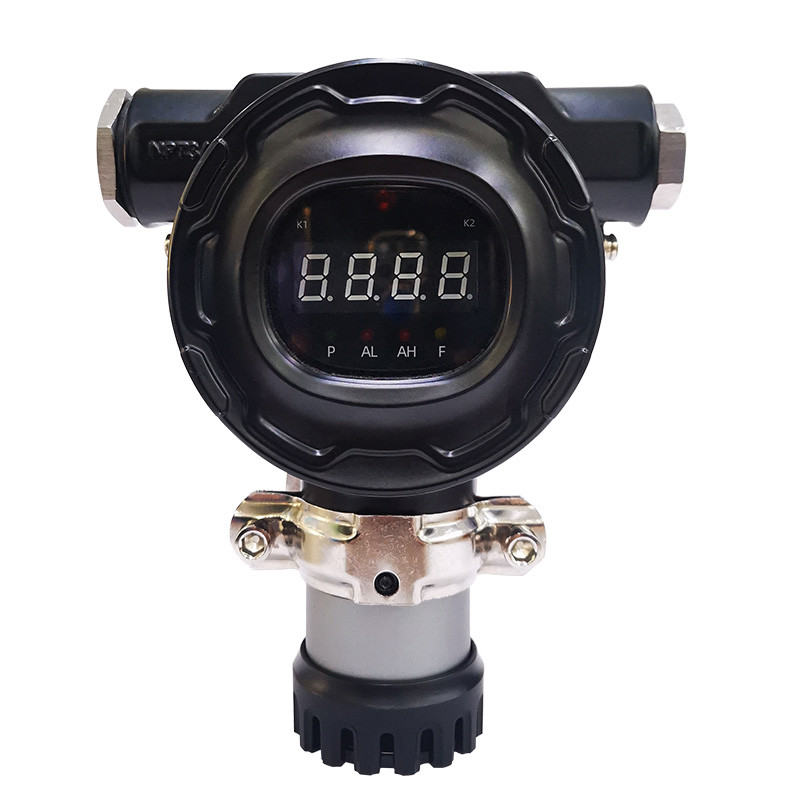

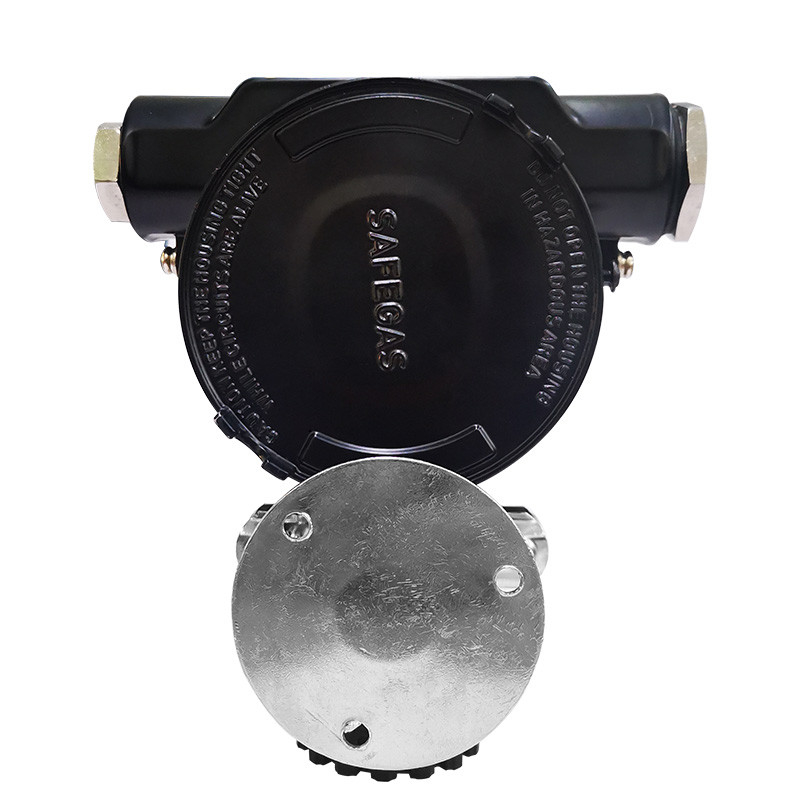

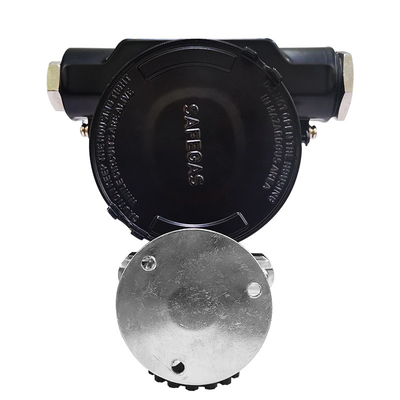

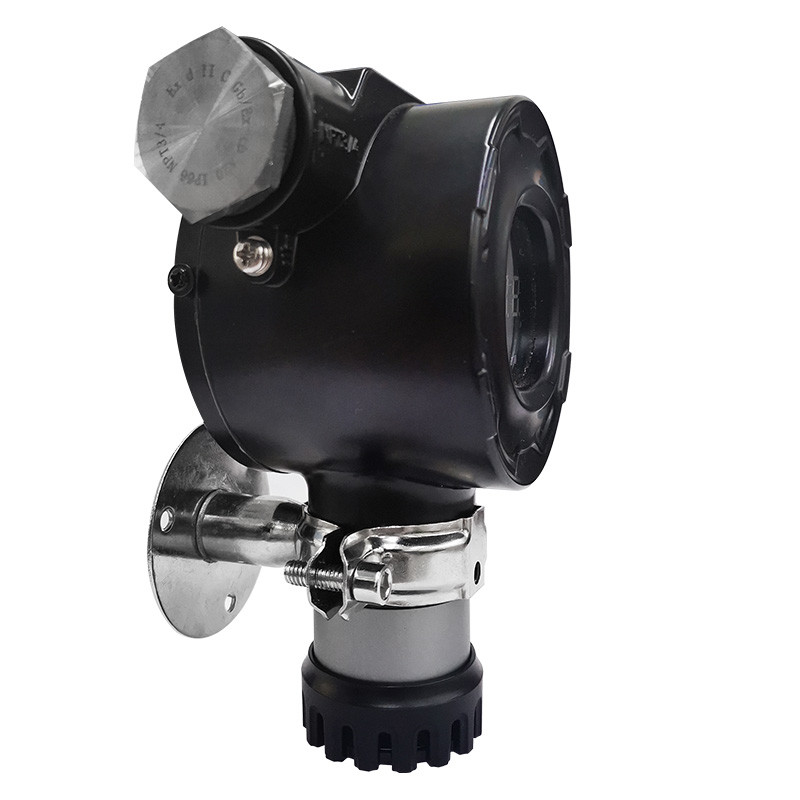

Picture details
Specification
| Detected Gas | B2H6 /Diborane |
| Measure Range | 0-10ppm (To be specified) |
| Install Method | Wall-mounted |
| Output signal | 4-20mA, 1-5V, 2-10V, RS485, RS232, relays, HART (optional) |
| Precision | ≤±1%F.S. (to be specialized) |
| Zero shift | ≤±1%(F.S./year) |
| Display | 4 digits Nixie tube display. |
| Connection mode | G3/4 external thread explosion-proof flexible pipe |
| Thread Size | Standard M20*1.5, 3/4NPT |
| Temperature | –20℃～50℃ (electrochemistry principle), –40℃～70℃ (catalytic combustion principle) |
| Humidity | 0-95%RH (non-condensing) |
| Explosion-Proof | Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb |
| Degree of protection | IP66/IP67 |
| Material | Sensor housing: aluminum alloy or 316 stainless steel |
| Power | 12-24V DC |
| Dimensions | 158×129×70mm |
| Weight | ≤1kg |
| Approval | CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX |
| Warranty | 12 months |
