Model Number: | YT-98H-A/D | Detected Gas: | VOC |
---|---|---|---|
Sensor Principle: | PID | Measure Range: | To Be Specified |
Resolution: | To Be Specified | Install Method: | Wall-mounted |
Power Supply: | 12-24V DC | Net Weight: | 3.4 KG |
Product Size: | 286*202*96mm | Warranty: | 12 Month |
Highlight: | Furniture VOC Gas Detector,PID Testing VOC Gas Detector,Wall Mounted Pid Voc Detector |

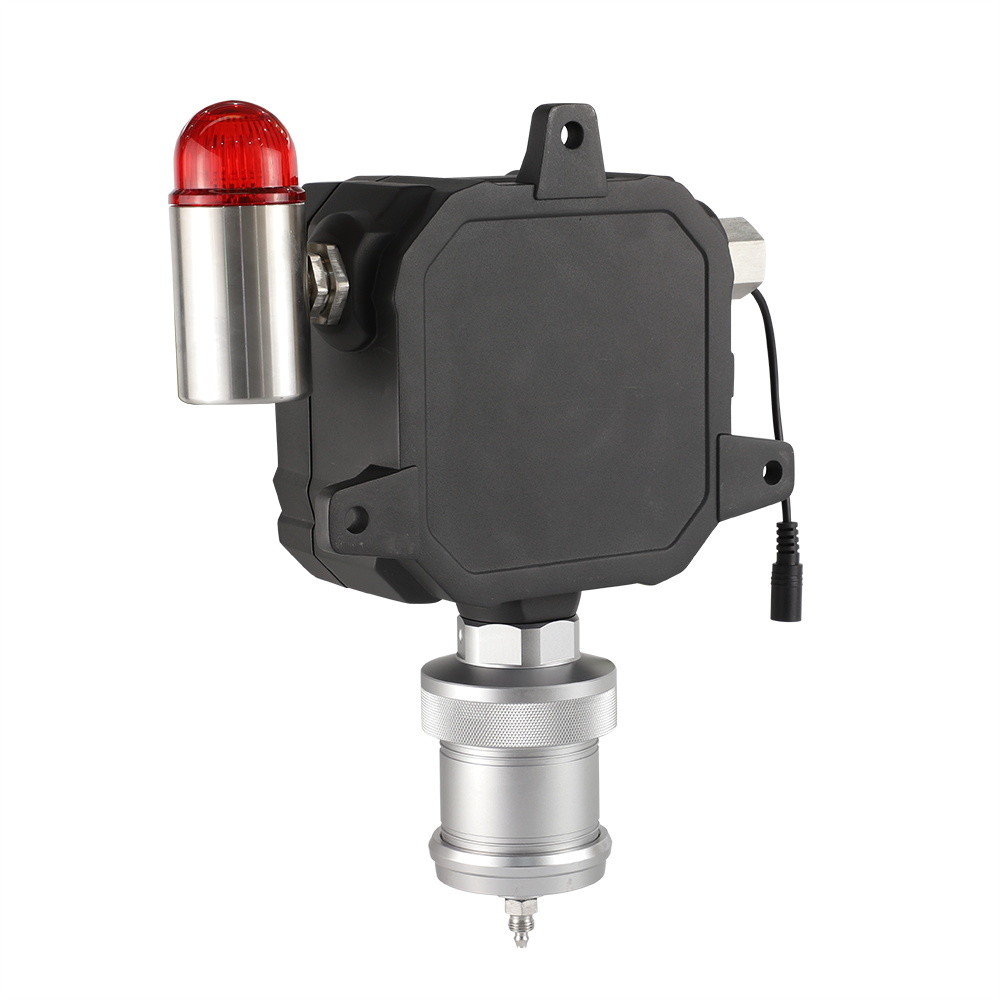

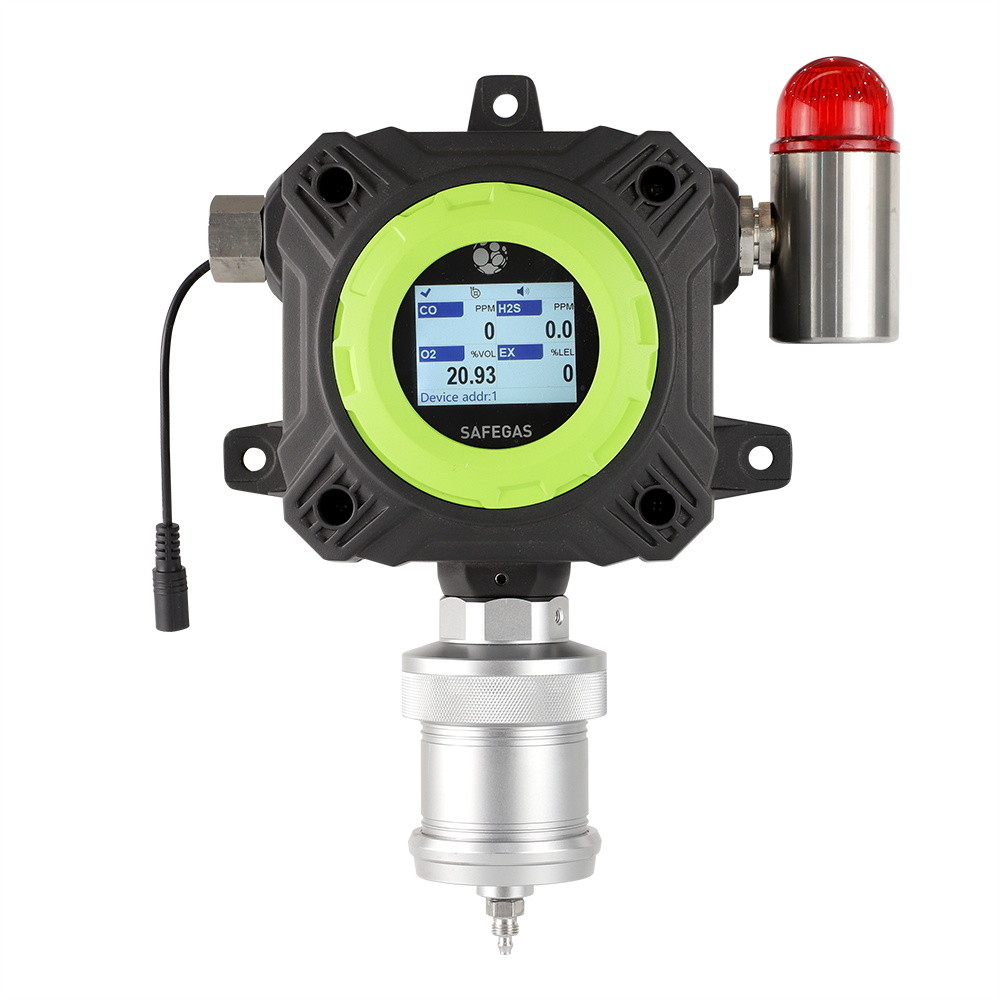

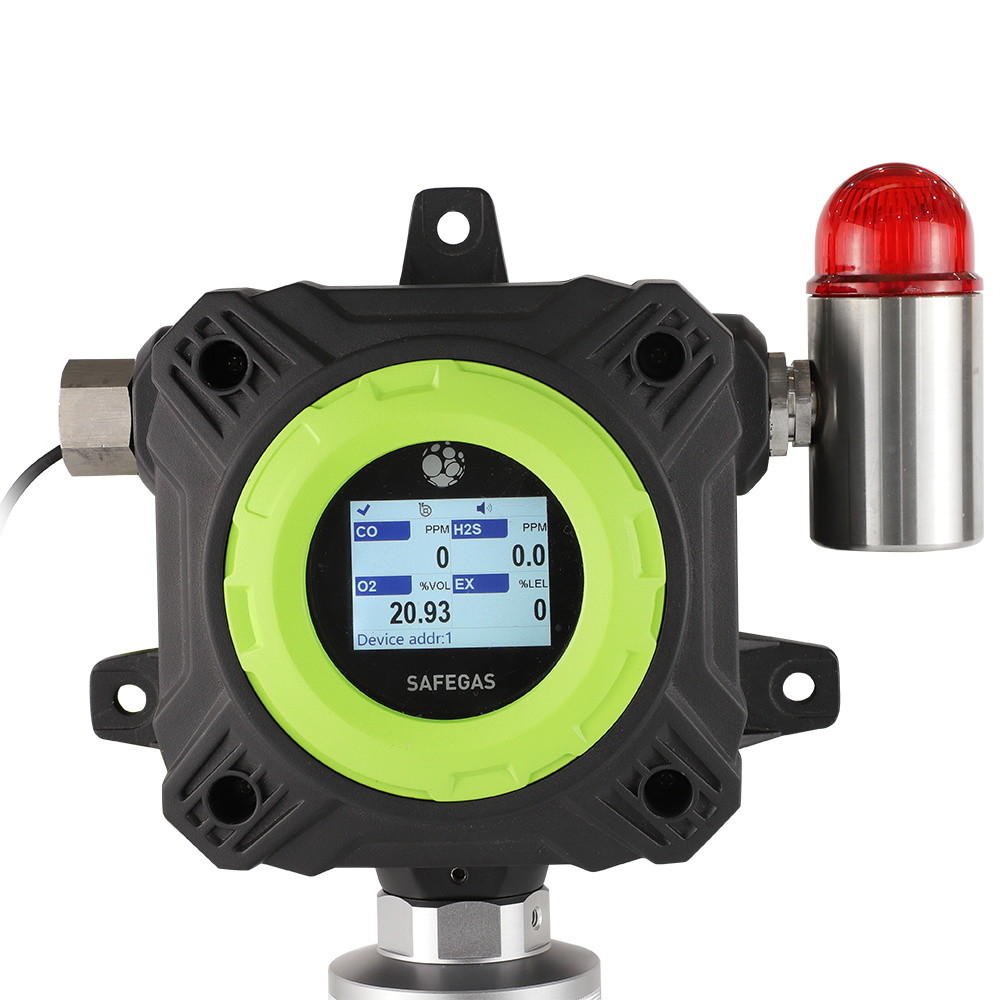

High Precision Wall-mounted VOC Gas Detector for Furniture Decoration by PID Testing
Product overview
Specification
Gas detected | VOC | ||
v | PID | ||
Install method | Wall-mounte (according to the detected environment) | ||
Measure range | To be specified | ||
Resolution | To be specified | ||
Precision | ± 2-5% FS | ||
Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
Response time | ≤10S | Recovery time | ≤10S |
Repeatability | ≤±1% | Linearity error | ≤±1% |
Zero shift | ≤±1%(FS/year) | Display |
2.4 inch color display, resolution 320*240
|
Wireless output (optional):
|
Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)
|
Unit | ppm, mg/m³, %vol |
Temperature | -20 to 50°C | Humidity | 0-95%RH |
Explosion-proof | Ex db ⅡCT6 G6 | Degree of protection | IP66 |
Alarm | Sound, light |
Language:
|
Chinese / English
|
Dimensions |
286*202*96mm
|
Weight | 3.4kg |
