IECEx ATEX Certified Ex Ia IIC T4 Ga Explosion Proof Natural Gas Detector With Gooseneck

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX/IECEX/CE/EMC
Model Number: SKY3000-SP
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 100 pieces/day
Detail Information
Model Number: SKY3000-SP Gas Detected: O2、CO、H2S、CH4 Is The Standard Gas Combine, Other Combine Can Be Specified
Sensor Principle: Electrochemical (O2, CO, H2S), Measure Range: CO: 0-1000ppm, H2S: 0-100ppm, O2 : 0-30%VOL, CH4: 0-10000ppm, 0-100%LEL, 0-100%VOL
Resolution: Specified According To Application Response Time: ≤30 Seconds (T90)
Precision: ≤±1-5%F.S Except For Special Gases Working Hours: More Than 15 Hours In Pumping Mode Continuously
Disaply: LCD (160 X96) ,180° Rotate Language: Chinese, English, Russian
Backlight: Turned On Automatically When Alarming, The Backlight Time Can Be Manually Set
High Light:

ATEX Certified Natural Gas Detector

,

IECEx Certified Natural Gas Detector

,

Gooseneck Multi Gas Detector


Product Description

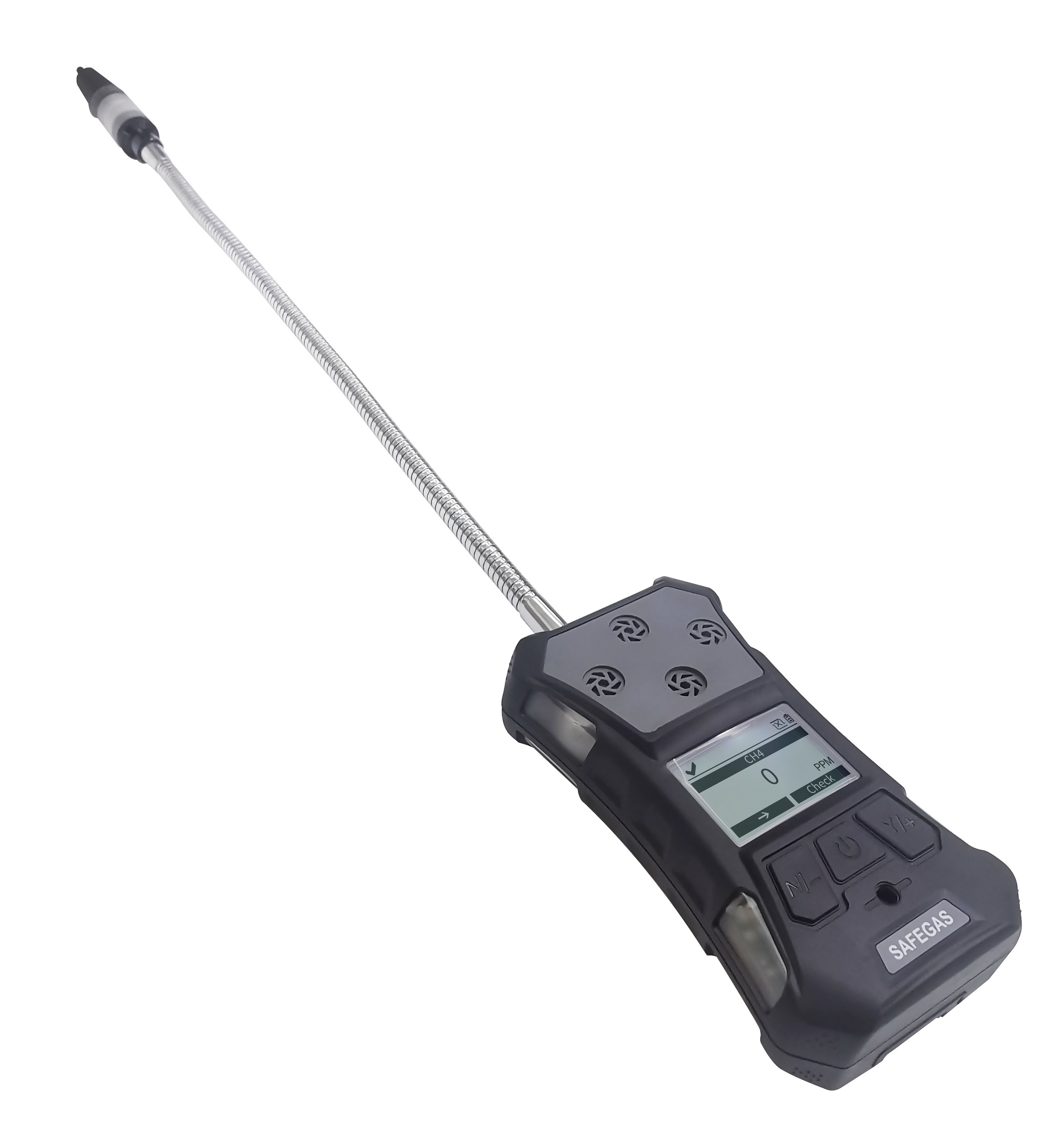

IECEx ATEX Certified Ex ia IIC T4 Ga Explosion-proof Natural Gas Detector with Gooseneck


Product Overview


Designed for the gas industry, the SK Y3000-SP are multi-application instruments, satisfying all the needs of service technicians within a single unit. With different modes of operation and internal pump, the SKY3000-SP is the most versatile instrument available for working with gas.



The SKY 3000-SP series offers technicians and workers a single in strument that can be used throughout the gas distribution and transmission pipelines for all measurements needed for leak testing, and confined space entry. Bright LED alarm lights illuminate as gas levels increase, and audible alarms are activated at preset levels should they be programmed.



The explosion-proof G rade of the SKY3000 series is IECx and ATEX certifiacated with Ex ia IIC T4 Ga, which is applicable to the explosive gas mixture zone 0, zone 1, and zone 2 of the factory with grad es ⅡA , ⅡB , and ⅡC and temperature group T1~ T4.


Technical Parameters



Gas Detected: O2,CO,H2S,CH4 is the standard gas combine, oth er combine can be specified
Detection principle: Electrochemical (O2, CO, H2S), Catalytic combustion (LEL)
Measure Range: CO: 0-1000ppm, H2S: 0-100ppm, O2 : 0-30%VOL,
CH4: 0-10000ppm, 0-100%LEL, 0-100%VOL
Resolution: Specified according to application
Precision: ≤±1-5%F.S except for special gases
Response Time: ≤30 seconds
Language: Chinese/English/Polish(More language can be customized)
Automatically test
and calibrate after
power-on:
Including reset, maximum valu e (MAX), minimum value (MIN), STEL, TWA value
Unit: PPM, mg/m3, %LEL, % VOL
Display: LCD (160 x96) ,180° rotate
Backlight: Turned on automatically when alarming, the backlight time can b e manually set
Data record: 100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to P C no need software
Alarm: 95dB@30cm buzzer alarm, flashing red LED alarm and vibration al arm. Alarm status indication on the screen, alarm latched; diagnostic alarm and b attery under-voltage alarm, pump failure alarm; man down alarm
Battery: 3.7V rechargeable lithium battery, battery capacity 2 200mA
Working hours: More than 15 hours in continuous pumping mode
Charger: Travel charger with DC interface, charging time ≥ 4 hours
Working temperature: -20℃~+50℃
Explosion-proof
grade:
IECEx: Ex ia IIC T4 Ga
ATEX : Ex ia IIC T4 Ga
Humidity: 10~90%RH(no condensation)
Certification
(EU regulations):
2004/34/UE (ATEX)
Protection grade: IP67
Working Pressure: 86~106Kpa
Size: 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height)
Weight: 365g (including battery, belt clip and filter)

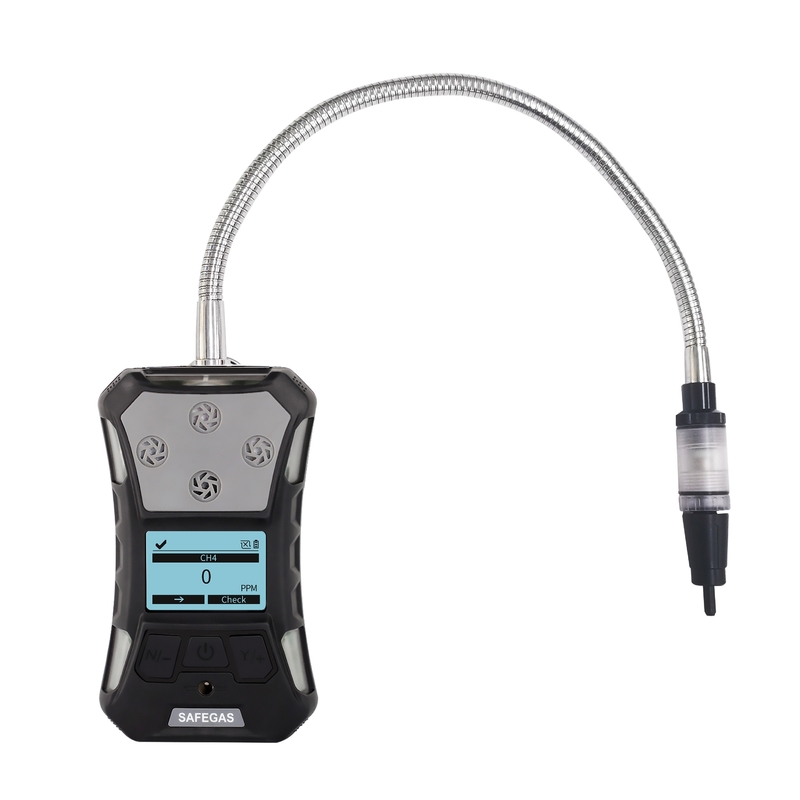

IECEx ATEX Certified Ex Ia IIC T4 Ga Explosion Proof Natural Gas Detector With Gooseneck 0


Product Advantages




  • Optional measures up to 4 gases,(O2, CH4, CO, H2S) simultaneously with audible visual alarms, datalogging, and min/max values.
  • Gas leak detection measures methane in three different distinct ranges (ppm / LEL / %Volume). Autoranging between all three ranges, audible, visual, and gieger alarms, and ergonomical design allows for easy one handed operation.
  • With flexible probe for testing undrerground leaks, measures gas beginning in the LEL range and autoranges to % Volume. Barhole probe included with instrument.
  • Rugged polycarbonate case, sealed to IP67
  • One press to restore factory settings
  • Large graphical display can rotate 180°
  • Support backlight function the backlight time can be manually set
  • Low power consumption, long stand by time
  • Support firmware upgrade remotely​


Product Configuration

Standard accessories:

  • Gas detector 1 piece
  • 12V/1A DC power adapter 1 piece USB cable 1 piece
  • User manual 1 piece
  • Warranty card 1 piece
  • Flexible probe 1 piece
  • Aluminum suitcase 1 piece

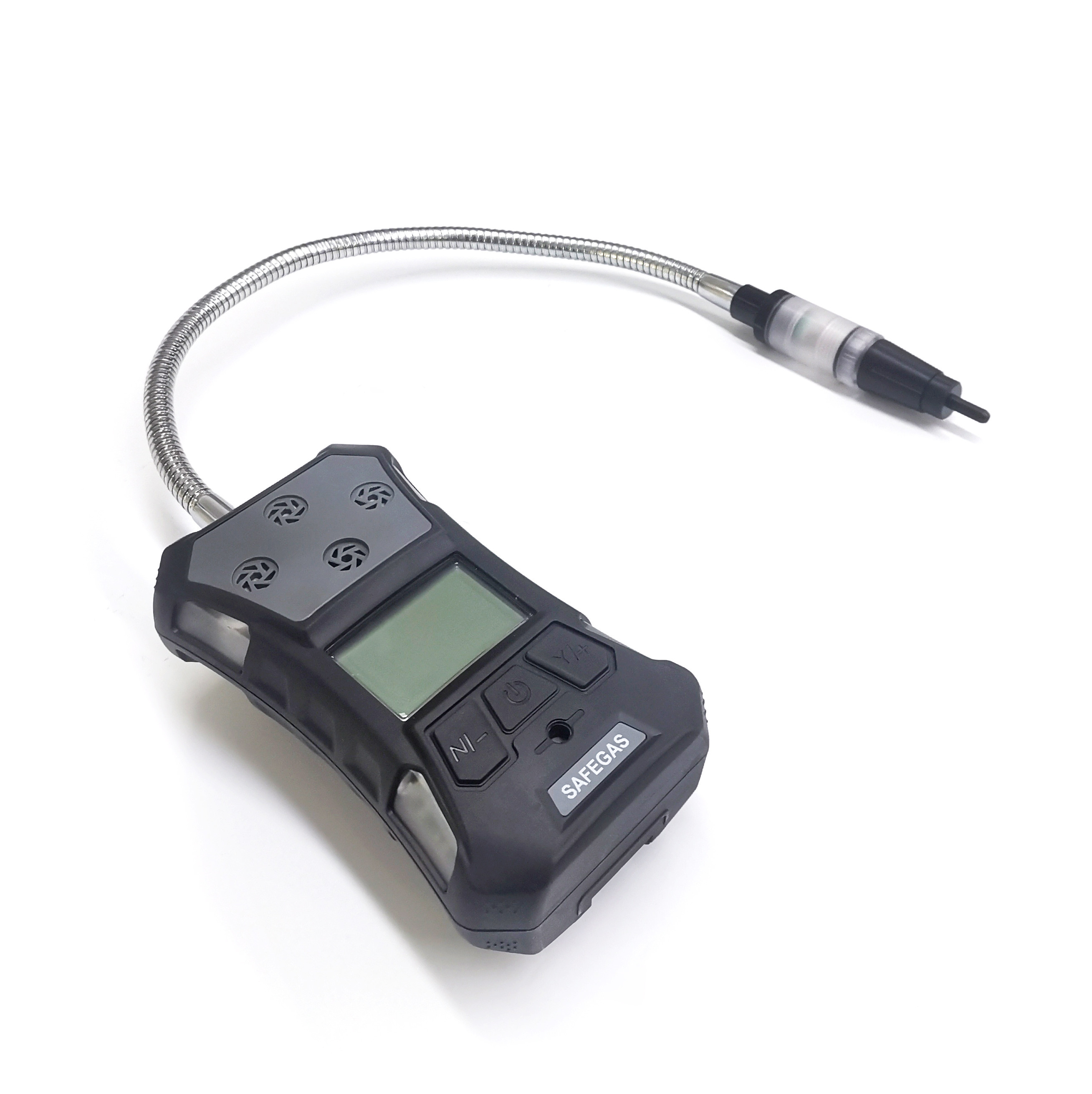

IECEx ATEX Certified Ex Ia IIC T4 Ga Explosion Proof Natural Gas Detector With Gooseneck 1
