China Fumigation Gas Detector CH3br PH3 Electrochemistry PID Sensor With Alarm Light

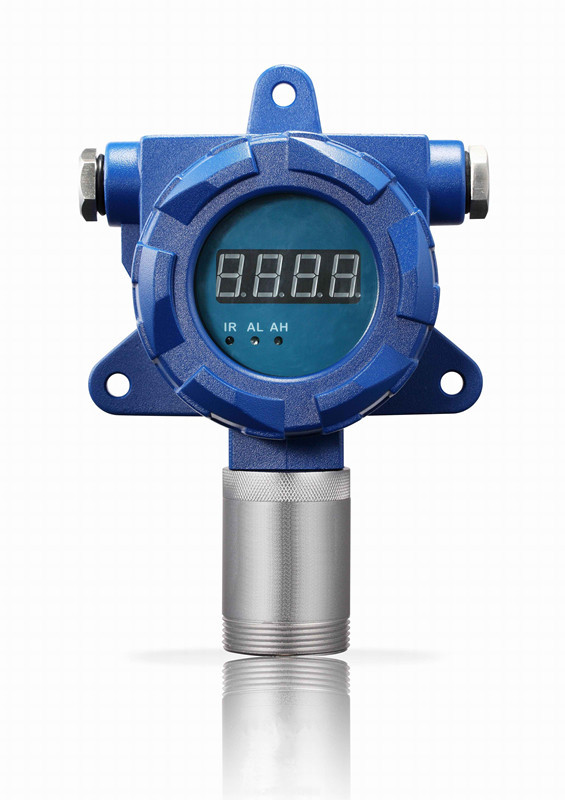

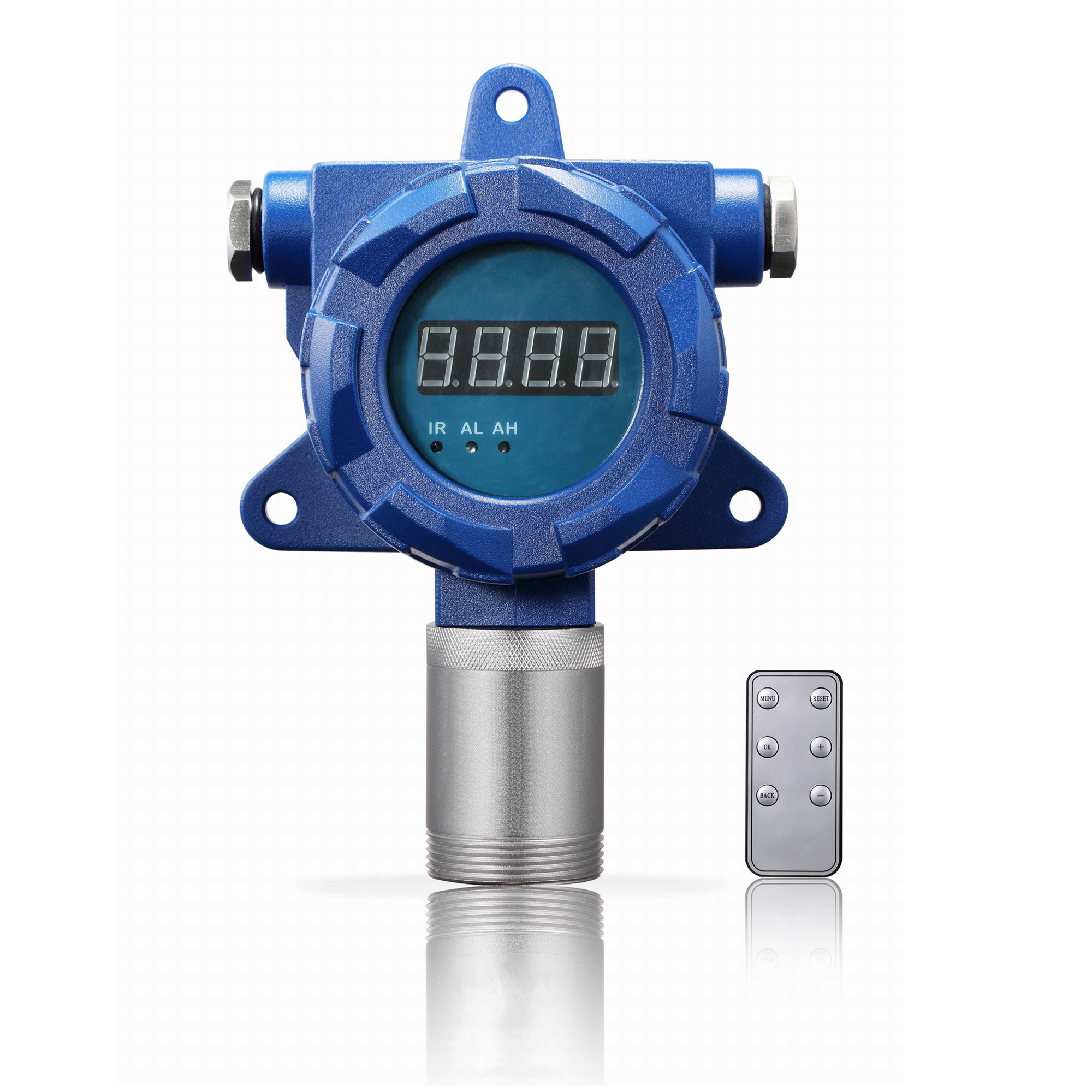

YT-95H-A series is a 24-hour continuously monitoring fixed single-gas detector, which is the hot-selling and cost-effective type of products. YT-95H-A has standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output, making it compatible with most control systems. It is with infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.

Gas detected CH3Br PH3 Detection principle Electrochemistry, PID Install method Wall-mounted, piping type, flow-type (according to the detected environment) Measure range 0-100,200,1000,2000,3000ppm Resolution 0.1ppm, 1ppm Precision ≤± 1-2% FS Signal output 4-20mA, 0-5V, RS485, relay(optional) Response time ≤10S Recovery time ≤10S Repeatability ≤±1% Linearity error ≤±1% Zero shift ≤±1%(FS/year) Display High-light nixie tube display Connection mode G1/2 external thread explosion-proof flexible pipe Unit %VOL Temperature -20 to 50°C Humidity 0-95%RH Explosion-proof II 2G Ex db IIC T6 Gb IP65 Degree of protection IP65 Alarm Sound, light Operating time 24H Dimensions 180*150*90mm Weight ≤2kg







FAQ

Q1: Are you factory or trade company?
A1: We are factory.

Q2: What about the payment method?
A2: Credit card, T/T, Western Union are available

Q3: Does your company accept customization?
A3: We do customizing service for customers.

Q4: What about the Shipment?
A4: We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.

Q5: What about after-sale service?
A5: 12 months warranty or 24 months warranty for all kinds of products.



Q6: How about the Calibration?

A6: Before send out, we will calibrate each pieces well with standard gas.



Q7: What certifications do you have?

A7: ATEX CE ISO9001-2015.
