High Precision Pid Sensor Toxic Gas Detector For Human Body

Basic Information
Place of Origin: China
Brand Name: SZYUANTE
Certification: ATEX/CE
Model Number: YT-95H-A
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pieces/week
Detail Information
Model Number: YT-95H-A Detected Gas: SF6
Sensor Principle: Infrared Measure Range: Specified According To Application
Resolution: Specified According To Application Install Method: Wall-mounted, Piping Type, Flow-type
Power Supply: 24V DC Gross Weight: 3 KG
Product Size: 180*150*90mm Warranty: 1 Year
High Light:

Accuracy Toxic Gas Detector

,

Response time Toxic Gas Detector

,

Range Toxic Gas Detector


Product Description

24h Fixed C6h6 Gas Detector with High Precision Pid Sensor to Prevent Cancer for Human Body



Company profile

We mainly focus on the design, production, and sales of high-end gas detection equipment and system. There are portable and fixed detectors for oxygen, toxic gas, explosive gas, and etc, mainly for industrial use. All sensor(main parts of detector) we use are imported from USA, Japan, Korea and Europe, there are brands like Alpha, City, Ion, Honeywell and etc, which is same level to BW, Drager, RAE, MSA.



Our Advantage
A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.
B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market
C Quality: international top brands sensor and IC /100% production test, make sure a good quality
D Professional technical support: provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.
E Completed certifications:ATEX/CE/Rohs/ISO9001/, meet government standard as well guarantee your safety health.





Product Overview

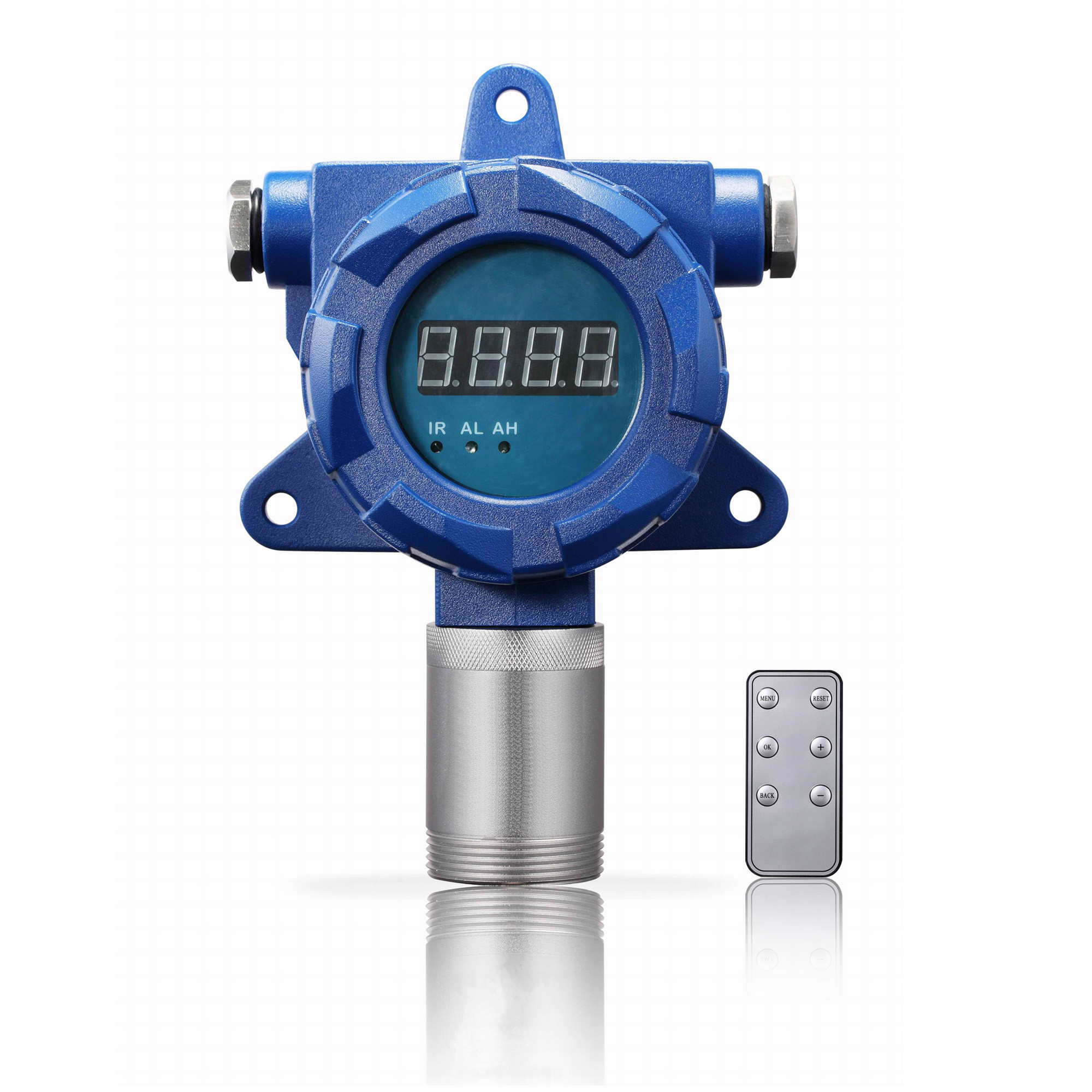

YT-95H-A series is a 24-hour continuously monitoring fixed single-gas detector, which is the hot-selling and cost-effective type of products. YT-95H-A has standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output, making it compatible with most control systems. It is with infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.



Product Advantages



  • Non-contacted control the device
  • Diversified output signals
  • Variety of installation methods
  • Data transmission
  • High quality case
  • With infrared ray controller, which can remote control alarm
  • point settings, zero calibration, and address modification.
  • 4-20mA current signal output, compatible with
  • different kinds of controllers.
  • RS485 MODBUS signal output.Relay signal output,
  • to turn on/off ventilator, generators or other external

High Precision Pid Sensor Toxic Gas Detector For Human Body 0



High Precision Pid Sensor Toxic Gas Detector For Human Body 1

High Precision Pid Sensor Toxic Gas Detector For Human Body 2


Specification

Gas detected SF6
Detection principle
Infrared
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range
0-1000,2000ppm
Resolution
1ppm
Precision ≤± 1-2% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe Unit %VOL
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof II 2G Ex db IIC T6 Gb IP65 Degree of protection IP65
Alarm Sound, light Operating time 24H
Dimensions 180*150*90mm Weight ≤2kg







More Application



Furniture, Floor, Wallpaper, Coating, Gardening, Interior Decoration and Renovation, Dyestuff, Papermaking, Pharmacy, Health Care, Foodstuff, Antiseptic.
Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw Material, Sample, Technological Process, Livestock Farm, Refuse Processing Plant, Perm Place.
Bio-pharmaceutical Plant, Green Household, Livestock Breeding, Green House Cultivating, Warehouse Logistics, Brewing And Fermentation, Agricultural Production.
