Lightweight Multi gas detector calibration certificate nirtrogen N2 for food protection

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Safegas
Certification: ATEX,CE,IECEX, EMC
Model Number: Micmeta
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T,Credit card
Supply Ability: 100 pieces/week
Detail Information
Model Number: Micmeta Sampling Method: Diffusion
Testing Principle: PID, Catalytic Combustion, Electrochemistry Measure Range: Customized
Resolution: Customized Alarm Type: Sound, Light, Vibration
Color: Red And Black Size: 113*60*32
Net Weight: 200g
Highlight:

Nitrogen N2 VOC Gas Detector

,

Food Protection VOC Gas Detector

,

Lightweight VOC Gas Detector


Product Description

Multi Diffusion Type Co CH4 O2 H2s Gas Detector with Docking Station IP68 Degree





Product overview

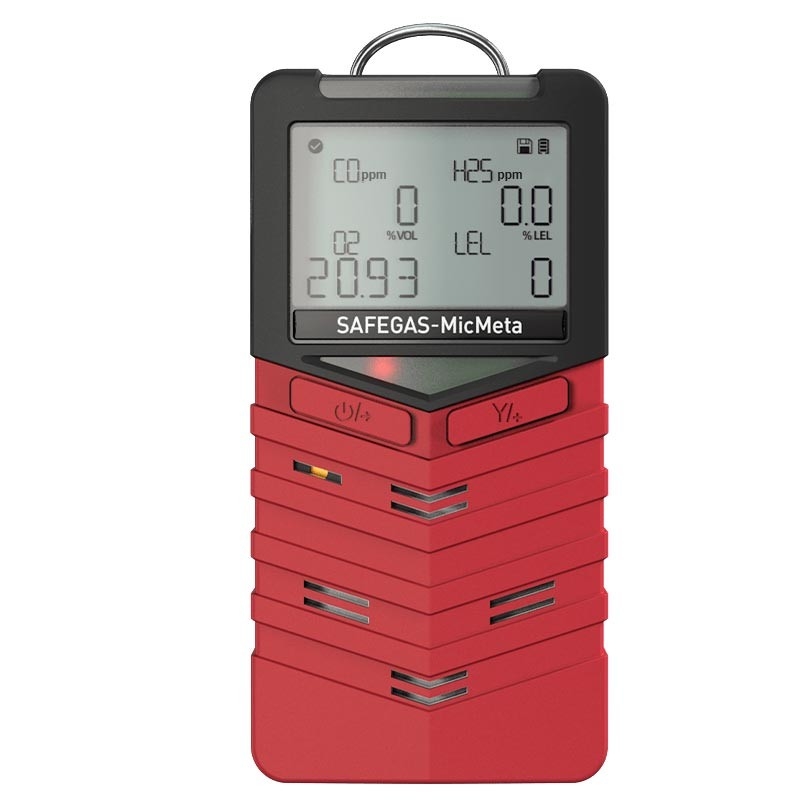

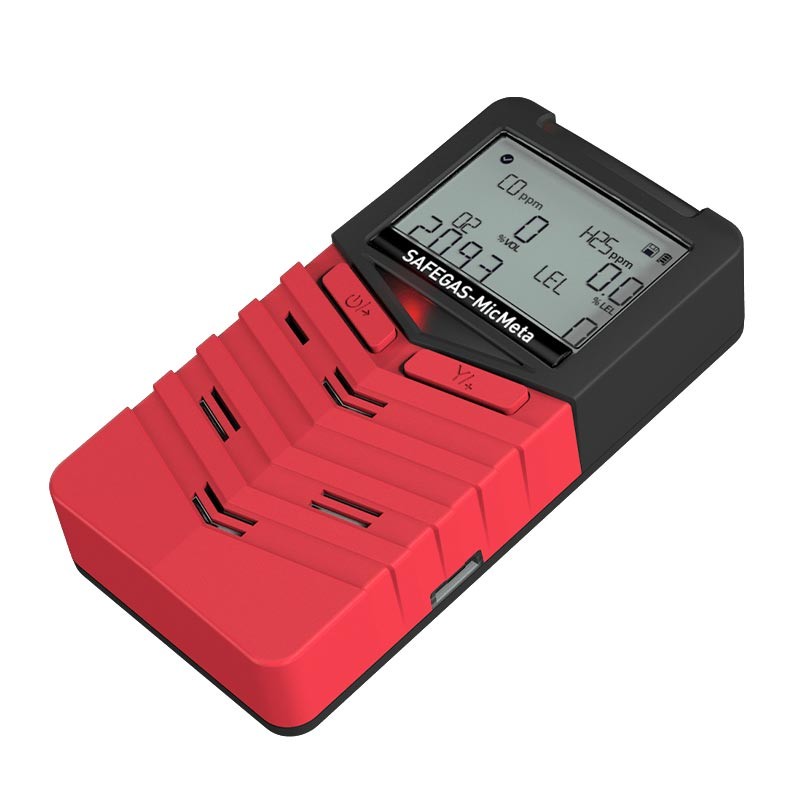

MicMeta is an IECEx/ATEX/EMC certificated multi gas detector with a rating of IP68. With explosion-proof grade Ex ia I Ma, Ex ia IIC T4, MicMeta can be used in coal mines. It’s light weight, small size and with 2 buttons for easy use. The standard gas type is multi 4 (CO H2S O2 LEL) gases and also support hundreds of gases for optional customization. It’s with wireless function so user can access to data remotely. With standard data logger, real time data and alarm events can be export to PC directly.



Product Advantages

  • IP66/IP68 water & dust resistant and 1.5 meters drop resistant case, rugged and durable designs
  • Compact, lightweight, small size with back clip, ergonomic and wearable design
  • Standard man down alarm, password protection, ID identification function
  • Real time value, TWA, STEL, MAX, MIN multiple numerical display
  • With self-test function, which can improve safety by automatic self-test
  • One press to restore factory settings
  • Support firmware upgrade remotely

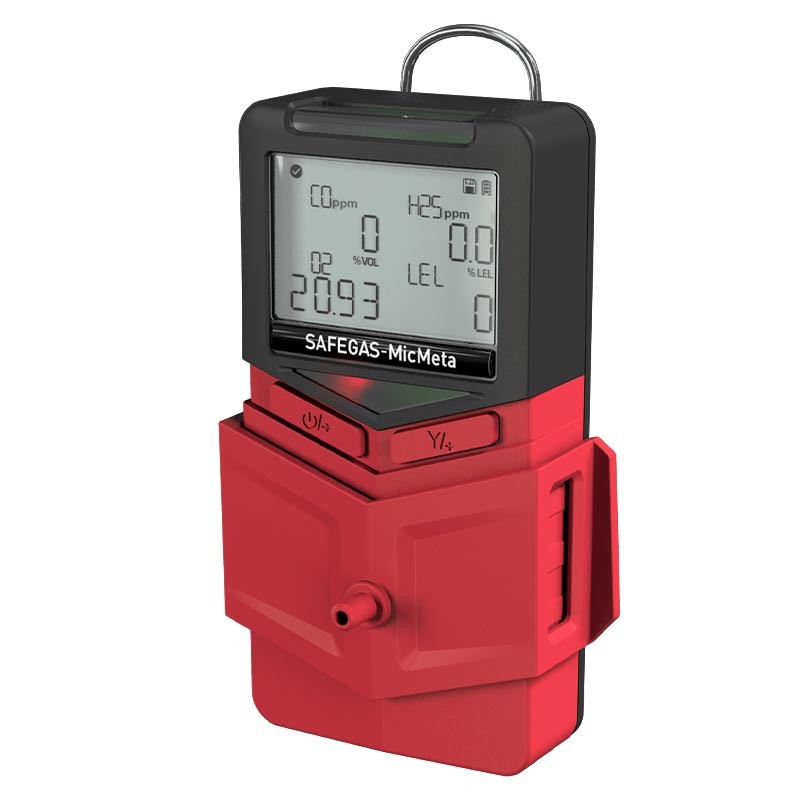

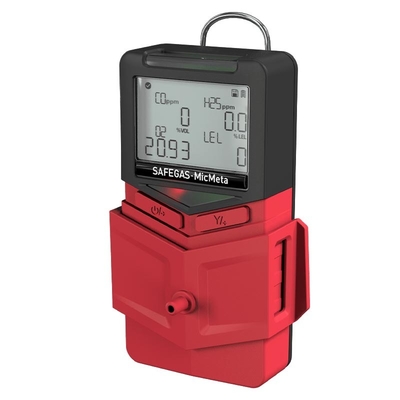

  • With docking station to perform daily bump test and calibration (Optional)
  • Wireless data transmission including Lora, Bluetooth (Optional)
  • With rechargeable lithium polymer battery, extended 24hour battery runtime
  • Support PPM and mg/m3 gas unit switch by one key

Lightweight Multi gas detector calibration certificate nirtrogen N2 for food protection 0

Lightweight Multi gas detector calibration certificate nirtrogen N2 for food protection 1



Product specification



Sampling method Diffusion
Gas type N2
Measure range 0-100%vol
Resolution 0.01%vol
Response time ≤60S (T90)
Precision ≤±5%FS or ±10% (depends on the specific sensor
Language Chinese/English
Automatically test and calibrate after power-on Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system
Disaply Segment code LCD display
Calibration platform Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional)
Data record 1000 sets data records and 100 sets events records
Alarm 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable.
Battery 3.7V rechargeable lithium battery, battery capacity 2300mA
Working hours Standby time 18h, charging time <6h
Wireless transmission Bluetooth transmission function (optional), Lora transmission function (optional)
Explosion-proof grade CNEX:Ex ia IIC T4 Ga
(EU regulations) 2004/108/EC(EMC), 94/9/EC(ATEX), CE
Protection grade IP66/IP68
Working temperature -20°C~55°C
Humidity 0-95%RH (non-condensing)
Environmental pressure 86~106Kpa
Size 113*60*32mm (length * width * height)
Weight 200g (with lithium battery)

Lightweight Multi gas detector calibration certificate nirtrogen N2 for food protection 2

Compact and Lightweight: This sturdy and long-lasting device is designed for optimal portability and convenience, making it effortless to carry and operate.

User-Friendly Operation: The device boasts an ergonomic design with a simple two-button interface for easy operation.

Bright Visual Alarm: A broad-angle visual alarm LED display ensures excellent visibility, enabling easy identification and response to alarms or notifications.

Superior Dust and Water Resistance: With an IP66/IP68 rating for dust and water resistance, the device provides maximum protection against dust and water intrusion, guaranteeing reliable performance in harsh conditions.

Durable Construction: The robust build of the device can endure drops of up to 1.5 meters, offering enhanced durability and longevity, even under intensive use.

EMC Tested: The device has successfully passed EMC anti-static interference tests, ensuring dependable performance in a variety of environments, both static and dynamic.

Ergonomic Design: The device features a comfortable, wear-resistant back clip that can be easily attached to clothing or belts, offering additional convenience and ease of use.







Company profile

Established in 2010, Shenzhen YuanTe Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 13 years. With gas detector as the core product, we have completed production line and solutions according to different industries.



We supply portable and fixed detectors for oxygen, toxic gas, explosive gas, and etc, mainly for industrial use. All sensor(main parts of detector) we use are imported from USA, Japan, Korea and Europe, there are brands like Alpha, City, Ion, Honeywell and etc, which is same level to BW, Drager, RAE, MSA.



Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.



Industry Application
Park, woodland, Municipal Engineering, Ports, warehousing, airports, Railway tunnel, Community, school, hospital, other urban construction

Services:
1. One year free warranty.
2. All machines are debugged before shipment.
3. Lifetime technical support and service.
4. 24 hours on line or phone or by email technical support.
5. We offer detailed machine manual and software manual.
