Place of Origin: | Shenzhen, China |
---|---|
Brand Name: | Safegas |
Certification: | ATEX,CE,IECEX, EMC |
Model Number: | Micmeta |
Minimum Order Quantity: | 1 Pc |
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 3-5 working days |
Payment Terms: | Western Union, T/T,Credit card |
Supply Ability: | 100 pieces/week |
Model Number: | Micmeta | Sampling Method: | Diffusion |
---|---|---|---|
Testing Principle: | PID, Catalytic Combustion, Electrochemistry | Measure Range: | Customized |
Resolution: | Customized | Alarm Type: | Sound, Light, Vibration |
Color: | Red And Black | Size: | 113*60*32 |
Net Weight: | 200g | ||
Highlight: | N2 Portable Multi gas detector,Nirtrogen N2 gas detector,Food Protection Nirtrogen Gas Detector |

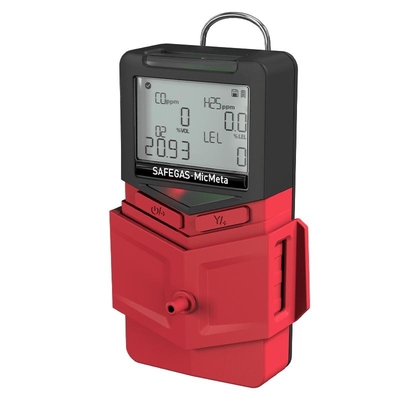

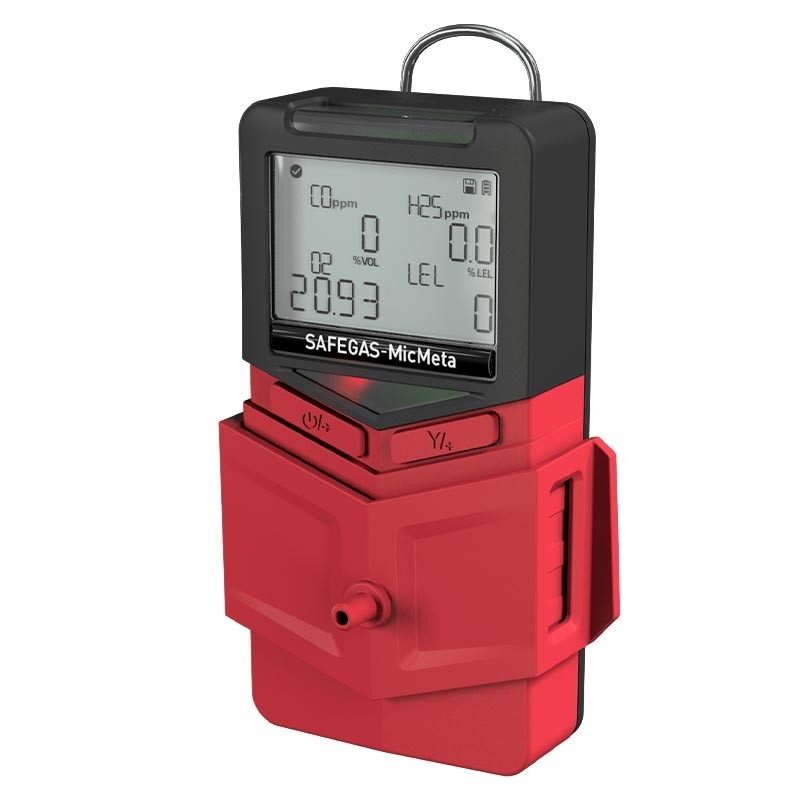

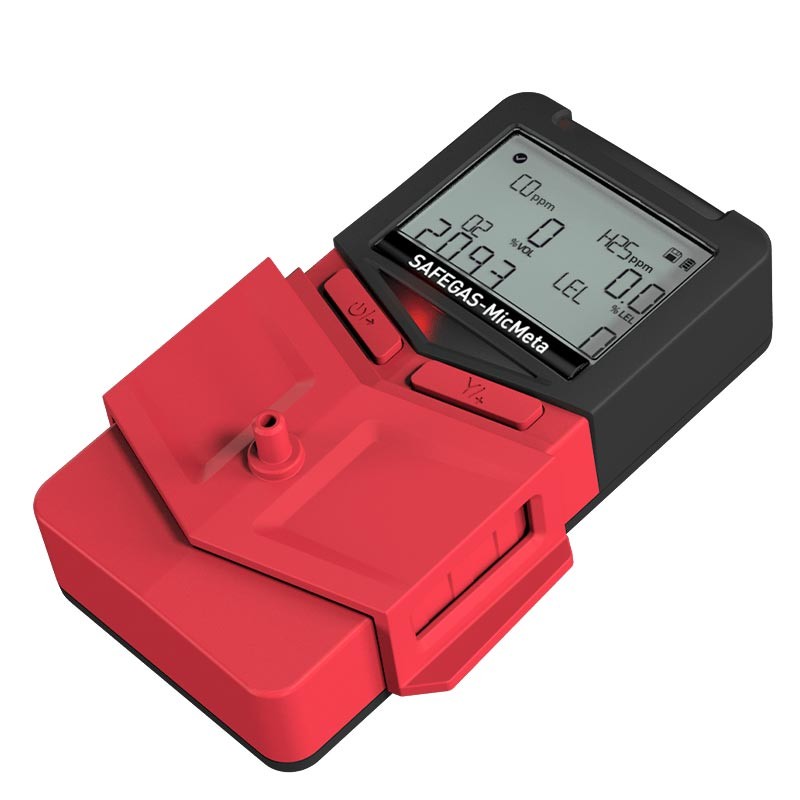

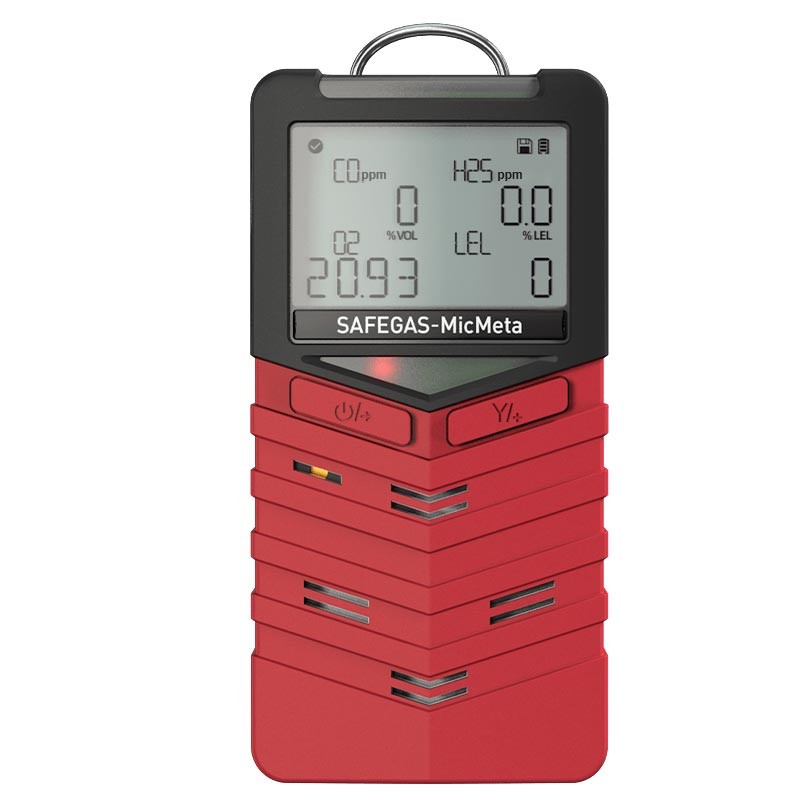

Lightweight Multi gas detector calibration certificate nirtrogen N2 for food protection
Product overview
Product Advantages
Product specification
Sampling method | Diffusion |
Gas type | N2 |
Measure range | 0-100%vol |
Resolution | 0.01%vol |
Response time | ≤60S (T90) |
Precision | ≤±5%FS or ±10% (depends on the specific sensor |
Language | Chinese/English |
Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
Disaply | Segment code LCD display |
Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
Data record | 1000 sets data records and 100 sets events records |
Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
Working hours | Standby time 18h, charging time <6h |
Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
(EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
Protection grade | IP66/IP68 |
Working temperature | -20°C~55°C |
Humidity | 0-95%RH (non-condensing) |
Environmental pressure | 86~106Kpa |
Size | 113*60*32mm (length * width * height) |
Weight | 200g (with lithium battery) |
Compact and Lightweight: This sturdy and long-lasting device is designed for optimal portability and convenience, making it effortless to carry and operate.
User-Friendly Operation: The device boasts an ergonomic design with a simple two-button interface for easy operation.
Bright Visual Alarm: A broad-angle visual alarm LED display ensures excellent visibility, enabling easy identification and response to alarms or notifications.
Superior Dust and Water Resistance: With an IP66/IP68 rating for dust and water resistance, the device provides maximum protection against dust and water intrusion, guaranteeing reliable performance in harsh conditions.
Durable Construction: The robust build of the device can endure drops of up to 1.5 meters, offering enhanced durability and longevity, even under intensive use.
EMC Tested: The device has successfully passed EMC anti-static interference tests, ensuring dependable performance in a variety of environments, both static and dynamic.
Ergonomic Design: The device features a comfortable, wear-resistant back clip that can be easily attached to clothing or belts, offering additional convenience and ease of use.
Company profile
Established in 2010, Shenzhen YuanTe Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With gas detector as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and
Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.
