Name: Safegas Fixed Gas Detector Voc Gas Toxic Gas Wall-Mounted Continuous Monitoring
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SG100
Price: 2,137.00 USD
Availability: InStock

Detail Information

Gas Detected:	Toxic Gases, Oxygen, Flammable, VOC Gases	Measure Range And Resolution:	Specified According To Application
Accuracy:	≤±2-5%FS (Depending On The Specific Sensor)	Explosion-proof Grade：:	IECEX：Ex Db IIC T6 Gb，Ex Db Ia IIC T6 Gb ； ATEX：Ex Db IIC T6 Gb，Ex Db Ia IIC T6 Gb
Protection Grade:	IP66/68	Power Dissipation:	Toxic Gas<2.5W，flammable Gas<4W
Communication Mode:	4-20mA(3-wires)、RS485 1～5V，Hart(Optional)	Wireless:	LORA, 4G(Optional)
Relay:	3 Relays, Including Low/high/fault Alarm Relay（Optional）	Working Temperature:	0℃～70℃（Catalytic Sensor）， -20℃～50℃（Electrochemistry Sensor）
CableEntries:	1 X ¾ NPT & 1 XM 20 Cable Entry Connections	Size:	157.8x128.8x69.6mm
Weight:	1.0Kg
Highlight:	Wall Mounted Toxic Gas Detector , Continuous Monitoring Toxic Gas Detector , Voc Fixed Gas Detector

Product Description

Product overview

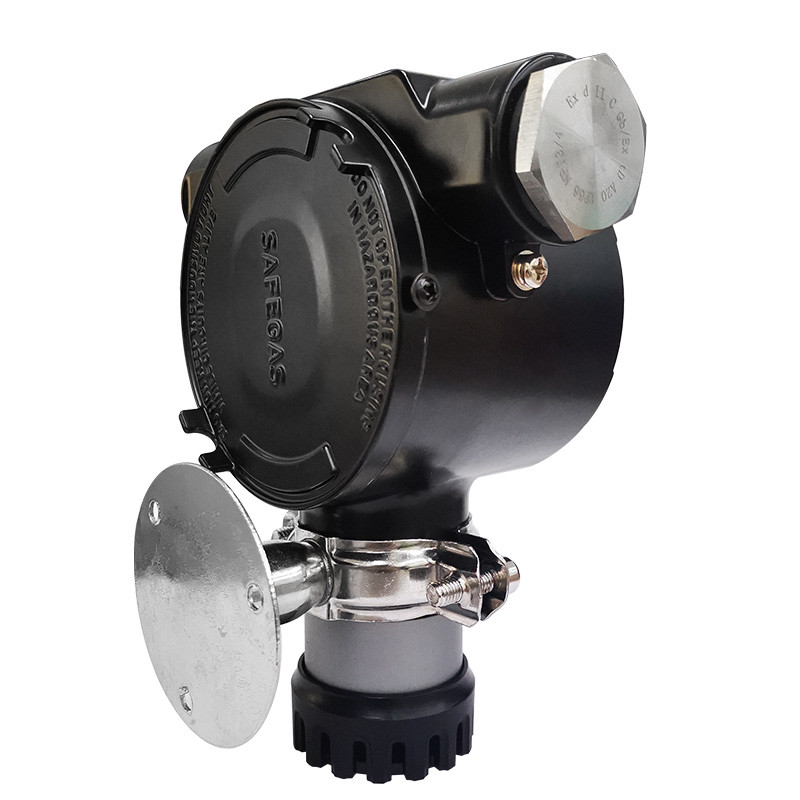

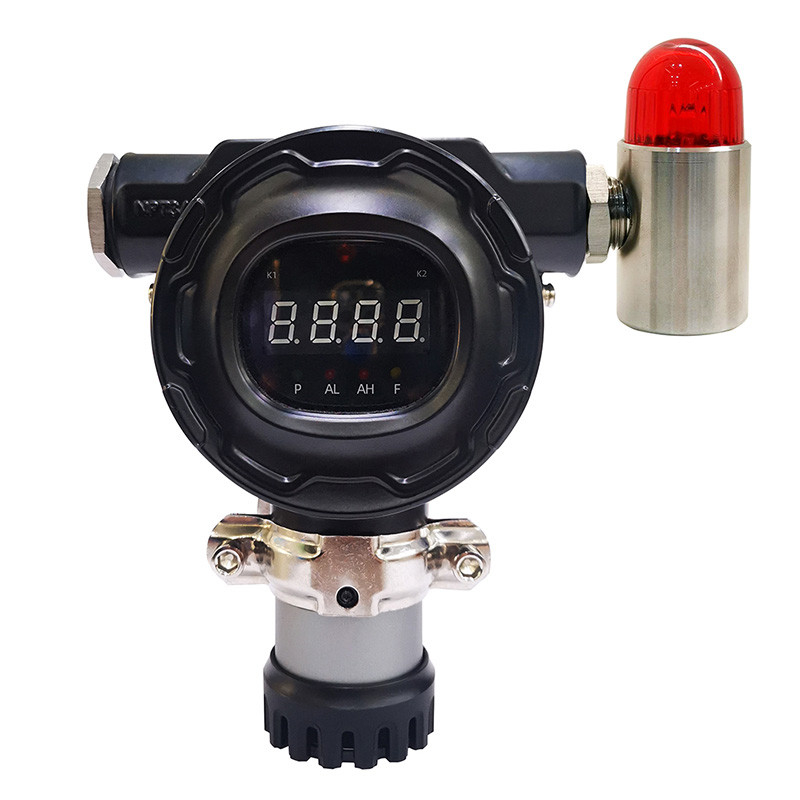

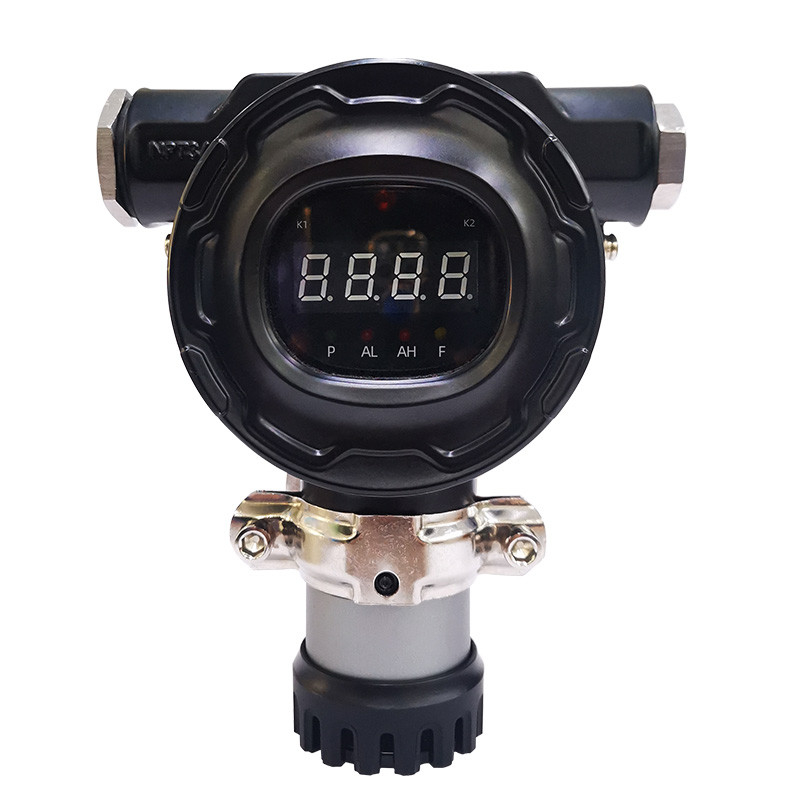

SG100 series is a cost-effectivegas detector for continuous monitoring oftoxicgases, oxygen,flammable, VOCgases.

It isIECEx, ATEXcertified,with intrinsically safe explosion grade.Havinga2 wire or 3 wire4 to 20 mA analog output, RS485 modbus output, optional HART output,making it to be compatible with mostcontrol systems. .

With optional wirelessdata transmission,customer is able to review, download the data remotely.Supportbothmagneticandremote control,flexibleforsetting.

Product Feature

Safegas Fixed Gas Detector Voc Gas Toxic Gas Wall-Mounted Continuous Monitoring 1 ●IP66/IP68 water & dust resistant

●Intelligentplug and play sensor module.the module supportcalibration by Safegas PC software, making replacement and maintenance easier.

●With standard splash guard to protect sensor for outdoor installation or environment with water splash.

●Smalland light,weight is only 1 kg,andthe detector comes with standard mounting bracket,easy for installation.

●Standard 4-20 mA analog signal output andRS485 modbus signal output,optional Hart output, 2wire output.Compatible with most of control systems.

●The detector comes with 3relays, including low/high/fault alarm relay(Optional)

●Support both magnetic andremote control, flexible for setting.

Tag:

Place of Origin:	China
Brand Name:	SAFEGAS
Certification:	ATEX/IECEX
Model Number:	SG100

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Aluminum Suitcase Packing
Delivery Time:	3 work days
Payment Terms:	T/T, Western Union
Supply Ability:	100 pieces/day
