Wall Mounted Gas Alarm Controller Color Display Rs485 Explosion Proof

Product Overview

YT-1600H gas control panel can connect up to 132 gas detectors, which can realize remote signal transmission; it can control solenoid valves, exhaust fans, motors, water pumps, sound and light alarms, spray systems, machinery and equipment, etc to realize automatic job. It can achieve the integration of remote monitoring and cloud monitoring,which is convenient for users to conduct real-time and accurate management and grasp the alarm status in time.

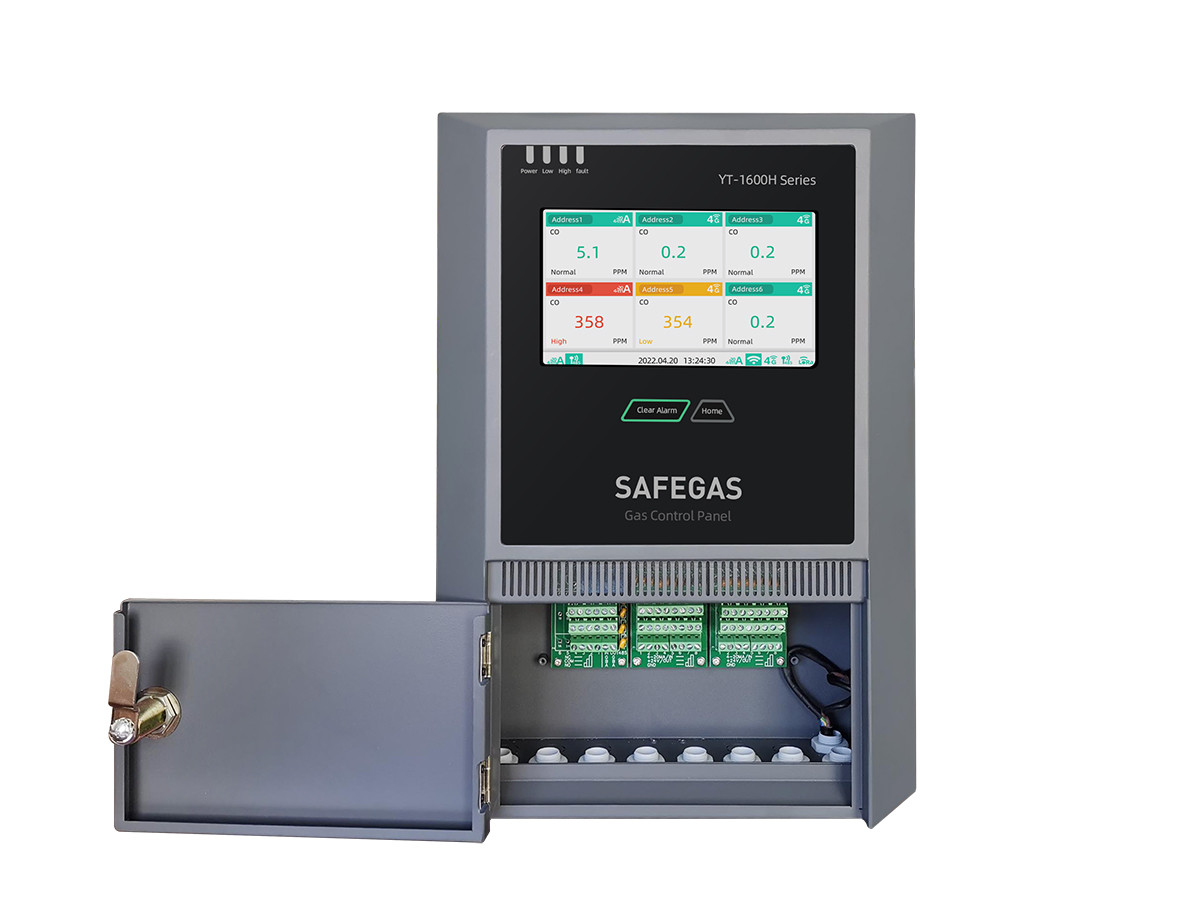

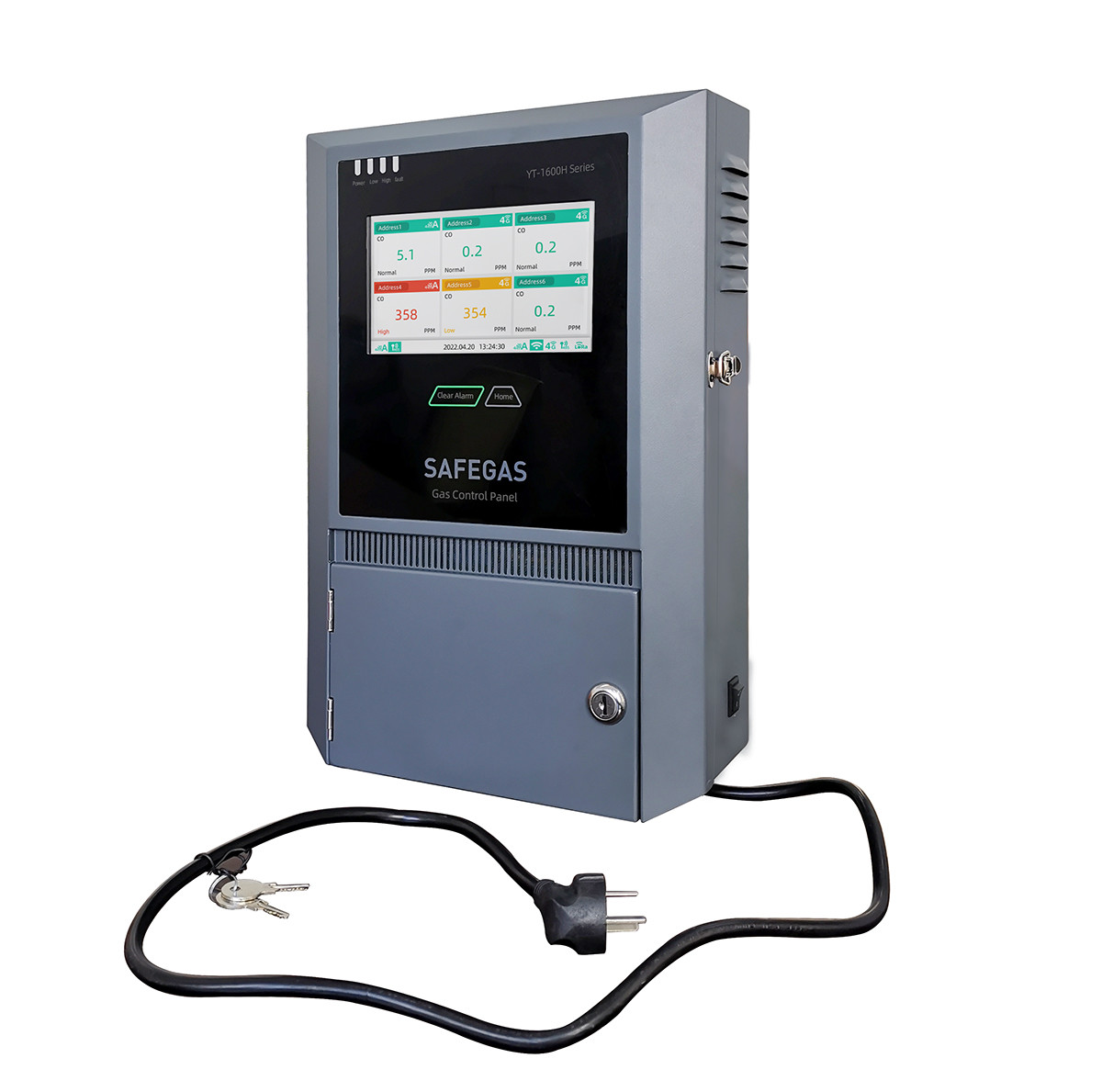

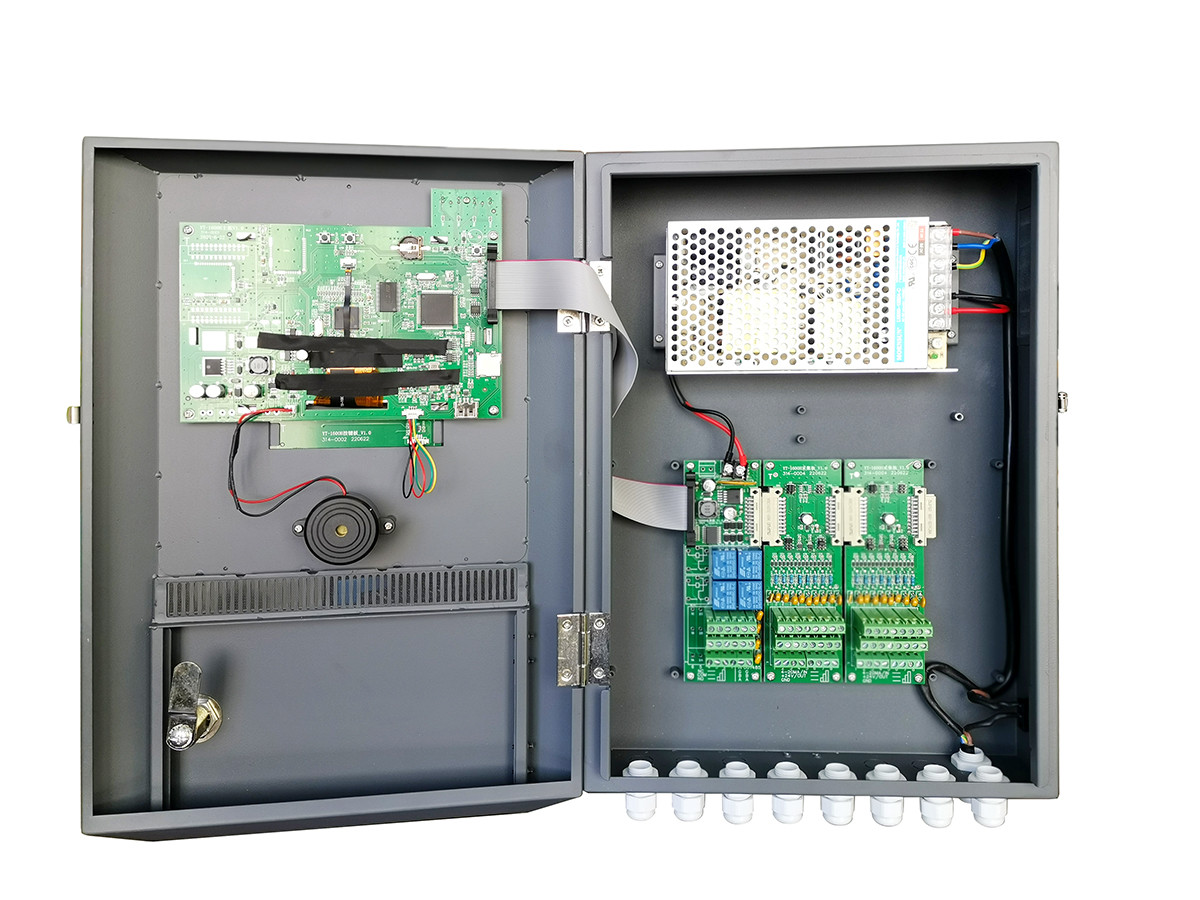

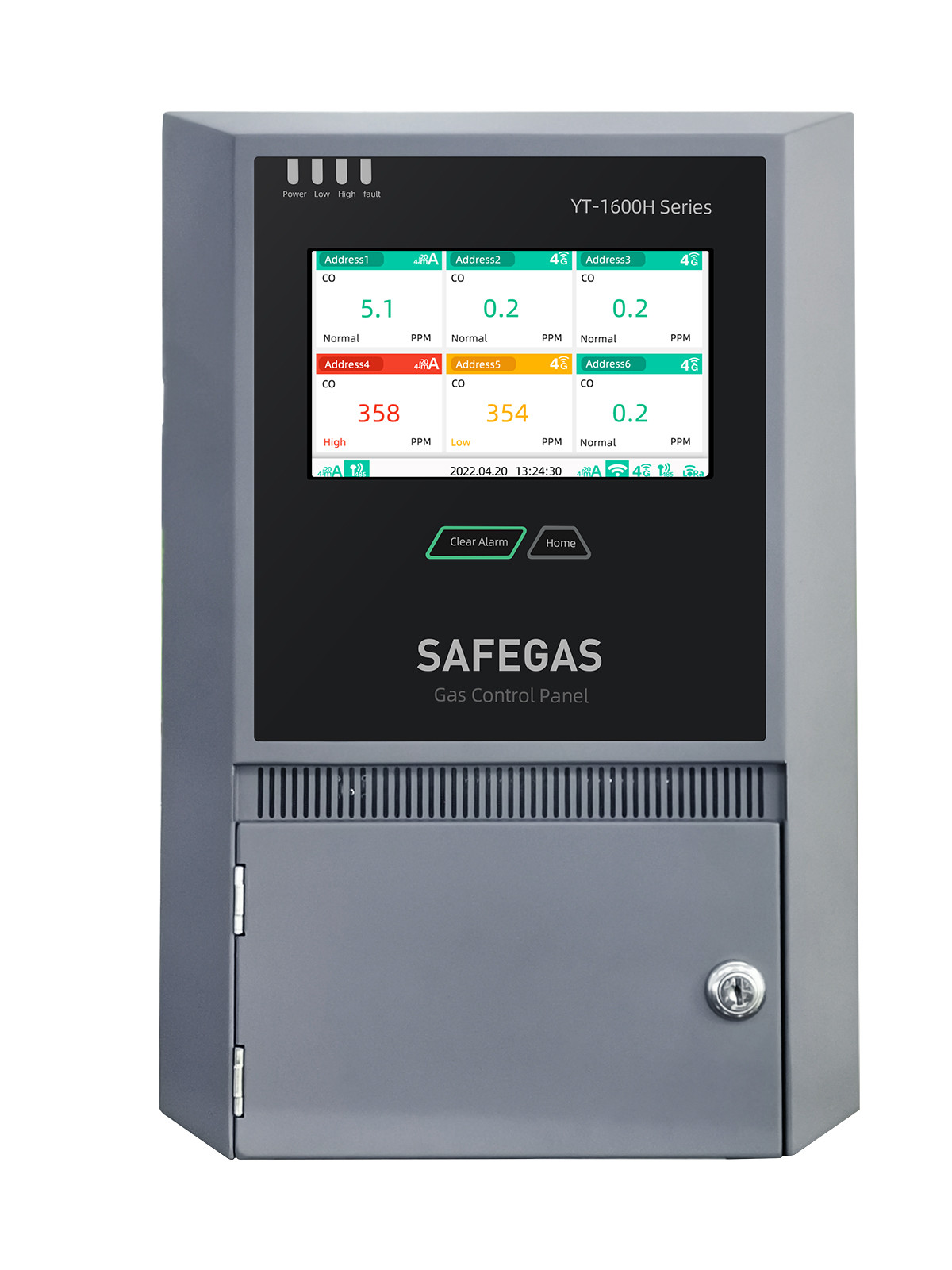

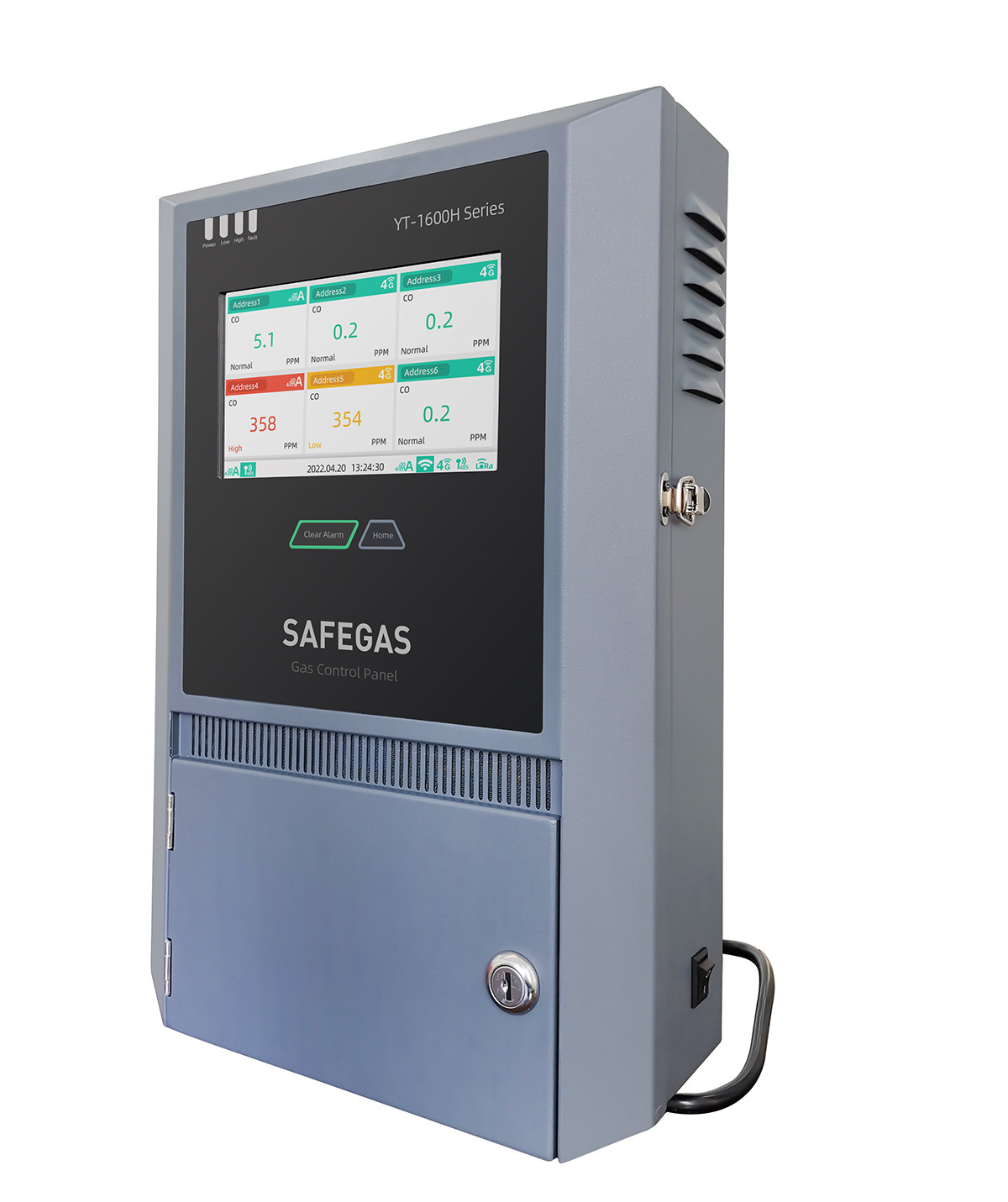

Product Picture

Product Advantage

• Multiple operation modes, convenient for use

7-inch high-definition color screen display, can support touch operation. With 2 buttons at the same time, also supports button operation

• Modular design supports flexible custom configuration

·Standard RS485 signal input and output, up to 100 gas detectors can be connected

·Can support 4~20mA signal acquisition input of 8 to 32 channels, and can connect up to 32 gas detectors (optional)

·Can support 16 channels of 4~20mA signal output (optional)

·Support up to 6 relays, standard 4 relays, can add 2 relays as optional option

·The controller and the controller can communicate with each other (optional)

• Powerful data storage function, convenient for users to view historical data

·Standard 1000 sets of alarm events and off-event records, users can view on controller. Standard SD card storage function, can store 100,000 sets larger capacity can be customized

·The storage interval can be set arbitrarily, and the time, real-time concentration value,alarm information, etc can be recorded

·Can support SD card and U disk to export data by one key, which is convenient for users to view or delete records

• Multiple display modes can be switched

·Each screen displays 6 channels gas concentration, displays the concentration value unit, and real-time curve of the single channel in large font

·Auto-loop and manual loop can be switched between channels

·The device name can be customized, and the high and low alarm values can be set by users

·Chinese and English interface can be switched by one key, more languages can be customized

• Can support wireless transmission (optional)

·Support LORA, WIFI, 4G wireless communication (optional)

·Data can be uploaded to its own cloud platform or other cloud platforms such as EPA. Can provide SMS reminder function, and the transmission signal is not limited by distance. Can be viewed in real time on the mobile app and computer

• Powerful functions

·Support one-key elimination alarm function

·Support remote program upgrade function

·It can be connected to a computer, and the real-time concentration can be continuously monitored for 24 hours through the PC software, and the data can be automatically stored on the computer

Why choose us?

1) R&D team experience: over 25 years.

2) Company certification: ISO9001, ISO45001

3) Product certification: IECEx (the only one in China), ATEX, CE

4) Delivery: 5-7 days

5) Yearly capacity: 80,000 units

6) Service: Professional sales staff provide 7*24 hours service

Safegas is a company that focuses on the design,production and sales of environmental monitoring equipment and system for 16 years. With “gas detector” as the core product, we have completed production lines and solutions according to different industries,such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 16 years of rapid development, Safegas becomes the influential supplier for environmental monitoring equipment and system in the domestic and overseas market.

For years, Safegas always insisted on the management concept “Market is orientation. Innovation is motivation. Quality to survival. Development to growth.” With friendly, open, and strict corporate culture and standardized management, Safegas gathers a lot of talents and builds up the management team and R&D team. All the staff cooperates well in product development, production, and maintenance, and has a deep understanding of the concept of “customer-oriented”, and runs the service spirit through the company operation and management, to win the trust and support from customers.

Depending on years of measurement experience and Safegas solutions, through independent research and development, cooperative development and learning overseas latest technology, Safegas’s products are domestic advanced, and can compete with overseas brand. We are seeking for development and progress constantly, and trying to meet diversified demands from customers.
