Product Overview
SG100-D series is an intelligent hot swappable fixed multi gas detector, which is easy for maintenance after installation. It can monitor 4 gases for the continuous monitoring in one unit. With IECEx, ATEX certificates, explosion level reaches Ex db IIC T6 intrinsically safe grade. Adopt magnetic wand design, it’s safe and easy to do menu navigation in explosion areas.

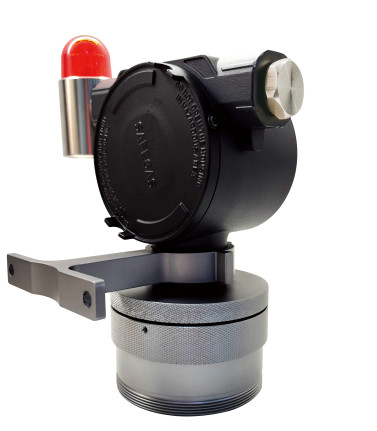

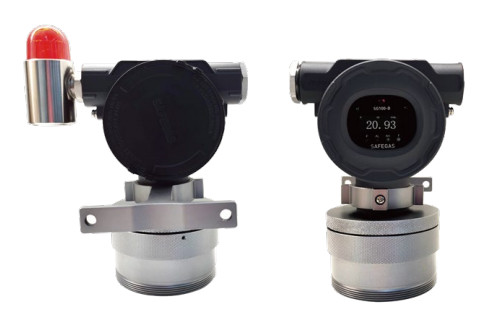

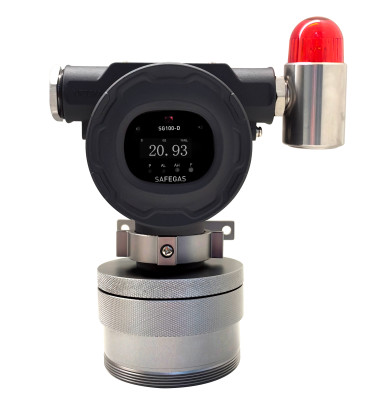

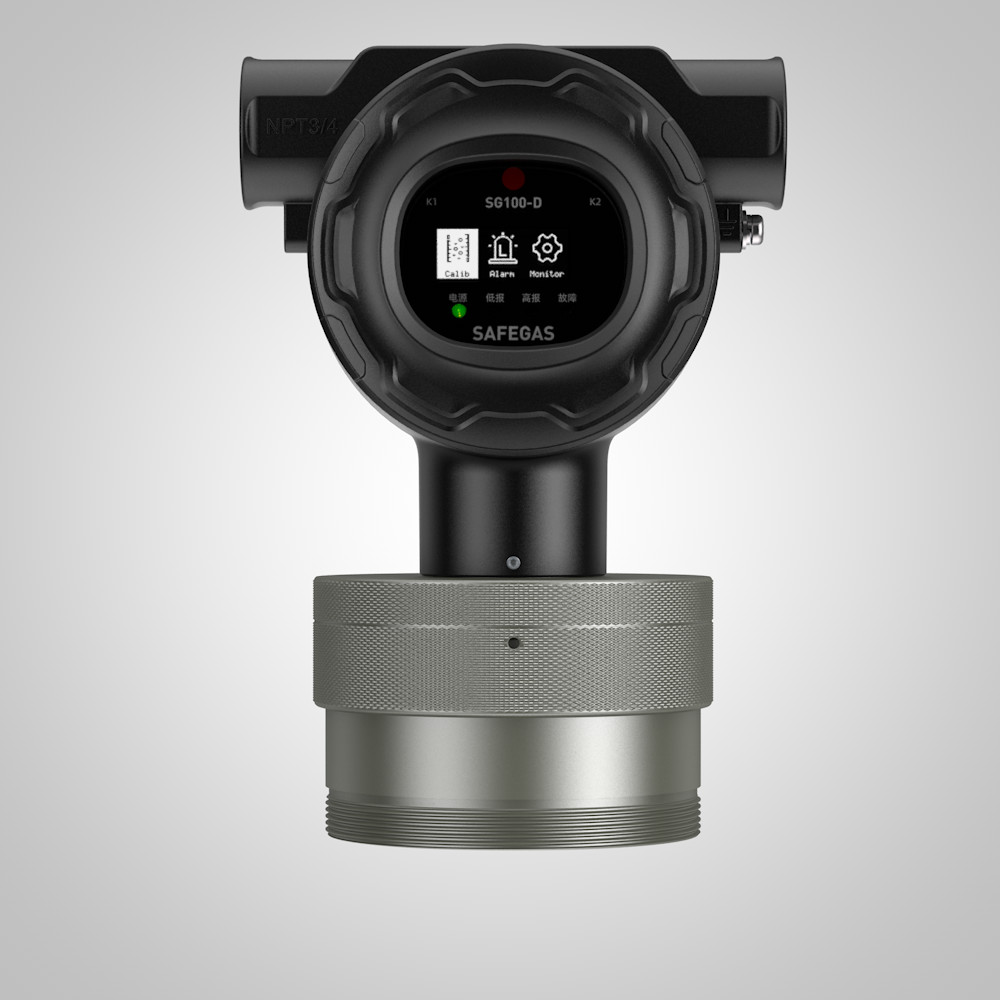

Product Picture
Product Advantage
1) IP66/IP68 water & dust resistant
2) Standard 1 set of 4-20 mA current signal(3 wires), RS485 Modbus, 2 sets of relay signal output;
3) Optional with 4 sets of 4-20 mA current signal(3 wires)
4) Optional LORA,4G wireless transmission modes canbe selected
5) Module chamber design, no need to disassemble of the whole machine or return for calibration when maintenance, just replace the sensor chamber only and can work properly
6) One-person calibration is easily performed using calibration cap
7) Quick site installation using a mounting plate accessory
Product specifications
| Detected Gas |
CO/H2S/O2/LEL |
| Principle |
Catalytic(LEL)Electrochemistry(O2/CO/H2S) |
| Measure Range |
LEL:0-100%LEL,O2:0-30%vol,CO:0-1000ppm,H2S:0-100ppm |
| Resolution |
LEL:1%LEL,O2:0.1%vol,CO:1ppm,H2S:0.1ppm |
| Install Method |
Wall-mounted |
| Events |
1000 sets per channel, can download by GPC |
| Precision |
≤±2%FS or ±10%(Depends on sensor) |
| Response time |
T90<60s(Depends on sensor) |
| Repeatability |
±2%F.S |
| Temperature |
-40℃～70℃(catalytic sensor),-20℃～50℃(Electrochemistry sensor) |
| Humidity |
10-95%RH (non-condensing) |
| Explosion-Proof |
IECEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb ；ATEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb |
| Degree of protection |
IP66/IP68 |
| Power |
12-30V DC |
| Dimensions |
178×129×70mm |
| Weight |
1.4kg (No mounting bracket ,alarm light) |
| Approval |
CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX |
| Warranty |
12 months |
Standard configuration list
1) Gas detector 1 piece
2) Magnetic wand 1 piece
3) User manual 1 piece
4) Certificate of Conformity/Warranty Card 1 piece
5) Mounting plate 1 piece
6) M4 bolt 3 piece
7) M4 nut 3 piece
8) M4 Screw pad 3 piece
9) M4 flat mat 3 piece
