Product Overview
Designed for the gas industry, the SKY3000-SP are multi-application instruments, satisfying all the needs of service technicians within a single unit. With different modes of operation and internal pump, the SKY3000-SP is the most versatile instrument available for working with gas.
The SKY3000-SP series offers technicians and workers a single instrument that can be used throughout the gas distribution andtransmission pipelines for all measurements needed for leak testing, and confined space entry. Bright LED alarm lights illuminate as gas levels increase, and audible alarms are activated at preset levels should they be programmed.
The explosion-proof Grade of the SKY3000 series is IECx and ATEX certifiacated with Ex ia IIC T4 Ga, which is applicable to the explosive gas mixture zone 0, zone 1, and zone 2 of the factory with grades ⅡA ,ⅡB , and ⅡC and temperature group T1~ T4.

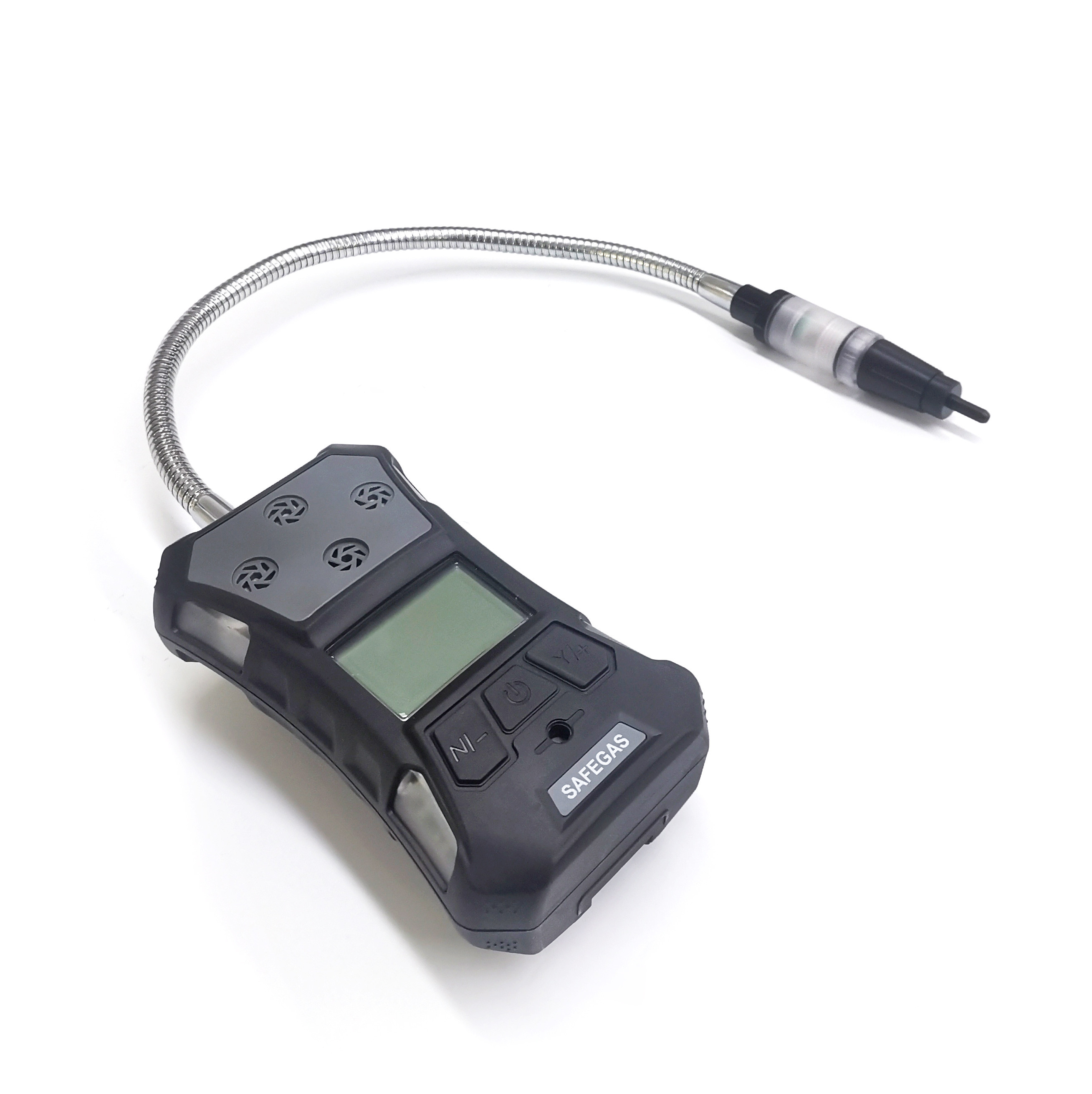

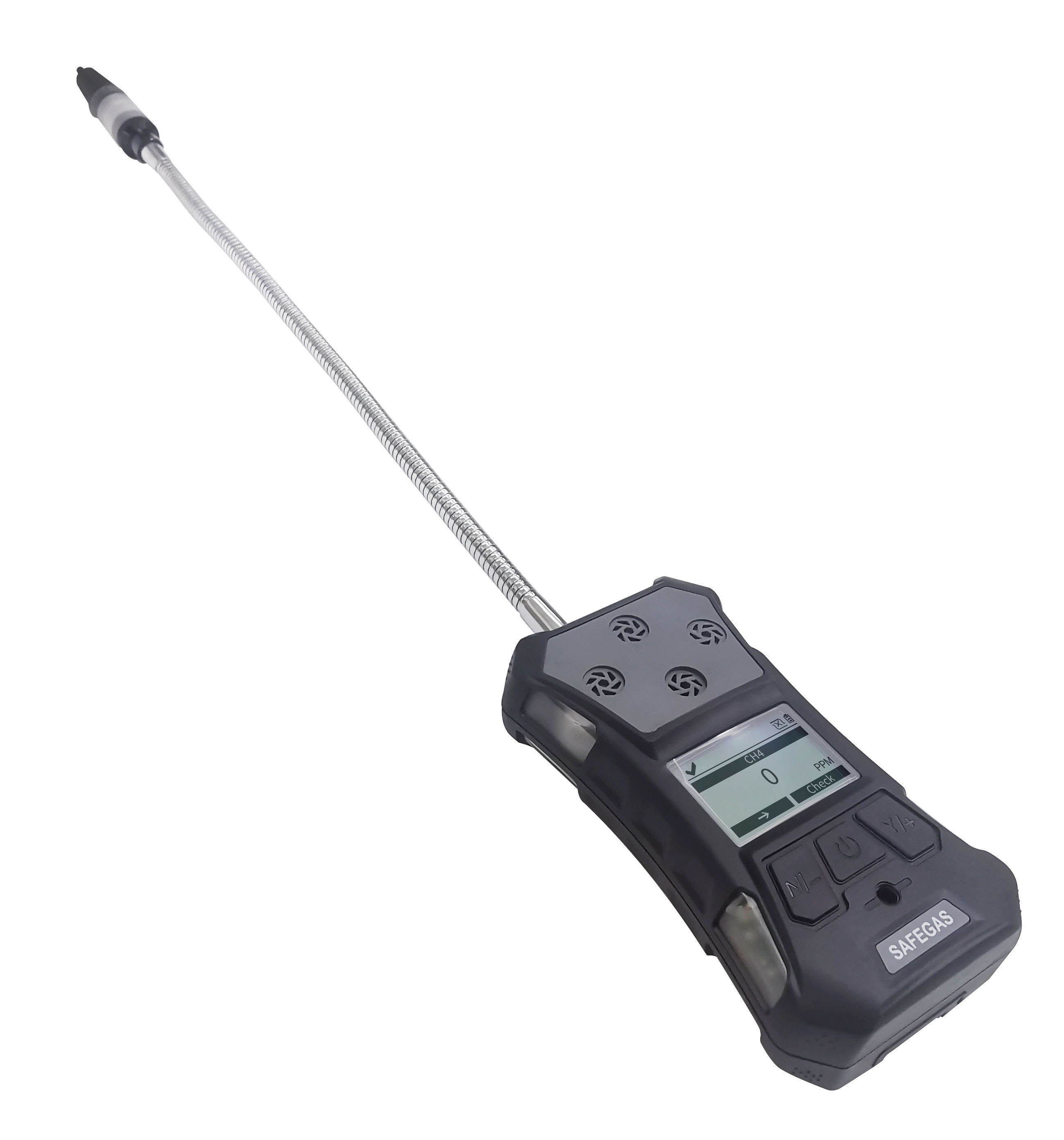

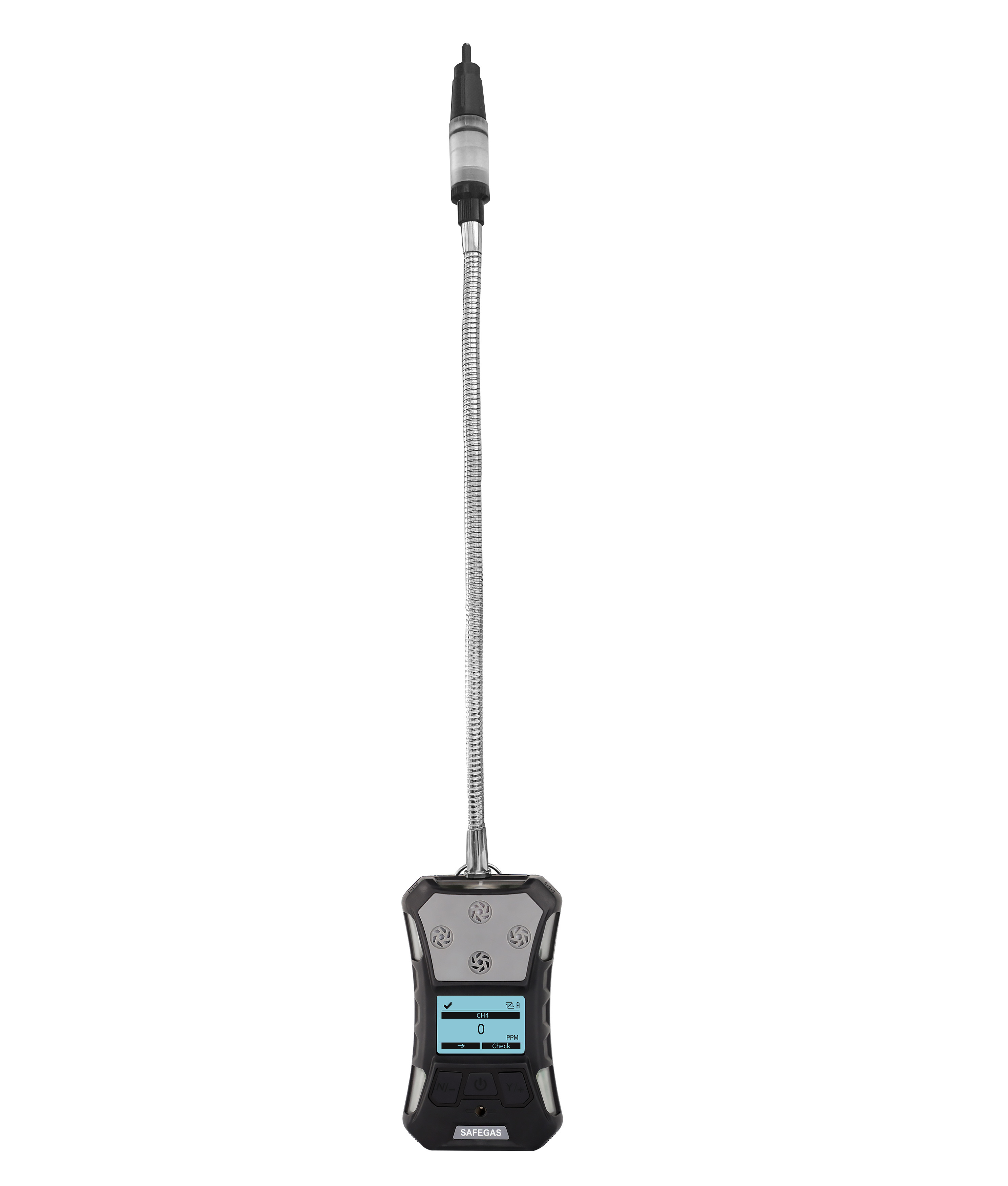

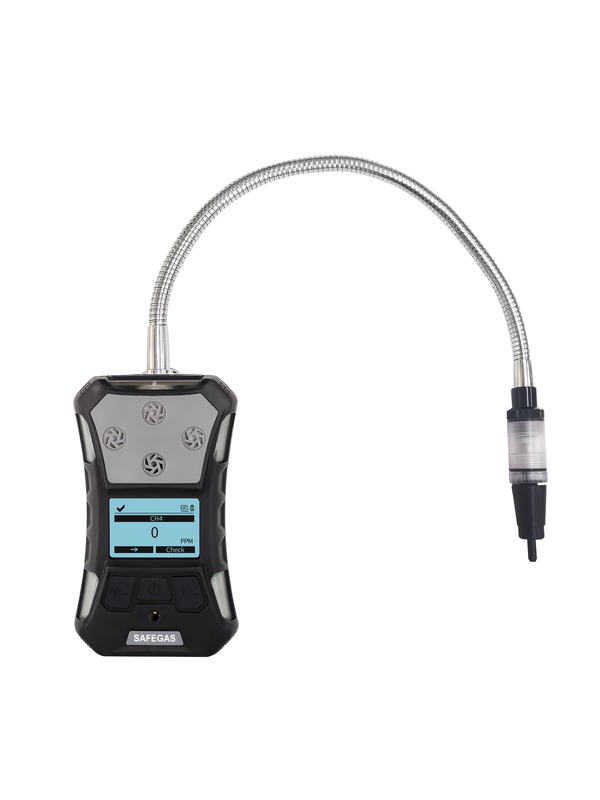

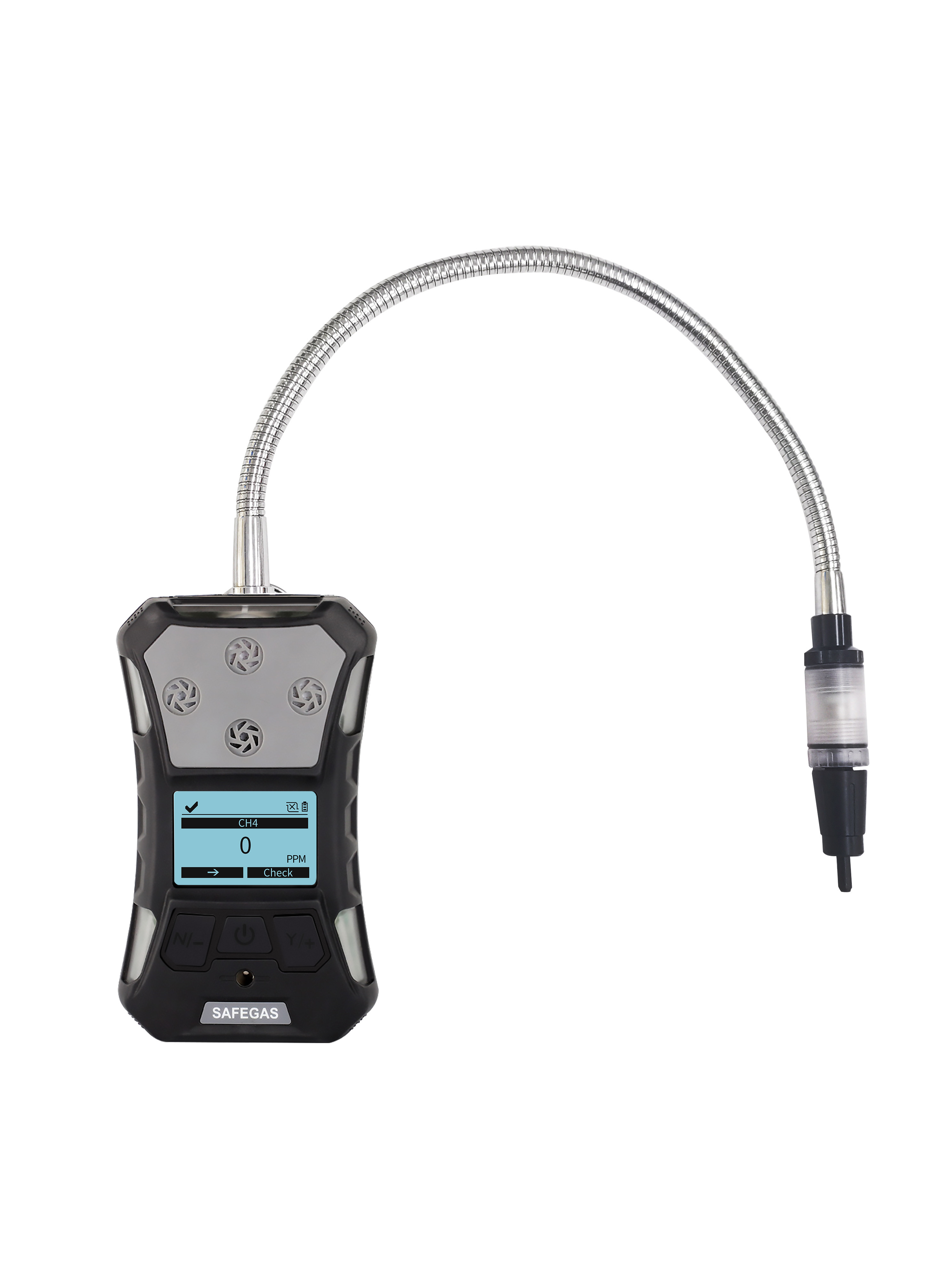

Product Picture
Product Advantage
1) Optional measures up to 4 gases,(O2, CH4, CO, H2S) simultaneously with audible visual alarms, datalogging, and min/max values.
2) Gas leak detection measures methane in three different distinct ranges (ppm / LEL / %Volume). Autoranging between all three ranges, audible,
visual, and gieger alarms, and ergonomical design allows for easy one handed operation.
3) With flexible probe for testing undrerground leaks, measures gas beginning in the LEL range and autoranges to % Volume. Barhole probe included with instrument.
4) Rugged polycarbonate case, sealed to IP67
5) One press to restore factory settings
6) Large graphical display can rotate 180°
7) Support backlight function the backlight time can be manually set
8) Low power consumption, long stand by time
9) Support firmware upgrade remotely
Product specifications
1) Gas Detected: CH4
2) Detection Principle:Semiconductor Principles/Catalysis Principles
3) Measure range:CH4: 0-10000ppm, 0-100%LEL, 0-100%VOL
4) Resolution: 1ppm, 1%LEL, 1%VOL
5) Response time: ≤30 seconds
6) Precision: ≤±1-5%F.S except for special gases
7) Language: Chinese/English/Polish(More language can be customized)
8) Automatically test and calibrate after power-on: Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
9) Unit: PPM, mg/m3, %LEL, %VOL
10) Backlight: Turned on automatically when alarming, the backlight time can be manually set
11) Display: LCD (160 x96) ,180° rotate
12) Data record: 100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to PC no need software
13) Alarm: 95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on the screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm
14) Battery: 3.7V rechargeable lithium battery, battery capacity 2200mA
15) Working hours: More than 15 hours in continuous pumping mode
16) Charger: Travel charger with DC interface, charging time ≥ 4 hours
17) Explosion-proof :
IECEx: Ex ia IIC T4 Ga
ATEX : II 1G Ex ia IIC T4 Ga
18) Working temperature: -20℃~+50℃
19) Humidity: 10～90%RH(no condensation)
20) Protection grade: IP67
21) Working Pressure: 86～106Kpa
22) Weight: 365g (including battery, belt clip and filter)
23) Size: 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height)
Standard configuration list
Standard accessories:
1) Gas detector 1 piece
2) 12V/1A DC power adapter 1 piece USB cable 1 piece
3) User manual 1 piece
4) Warranty card 1 piece
5) Flexible probe 1 piece
6) Aluminum suitcase 1 piece
Why choose us?
1) R&D team experience: over 25 years.
2) Company certification: ISO9001, ISO45001
3) Product certification: IECEx (the only one in China), ATEX, CE
4) Delivery: 5-7 days
5) Yearly capacity: 80,000 units
6) Service: Professional sales staff provide 7*24 hours service
Safegas is a company that focuses on the design,production and sales of environmental monitoring equipment and system for 16 years. With “gas detector” as the core product, we have completed production lines and solutions according to different industries,such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 16 years of rapid development, Safegas becomes the influential supplier for environmental monitoring equipment and system in the domestic and overseas market.
For years, Safegas always insisted on the management concept “Market is orientation. Innovation is motivation. Quality to survival. Development to growth.” With friendly, open, and strict corporate culture and standardized management, Safegas gathers a lot of talents and builds up the management team and R&D team. All the staff cooperates well in product development, production, and maintenance, and has a deep understanding of the concept of “customer-oriented”, and runs the service spirit through the company operation and management, to win the trust and support from customers.
Depending on years of measurement experience and Safegas solutions, through independent research and development, cooperative development and learning overseas latest technology, Safegas’s products are domestic advanced, and can compete with overseas brand. We are seeking for development and progress constantly, and trying to meet diversified demands from customers.
