Name: IECEx ATEX Approved Fixed Gas Detector with IP66/68 Protection and Wireless LORA 4G for Toxic Gas Leak Detection
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SG100
Price: 2,137.00 USD
Availability: InStock

Detail Information

Gas Detected:	Customized	Measure Range And Resolution:	Customized
Accuracy:	≤±2-5%FS (Depending On The Specific Sensor)	Explosion-proof Grade：:	IECEX：Ex Db IIC T6 Gb，Ex Db Ia IIC T6 Gb ； ATEX：Ex Db IIC T6 Gb，Ex Db Ia IIC T6 Gb
Protection Grade:	IP66/68	Communication Mode:	4-20mA(3-wires)、RS485 1～5V，Hart(Optional)
Wireless:	LORA, 4G(Optional)	Relay:	3 Relays, Including Low/high/fault Alarm Relay（Optional）
Working Temperature:	0℃～70℃（Catalytic Sensor）， -20℃～50℃（Electrochemistry Sensor）	CableEntries:	1 X ¾ NPT & 1 XM 20 Cable Entry Connections
Size:	157.8x128.8x69.6mm	Weight:	1.0Kg
Highlight:	Storage Rooms Fixed Gas Detector , Gas Residue Fixed Gas Detector , Leak Detection Fixed Gas Detector

Product Description

Fixed Gas Detector for Gas Residue and Leak Detection in Storage Rooms IECEx ATEX Approved

Product Overview

The SG100 Fixed Gas Detector is a cost-effective solution for continuous monitoring of toxic gases, oxygen, flammable, and VOC gases. Certified by IECEx and ATEX with intrinsically safe explosion grade, it features 2-wire or 3-wire 4-20 mA analog output, RS485 modbus output, and optional HART output for compatibility with most control systems.

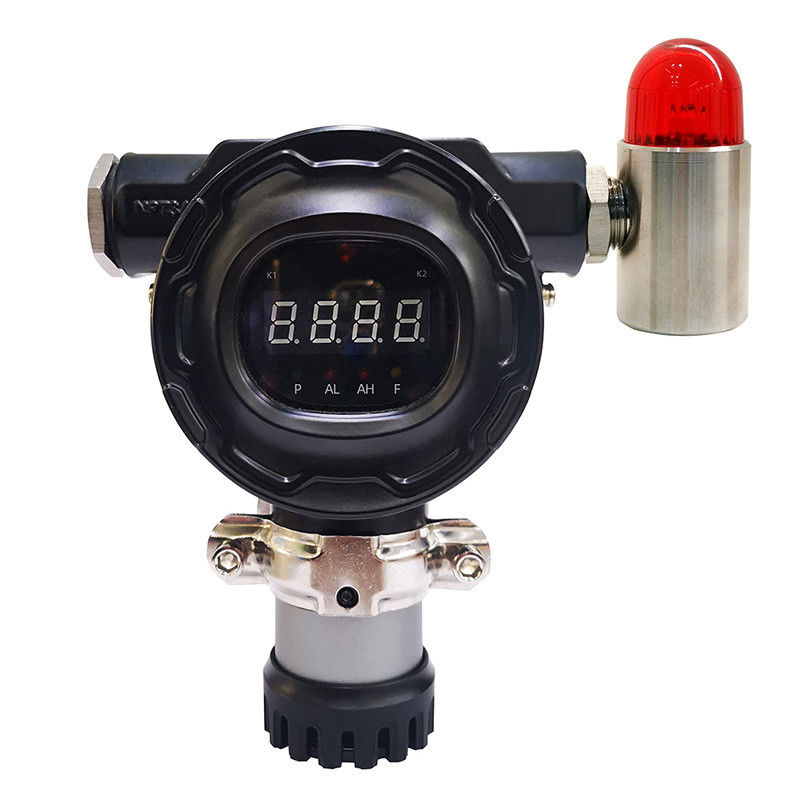

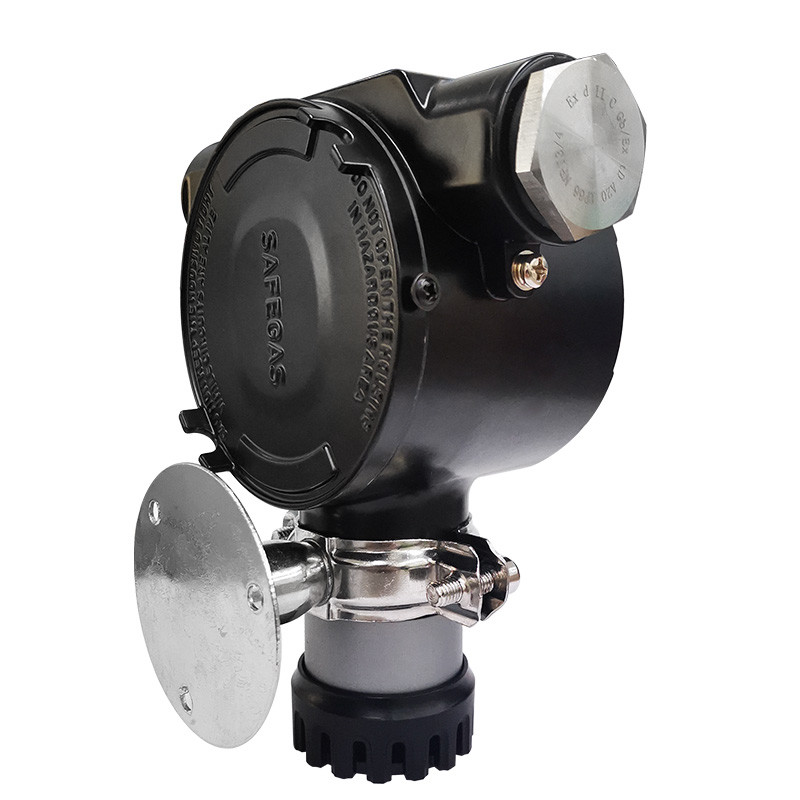

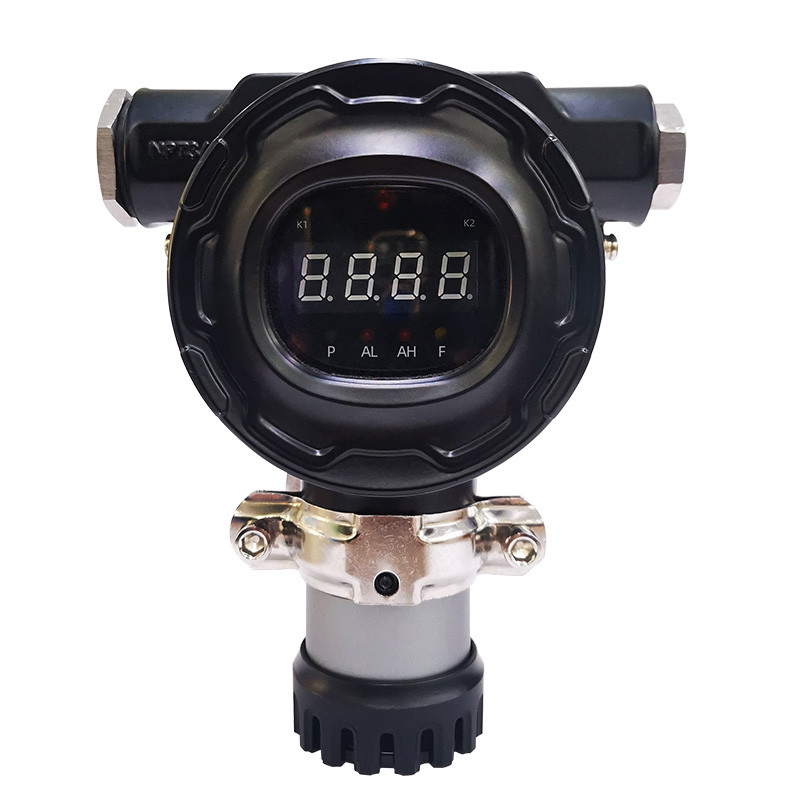

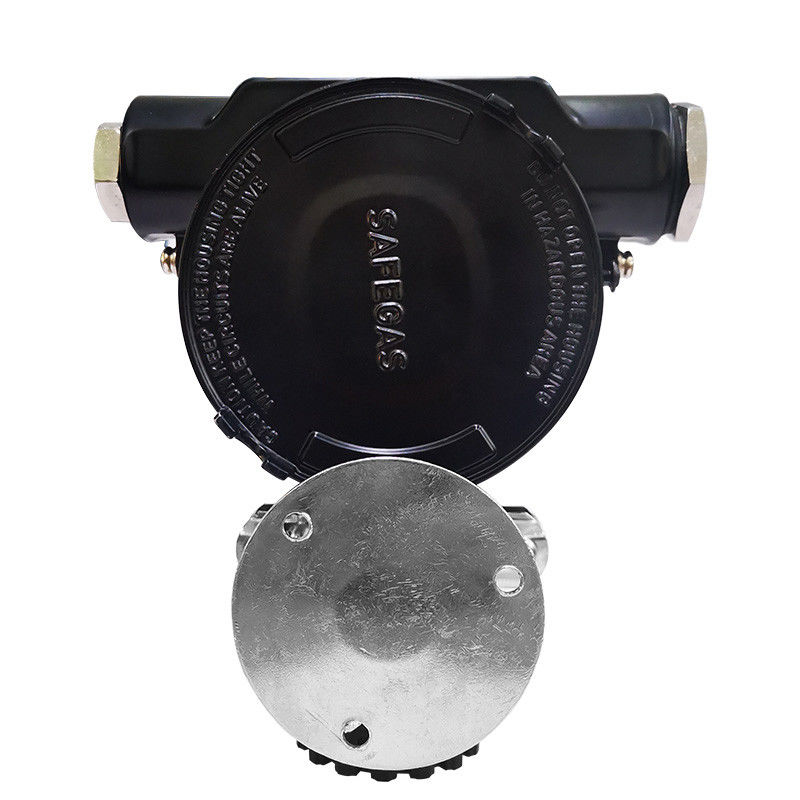

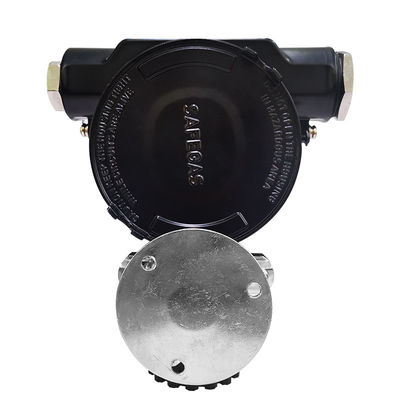

Product Images

Key Features

IP66/IP68 water & dust resistant rating
Intelligent plug and play sensor module with PC software calibration support
Standard splash guard for outdoor installation and water splash environments
Compact and lightweight design (1 kg) with standard mounting bracket
Standard 4-20 mA analog signal output and RS485 modbus signal output
Optional HART output and 2-wire output for system compatibility
Three relays including low/high/fault alarm relay (optional)
Magnetic and remote control support for flexible configuration

Technical Specifications

Detected Gas	O2, NH3, CO, H2... Single gas customized
Measure Range	Customized
Install Method	Wall-mounted, piping type, flow-type
Output Signal	4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional)
Precision	≤±1%F.S. (to be specialized)
Zero Shift	≤±1%(F.S./year)
Display	4 digits Nixie tube display
Connection Mode	G3/4 external thread explosion-proof flexible pipe
Thread Size	Standard M20*1.5, 3/4NPT
Temperature	-20℃～50℃ (electrochemistry principle), -40℃～70℃ (catalytic combustion principle)
Humidity	10-95%RH (non-condensing)
Explosion-Proof	Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb
Degree of Protection	IP66/IP68
Material	Sensor housing: aluminum alloy or 316 stainless steel
Power	12-24V DC
Dimensions	158×129×70mm
Weight	≤1kg
Approval	CE, CNEX explosion proof certificate, CMC, IECEx, ATEX
Warranty	12 months

Standard Accessories

Gas detector, 1 set
Magnetic wand, 1 set
User manual, 1 piece
Conformity Certificate/warranty card, 1 piece
Installation bracket, 1 set
Infrared Ray Controller, 1 piece

Optional Accessories

Calibration cap, power adapter, external pump, explosion-proof gland, adapter NPT3/4, adapter M20 * 1.5, sound and light alarm, etc. Please contact us for details.

Why Choose Safegas?

R&D team experience: over 25 years
Company certification: ISO9001, ISO45001
Product certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly capacity: 80,000 units
Service: Professional sales staff provide 7*24 hours service

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With "gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.

Product Line

Our products contain portable types, fixed types and controller panels:

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H

Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001. Our products have obtained international explosion-proof certifications from IECEX and ATEX.

Our Clients

Huawei, Coca-Cola, Samsung, Nestlé and so on.

Frequently Asked Questions

Q1: What is a gas detector?

A1: Gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, fixed gas detector, etc.

Q2: What does a gas detector detect?

A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc. Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.

Q3: What is the ppm unit of the gas detector?

A3: ppm represents the volume concentration of the gas, that is, the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
