Name: Safegas YT-98H Fixed Multi-Gas Detector with Built-in Pump and Wireless Data Transmission IECEx ATEX Certified for Industrial Use
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: YT-98H
Price: 2,210.00 USD
Availability: InStock

Detail Information

Gas Detected:	O2, N2, CO2, EX, Hazardous Gas, Voc, Etc	Detection Principle:	Electrochemical, Infrared Ray, Catalytic Combustion, PID Photo Ionization, Etc
Power:	12-24V DC	Accuracy:	≤±2-5%FS (depending On The Specific Sensor)
Response Time(T90):	15-30s(depending On The Specific Sensor)	Repeatability:	≤±1%
Pump Flow:	0.35-0.5 L/Min	Temperature:	–20℃～55℃
Humidity:	0-95%RH(no Condensation)	Alarm(Optional):	Buzzer, Alarm Status Prompt On The Display Screen, High And Low Alarm Values Can Be Set By Customer
Highlight:	Multi Gas Detector with Pump , Industrial Use Multi Gas Detector , Fixed Multi-Gas Detector

Product Description

Safegas YT-98H Fixed Multi-Gas Detector

Product Overview

YT-98H/YT-98H-A Fixed Gas Detector is a built-in pump-suction single & multi gas detector with IECEx and ATEX certification. Featuring non-contact magnetic wand design, it can be installed and operated in explosion-proof areas and Oil & Gas industries. The detector offers 3-wire 4 to 20-mA output with relays, HART, and Modbus protocols for compatibility with most control systems. Optional wireless function allows operators to view data remotely on laptops, mobile phones, or cloud systems.

Key Features

Built-in high-suction long-life vacuum pump with over 12,000 hours continuous operation
Faster response detection compared to traditional diffusion sampling
2.4-inch high-definition color screen with Chinese/English interface
Simultaneous detection of up to six gases with settable alarm values
Infrared remote control operation without opening the cover
Multiple output options: 4-20mA, RS485, relay outputs
Explosion-proof, lightning protection, anti-static, surge protection, IP65 waterproof
Optional wireless transmission (2km, 5km, 8km) and cloud platform monitoring

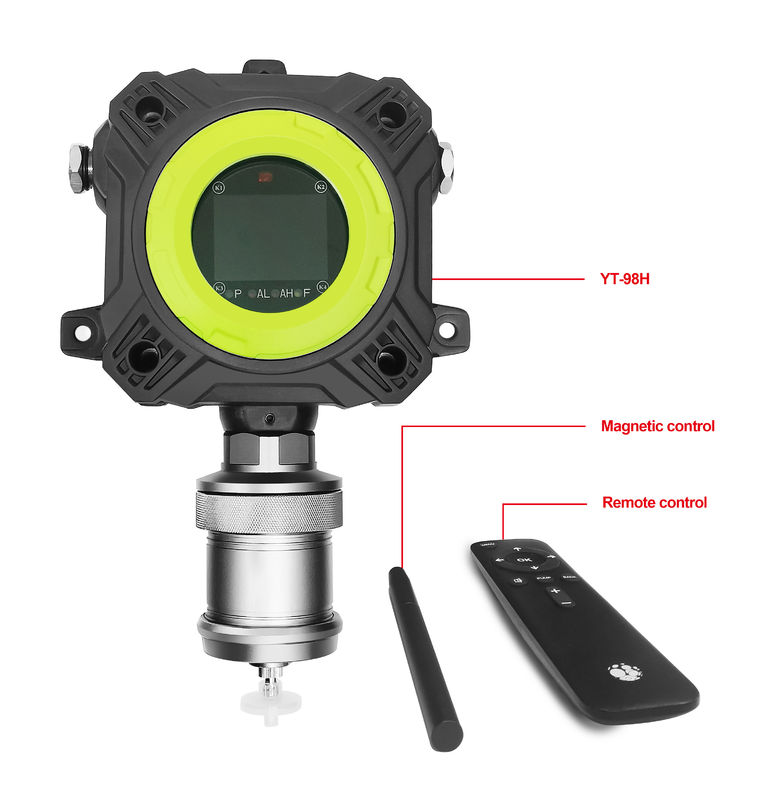

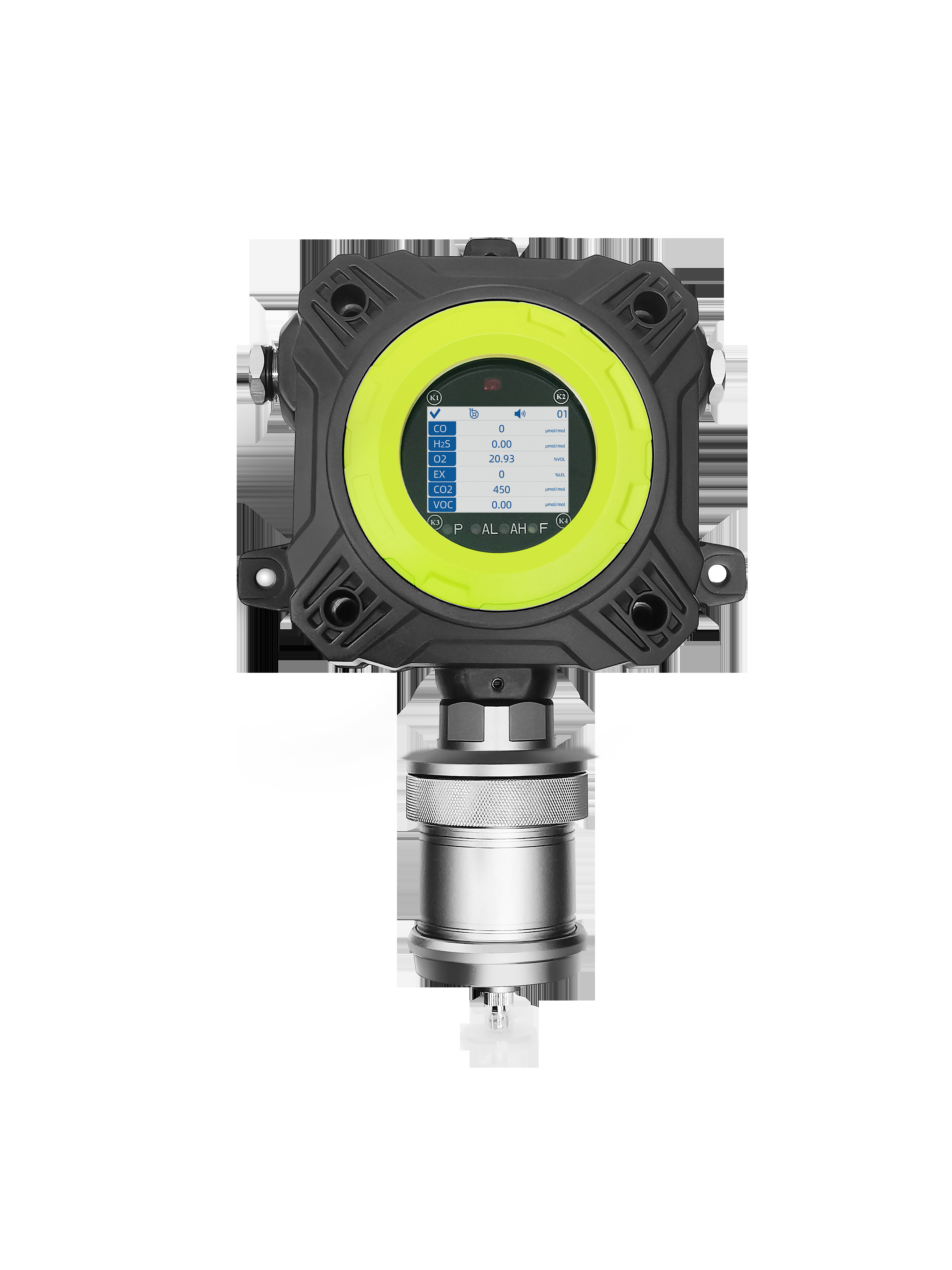

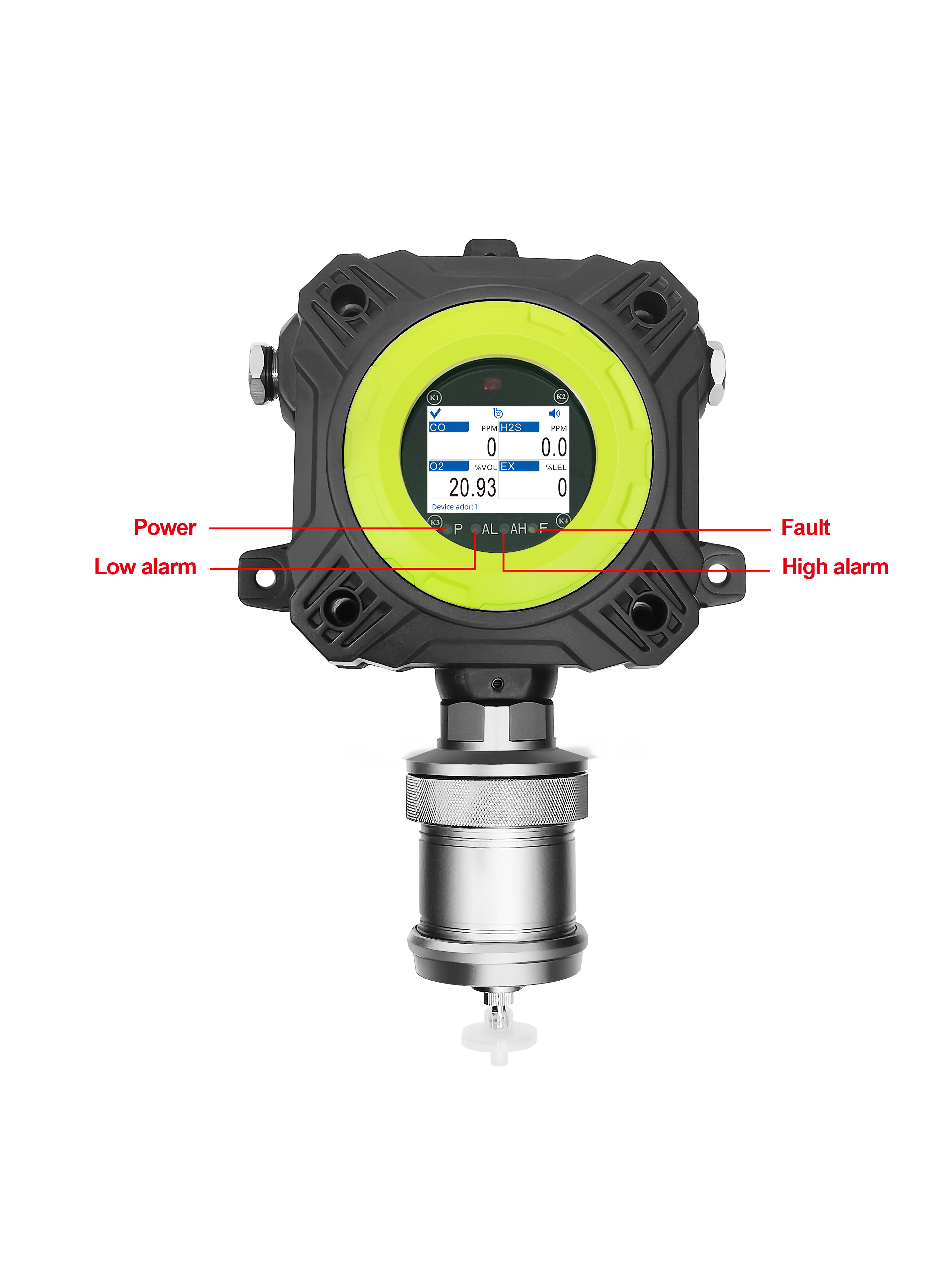

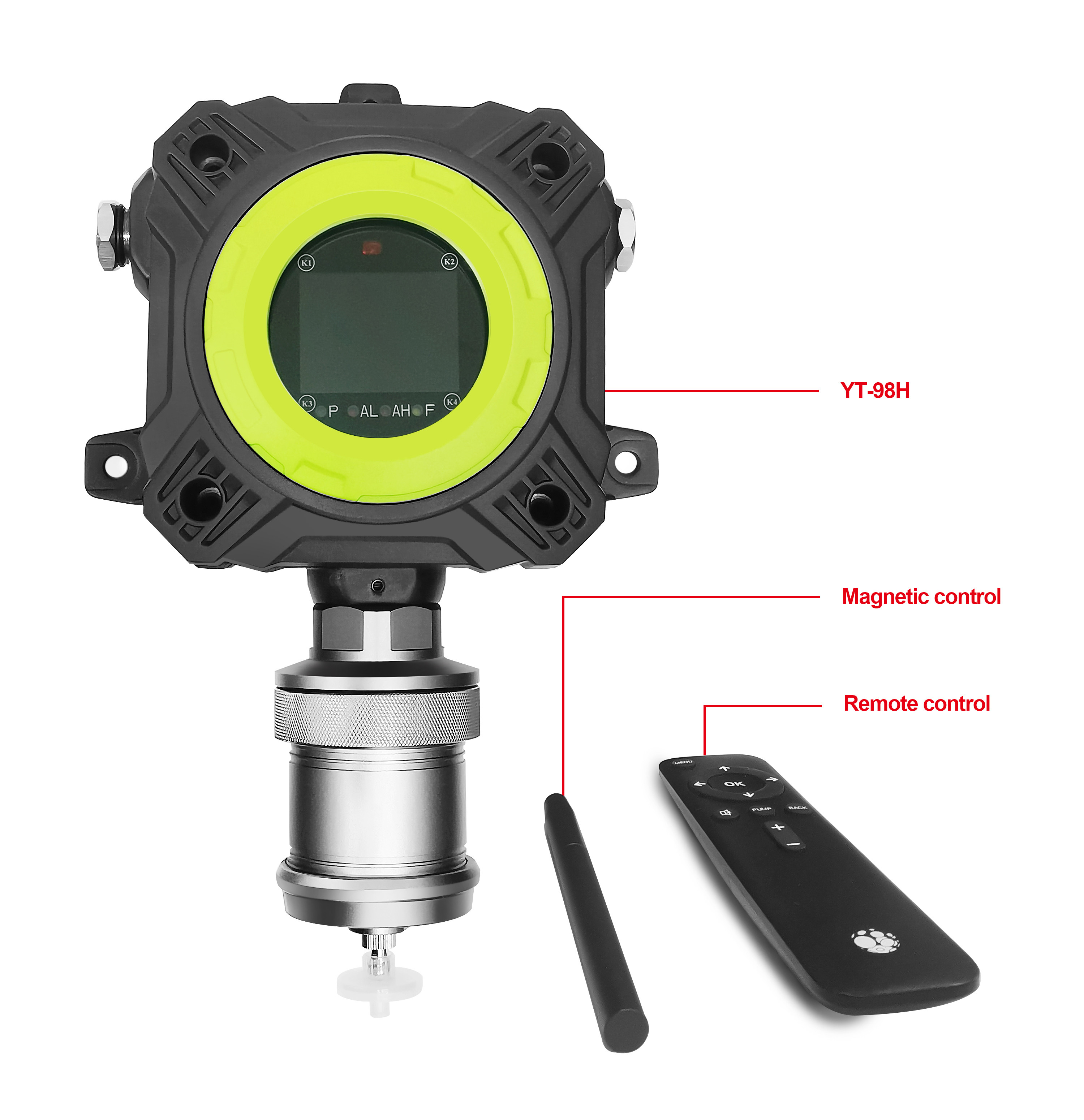

Product Images - YT-98H (with display)

Product Images - YT-98H-A (with display and alarm light)

Product Advantages

Up to 6 kinds of gases can be detected simultaneously, reducing multiple installations in complex environments

2.4-inch industrial-grade high-definition color screen with 320*240 resolution and 120-degree viewing angle

Optional wireless module for cloud platform data upload with SMS reminder function

Internal suction pump for fast response and accurate detection

Full software automatic verification and zero calibration functions

Standard 4-20mA current signal, RS485 modbus signal, and relay signal output

Infrared remote control for detector operation and settings modification

Optional sound and light alarm function

Technical Specifications

Parameter	Specification
Gas Detected	O2, N2, CO2, EX, hazardous gas, VOC, etc
Detection Principle	Electrochemical, infrared ray, catalytic combustion, PID photo ionization
Installation Method	Wall-mounted, piping type, flow-type
Accuracy	≤±2-5%FS (depending on specific sensor)
Signal Output	4-20mA, RS485, relay
Response Time (T90)	15-30s (depending on specific sensor)
Display	2.4-inch color display, resolution 320*240
Operating Temperature	-20ºC to 55ºC
Humidity	0-95%RH
Explosion-Proof	IECEX: Ex db IIC T6 Gb \| ATEX: Ex db IIC T6 Gb
Protection Level	IP66
Dimensions	43×27×15cm
Weight	4.6kg

Why Choose Us?

R&D Experience
Over 25 years

Company Certification
ISO9001, ISO45001

Product Certification
IECEx, ATEX, CE

Delivery Time
5-7 days

Annual Capacity
80,000 units

Service
7×24 hours professional support

Frequently Asked Questions

What is a gas detector?

Gas detector is an instrument for gas leakage concentration detection, including portable gas detectors and fixed gas detectors.

What does a gas detector detect?

Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc. Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.

What is the ppm unit of the gas detector?

ppm represents the volume concentration of the gas, meaning the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.

Tag:

Place of Origin:	China
Brand Name:	SAFEGAS
Certification:	ATEX/IECEX
Model Number:	YT-98H

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton(432715cm)
Delivery Time:	3 work days
Payment Terms:	T/T,Western Union
Supply Ability:	3000 pieces per month
