Name: Portable Gas Detector with Diffusion Sampling H2S NH3 Simultaneous Detection IECEX ATEX Certified for Leather Factories
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: Micmeta
Price: 2,210.00 USD
Availability: InStock

Detail Information

Gas Type:	NH3 ,H2S	Working Method:	Diffusion
Response Time(T90):	≤30S	Automatically Test And Calibrate After Power-on:	Including Auto-test, Calibration, Auto-zero, Maximum Value (MAX), Minimum Value (MIN), STEL, TWA Value
Calibration Platform:	Modification, Function Testing And Calibration Operations Can Be Performed On DKM-MicMeta Docking Station(optional)	Data Record:	1000 Sets Data Records And 100 Sets Events Records
Battery:	3.7V Rechargeable Lithium Battery, Battery Capacity 2300mA	Wireless Transmission:	Bluetooth Transmission Function (optional), Lora Transmission Function (optional)
Working Hours:	Standby Time 24h, Charging Time <6h	Certification (EU Regulations):	2004/34/UE (ATEX）
Protection Grade:	IP66/IP68	Weight:	240g (with Lithium Battery)
Highlight:	Diffusion Sampling Gas Detector , IECEX ATEX Gas Detector , H2S NH3 Portable Gas Detector

Product Description

Portable Gas Detector Diffusion Sampling H2S NH3 Simultaneous Detection

Suitable for leather factories with IECEX and ATEX certifications.

Product Overview

MicMeta is an IECEx/ATEX/EMC certified multi-gas detector with IP68 protection. It features an explosion-proof rating of Ex ia I Ma, Ex ia IIC T4 and is suitable for use in coal mines. The device is lightweight, compact, and features two-button operation for ease of use.

Standard gas detection includes four gases (CO, H2S, O2, LEL), with hundreds of additional gases available for optional customization. Wireless capabilities enable remote data access. Using a standard data logger, real-time data and alarm events can be exported directly to a PC.

Wireless LoRa transmission supports transmitter and receiver functionality (2 kilometers unobstructed) with data monitoring cloud platform integration. Data uploaded to the server can be accessed remotely by multiple users simultaneously, enabling functions such as record storage and real-time viewing.

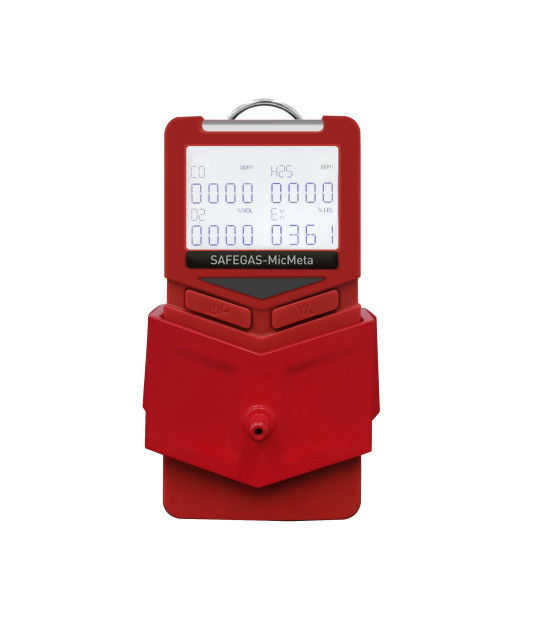

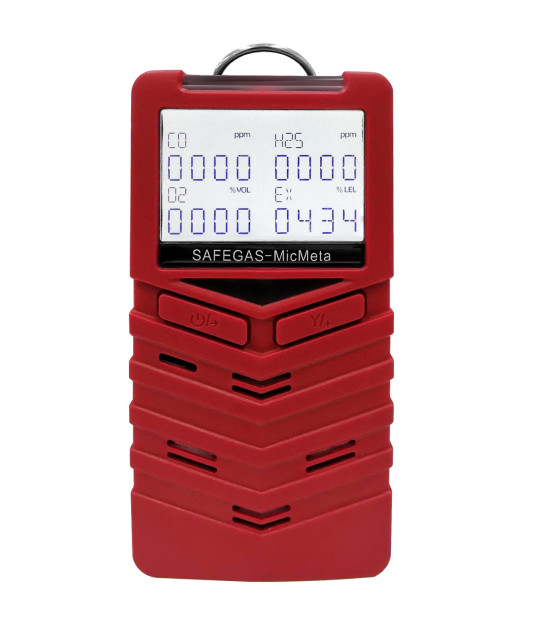

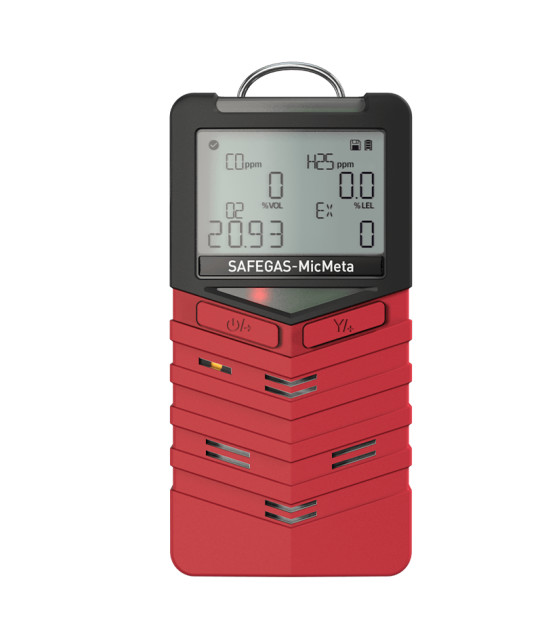

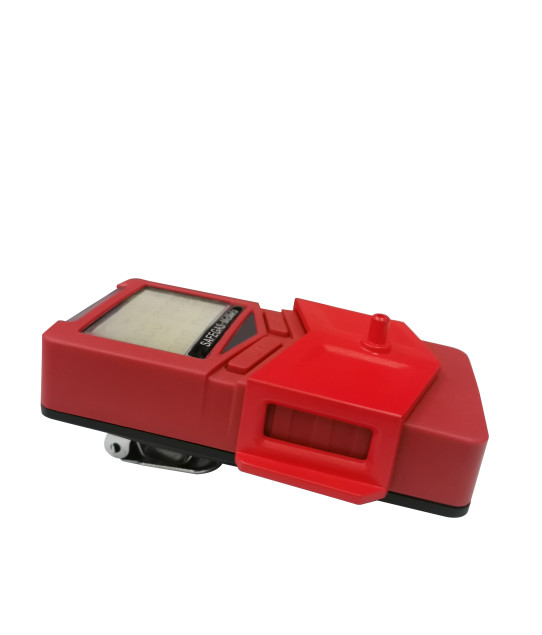

Product Images

Product Specifications

Specification	Details
Sampling method	Diffusion
Gas type	NH3, H2S
Measure range	Customized
Resolution	Customized
Response time	≤60S (T90)
Precision	≤±5%FS or ±10% (depends on specific sensor)
Language	Chinese/English
Automatically test and calibrate after power-on	Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit	PPM and mg/m³ can be switched and displayed by one key, with automatic concentration value conversion
Display	Segment code LCD display
Calibration platform	Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional)
Data record	1000 sets data records and 100 sets events records
Alarm	95dB buzzer (@30cm), vibration alarm and flashing red bar, on-screen alarm status indication, alarm lock; Diagnostic alarms and battery undervoltage alarms, man down alarms, all sensor alarm values are settable
Battery	3.7V rechargeable lithium battery, 2300mA capacity
Working hours	Standby time 18h, charging time <6h
Wireless transmission	Bluetooth transmission function (optional), LoRa transmission function (optional)
Explosion-proof grade	IECEx: Ex ia IIC T4 Ga, Ex ia I Ma ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma
EU regulations	2004/108/EC(EMC), 94/9/EC(ATEX), CE
Protection grade	IP66/IP68
Working temperature	-20°C~55°C
Humidity	0-95%RH (non-condensing)
Environmental pressure	86～106Kpa
Size	113×60×32mm (length × width × height)
Weight	200g (with lithium battery)

Applications

Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations

Why Choose Us?

R&D team experience: over 25 years
Company certification: ISO9001, ISO45001
Product certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly capacity: 80,000 units
Service: Professional sales staff provide 7×24 hours service

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have completed production lines and solutions for different industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.

Product Line

Our products include portable types, fixed types and controller panels:

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H

Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Companies We've Cooperated With

Huawei, Coca-Cola, Samsung, Nestlé and more.

Frequently Asked Questions

Q1: What is a gas detector?

A1: A gas detector is an instrument for gas leakage concentration detection, including portable gas detectors and fixed gas detectors.

Q2: What does a gas detector detect?

A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.

Q3: What is the ppm unit of the gas detector?

A3: ppm represents the volume concentration of the gas, meaning the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
