Name: Explosion Proof Gas Detector IECEX ATEX CE Digital Sensor Fixed H2S Detector
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SG100-WH
Price: 2,137.00 USD
Availability: InStock

Detail Information

Sensors:	Imported From US, Brand Is Honeywell	Sensor Type:	Eletectrochemical, Catalytic Combustion, IR, PID
Gas Detected:	H2S, CO, H2S, O2, NH3, SO2, CH4, EX Etc Different Gases	Sampling Method:	Diffusion
Response Time:	≤ 30s (T90)	Power Dissipation:	4-20mA(3-wires), RS485(4 Wires), Hart(Optional)
Explosion-proof Grade:	IECEX And ATEX From TUV	Protection Class:	IP66/67
Highlight:	IECEX H2S Detector , Explosion Proof H2S Gas Detector , Digital Sensor Fixed H2S Detector

Product Description

Explosion Proof Gas Detector IECEX ATEX CE Digital Sensor Fixed H2S Detector

Product overview

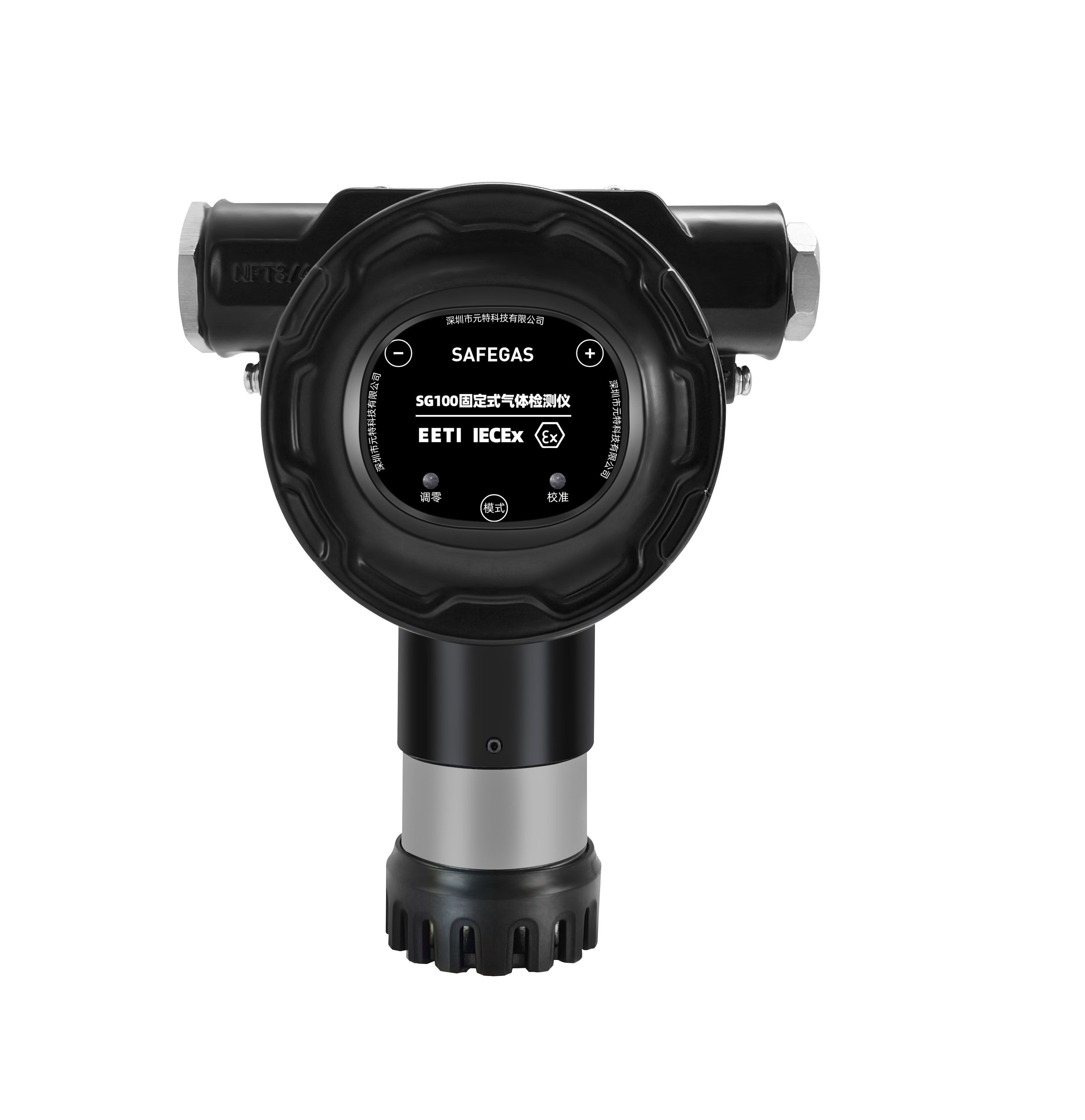

SG100-WH series is a cost-effective and intrinsically safe gas detector for the continuous monitoring of toxic gases, oxygen, flammable gases. With IECEx, ATEX certificates, explosion level reaches Ex db IIC T6 GB/Ex db ia IIC T6 GB/Ex da db ia IIC T6 GB.
Having a 3-wire 4 to 20 mA analog output with relays, it also offers HART, RS485 Modbus protocol, making it compatible with most control systems. With optional wireless function, no need wires to save the labor cost and realize the transmission without limits. Adopt magnetic wand design, it’s safe and easy to do menu navigation in explosion areas. It is also an intelligent hot swappable fixed gas detector, which is easy for maintenance after installation.

Product Advantages

IP66/IP67 water & dust resistant

Module chamber design, no need to disassemble of the whole machine or return for calibration when maintenance, just replace the sensor chamber only and can work properly

One-person calibration is easily performed using calibration cap

Body weight is only 1 kg, easy to install by one-person

Quick site installation using a mounting plate accessory

Standard 4-20 mA current signal, RS485 Modbus, 2 sets of relay signal output(NO)

Optional with 3 sets of relay signals(NO+NC)

Optional HART digital communication provides configuration

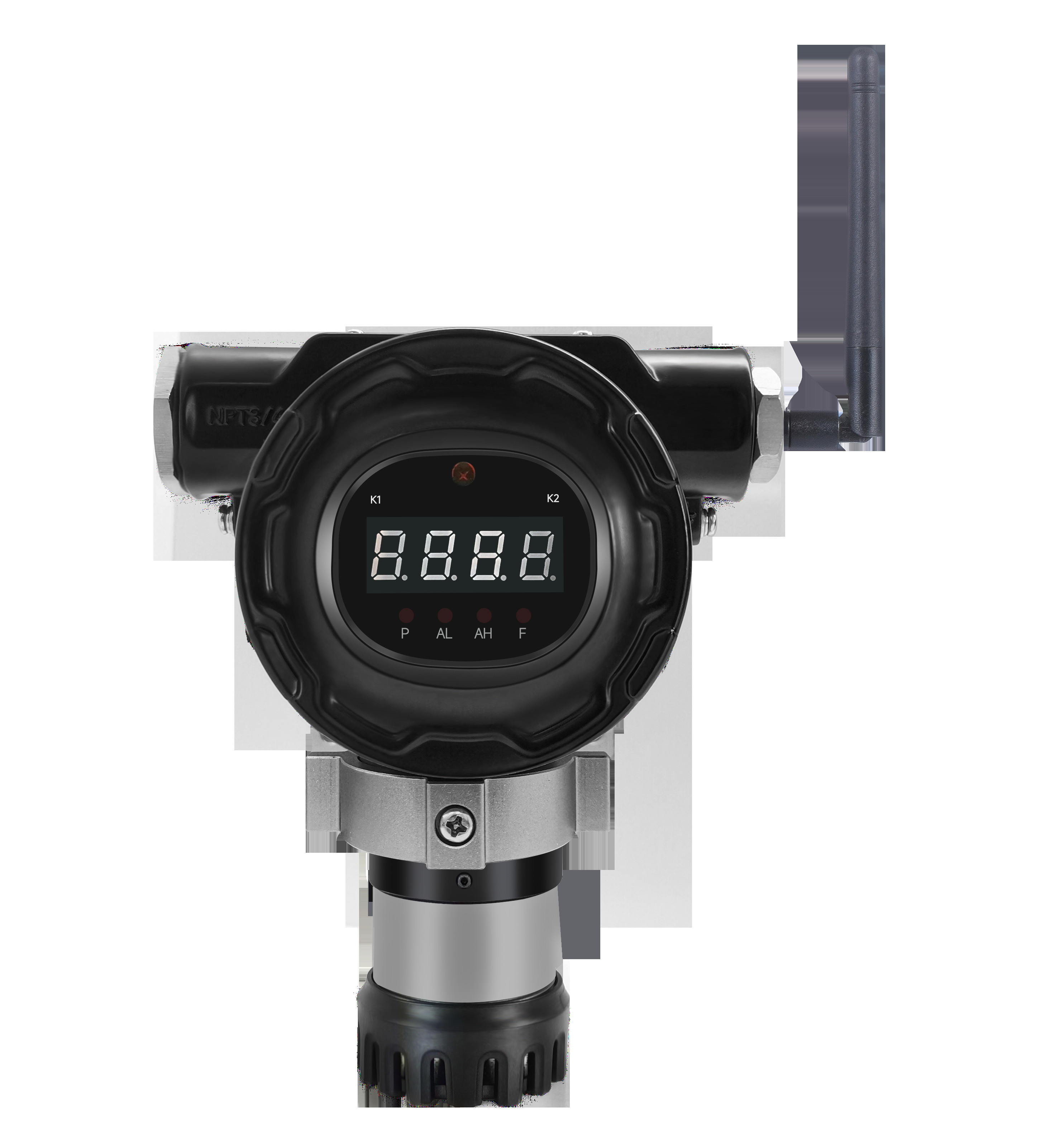

Optional wireless transmission modes can be selected


Accessories & Configuration list

Standard:
1. Gas detector, 1 set
2. Magnetic wand, 1 set
3. User manual, 1 piece
4. Conformity Certificate/warranty card, 1 piece
5. Installation bracket, 1 set
6. Infrared Ray Controller, 1 piece

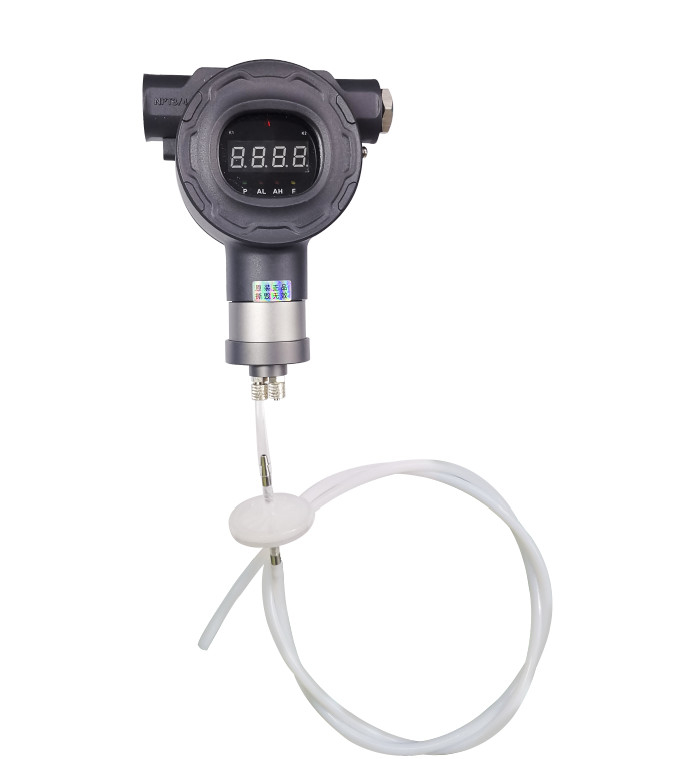

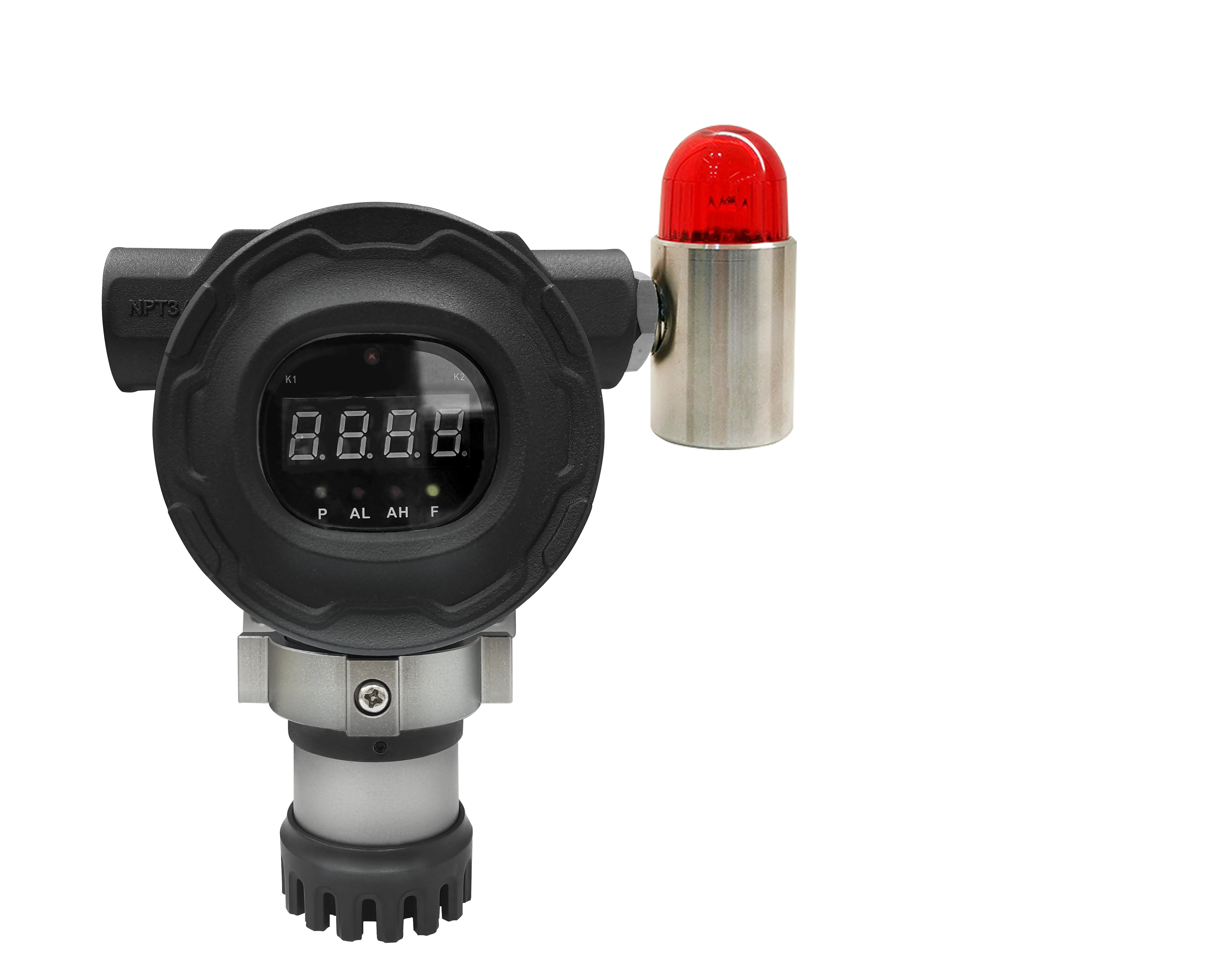

Optional: Calibration cap, power adapter, external pump, explosion-proof gland, adapter NPT3/4, adapter M20 * 1.5, sound and light

alarm, etc. Please contact us for details.

Technical Specifications

			Detected gas:
			H2S, CO, O2, EX, CH4, VOC, CL2, HCL, NO, NO2, SO2, NH3, etc different single gases. According to customers' requirements.

			Detection principle:
			Electrochemical/IR/PID/Catalytic combustion, according to gas, sensor and measure range.

			Measure range:
			Carbon Monoxide(CO): 0-500ppm/1000ppm/2000ppm, Hydrogen Sulfide(H2S): 0-100ppm/200ppm, Oxygen(O2): 0-25%VOL/30%VOL, according to customer's requirements.

			Resolution:
			Carbon Monoxide(CO): 1ppm, Hydrogen Sulfide(H2S): 0.01ppm, Oxygen(O2): 0.01%VOL, EX: 1%LEL, according to sensor and measure ranges.

			Accuracy:
			≤±2%F.S. (higher precision can be customized)

			Response time:
			≤30 seconds (T90)

			Power dissipation:
			toxic gas<2.5W; flammable gas<4W

			Communication mode:
			4-20mA(3-wires), RS485(4 wires),Hart(Optional)

			Wireless:
			LORA, GPRS, 4G(Optional)

			Working voltage:
			12-24VDC

			Explosion-proof grade:
			IECEx: Ex ia IIC T4 Ga, Ex ia I Ma, ATEX: Ex II 1G E x ia IIC T4 G a, Ex ia I Ma

			Protection Class:
			IP66/IP68

			Explosion-proof grade:
			IECEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb ；ATEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb

			Protection Class:
			IP66/67

			Contact capacity:
			Standard with 2 sets of relay signals(NO), optional with 3 sets of relay signals(NO+NC)

			Working temperature:
			-40℃～70℃(Catalytic sensor)-20℃～50℃(Electrochemical sensor)

			Working humidity:
			0-95%RH (non-condensing)

			Working air pressure:
			86~106kpa

			Language:
			English

			Dimensions:
			157.8x128.8x69.6mm

			Weight:
			About 1.0KG

Contact:
Celia Wu

Mobile/WhatsApp/Wechat: +86 15889417475

Skype: celia.wu888

Email: sales04@szyuante.com

Tag:

Place of Origin:	China
Brand Name:	Safegas
Certification:	IECEX, ATEX, ISO9001, CE, SIL
Model Number:	SG100-WH

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	221611CM for 1 piece
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union, Credit card
Supply Ability:	1500pcs/week
