SO2F2 Gas Detector with 3.5-inch IPS LCD Color Screen Modular Internal Structure and Rechargeable Lithium Battery

Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: Chinese EX certificate
Model Number: SKY8000
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10 work days
Payment Terms: T/T,Western Union
Supply Ability: 300 pieces per month
Detail Information
Detecting Gas: SO2F2 Measure Range: 0-50, 100, 10000, 30000, 60000ppm Or 0-200g/m3
Resolution: Specified According To Application Sampling Method: Suck With Pump
Power: Rechargeable Lithium Battery Weight: 3.7kg
Humidity(no Condensation): 0~95%RH Temperature: -20℃ To +50℃
Warranty: 1 Year Print Function: Internal Printer And External Bluetooth Printer Can Be Choose
Wireless Transmit: Optional Lora And Bluetooth
Highlight:

SO2F2 Gas Detector

,

IPS LCD Screen Gas Detector

,

SO2F2 Portable Gas Analysis Instrument


Product Description

SO2F2 Gas Detector IPS LCD Color Screen Portable Gas Analysis Instrument

The SKY8000 is a portable gas analysis instrument widely used in industrial waste gas, air pollution source emission detection, boiler flue gas, automobile exhaust gas, and indoor air analysis applications. This analytical instrument can flexibly detect 1-18 types of gases with 1-3 selectable modules, each corresponding to one pump. The modular internal structure features separate air intake for interfering gases, effectively avoiding cross-interference.

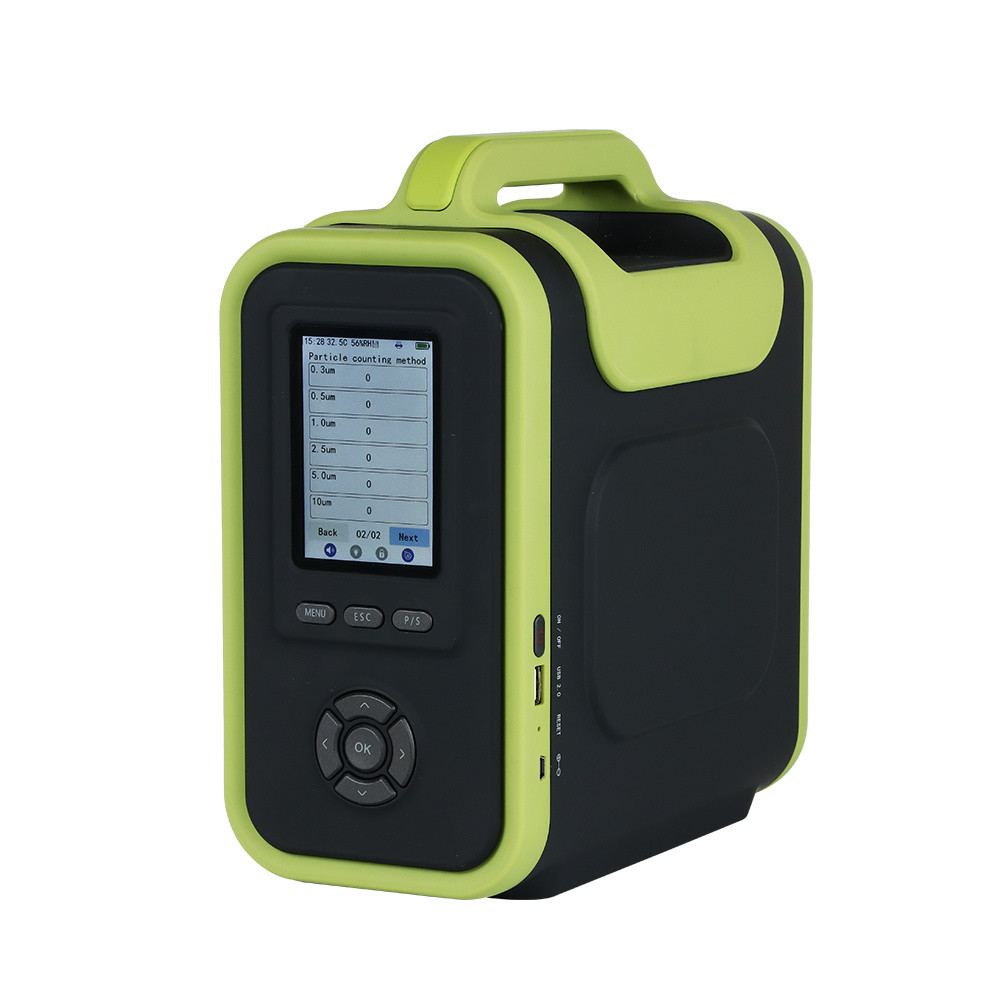

Features include a 3.5-inch high-definition IPS LCD color screen with 150-degree wide viewing angle and Chinese/English operation interface. Safety features include fall alarm, password protection, and safety reminders. Optional high-temperature probe enables monitoring in harsh high-temperature, high-humidity environments. The large-capacity lithium battery provides extended standby time, while the high-strength engineering material casing with ergonomic design enhances user experience.

Sulfuryl Fluoride Applications

Sulfuryl fluoride (SO2F2) features strong diffusion permeability, broad-spectrum insecticide properties, low dosage requirements, low residue, rapid insecticide action, short gas dispersion time, easy low-temperature use, minimal impact on germination rates, and low toxicity. It is increasingly used in warehouses, cargo ships, containers, buildings, reservoirs, dams, termite control, and for controlling overwintering garden pests and live tree stem-boring pests.

SO2F2 demonstrates high effectiveness against dozens of pests including Tribolium castaneum, black-skinned beetles, tobacco beetles, grain weevils, wheat moths, beetles, mealybugs, armyworms, and more. When used at 20-60g/m³ concentrations with 2-3 days of airtight fumigation, insecticidal effectiveness reaches 100%. It offers shorter killing time, lower dosage requirements, and faster dissipation compared to methyl bromide.

Technical Specifications
Sensors Infrared Ray / Semiconductor
Gas Detected Sulfuryl fluoride (SO2F2)
Measure Range 0-50, 100, 10000, 30000, 60000ppm or 0-200g/m³
Resolution Specified according to application
Display Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status
Alarm Buzzer, red LED and alarm status on display, fault alarm, pump abnormal alarm, low battery alarm
Data Storage Independent SD memory card, Max.32G, automatic measurement data recording with customizable time intervals
Data Transmission RS232, RS485 signal output, USB interface data transmission with upper computer software for data download, analysis and printing

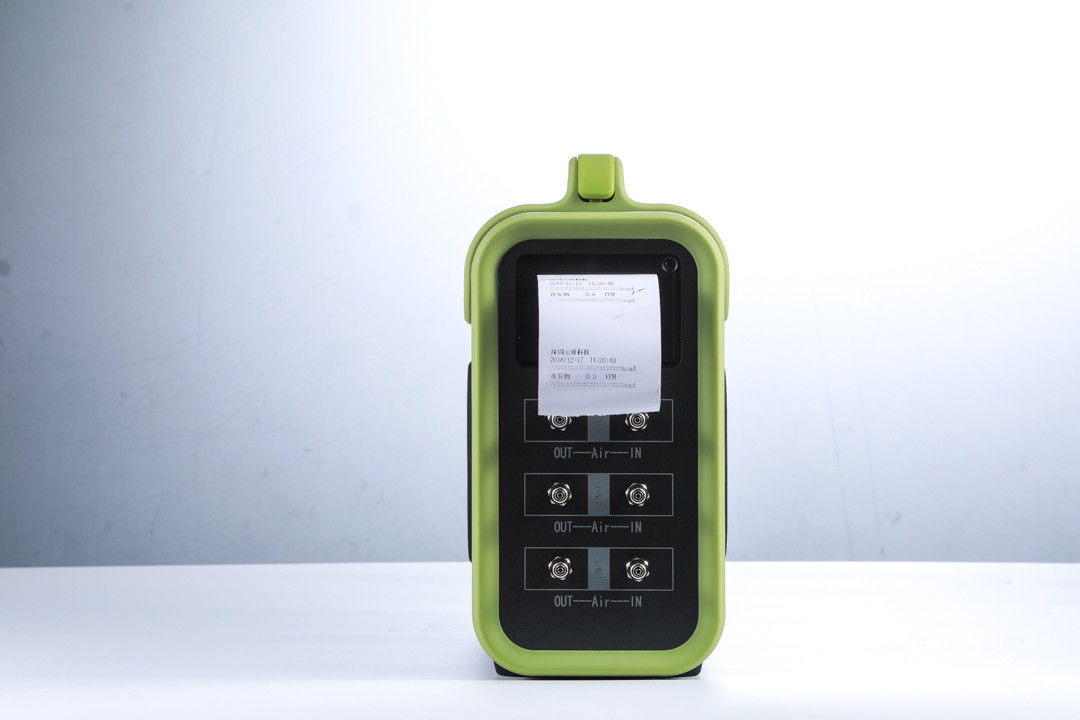

Print Function (Optional) Internal portable printer or external Bluetooth printer
Print Content (Optional) Text, graphics, barcode, QR code, curves, characters, etc.
Charger Standard Mini-USB charging port with 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer)
Language Chinese/English
Wireless Network (Optional) Bluetooth
Network Frequency 2.4G high frequency
Wireless Transmission Distance Bluetooth less than 10m
Product Advantages
Premium Design & Display
Convenient chassis handle design for easy carrying. Durable aviation wear-resistant materials. 3.5-inch high-definition color screen with wide viewing angle and user-friendly interface.

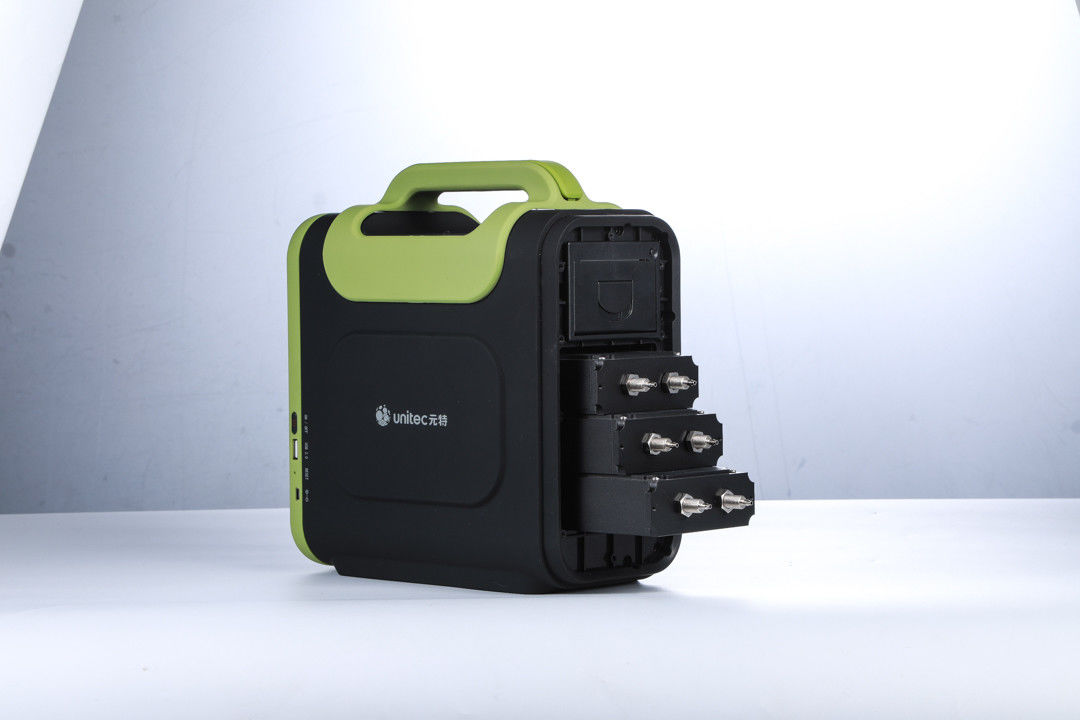

Modular Internal Structure
Patented modular design with up to three detection modules, each detecting up to six gases. Independent modules with separate air intake prevent cross-interference for accurate detection.
High Customizability
Up to 18 sensors selectable for simultaneous detection and analysis of multiple gases. Customizable flue gas measurement supporting up to 9 gases simultaneously.
Flexible Multi-Pump System
Up to three pump air supply system with arbitrary pump switching. Ten adjustable flow rate gears to suit different space environments and ensure accuracy.
Multiple Display Modes
Supports gas concentration data display and real-time curve display modes with arbitrary switching capability.
Comprehensive Data Storage
Standard 8G SD memory card with up to seven years continuous storage at 5-second intervals. Direct instrument viewing or USB export of historical data and curves.
Multiple Security Protection
Fall alarm, password protection, safety alerts, and high/low alarm lock functions for enhanced operational safety and parameter security.
Accessory Configuration
Standard Accessories:
  • User manual
  • Certificate/warranty card
  • 8G large capacity SD card (larger capacity available by customization)
  • Charging adapter
  • Water trap filter
  • Intake sampling probe
  • 1000mm hose
  • Non-toxic, odorless, explosion-proof, waterproof, heat-resistant, high-low temperature resistant, corrosion-resistant suitcase
Optional Accessories:
  • Built-in thermal printer
  • High temperature flue gas detector set
Why Choose Us?
  • R&D team experience: over 25 years
  • Company certification: ISO9001, ISO45001
  • Product certification: IECEx (the only one in China), ATEX, CE
  • Delivery: 5-7 days
  • Yearly capacity: 80,000 units
  • Service: Professional sales staff provide 7*24 hours service
Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have completed production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.

Product Line

Our products include portable types, fixed types and controller panels:

  • Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
  • Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
  • Controller panels: YT-1100H, YT-1600H
Gas detector product line overview
Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality.

Product certifications and quality standards
Company Partnerships

We have collaborated with major companies including Huawei, Coca-Cola, Samsung, Nestlé and more.

Corporate partnerships and clients
