Name: IECEx ATEX Certified Multi Gas Detector with Electrochemical Detection and Built-in Pump Suction
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: YT-98H
Price: 2,210.00 USD
Availability: InStock

Detail Information

Gas Detected:	H2S , CO	Detection Principle:	Electrochemical
Power:	12-24V DC	Accuracy:	≤±2-5%FS
Response Time(T90):	15-30s	Repeatability:	≤±1%
Pump Flow:	0.35-0.5 L/Min	Temperature:	–20℃～55℃
Humidity(no Condensation):	0-95%RH(no Condensation)	Alarm(Optional):	Buzzer, Alarm Status Prompt On The Display Screen, High And Low Alarm Values Can Be Set By Customer
Highlight:	Power System Distribution Room Gas Detector , Pump-Type Gas Detector , H2S And CO Gas Detector

Product Description

Pump-Type Gas Detector Continuously Detects H2S And CO Concentrations Quick Response Power System Distribution Room

Product Overview

YT-98H/YT-98H-A Fixed Gas Detector is a built-in pump-suction single & multi gas detector with IECEx and ATEX certification. Featuring non-contact magnetic wand design, it can be installed and operated in explosion-proof areas and Oil & Gas industry applications. The detector offers 3-wire 4 to 20-mA output with relays, HART, and Modbus protocols for compatibility with most control systems. Optional wireless function allows operators to view data remotely on laptops, mobile phones, or cloud systems.

Key Features

Built-in high-suction long-life vacuum pump with over 12,000 hours continuous operation
Faster response detection speed compared to traditional diffusion sampling
Suitable for normal open areas or underground restricted confined spaces
2.4-inch high-definition color screen with Chinese/English interface switching
Detects up to six gases simultaneously with settable high/low alarm values
Infrared remote control operation without opening the cover
Multiple output options: 4-20mA, RS485, relay outputs
Explosion-proof, lightning protection, anti-static, surge protection, IP65 waterproof
Optional wireless transmission with cloud platform data monitoring

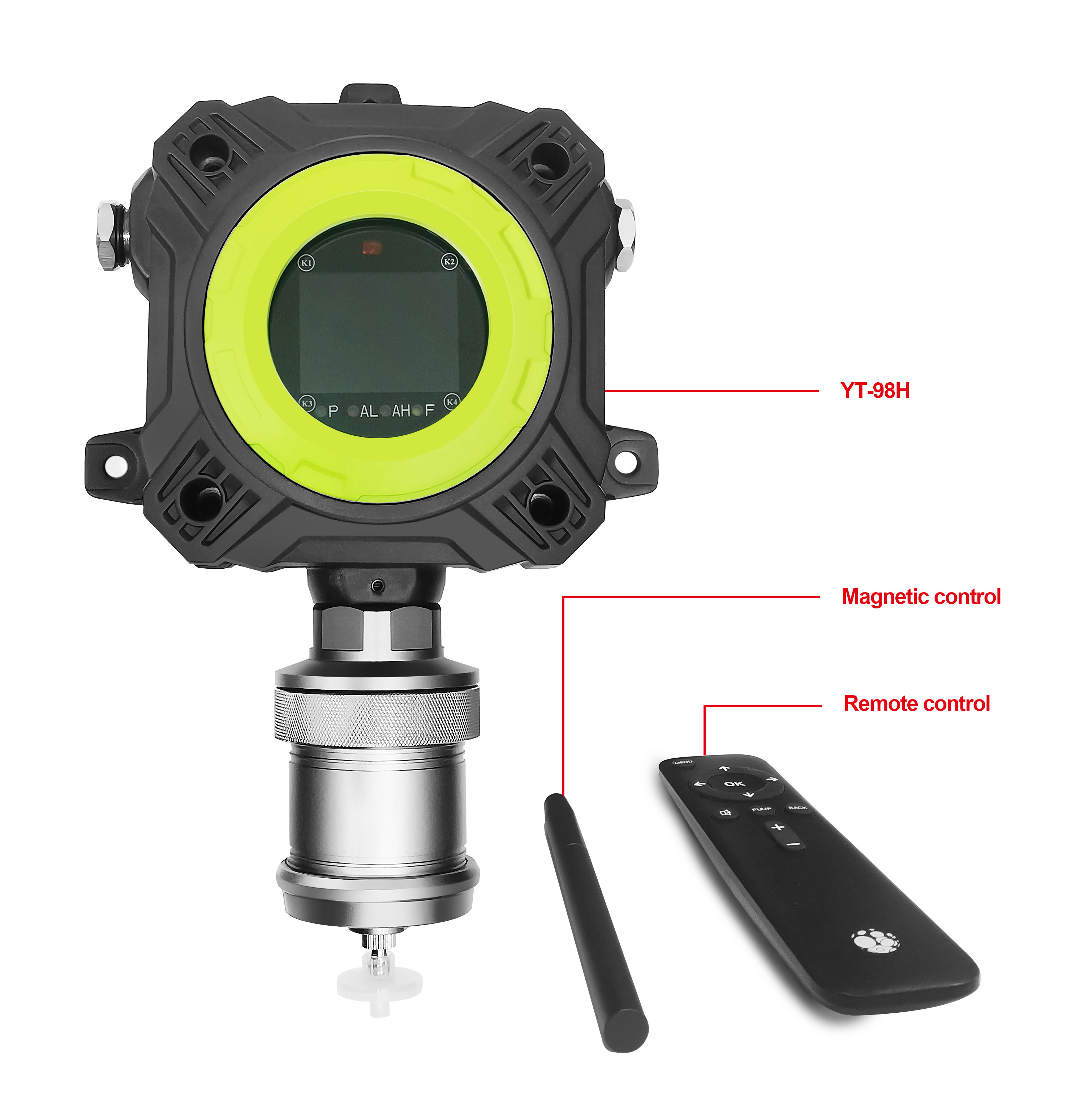

Product Images - YT-98H (with display)

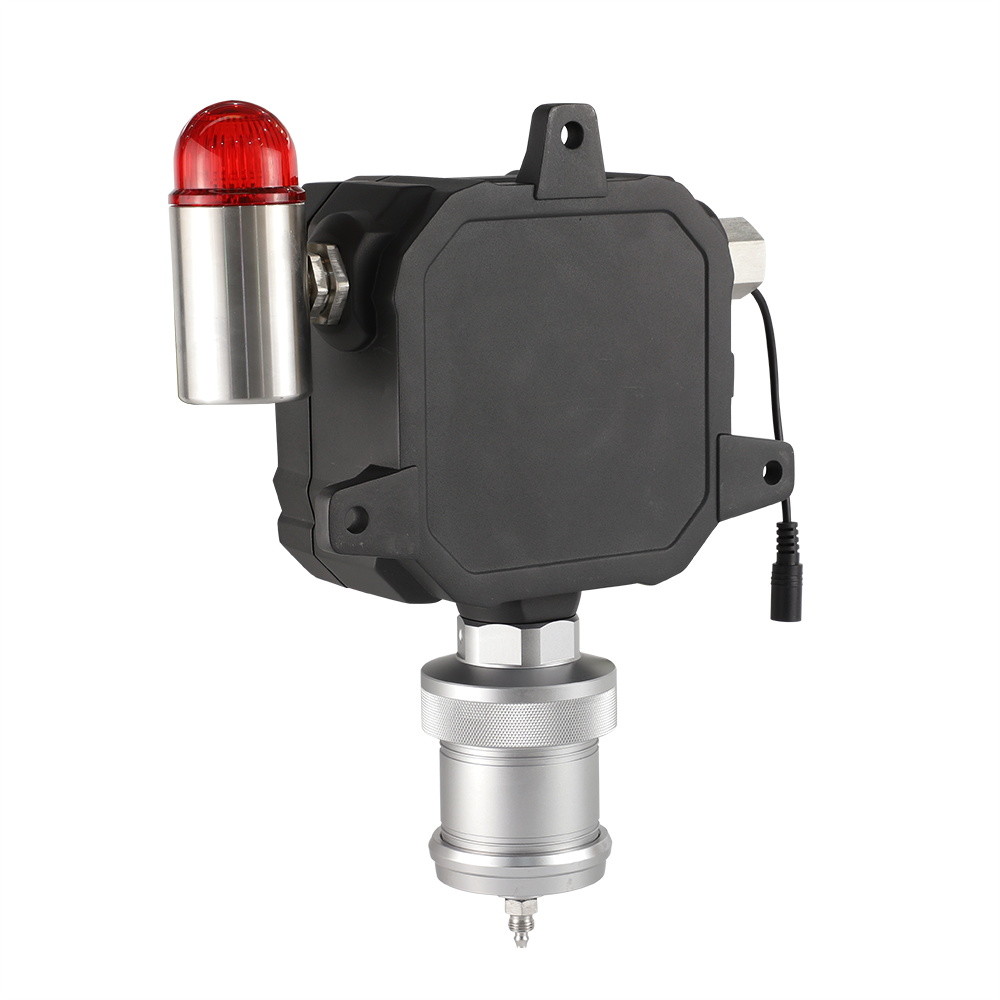

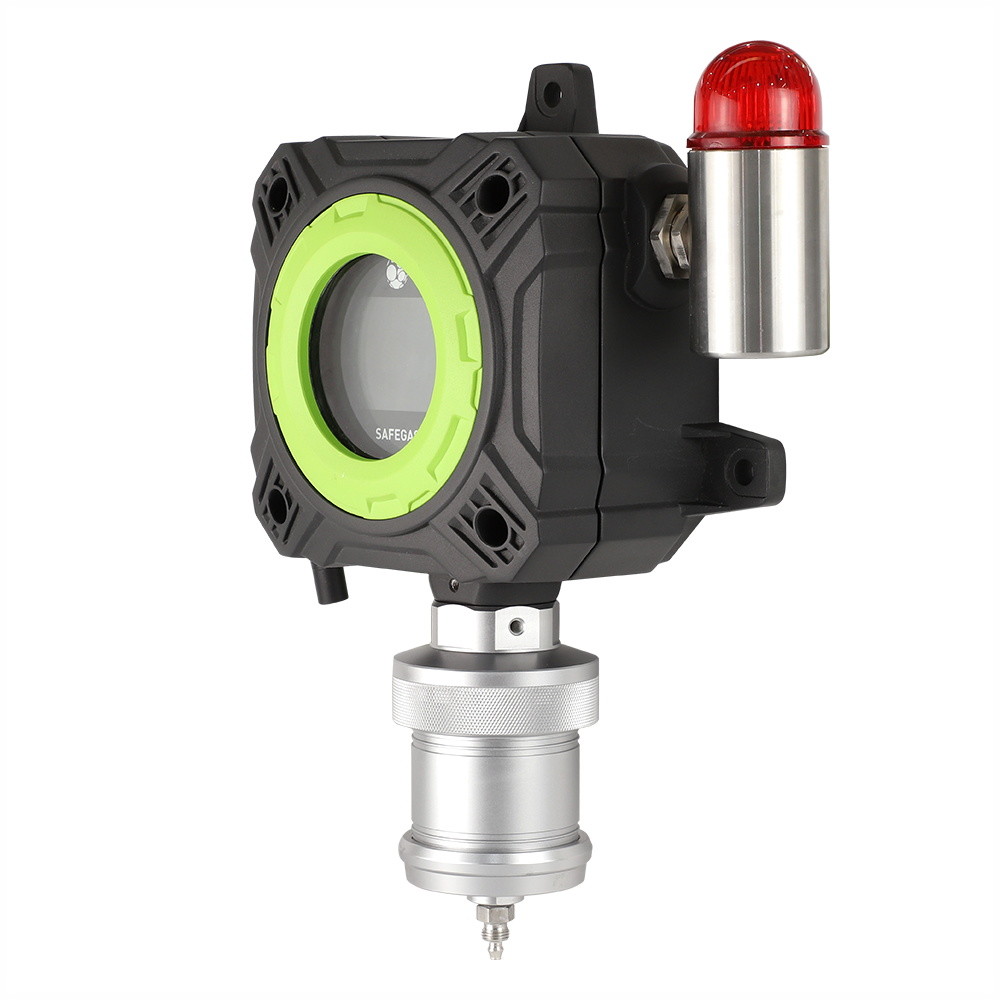

Product Images - YT-98H-A (with display and alarm light)

Product Advantages

Multi-Gas Detection

Detects up to 6 different gases simultaneously, reducing multiple installations in complex environments

Advanced Display

2.4-inch industrial-grade HD color screen with 320*240 resolution and 120-degree viewing angle

Wireless Connectivity

Optional wireless module for cloud platform data upload with SMS alerts and real-time mobile/computer viewing

Fast Response

Internal suction pump ensures rapid detection response times

Automatic Calibration

Full software automatic verification and zero calibration functions for accurate monitoring

Multiple Outputs

Standard 4-20mA current signal, RS485 modbus signal, and relay signal output

Remote Control

Infrared remote control for detector operation and settings modification

Audible/Visual Alarms

Optional sound and light alarm functions when reaching alarm points

Technical Specifications

Gas Detected	H2S, CO
Detection Principle	Electrochemical
Installation Method	Wall-mounted, piping type, flow-type (according to detected environment)
Measure Range	H2S 0-100PPM, CO 0-1000PPM
Resolution	H2S 0.1PPM, CO 1PPM
Accuracy	≤±2-5%FS (depending on specific sensor)
Signal Output	4-20mA, RS485, relay
Response Time (T90)	15-30s (depending on specific sensor)
Recovery Time	≤10S
Repeatability	≤±1%
Display	2.4-inch color display, resolution 320*240
Operating Language	English/Chinese
Display Content	Gas molecular formula, concentration, unit, pump status, etc.
Temperature	-20ºC~55ºC
Humidity	0-95%RH
Explosion-Proof	IECEX: Ex db IIC T6 Gb ATEX: Ex db IIC T6 Gb
Degree of Protection	IP66
Alarm Mode	Sound, light
Operating Time	24h
Dimensions	432715cm
Weight	4.6kg

Why Choose Us?

R&D Experience: Over 25 years of expertise
Company Certifications: ISO9001, ISO45001
Product Certifications: IECEx (the only one in China), ATEX, CE
Delivery Time: 5-7 days
Production Capacity: 80,000 units annually
Customer Service: Professional sales staff providing 7*24 hours service

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have completed production lines and solutions for different industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.

Product Line

Our products include portable types, fixed types and controller panels:

Portable Types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed Types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller Panels: YT-1100H, YT-1600H

Certifications

Our Clients

We have successfully cooperated with major companies including Huawei, Coca-Cola, Samsung, Nestlé and many others.

Frequently Asked Questions

Q1: Are you a manufacturer or trading company?

A1: We are a professional manufacturer specializing in gas detectors for more than 10 years.

Q2: What is the MOQ?

A2: Usually it is 1 piece.

Q3: How about the quality of your products?

A3: Our products are made of imported sensors and components, and are fully certified.

Q4: How long is the warranty time of the products?

A4: The warranty period is 1 year from the factory, and we also provide lifetime maintenance.

Tag:

Place of Origin:	China
Brand Name:	SAFEGAS
Certification:	ATEX/IECEX
Model Number:	YT-98H

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton(432715cm)
Delivery Time:	3 work days
Payment Terms:	T/T,Western Union
Supply Ability:	3000 pieces per month
