Name: Fixed 4-in-1 Gas Detector with LEL/CO/H2S/O2 Detection, LORA Wireless Transmission, and IECEX Explosion-Proof Certification
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SG100-D
Price: 2,210.00 USD
Availability: InStock

Detail Information

Gas Detected:	CO/H2S/O2/LEL	Measure Range And Resolution:	LEL:0-100%LEL，O2:0-30%vol,CO:0-1000ppm,H2S:0-100ppm
Accuracy:	≤±2%FS Or ±10%（Depends On Sensor）	Protection Grade:	IP66/68
Wireless:	LORA, 4G(Optional)	Working Temperature:	0℃～70℃（Catalytic Sensor）， -20℃～50℃（Electrochemistry Sensor）
Size:	17812970mm	Weight:	1.4kg (No Mounting Bracket ,alarm Light)
Relay:	3 Relays, Including Low/high/fault Alarm Relay（Optional）	Explosion-proof Grade：:	IECEX：Ex Db IIC T6 Gb，Ex Db Ia IIC T6 Gb ； ATEX：Ex Db IIC T6 Gb，Ex Db Ia IIC T6 Gb
Highlight:	IECEX Explosion-Proof Gas Detector , Lora Wireless Transmission Gas Detector , Fixed 4 In 1 Gas Detector

Product Description

Fixed 4 In 1 Gas Detector LEL/CO/H2S/O2 Lora Wireless Transmission Alarm Function IECEX Explosion-Proof Certification

Product Overview

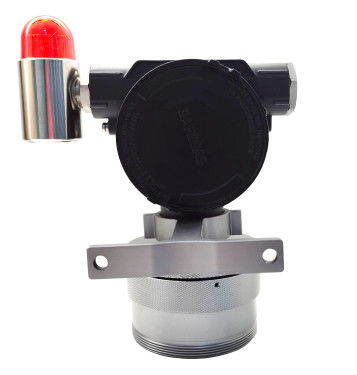

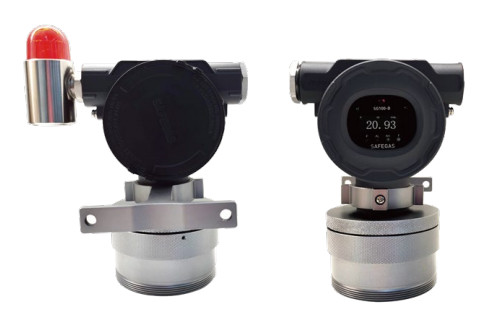

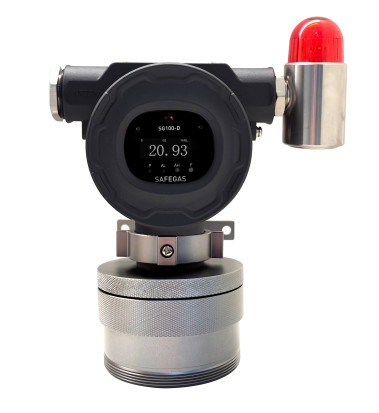

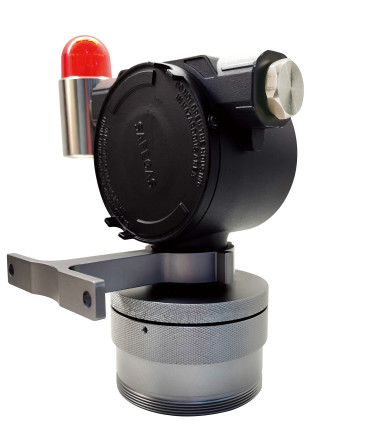

SG100-D series is an intelligent hot swappable fixed multi gas detector, designed for easy maintenance after installation. This unit can monitor 4 gases simultaneously for continuous monitoring applications. With IECEx and ATEX certificates, the explosion level reaches Ex db IIC T6 intrinsically safe grade. The magnetic wand design ensures safe and easy menu navigation in explosion hazard areas.

Product Advantages

IP66/IP68 water & dust resistant rating
Standard 1 set of 4-20 mA current signal (3 wires), RS485 Modbus, 2 sets of relay signal output
Optional with 4 sets of 4-20 mA current signal (3 wires)
Optional LORA and 4G wireless transmission modes
Modular chamber design - no need to disassemble entire unit or return for calibration during maintenance
One-person calibration easily performed using calibration cap
Quick site installation using mounting plate accessory

Product Specifications

Detected Gas	CO/H2S/O2/LEL
Principle	Catalytic (LEL), Electrochemistry (O2/CO/H2S)
Measure Range	LEL: 0-100%LEL, O2: 0-30%vol, CO: 0-1000ppm, H2S: 0-100ppm
Resolution	LEL: 1%LEL, O2: 0.1%vol, CO: 1ppm, H2S: 0.1ppm
Install Method	Wall-mounted
Events	1000 sets per channel, downloadable by GPC
Precision	≤±2%FS or ±10% (Depends on sensor)
Response Time	T90 < 60s (Depends on sensor)
Repeatability	±2% F.S
Temperature	-40℃～70℃ (catalytic sensor), -20℃～50℃ (electrochemistry sensor)
Humidity	10-95%RH (non-condensing)
Explosion-Proof	IECEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb; ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb
Degree of Protection	IP66/IP68
Power	12-30V DC
Dimensions	178×129×70mm
Weight	1.4kg (No mounting bracket, alarm light)
Approval	CE, CNEX explosion proof certificate, CMC (China Metrology Certification), IECEx, ATEX
Warranty	12 months

Standard Configuration

Gas detector: 1 piece
Magnetic wand: 1 piece
User manual: 1 piece
Certificate of Conformity/Warranty Card: 1 piece
Mounting plate: 1 piece
M4 bolt: 3 pieces
M4 nut: 3 pieces
M4 Screw pad: 3 pieces
M4 flat mat: 3 pieces

Why Choose Us?

R&D team experience: over 25 years
Company certification: ISO9001, ISO45001
Product certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly capacity: 80,000 units
Service: Professional sales staff provide 7*24 hours service

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have completed production lines and solutions for different industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.

Product Line

Our products include portable types, fixed types and controller panels:

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200

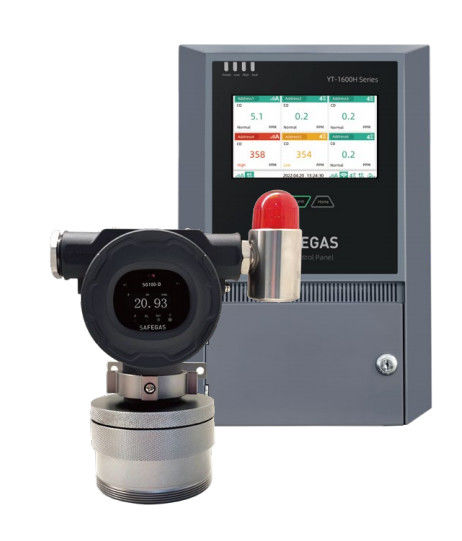

Controller panels: YT-1100H, YT-1600H

Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Companies We Cooperated With

Huawei, Coca-Cola, Samsung, Nestlé and more.

Frequently Asked Questions

Q1: What is a gas detector?

A1: A gas detector is an instrument for gas leakage concentration detection, including portable gas detectors and fixed gas detectors.

Q2: What does a gas detector detect?

A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc. Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.

Q3: What is the ppm unit of the gas detector?

A3: ppm represents the volume concentration of the gas, meaning the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
