| Place of Origin: | China |
|---|---|
| Brand Name: | SAFEGAS |
| Certification: | ATEX/IECEX |
| Model Number: | YT-98H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton(43*27*15cm) |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000 pieces per month |
| Gas Detected: | HCL | Detection Principle: | Electrochemical |
|---|---|---|---|
| Power: | 12 To 24V DC | Accuracy: | ≤±2-5%FS |
| Response Time(T90): | 15 To 30s | Repeatability: | ≤±1% |
| Pump Flow: | 0.35-0.5 L/Min | Temperature: | –20℃ To 55℃ |
| Humidity(no Condensation): | 0 To 95%RH | Optional Alarm: | Buzzer, Alarm Status Display |
| Sampling Way: | With Internal Pump |
Gas info
Hydrogen chloride(HCL) is a colorless, irritating, corrosive and asphyxiating gas that is volatile and unstable. Hydrogen chloride(HCL) is an important industrial chemical used to make dyes, fragrances, drugs, various chlorides and corrosion inhibitors.
In addition, high-purity Hydrogen chloride(HCL) gas is widely used in the electronics industry. Hydrogen chloride(HCL) gas has a suffocating odor, is highly irritating to the upper respiratory tract, and is corrosive to the eyes, skin, and mucous membranes. Therefore, when using HCL, the HCL concentration needs to be tested to avoid leaks endangering personal safety. The maximum allowable concentration: China (MAC) 15 mg/m3, i.e. 9.2ppm; US TLV-C 7.5mg/3, i.e. 4.6PPM.
Since HCL is volatile and unstable, it is recommended to use a pump-type detector that can absorb gas for faster detection.
Product Description
YT-98H/YT-98H-A Fixed Gas Detector
YT-98H is a built-in pump-suction single & multi gas detector,with IECEx, ATEX certificate and non-contact magnetic wand design, it can be installed and operated in explosion proof areas, Oil & Gas industry. In addition to a 3-wire 4 to 20-mA output with relays, it also offers HART, Modbus protocols, making it compatible with most control systems. With optional wireless function, operator can view data on laptop, mobile phone or cloud system remotely.
Product Advantage
1.Up to 6 kinds of gases can be detected at the same time.
2.In complex and multi-gas environments, multiple installations can be reduced, saving time and effort 2.4-inch industrial-grade high-definition color screen
with a resolution of 320*240 and a wide viewing angle of 120 degrees
3.With wireless module, data can be uploaded to the cloud platform, environmental protection bureau or other platforms, providing SMS reminder function, the transmission signal is not limited by distance, and can be viewed in real time on mobile phones and computers.(optional)
4.With internal suction pump, fast response
5.With full software automatic verification function and zero calibration function, making gas monitoring more accurate and more reliable
6.Standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output
7.Standard infrared remote control, which can remotely control the detector and modify the detector settings
8.With sound and light alarm function, there is sound and light alarm when reaching the alarm point.(optional)
Product Picture--YT-98H(with display)

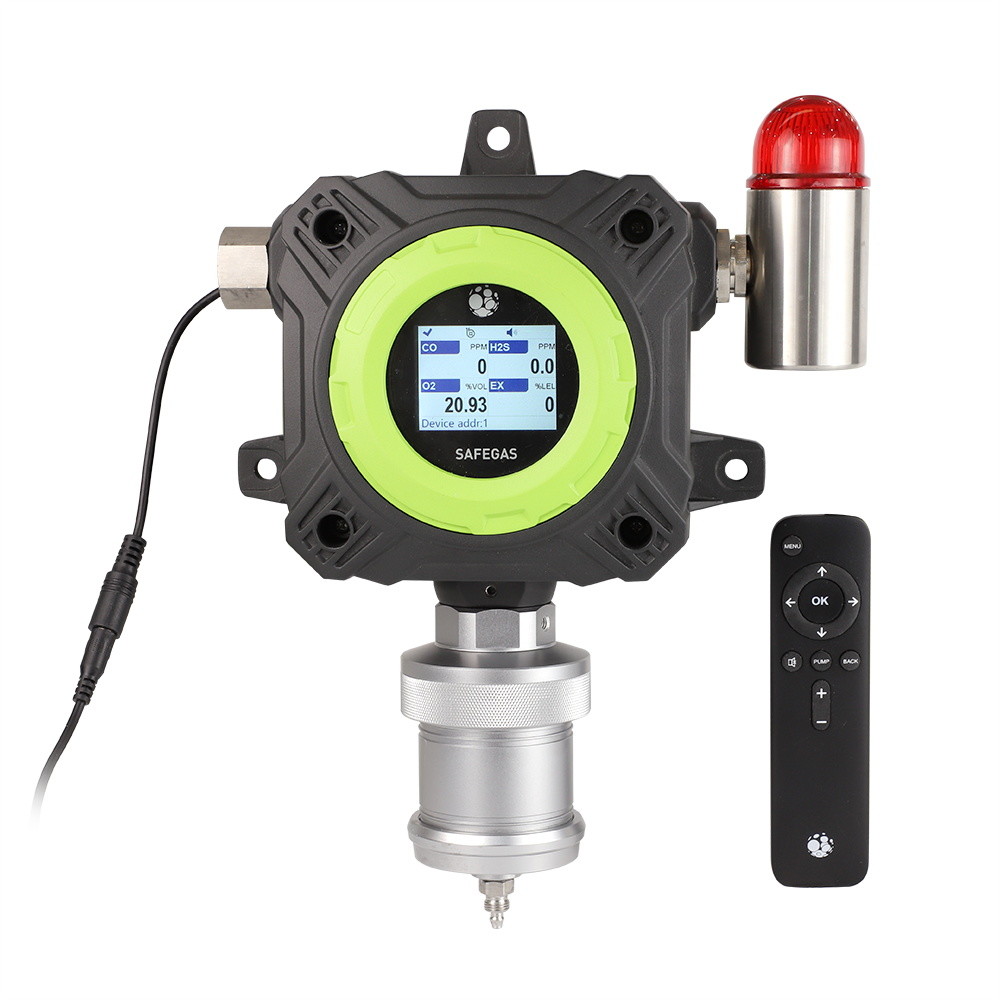

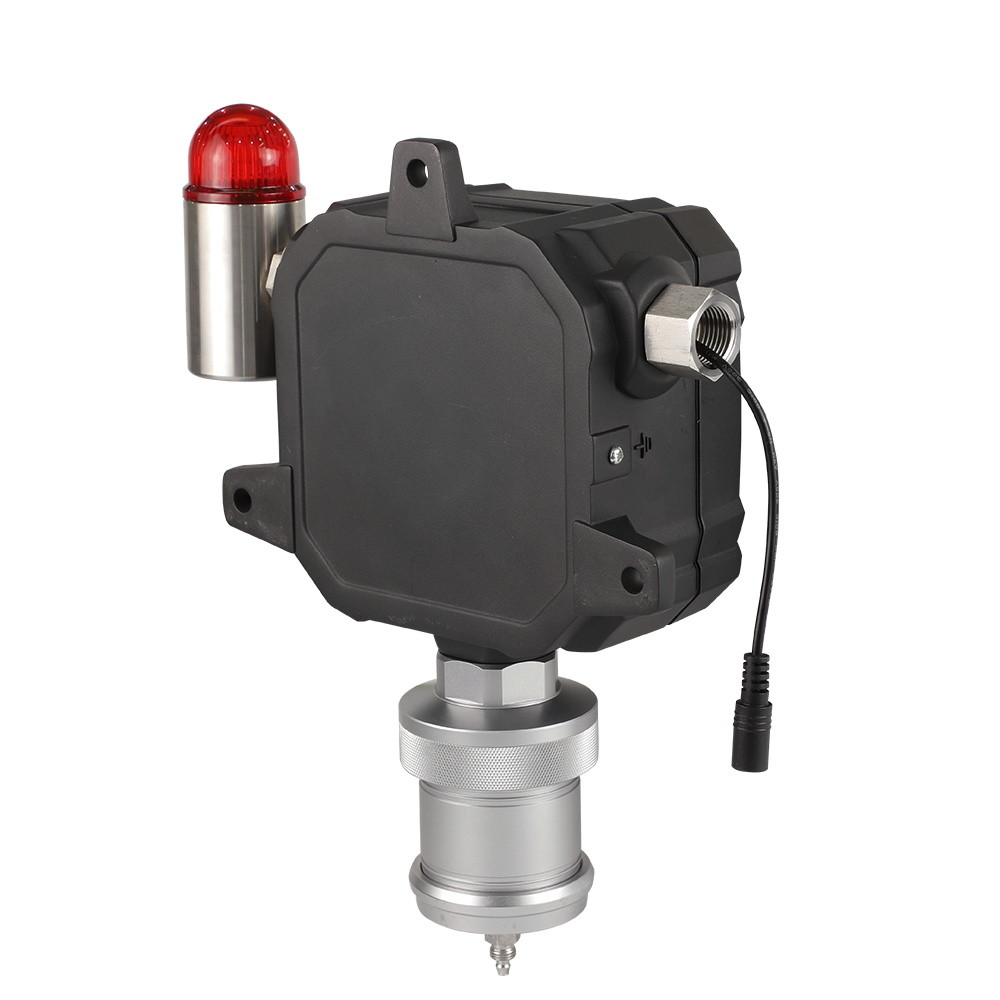

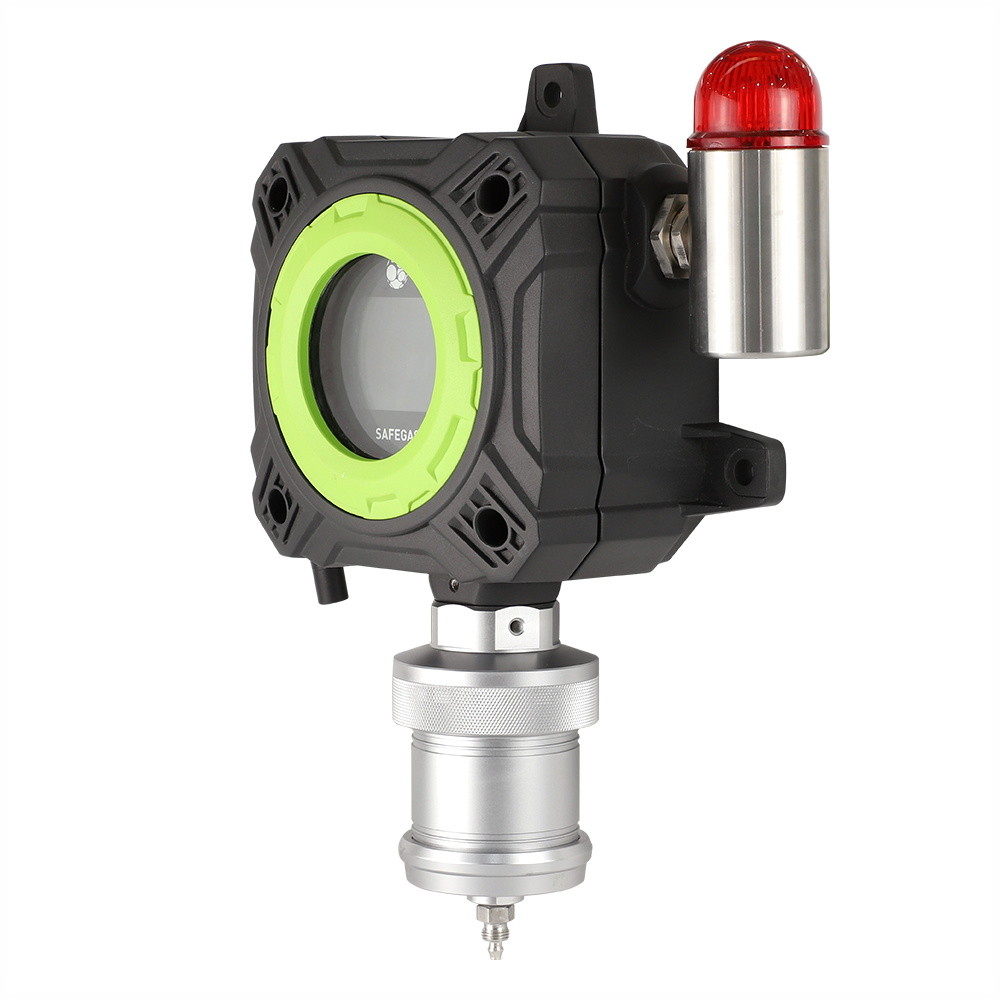

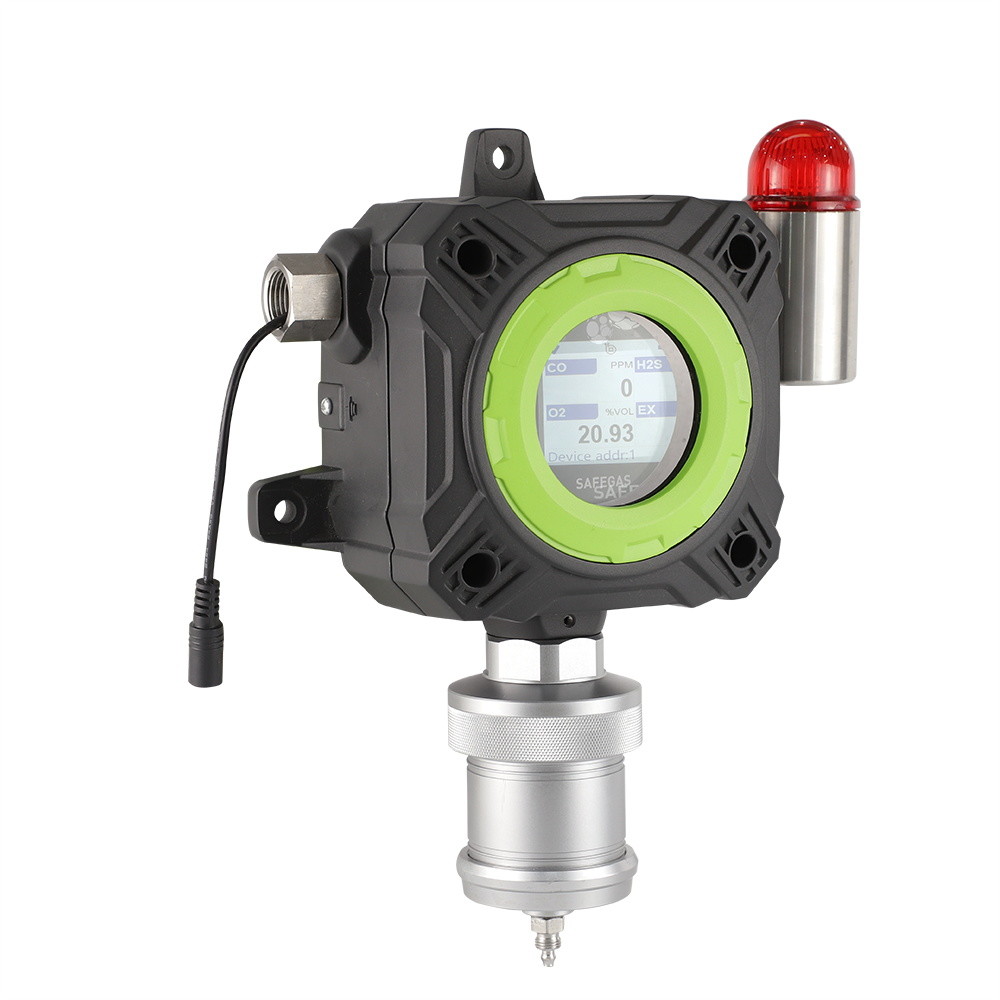

Product Picture--YT-98H-A(with display and alarm light)
Specificiation
| Gas Detected | HCL | ||
| Detection principle | Electrochemical | ||
| Install methode | Wall-mounted, piping type, flow-type(according to the detected environment) | ||
| Measure Range | 0-10, 20, 50, 100PPM 0-500, 1000, 2000PPM | ||
| Resolution | 0.1PPM, 1PPM | ||
| Accuracy | ≤±2-5%FS (depending on the specific sensor) | ||
| Signal Output | 4-20MA, RS485, relay | ||
| Response Time(T90) | 15-30s(depending on the specific sensor) | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Display | 2.4-inch color display, resolution 320*240 |
| Operating language | English/Chinese | Display content | gas molecular formula, concentration, unit, pump status, etc |
| Temperature | -20ºC~55ºC | Humidity | 0-95%RH |
| Explosion-Proof | IECEX:Ex db IIC T6 Gb ATEX :Ex db IIC T6 Gb |
Degree of protection | IP66 |
| Alarm mode | Sound, light | Operating time | 24h |
| Dimensions | 43*27*15cm | Weight | 4.6kg |
Why choose us?
Safegas is a company that focuses on the design,production and sales of environmental monitoring equipment and system for 16 years. With “gas detector” as the core product, we have completed production lines and solutions according to different industries,such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 16 years of rapid development, Safegas becomes the influential supplier for environmental monitoring equipment and system in the domestic and overseas market.
For years, Safegas always insisted on the management concept “Market is orientation. Innovation is motivation. Quality to survival. Development to growth.” With friendly, open, and strict corporate culture and standardized management, Safegas gathers a lot of talents and builds up the management team and R&D team. All the staff cooperates well in product development, production, and maintenance, and has a deep understanding of the concept of “customer-oriented”, and runs the service spirit through the company operation and management, to win the trust and support from customers.
Depending on years of measurement experience and Safegas solutions, through independent research and development, cooperative development and learning overseas latest technology, Safegas’s products are domestic advanced, and can compete with overseas brand. We are seeking for development and progress constantly, and trying to meet diversified demands from customers.
FAQ
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector for more than 10 years.
Q2:What is the MOQ?
A2:Usually it is 1 piece.
Q3:How about the quality of your products?
A3:Our product is made of imported sensors and components, the products are certified.
Q4:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
