| Place of Origin: | China |
|---|---|
| Brand Name: | SAFEGAS |
| Certification: | ATEX/EMC/IECEX |
| Model Number: | Minimeta |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000 pieces per month |
| Gas Detected: | PH3 | Detection Principle: | Diffusion |
|---|---|---|---|
| Measure Range: | 0-5、20、50、100ppm | Resolution: | 0.1ppm |
| Accuracy: | ≤±2-5%FS | Response Time(T90): | 15 To 30s |
| Principle: | Electrochemical Principle | Display: | Gas Name, Battery Power, Concentration Unit, Measured Value |
| Alarm Mode: | Sound, Light, Vibration Alarm | Alarm Type: | Low Alarm, High Alarm, STEL, TWA, Low Battery Optional Calibration Due And Bump Test Due |
| Power Supply Mode:: | 3.6V Dry Battery (non-rechargeable And Replaceable) | Explosion-proof Certification: | IECEx, ATEX |
| Protection Class: | IP66/68 | Working Temperature: | -20℃ To 55℃ |
| Working Humidity (non-condensing): | 0-95%RH | Working Air Pressure: | 86 To 106kpa |
| Dimensions: | 90mm*60mm*33mm (length*width*thickness) | Weight (With Clip): | 125g |
Gas info
Phosphine (PH3) has shown excellent performance in killing pests. Its principle is that it has a strong toxic effect on the enzymes of insect and rodent cells. Therefore, it is often used in grain depots for fumigation and killing insects, but it can only play a disinfection role when the concentration reaches a certain standard.
Phosphine (PH3) is confirmed as a highly toxic gas. This strong biological activity also acts on the human body. Therefore, when using phosphine (PH3) for disinfection, personnel cannot enter to observe the concentration changes. At this time, a gas detector is needed to achieve real-time detection of phosphine (PH3) concentration without entering the grain depot.
Product Overview
MiniMeta is an IECEX/ATEX/EMC certified single-gas detector. It can detect hundreds of user-selected toxic gases, user friendly and easy for operation. The battery and sensor is replaceable to provide user a long-term protection. It is designed to offer a low cost and long-term ownership gas monitoring system.

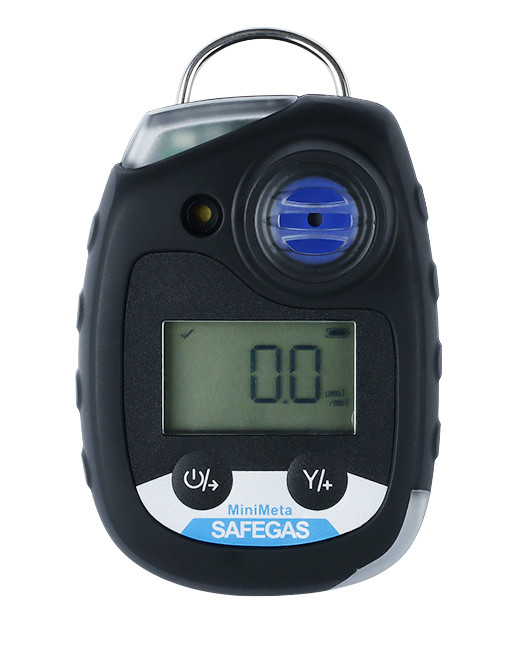

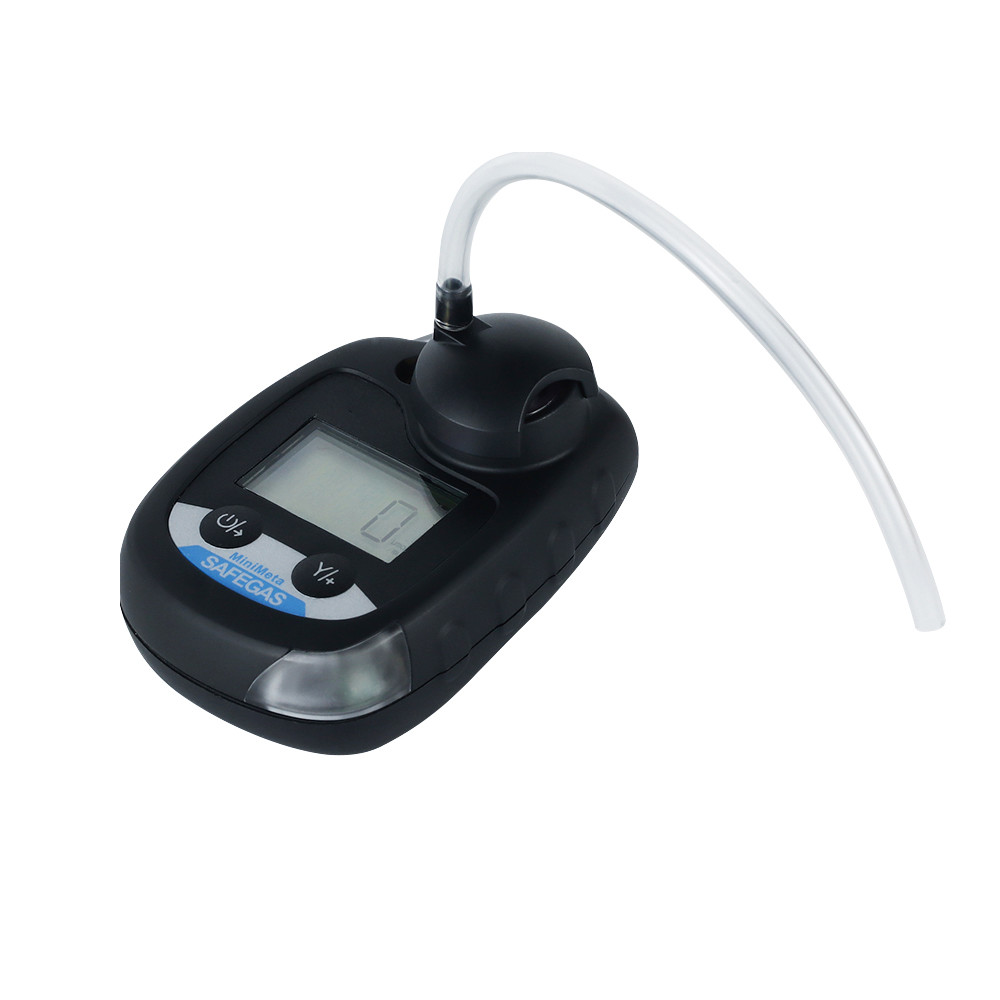

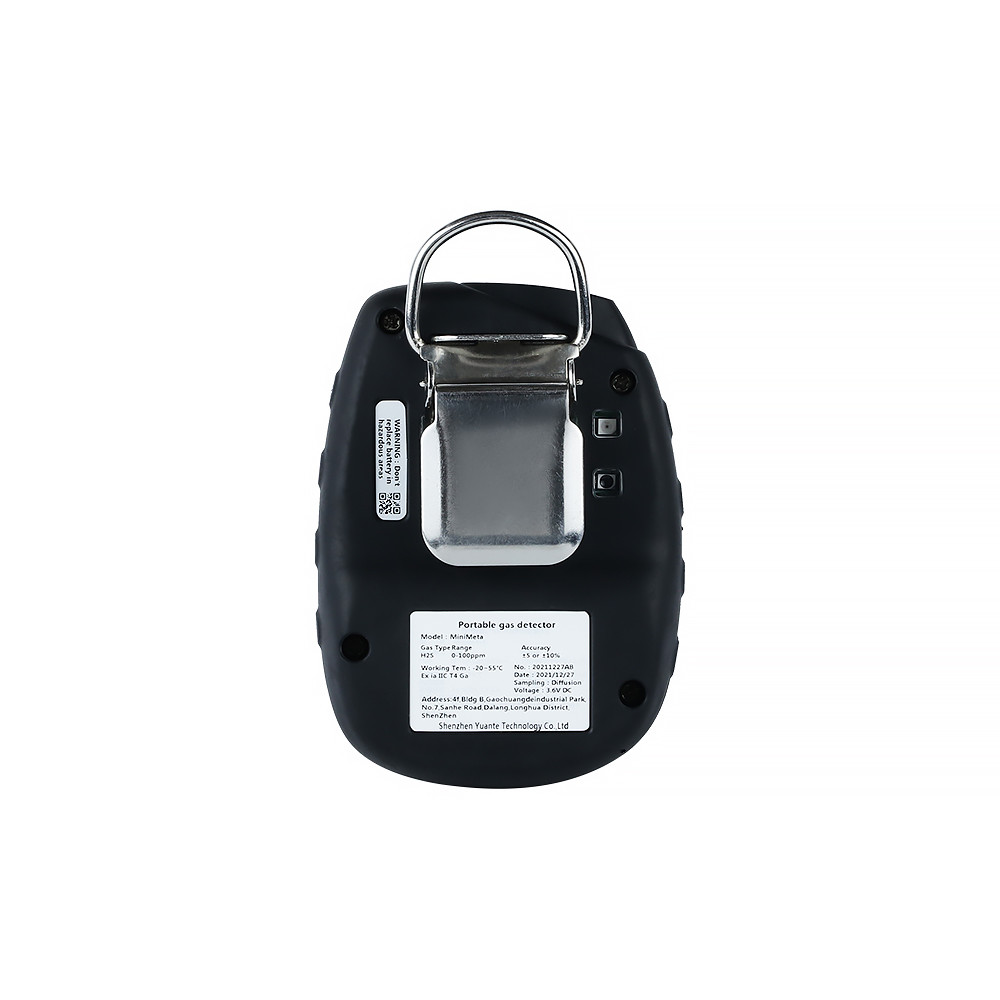

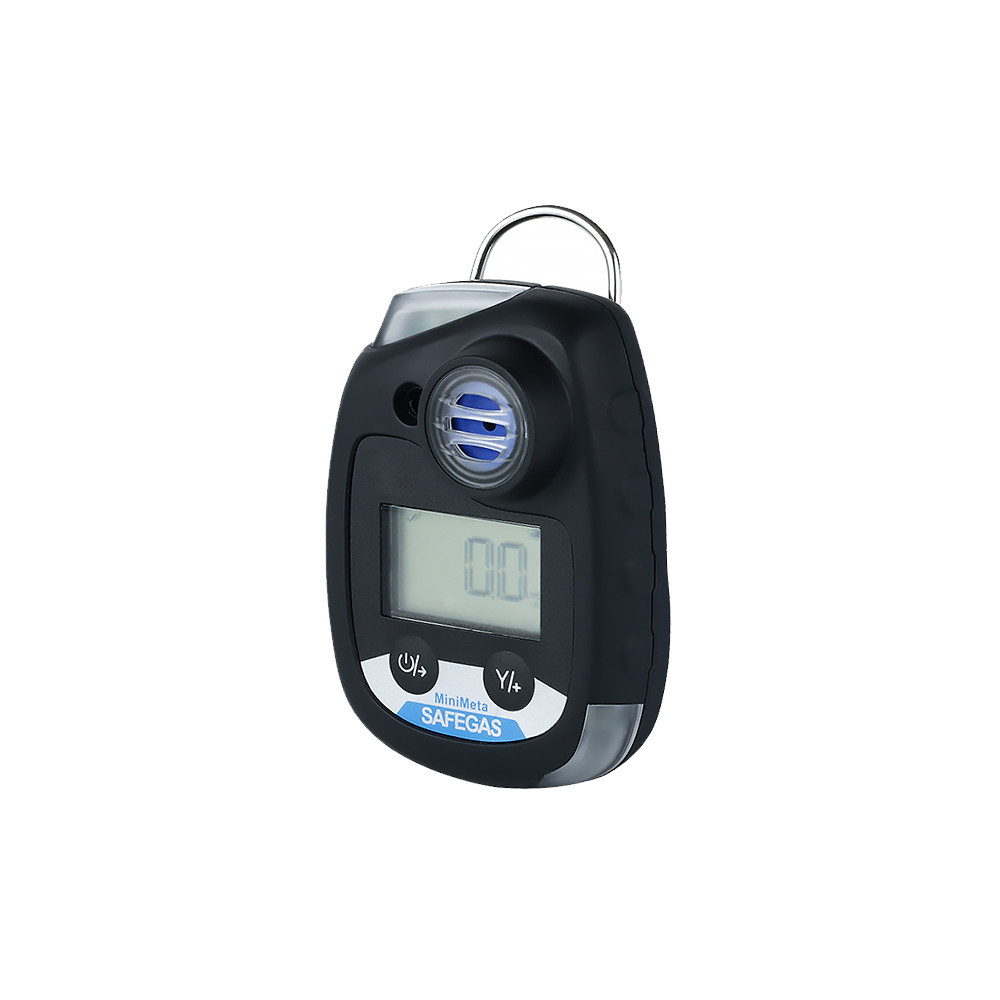

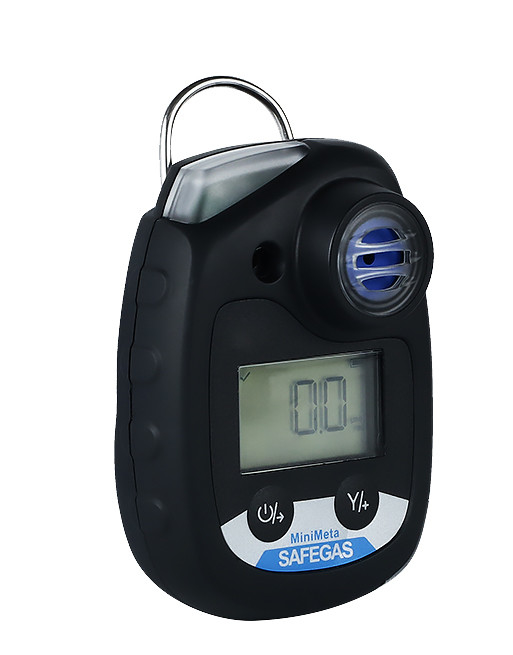

Product Picture
Product Specification
|
Detect gas
|
PH3
|
|
Sensor type
|
Electrochemical ( Honeywell, CITY brand sensor)
|
|
Sampling method
|
Diffusion
|
|
Measure range
|
0-5,20,50,100ppm
|
|
Resolution
|
0.1ppm
|
|
Precision
|
≤± 3% F.S.
|
|
Response Time
|
≤30s(T90)
|
|
Unit
|
PPM
|
|
Display
|
Gas name, concentration unit, measured value, electricity
|
|
Alarm mode
|
Sound, light, vibration alarm, high and low alarm values can be set by yourself
|
|
Alarm type
|
Low alarm, high alarm, STEL, TWA, low battery
|
|
Display
|
LCD Display
|
|
Operating language
|
Chinese/English
|
|
Size
|
90*60*33mm
|
|
Weight
|
125g
|
|
Working Temperature
|
-20ºC~50ºC
|
|
Working Humidity
|
0-95%RH
|
|
Working air pressure
|
86~106kpa
|
Product Advantage
1) IP68 water- and dust-resistant case
2) Low power consumption with 2 years standby time, no need battery charge and calibration
3) With Single /multi unit docking station to perform daily bump test and calibration (Optional)
4) With event and data logging function (Optional)
5) With self-test function, which can improve safety by automatic self-test
6) Small size, lightweight and with back clip for easily carry
7) 95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
8) Real time value, TWA, STEL, MAX, MIN multiple numerical display
Standard
1) Portable gas detector 1 piece
2) Calibration cap 1 piece
3) User manual 1 piece
4) Certificate of conformity/ Warranty card 1 piece
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
FAQs
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector for more than 10 years.
Q2:What is the MOQ?
A2:Usually it is 1 piece.
Q3:How about the quality of your products?
A3:Our product is made of imported sensors and components, the products are certified.
Q4:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
