Portable CO O2 Gas Detector with Diffusion Suction Minisize and Long Standby Time
Safegas Portable Gas Detector Diffusion Suction Minisize IECEX ATEX Explosionproof Certificated Long Standby Time
Product Overview
MicMeta is an IECEx/ATEX/EMC certified multi-gas detector with IP68 protection. MicMeta has an explosion proof rating of Ex ia I Ma, Ex ia IIC T4 and can be used in coal mines. It is lightweight, small and comes with 2 buttons for easy use. The standard gas types are a variety of 4 gases (CO H2S O2 LEL), and hundreds of gases are also supported for optional customization. It has wireless capabilities so users can access data remotely. Using a standard data logger, real-time data and alarm events can be exported directly to a PC.
Wireless Lora transmission transmitter and receiver (2 kilometers unobstructed) data monitoring cloud platform: After the data is uploaded to the server, the user can read it remotely from the server, and multiple people can manage and read it at the same time, realizing functions such as record storage and real-time viewing.

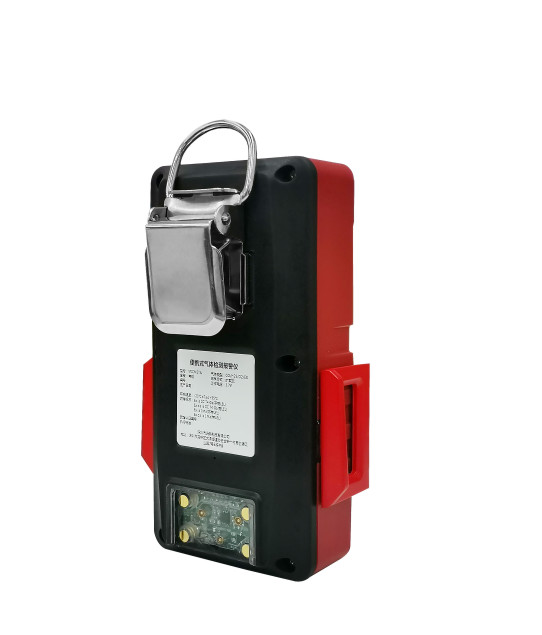

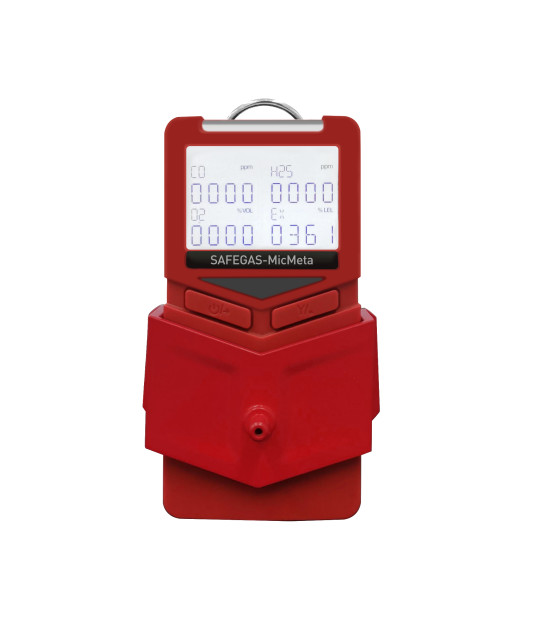

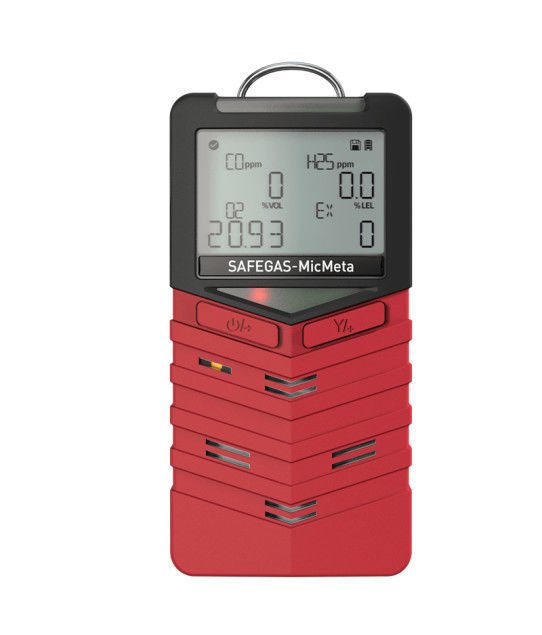

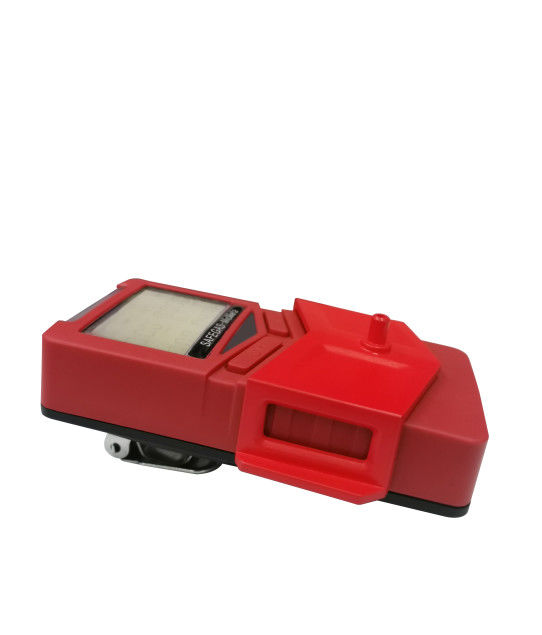

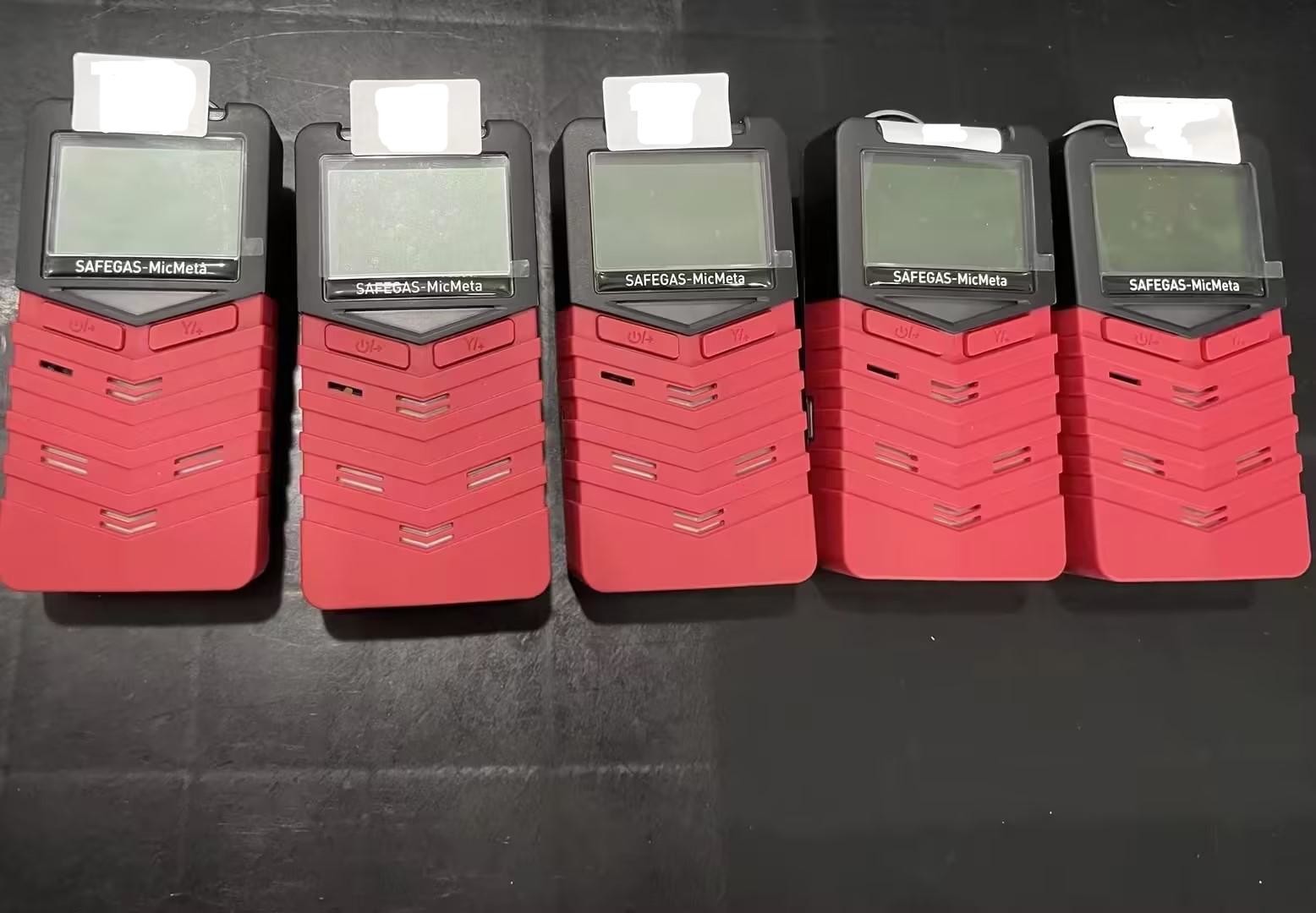

Product Pictures
Product Specification
| Parameter |
Specification |
| Sampling method |
Diffusion suction |
| Gas type |
Can be customized |
| Measure range |
Customized |
| Resolution |
Customized |
| Response time |
≤60S (T90) |
| Precision |
≤±5%FS or ±10% (depends on the specific sensor) |
| Language |
Chinese/English |
| Automatically test and calibrate after power-on |
Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit |
PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Display |
Segment code LCD display |
| Calibration platform |
Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record |
1000 sets data records and 100 sets events records |
| Alarm |
95dB buzzer (@30cm), vibration alarm and flashing red bar, as well as on-screen alarm status indication, alarm lock; Diagnostic alarms and battery undervoltage alarms, man down alarms, all sensor alarm value is settable. |
| Battery |
3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours |
Standby time 18h, charging time <6h |
| Wireless transmission |
Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade |
IECEx: Ex ia IIC T4 Ga, Ex ia I Ma,
ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma |
| (EU regulations) |
2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade |
IP66/IP68 |
| Working temperature |
-20°C~55°C |
| Humidity |
0-95%RH (non-condensing) |
| Environmental pressure |
86～106Kpa |
| Size |
113*60*32mm (length * width * height) |
| Weight |
200g (with lithium battery) |
Gas Detection Capabilities
Micmeta can detect 1-5 gases, here's some gases Micmeta can detect:
Product Applications
- Chemical Industry
- Environmental Monitoring
- Healthcare Applications
- Automotive Industry
- Industrial Safety
- Wastewater Treatment
- Greenhouse Gas Monitoring
- Oil and Gas Exploration
- Food and Beverage Production
- Mining and Mining Operations
Why Choose Us?
- R&D team experience: over 25 years
- Company certification: ISO9001, ISO45001
- Product certification: IECEx (the only one in China), ATEX, CE
- Delivery: 5-7 days
- Yearly capacity: 80,000 units
- Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With "gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product Line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Companies We Cooperated With
Huawei, Cocacola, Samsung, Nestel and so on.
Frequently Asked Questions
Q1: What is a gas detector?
A1: Gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, fixed gas detector, etc.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, that is, the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
