Wall Mounted Fixed Gas Detector 316 Stainless Steel Corrosion Resistant Diffusion Type for Industrial Use

Wall Mounted Fixed Gas Detector 316 Stainless Steel Corrosion Resistant Diffusion Type for Industrial Use
Wall Mounted Fixed Gas Detector 316 Stainless Steel Corrosion Resistant Diffusion Type for Industrial Use Wall Mounted Fixed Gas Detector 316 Stainless Steel Corrosion Resistant Diffusion Type for Industrial Use Wall Mounted Fixed Gas Detector 316 Stainless Steel Corrosion Resistant Diffusion Type for Industrial Use Wall Mounted Fixed Gas Detector 316 Stainless Steel Corrosion Resistant Diffusion Type for Industrial Use Wall Mounted Fixed Gas Detector 316 Stainless Steel Corrosion Resistant Diffusion Type for Industrial Use
Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: ATEX/IECEX
Model Number: SG100
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Aluminum Suitcase Packing
Delivery Time: 3 work days
Payment Terms: T/T,Western Union
Supply Ability: 100 pieces/day
Get Best Price Contact Now
Detail Information
Gas Detected: Can Be Customized Measure Range And Resolution: Can Be Customized
Accuracy: ≤±2-5%FS (Depending On The Specific Sensor) Explosion-proof Grade：: IECEX：Ex Db IIC T6 Gb，Ex Db Ia IIC T6 Gb ； ATEX：Ex Db IIC T6 Gb，Ex Db Ia IIC T6 Gb
Protection Grade: IP66/68 Communication Mode: 4-20mA(3-wires)、RS485 1～5V，Hart(Optional)
Wireless(Optional): Support LORA Or 4G Relay: 3 Relays, Including Low/high/fault Alarm Relay（Optional）
Working Temperature: 0℃～70℃（Catalytic Sensor）， -20℃～50℃（Electrochemistry Sensor） Size: 157.8x128.8x69.6mm
Weight: 1.0Kg
Highlight:

Diffusion Type Gas Detector

,

316 Stainless Steel Material Gas Detector

,

Wall Mounted Fixed Gas Detector

Product Description

Wall Mounted Fixed Gas Detector 316 Stainless Steel Material Corrosion Resistant Diffusion Type
Product Overview

SG100 Fixed Gas Detector is a cost-effective solution for continuous monitoring of toxic gases, oxygen, flammable, and VOC gases in industrial environments. Certified by IECEx and ATEX with intrinsically safe explosion grade, it features multiple output options including 2-wire or 3-wire 4-20 mA analog, RS485 modbus, and optional HART output for compatibility with most control systems.

Product Images

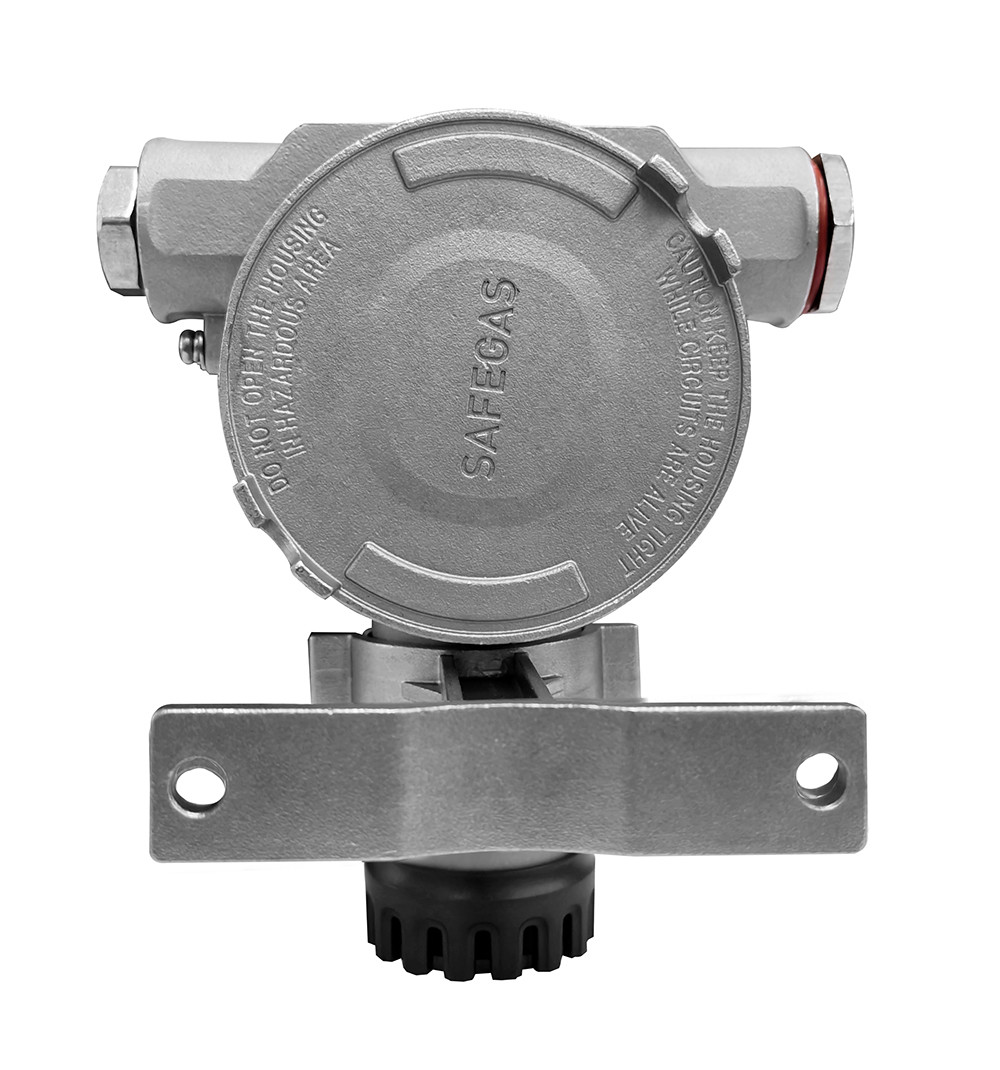

SG100 Fixed Gas Detector front view

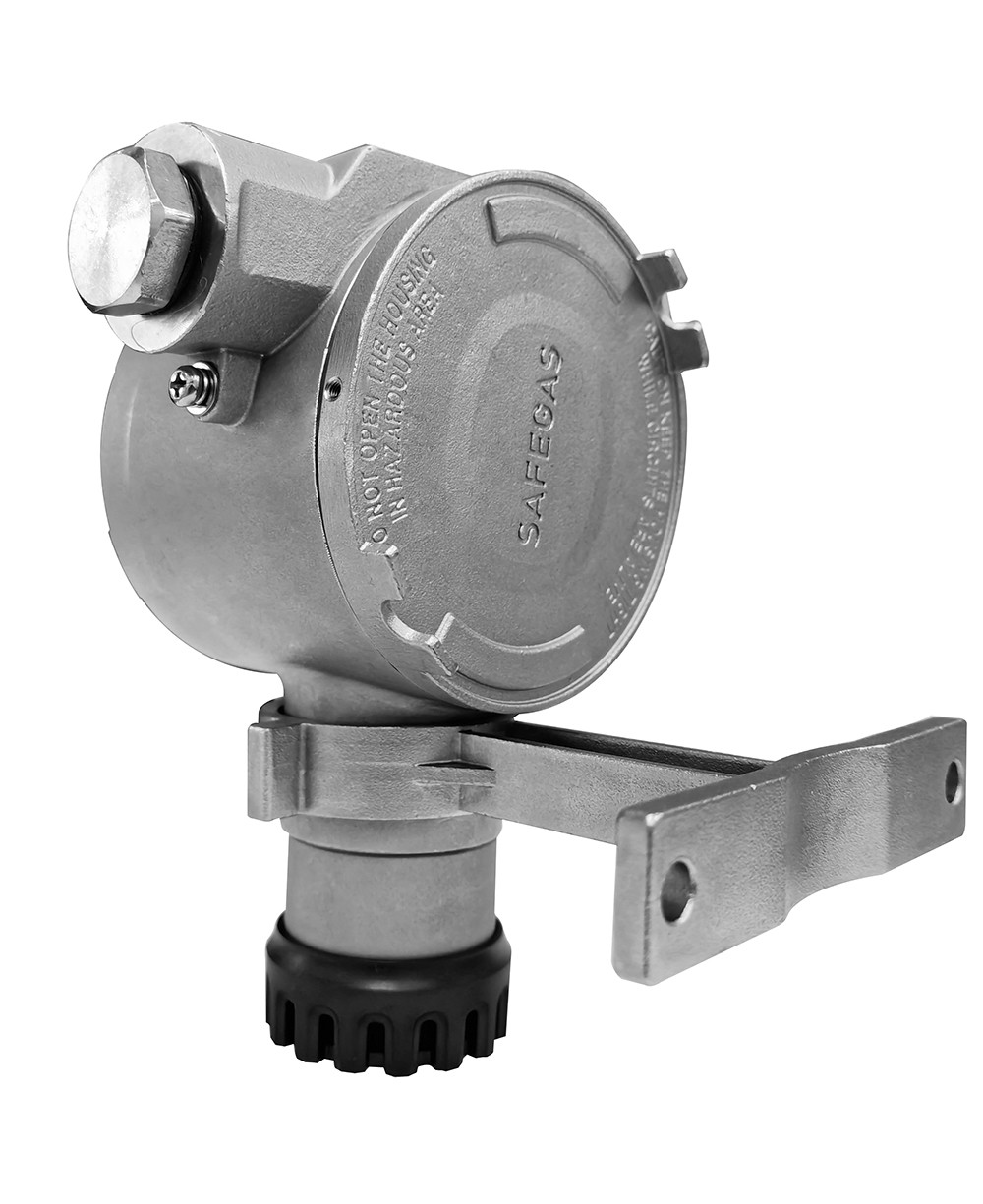

SG100 Fixed Gas Detector side view

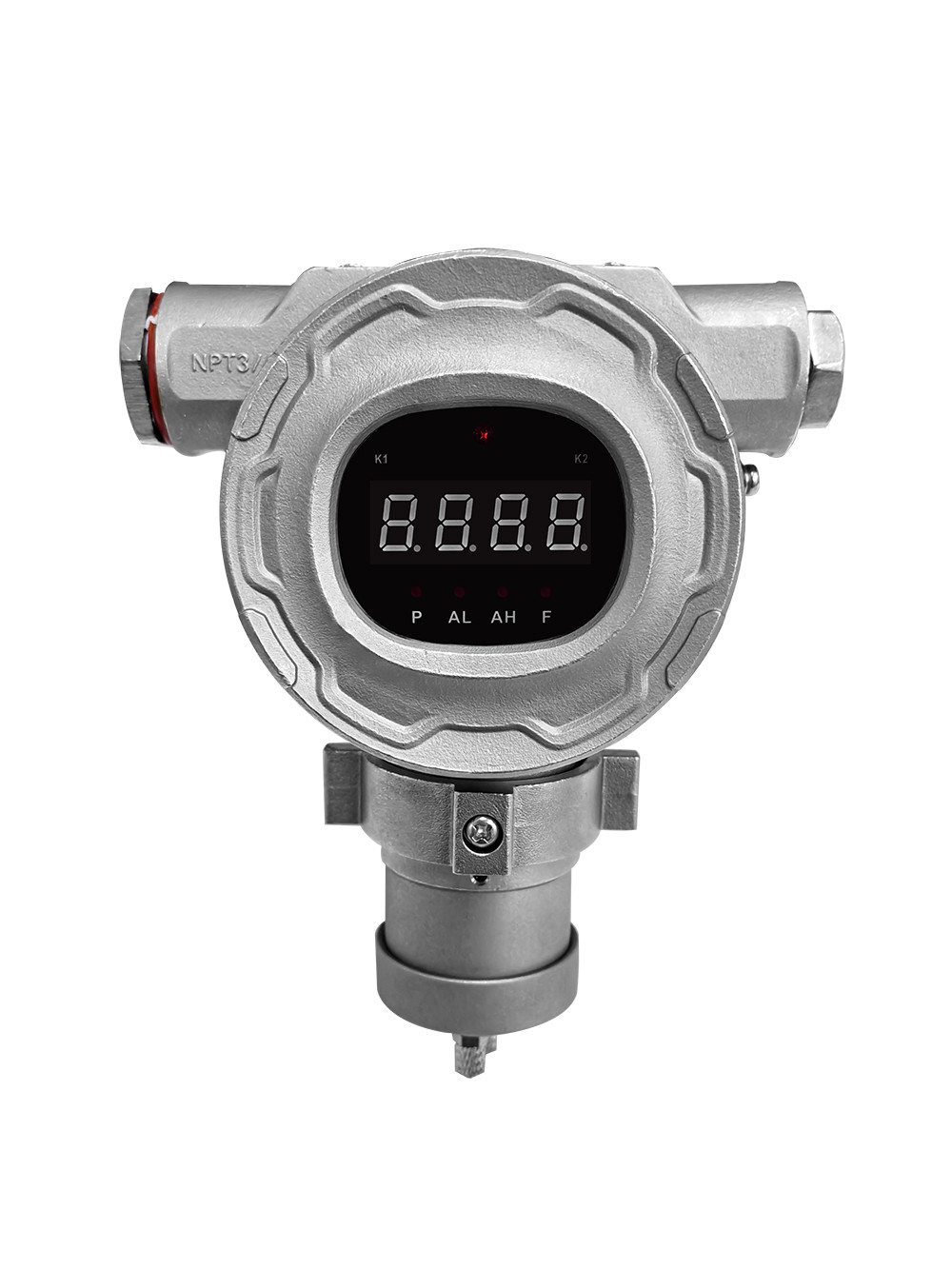

SG100 Fixed Gas Detector installation view

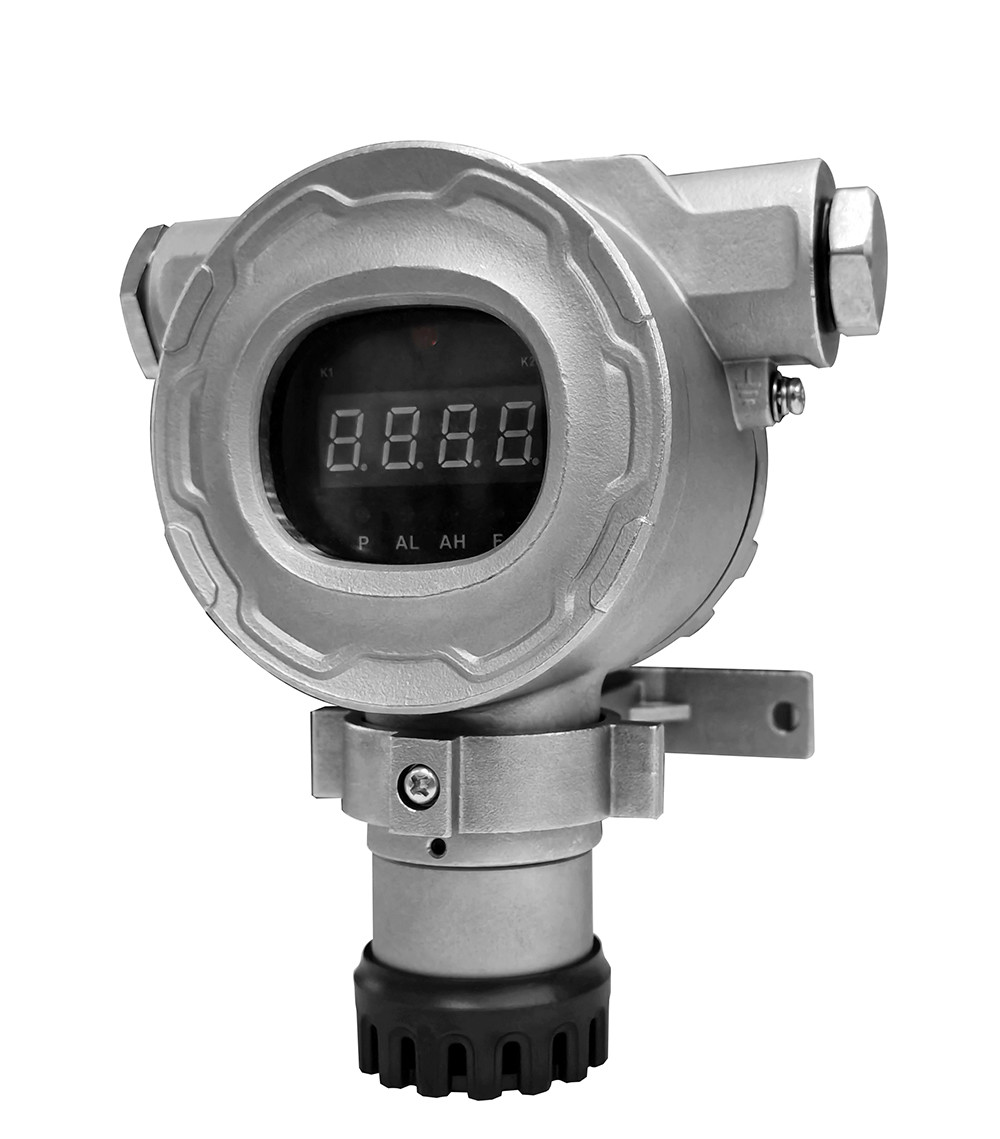

SG100 Fixed Gas Detector close-up

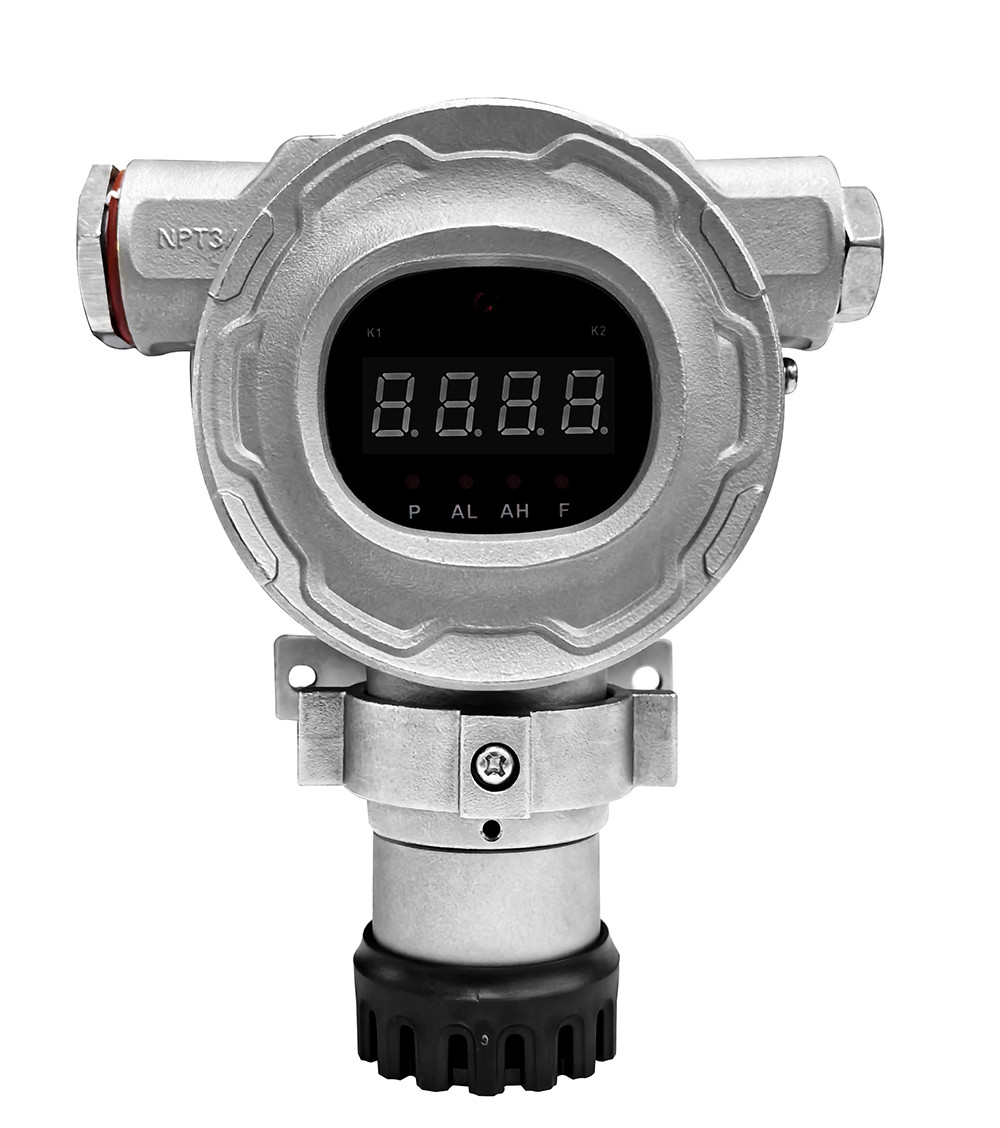

SG100 Fixed Gas Detector with accessories
Key Features
  • IP66/IP68 water & dust resistant rating
  • Intelligent plug and play sensor module with PC software calibration
  • Standard splash guard for outdoor installation
  • Compact and lightweight design (1 kg) with mounting bracket
  • Multiple output signals: 4-20 mA analog, RS485 modbus, optional HART
  • Three relays for low/high/fault alarm (optional)
  • Magnetic and remote control for flexible setting
Technical Specifications
Detected Gas Can be customized, 1-4 gases detect
Measure Range Can be customized
Install Method Wall-mounted, piping type, flow-type
Output signal 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional)
Precision ≤±1%F.S. (to be specialized)
Zero shift ≤±1%(F.S./year)
Display 4 digits Nixie tube display
Connection mode G3/4 external thread explosion-proof flexible pipe
Thread Size Standard M20*1.5, 3/4NPT
Temperature -20℃～50℃ (electrochemistry principle), -40℃～70℃ (catalytic combustion principle)
Humidity 10-95%RH (non-condensing)
Explosion-Proof Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb
Degree of protection IP66/IP68
Material 316 stainless steel
Power 12-24V DC
Dimensions 158×129×70mm
Weight ≤1kg
Approval CE, CNEX explosion proof certificate, CMC, IECEx, ATEX
Warranty 12 months
Detectable Gases

SG100 series can detect 1-4 gases including various toxic, flammable, and VOC gases.

Gas detection capabilities chart 1
Gas detection capabilities chart 2
Gas detection capabilities chart 3
Standard Configuration
  • Gas detector, 1 set
  • Magnetic wand, 1 set
  • User manual, 1 piece
  • Conformity Certificate/warranty card, 1 piece
  • Installation bracket, 1 set
  • Infrared Ray Controller, 1 piece
Optional Accessories

Calibration cap, power adapter, external pump, explosion-proof gland, adapter NPT3/4, adapter M20 * 1.5, sound and light alarm, etc. Please contact us for details.

Applications
Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations
Why Choose Us
R&D Experience: Over 25 years of expertise
Company Certification: ISO9001, ISO45001
Product Certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Production Capacity: 80,000 units yearly
Service: Professional sales staff provide 7*24 hours service
