Home > Products> Single Gas Detector> Safegas Portable VOC Gas Detector with Pump Suction IECEX Explosion Proof Certification and ION Gas Sensor PID Principle

Safegas Portable VOC Gas Detector with Pump Suction IECEX Explosion Proof Certification and ION Gas Sensor PID Principle

Safegas Portable VOC Gas Detector with Pump Suction IECEX Explosion Proof Certification and ION Gas Sensor PID Principle
Safegas Portable VOC Gas Detector with Pump Suction IECEX Explosion Proof Certification and ION Gas Sensor PID Principle
Safegas Portable VOC Gas Detector with Pump Suction IECEX Explosion Proof Certification and ION Gas Sensor PID Principle Safegas Portable VOC Gas Detector with Pump Suction IECEX Explosion Proof Certification and ION Gas Sensor PID Principle Safegas Portable VOC Gas Detector with Pump Suction IECEX Explosion Proof Certification and ION Gas Sensor PID Principle Safegas Portable VOC Gas Detector with Pump Suction IECEX Explosion Proof Certification and ION Gas Sensor PID Principle
Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: ATEX/EMC/IECEX
Model Number: SKY3000
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3 work days
Payment Terms: T/T,Western Union
Supply Ability: 1000 pieces per month
Get Best Price Contact Now
Detail Information
Gas Type: VOC/TOVC Sampling Method: Pump Suction, Pump Can Turn Off
Measure Range: 0-1, 3, 50, 100, 1000, 5000PPM Resolution: 0.05ppb, 0.001ppm, 0.01ppm, 0.1ppm, 1ppm
Certification: CE,ATEX,IECEx,ISO Language: Chinese/English, Other Language Can Be Customized
Alarm: Alarm With Buzzer , LED And Vibration Power: Rechargeable Lithium Battery, 3.7V
Working Hour: More Than 15 Hours(with Pump Running) Response Time: Less Than 30 Seconds
Data Record: Can Store 1 Hundred Thousand Sets Data Single Package Size:: 34cm*24cm*14cm
Single Gross Weight:: About 1640g
Highlight:

Pump Suction Portable Gas Detector

,

VOC Portable Gas Detector

,

PID Principle VOC Gas Detector

Product Description

Safegas Portable Gas Detector VOC Gas Detector Pump Suction IECEX Explosion Proof Certification ION Gas Sensor PID Principle
Product Overview

The SKY3000 series is a high-performance portable gas detector capable of simultaneously detecting multiple gases including oxygen compounds, VOC, combustible gas, and toxic gas. This advanced device features man-down alarm functionality and has obtained international IECEX, ATEX explosion-proof certification along with Chinese explosion-proof certification.

Designed with user-friendly operation, the instrument includes one-key security detection, one-key storage, automatic screen rotation, and man-down alarm functions. With optional Bluetooth transmission capability, safety personnel can access real-time data and alarm status remotely.

Product Images

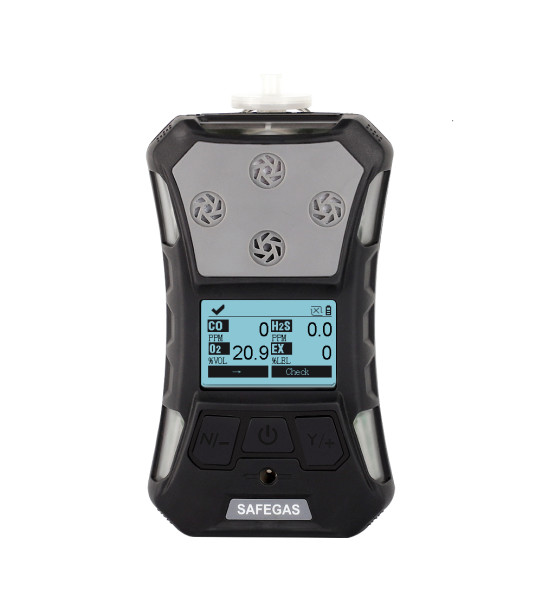

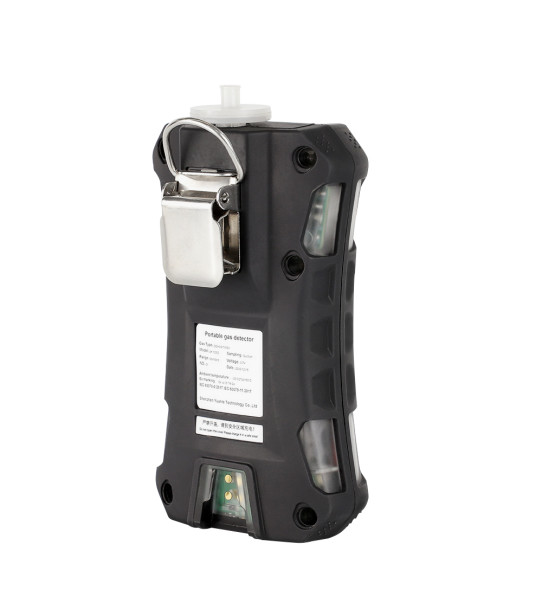

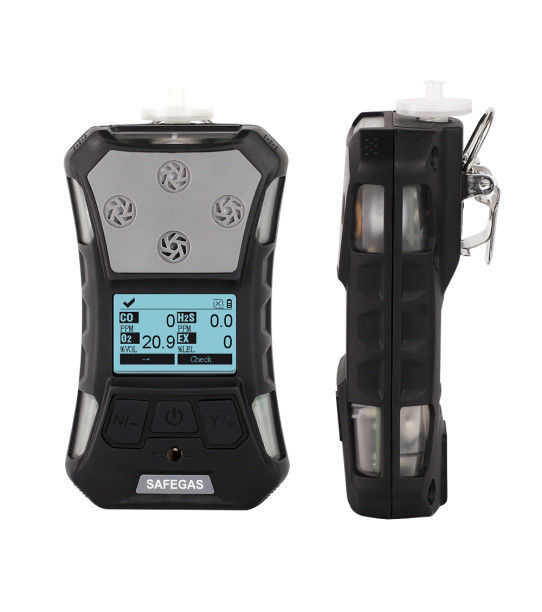

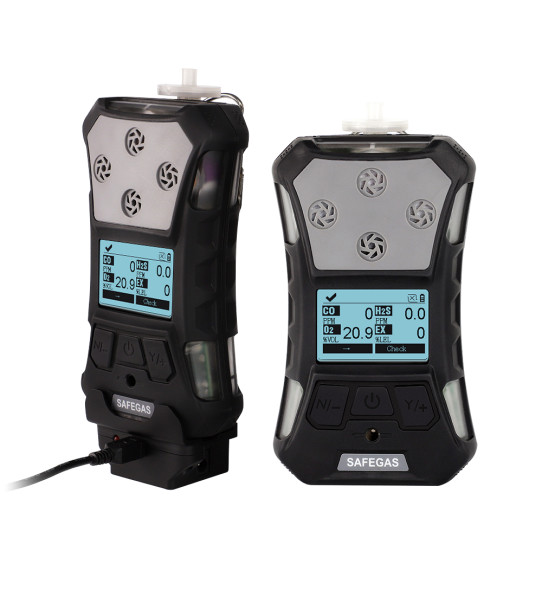

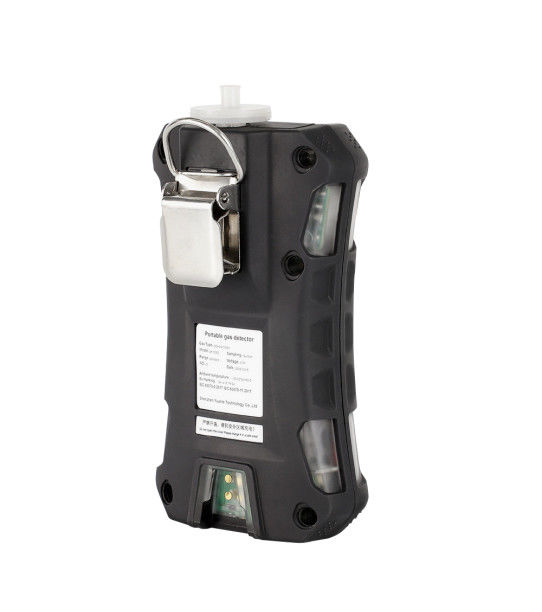

SKY3000 Portable Gas Detector front view SKY3000 Portable Gas Detector side view SKY3000 Portable Gas Detector display screen SKY3000 Portable Gas Detector with accessories SKY3000 Portable Gas Detector back view SKY3000 Portable Gas Detector close-up SKY3000 Portable Gas Detector in use
Key Features & Advantages
Rugged and Durable
  • IP67 protection rating
  • Survives 3-meter drops
  • Passed EMC anti-static interference tests
  • Operates in walkie-talkie environments
Explosion-Proof Design
  • IECEX, ATEX, and Chinese explosion-proof certified
  • Explosion-proof level: Ex ia IIC T4 Ga
  • Safe circuit design
Multiple Security Protection
  • Man-down alarm function
  • Password protection for menu parameters
  • Safety reminder function
  • Sound, light, and vibration alarms
Advanced Detection System
  • Detects 1-4 gases simultaneously
  • 180° auto-rotating screen
  • Built-in powerful sampling pump
  • 20m external sampling tube capability
  • Pump suction and diffusion dual use
  • Water trap filter for harsh environments
Technical Specifications
Parameter Specification
Sampling Method Pump suction or diffusion suction
Gas Type VOC
Measure Range 0-1, 3, 50, 100, 1000, 5000 PPM
Resolution 0.05ppb, 0.001ppm, 0.01ppm, 0.1ppm, 1ppm
Response Time ≤10 seconds
Precision ≤±1% F.S
Language English (Other languages customizable)
Display Monochrome graphics (160 x 96), auto-flip screen
Data Record 100,000 sets data storage, adjustable interval 5-3600 seconds
Alarm 95dB buzzer, vibration, flashing LED, alarm status indication
Battery 3.7V rechargeable lithium battery, 2200mAh capacity
Working Hours More than 15 hours in continuous pumping mode
Explosion-proof Grade IECEX/ATEX (II IG Ex ia IIC T4), CNEX: Ex ia IIC T4 Ga
Protection Grade IP67/IP68
Working Temperature -20ºC to +50ºC
Size 157 × 84.5 × 59.5mm (including accessories)
Weight 365g (including battery and accessories)
Standard Accessories
  • Gas detector (1 piece)
  • 12V/1A DC power adapter (1 piece)
  • USB cable (1 piece)
  • User manual (1 piece)
  • Warranty card (1 piece)
  • Filter (1 piece)
  • Aluminum suitcase (1 piece)
Additional Gas Detection Capabilities
Additional gas detection capabilities chart 1 Additional gas detection capabilities chart 2 Additional gas detection capabilities chart 3
Why Choose Our Gas Detectors?
Expertise & Experience

R&D team with over 25 years of experience in gas detection industry

Quality Certifications

ISO9001, ISO45001 certified manufacturing processes

Product Certifications

IECEx (the only one in China), ATEX, CE certified products

Fast Delivery

5-7 days standard delivery, 3 days for orders under 10 units

Production Capacity

Annual capacity of 80,000 units with stable inventory

Customer Support

Professional sales staff providing 7*24 hours service

As a professional gas detector manufacturer, we control the entire process from design and R&D to production and sales, ensuring consistent product quality. With over 100 independent intellectual property patents, skilled technical workers, and complete industrial production lines, we maintain strict quality control throughout the manufacturing process.

Company quality management certification IECEx and ATEX explosion-proof certification Professional manufacturing facilities
Frequently Asked Questions
Frequently Asked Questions section 1 Frequently Asked Questions section 2
