Sampling Method: | Pump Suction | Pump Flow Rate: | 0.5L/min (gas); 1.8L/min (particles/dust) |
---|---|---|---|
Monitoring Way: | Continuous Automatic Real-time Monitoring | Display Screen: | 7 Inch Color Touch Screen |
Display Mode: | Adaptive Display Channel Number, Automatic Page Turning | Signal Output: | RS485、relay、4G DTU(optional)、LORA(optional),etc |
Working Temperature: | -10℃~55℃ | Working Humidity: | 0-95%RH,Relative Humidity |
Alarm Type: | Sound And Light Alarm (optional) | Product Weight: | 18kg |
Highlight: | ambient air quality monitoring system,Industrial air quality monitoring system,Outdoor air quality monitoring system |
Product Description
ADQ5000 is a new type of low-cost intelligent monitoring equipment, and it is an ideal equipment for environmental monitoring departments to monitor air quality.
AQD5000 air quality monitoring system is widely used in urban air quality monitoring and industrial air emission pollution monitoring. It can simultaneously measure various environmental pollution gases, particulate matter and meteorological parameters in the air.The system supports RS485 signal transmission, with data storage and export functions. Through the wireless acquisition terminal, the measurement data can be transmitted to the cloud platform in real time, and can be remotely controlled through the cloud platform.

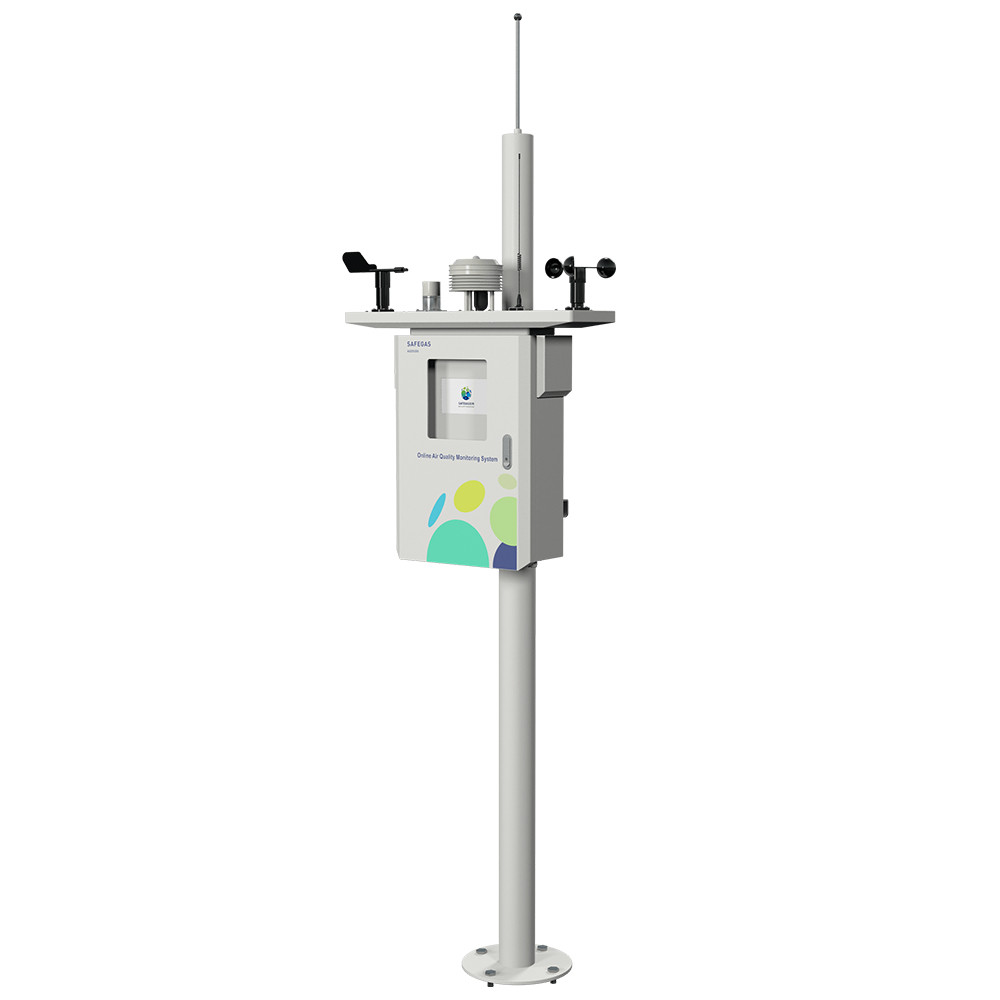

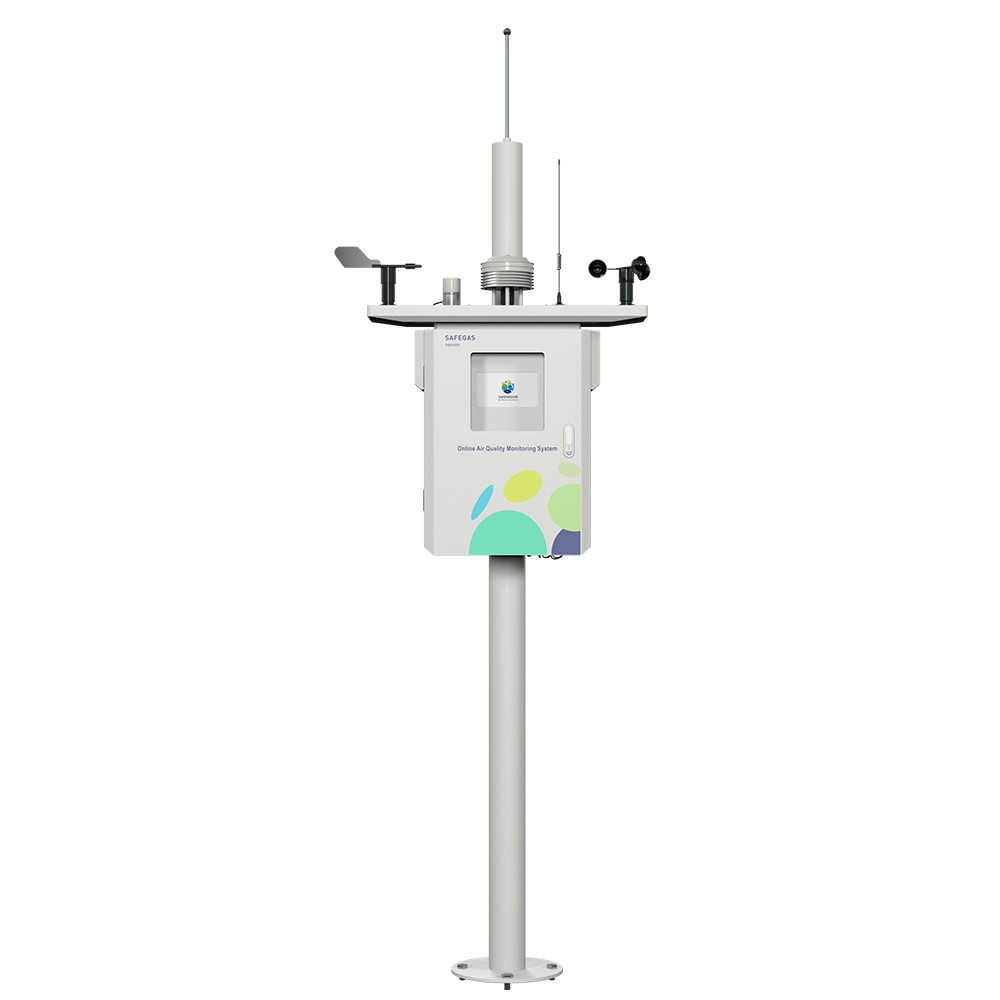

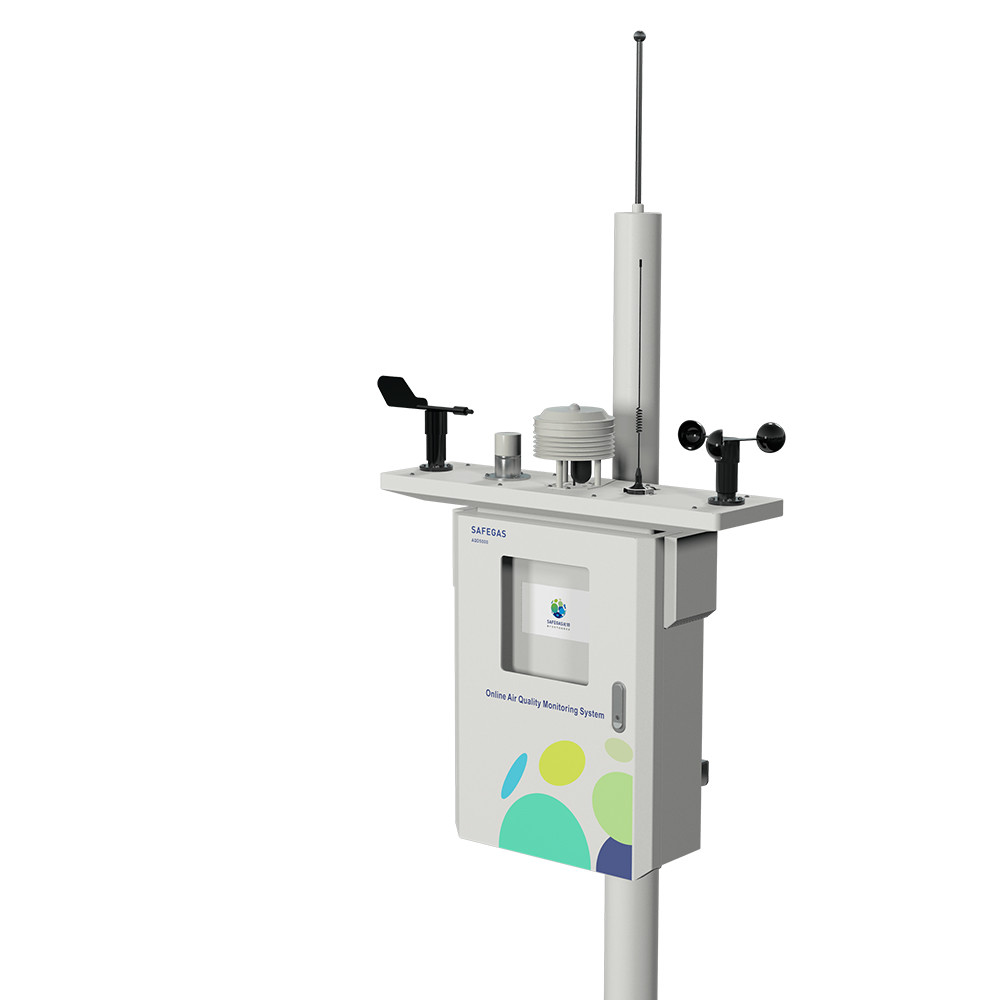

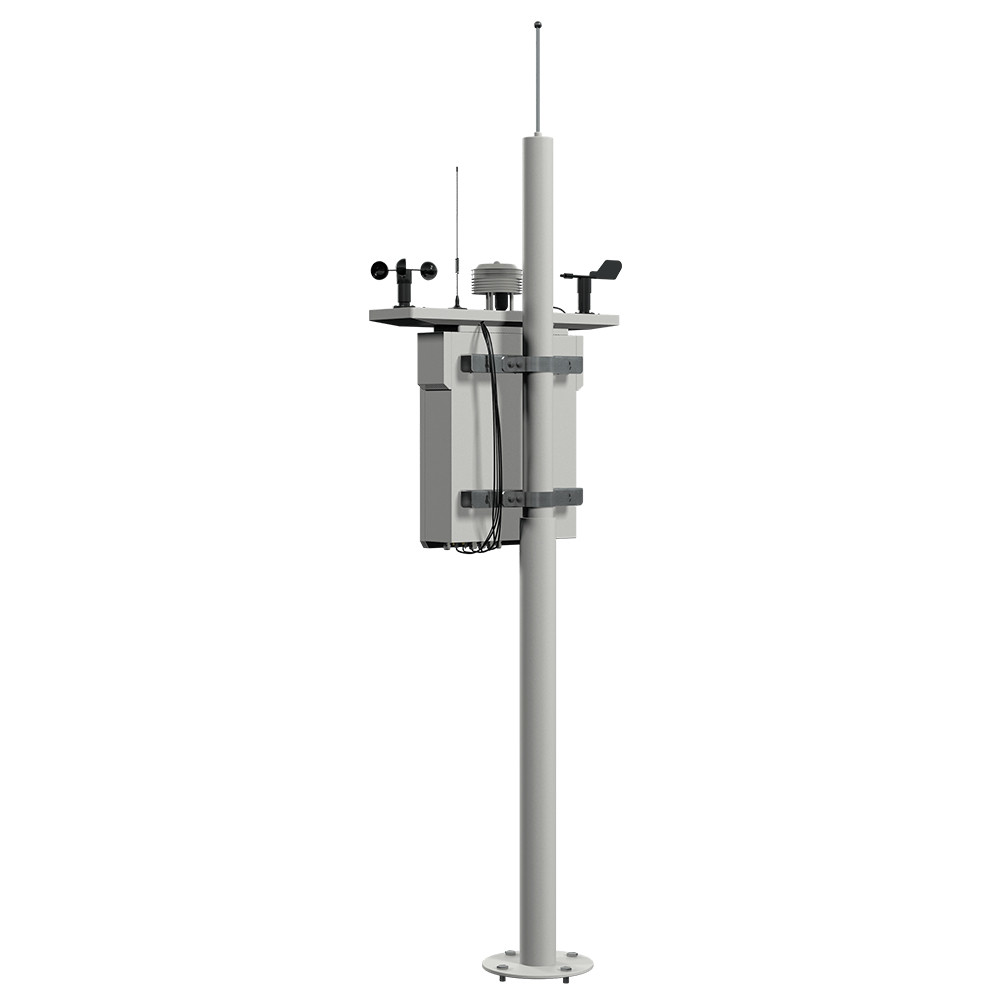

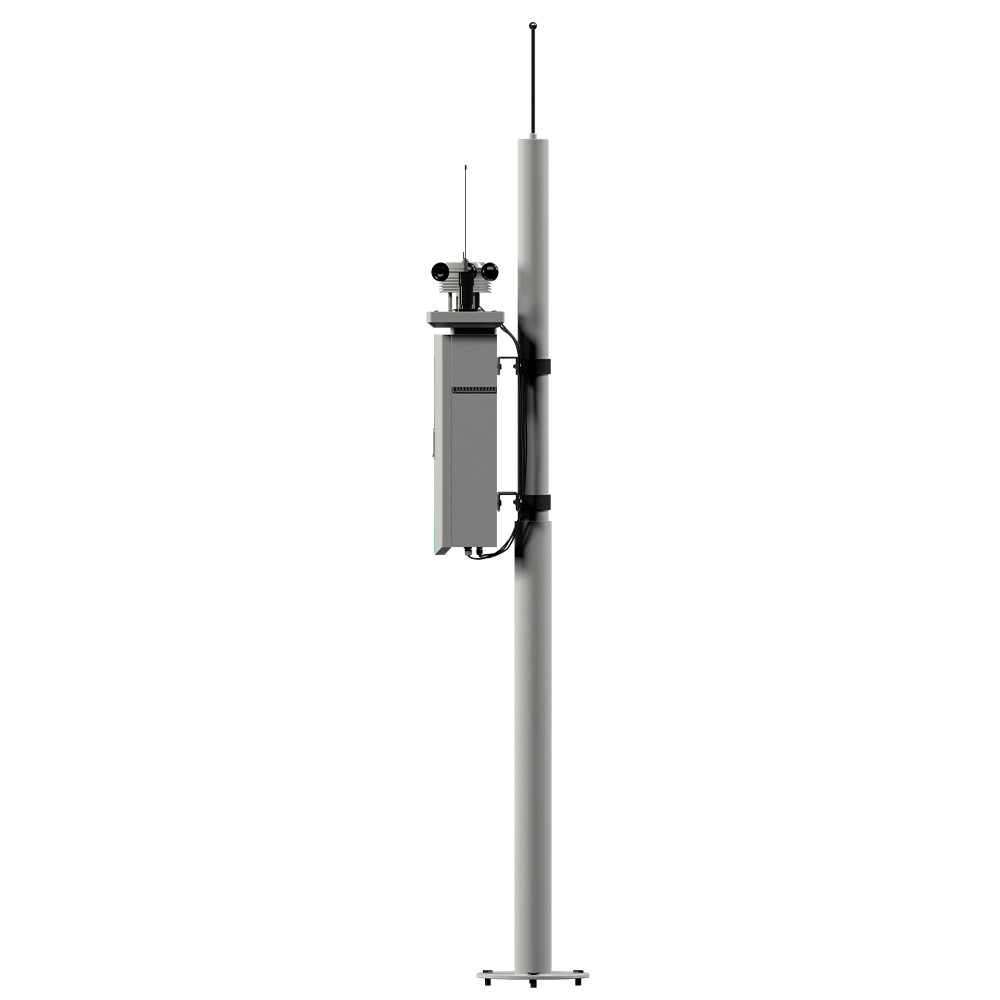

Product Picture
Product Advantage
1. Multi modules and gases measuring : 1-9 kinds of gas parameters can be monitored at the same time, and measurement modules such as particle parameters and meteorological parameters can be selected according to user needs
2. High protection anti hazardous environment : Equipped with a professional outdoor shield, it can be perfectly dust-proof and rain-proof, and can continuously monitor and work stably in high or low temperature environments
3. Long-time datalogging : Standard equipped with storage function, which can store at least two years monitoring data
4. Mutiple function using : It can work 7×24 hours without interruption, with functions such as real-time data upload, fault self-diagnosis and automatic restart
5. Standard transmission : Standard output RS485 signal, a set of relay signal
6. High accuracy & Reliable : Specialized in gas detection for 15 years, using world first brand sensors, high precision, the detection result is approved by the third testing organization.
Multiple options
Optional outdoor LED display large screen, easy to view real-time data at any time and
Optional solar power supply panel to support normal work when without mains power
Optional adapter card and PC software, real-time viewing of concentration and historical data on the computer.
Optional 4G DTU and Lora wireless module, real-time upload gas concentration value to the ecological environmental protection bureau, departmental server
Optional camera to realize real-time, remote and automatic monitoring of dust concentration and on-site video and image collection
Specifications
Gas parameters (can be combined freely) |
Measurement parameters: ozone, sulfur dioxide, nitrogen dioxide, formaldehyde, carbon monoxide, TVOC, etc.; Resolution: 1 ppb, 1 ppb, 1 ppb, 0.01ppm , 0.001ppm, 0.001ppm; |
Particle parameters (optional) | Measurement parameters: PM2.5, PM10, PM0.3, PM1.0, PM10.0, TSP, etc. Measuring range: 0-1000ug/m3, 0-5000ug/m3; Resolution: 1ug/m3, 1ug/m3; Measuring principle: laser principle Response time: ≤30S |
Meteorological parameters (optional) | Measurement parameters: temperature, humidity, wind speed, wind direction, air pressure, light intensity, noise, etc.; Measuring range: -40°C~+120°C, 0~99%RH, 0~20m/s, 8 directions, 0~120Kpa, 0~200,000 Lux, 30dB~130dB; Resolution: 0.1℃, 1%RH, 0.1 m/s, 1 piece, 1 Kpa, 1Lux, 1dB; Measuring principle: thermocouple, mechanical and other principles |
Output signal | RS485,relay,4G DTU(optional),LORA(optional),etc |
Sampling method | Pump suction |
Pump flow rate | 0.5L/min (gas); 1.8L/min (particles/dust) |
Display | 7-inch color touch screen display |
Power supply | 220VAC(AC),0.1A |
Working current | <100Ma(Max) |
Temperature | –10℃~55℃ |
Humidity | 0-95%RH (non-condensing) |
Alarm type | Sound and light alarm (optional) |
Product shell | Anti-corrosion, sun protection, anti-collision |
Product size |
480×580×163mm(Excluding external sensors, rainproof beams, and mounting brackets) |
Installation way | Ceiling, wall-mounted |
Product weight | 18kg |
Product composition | This equipment is composed of a pre-processing system and a monitoring factor analysis system |
Oil water dust filter | Glass fiber material, PE material, different monitoring factors correspond to different materials |
Warranty | 12 months |
Product casing | Carton |
Gas
AQD5000 model can detect 1-9 gases, here's some gases AQD5000 can detect:
Product Application
(1) Urban air quality monitoring, short-term and long-term air quality trend analysis and evaluation;
(2) Grid monitoring of air quality by relevant management departments of provinces, cities, counties (districts), towns (villages or sub-district offices);
(3) Air quality monitoring in densely populated areas such as communities, schools, and hospitals;
(4) Atmospheric monitoring of industrial areas, petroleum and petrochemical plants, power plants, landfill incineration stations, sewage treatment plants, storage facilities, and underground facilities;
(5) Air quality monitoring of urban roads, airports, ports, railways, tunnels, and construction sites;
(6) Air quality monitoring in open places such as parks, woodlands, and crop research;
(7) Emission monitoring of particulate matter and pollution sources;
(8) Environmental quality assessment.
Why choose us?
As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure the consistency of product quality. We have more than 100 independent intellectual property patents in design and development;In production, we have skilled technical workers and a complete industrial line, which can grasp the production and quality of products throughout the process;and our company has rich overseas sales experience and a professional sales team, can provide customers with 7*24h considerate service.
We have professional R&D department, thet have been engaged in gas detect industrial for about 25 years.They have professional knowledge and rich experience,can provide customers with professional technical after-sales service.
We carry out a strict quality management system and take the principle of quality first as the core to produce gas detector,Therefore, we have been recognized by authoritative organizations and obtained ISO9001 and ISO14001 certifications to provide customers with safe and environmentally friendly products.
Our products have obtained IECEx and ATEX explosion-proof certification, so our detectors can be used in hazardous areas such as mines, underground and oil plants. We are the first and currently the only manufacturer in China who obtain this certification, products without explosion-proof certification are prohibited from being used in dangerous areas.
Our core components, such as ICs or sensors, use imported brands like Honeywell, CITY and Alpha, which improving the accuracy of our product,stabilizing the product's service life, ensuring the accuracy of detection and protecting the safety of customers' lives.
Our complete product line and stable inventory provide customers with fast delivery. If the order quantity is less than 10 pcs, we usually deliver them within 3 days. If the quantity exceeds 100 pcs, under normal circumstances,we can deliver it within half a month.
FAQs
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector for more than 10 years.
Q2:What is the MOQ?
A2:Usually it is 1 piece.
Q3:How about the quality of your products?
A3:Our product is made of imported sensors and components, the products are certified.
Q4:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
