| Place of Origin: | China |
|---|---|
| Brand Name: | SAFEGAS |
| Certification: | ATEX/EMC/IECEX |
| Model Number: | SKY3000-SP |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton(34*24*14cm) |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300 pieces per month |
| Gas Detected: | CH4 | Detection Principle: | Semiconductor Principles/Catalysis Principles |
|---|---|---|---|
| Measure Range: | 0-10000ppm, 0-100%LEL, 0-100%VOL | Response Time: | ≤30 Seconds |
| Precision: | ≤±1-5%F.S Except For Special Gases | Language: | Chinese/English/Polish(More Language Can Be Customized) |
| Unit: | PPM, Mg/m3, %LEL, %VOL | Display: | LCD (160 X96) ,180° Rotate |
| Backlight: | Turned On Automatically When Alarming, The Backlight Time Can Be Manually Set | Working Temperature: | -20℃~+50℃ |
| Explosion-proof Grade: | IECEx: Ex Ia IIC T4 Ga ATEX : II 1G Ex Ia IIC T4 Ga | Humidity: | 10～90%RH（no Condensation） |
| Certification (EU Regulations): | 2004/34/UE (ATEX） | Protection Grade: | IP67 |
| Highlight: | Imported Sensor Methane Gas Detector,Portable Methane Gas Detector,ATEX Methane Gas Detector |
||
Product Overview
Designed for the gas industry, the SKY3000-SP are multi-application instruments, satisfying all the needs of service technicians within a single unit. With different modes of operation and internal pump, the SKY3000-SP is the most versatile instrument available for working with gas.
The SKY3000-SP series offers technicians and workers a single instrument that can be used throughout the gas distribution andtransmission pipelines for all measurements needed for leak testing, and confined space entry. Bright LED alarm lights illuminate as gas levels increase, and audible alarms are activated at preset levels should they be programmed.
The explosion-proof Grade of the SKY3000 series is IECx and ATEX certifiacated with Ex ia IIC T4 Ga, which is applicable to the explosive gas mixture zone 0, zone 1, and zone 2 of the factory with grades ⅡA ,ⅡB , and ⅡC and temperature group T1~ T4.

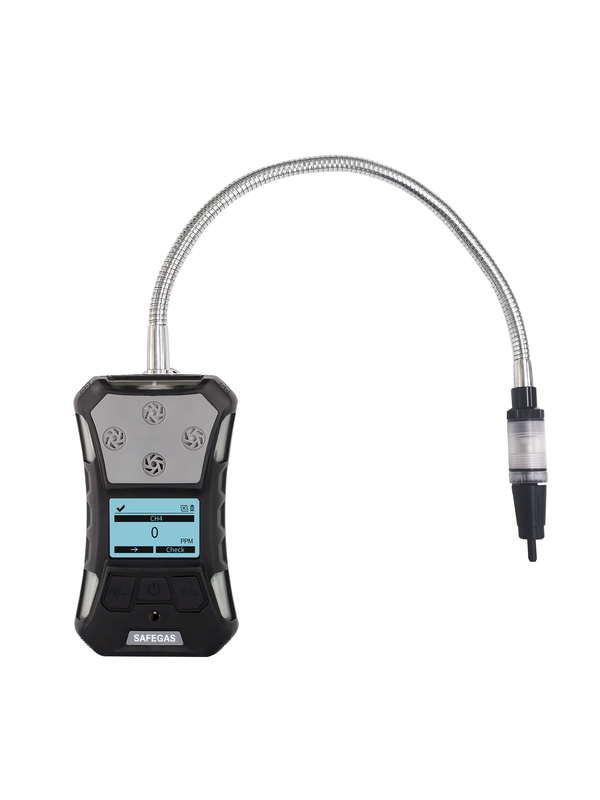

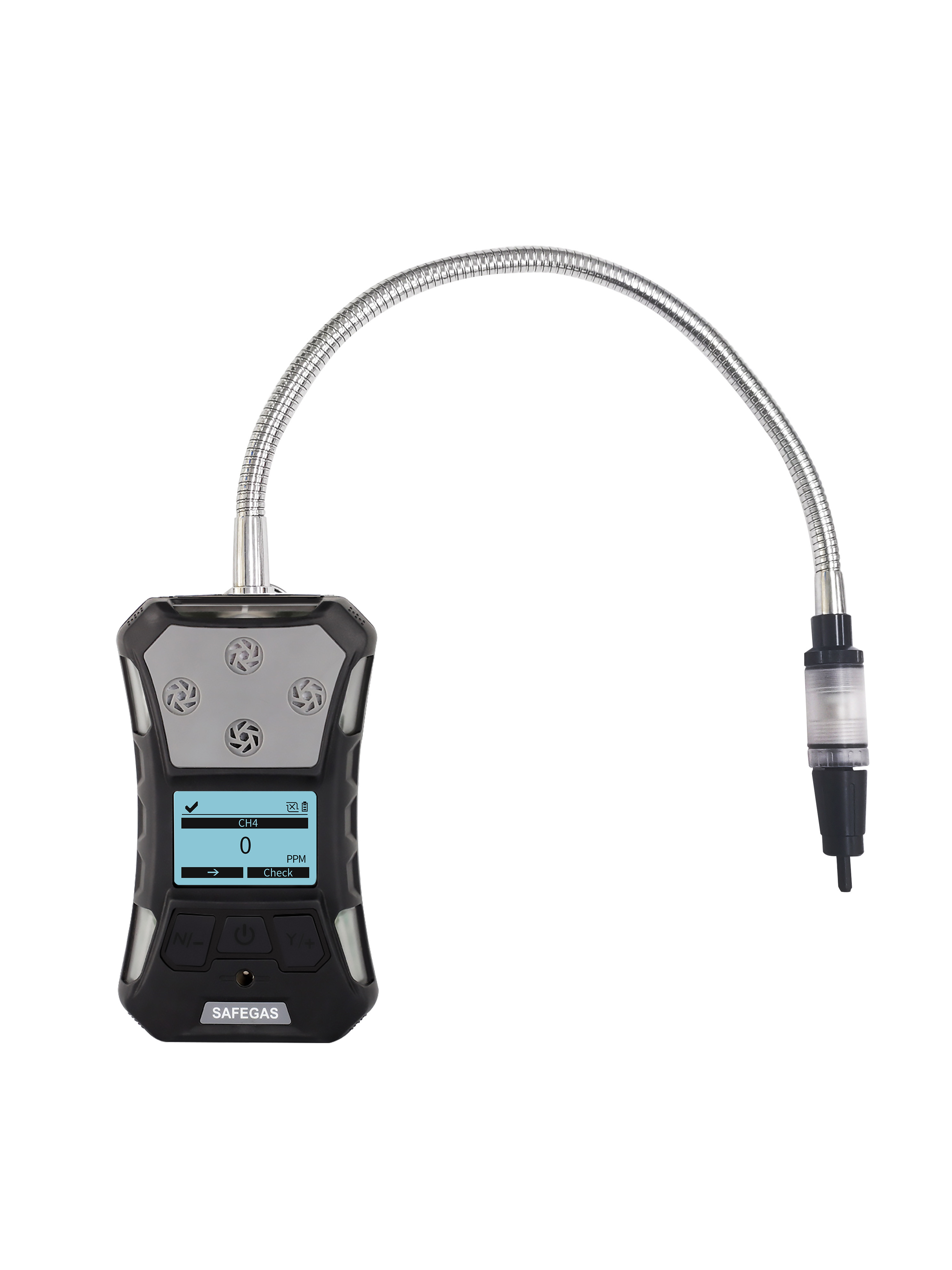

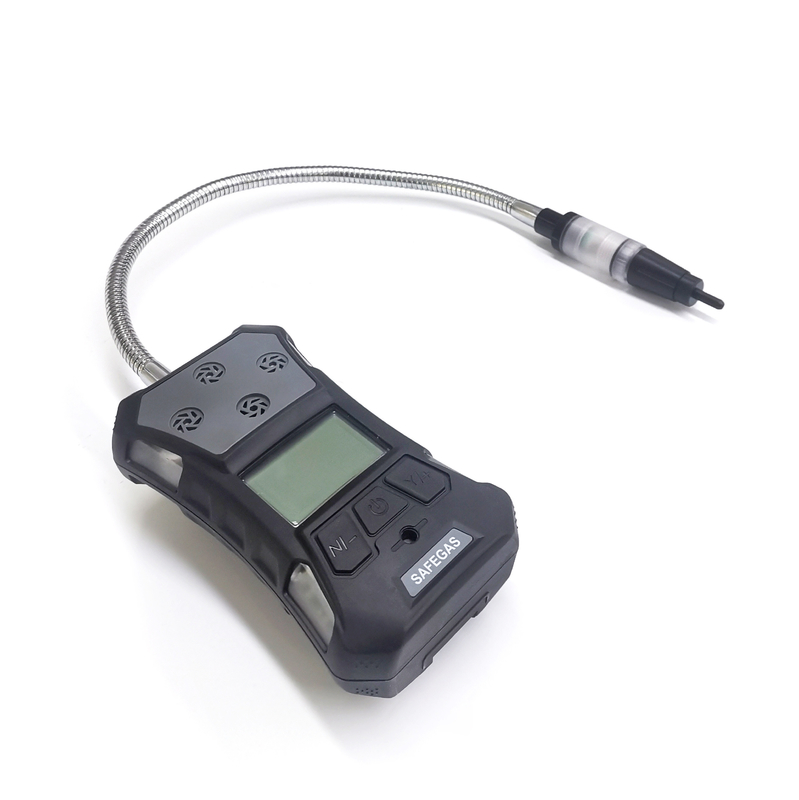

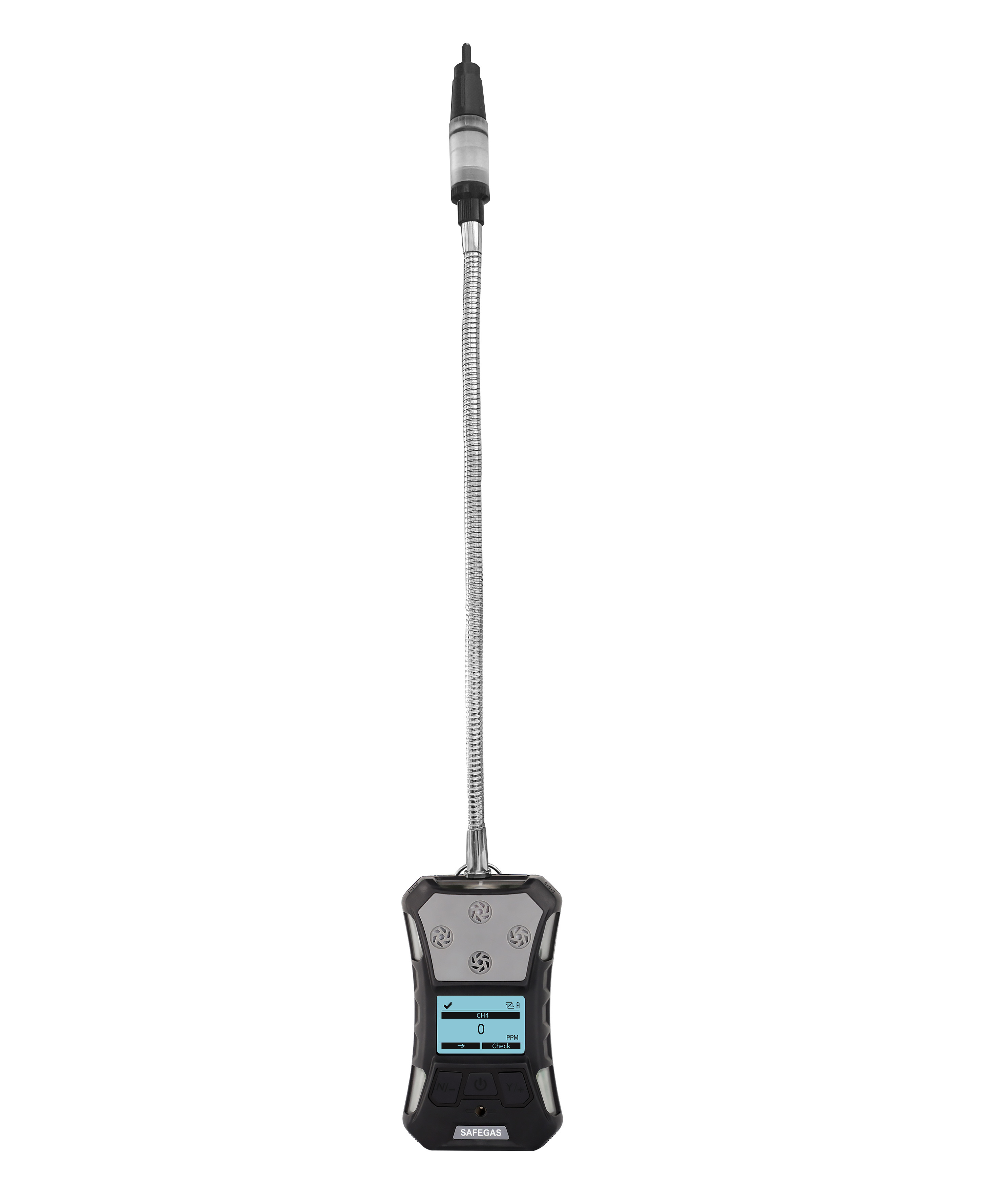

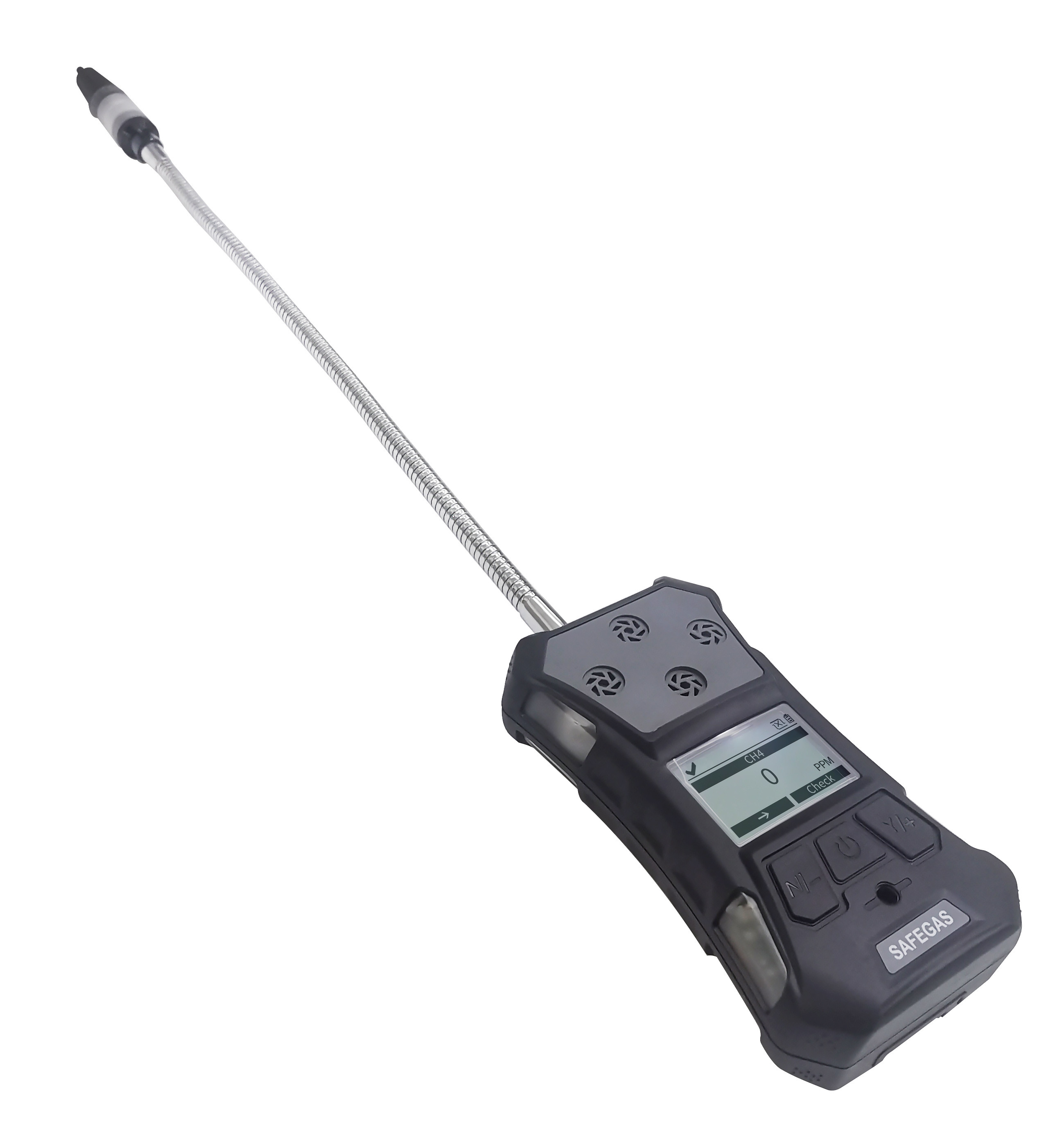

Product Picture
Product Advantage
1) Optional measures up to 4 gases,(O2, CH4, CO, H2S) simultaneously with audible visual alarms, datalogging, and min/max values.
2) Gas leak detection measures methane in three different distinct ranges (ppm / LEL / %Volume). Autoranging between all three ranges, audible,
visual, and gieger alarms, and ergonomical design allows for easy one handed operation.
3) With flexible probe for testing undrerground leaks, measures gas beginning in the LEL range and autoranges to % Volume. Barhole probe included with instrument.
4) Rugged polycarbonate case, sealed to IP67
5) One press to restore factory settings
6) Large graphical display can rotate 180°
7) Support backlight function the backlight time can be manually set
8) Low power consumption, long stand by time
9) Support firmware upgrade remotely
Product specifications
1) Gas Detected: CH4
2) Detection Principle:Semiconductor Principles/Catalysis Principles
3) Measure range:CH4: 0-10000ppm, 0-100%LEL, 0-100%VOL
4) Resolution: 1ppm, 1%LEL, 1%VOL
5) Response time: ≤30 seconds
6) Precision: ≤±1-5%F.S except for special gases
7) Language: Chinese/English/Polish(More language can be customized)
8) Automatically test and calibrate after power-on: Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
9) Unit: PPM, mg/m3, %LEL, %VOL
10) Backlight: Turned on automatically when alarming, the backlight time can be manually set
11) Display: LCD (160 x96) ,180° rotate
12) Data record: 100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to PC no need software
13) Alarm: 95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on the screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm
14) Battery: 3.7V rechargeable lithium battery, battery capacity 2200mA
15) Working hours: More than 15 hours in continuous pumping mode
16) Charger: Travel charger with DC interface, charging time ≥ 4 hours
17) Explosion-proof :
IECEx: Ex ia IIC T4 Ga
ATEX : II 1G Ex ia IIC T4 Ga
18) Working temperature: -20℃~+50℃
19) Humidity: 10～90%RH(no condensation)
20) Protection grade: IP67
21) Working Pressure: 86～106Kpa
22) Weight: 365g (including battery, belt clip and filter)
23) Size: 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height)
Standard configuration list
Standard accessories:
1) Gas detector 1 piece
2) 12V/1A DC power adapter 1 piece USB cable 1 piece
3) User manual 1 piece
4) Warranty card 1 piece
5) Flexible probe 1 piece
6) Aluminum suitcase 1 piece
Why choose us?
1) R&D team experience: over 25 years.
2) Company certification: ISO9001, ISO45001
3) Product certification: IECEx (the only one in China), ATEX, CE
4) Delivery: 5-7 days
5) Yearly capacity: 80,000 units
6) Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
FAQ
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector for more than 10 years.
Q2:What is the MOQ?
A2:Usually it is 1 piece.
Q3:How about the quality of your products?
A3:Our product is made of imported sensors and components, the products are certified.
Q4:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
