| Place of Origin: | China |
|---|---|
| Brand Name: | SAFEGAS |
| Certification: | ATEX/EMC/IECEX |
| Model Number: | Micmeta |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton(22*16*11cm) |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 pieces per month |
| Gas Type: | CL2, CLO2 | Working Method: | Diffusion Sampling |
|---|---|---|---|
| Response Time(T90): | ≤30 Seconds | Calibration Platform: | Optional Docking Station To Perform Daily Calibration And Bump Test |
| Battery: | Lithium Battery, 3.7V Rechargeable Battery | Wireless Transmission(Optional): | Bluetooth / Lora |
| Working Hours: | About 24 Hours | Charging Time: | Less Than 6 Hours |
| Certification: | ATEX, CN, IECEX | Protection Grade: | IP66/IP68 |
| Weight(with Internal Battery): | 240g | Data Record: | 1000 Sets |
| Events Record: | 100 Sets | ||
| Highlight: | Minisize Gas Detector,CL2 and CLO2 Gas Detector |
||
Product Overview
MicMeta is a multi-gas detector with IP66/IP68 protection, under normal circumstances, Micmeta can detect 1-4 gases at the same time. In the case of two conventional range gases, CO and H2S, it can detect up to 5 gases at the same time.
Micmeta has obtained three explosion-proof certifications: IECEX, ATEX, and China Explosion-proof. The explosion-proof level is Ex ia IICT4 Ga/Ex ia I Ma, and it can be used in Zone 0 and Zone 1 at the same time.
Micmeta uses an LCD screen, and the display interface supports switching between Chinese and English, and the gas unit can be switched. Two-level sound and light alarm, the alarm point can be set by yourself, optional PC software to download the detected data. Optional docking station to realize easy bump testing, calibration, configuration and data recording.

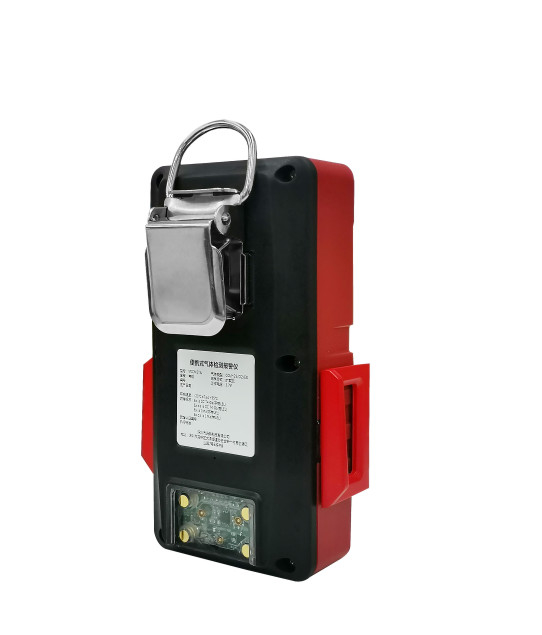

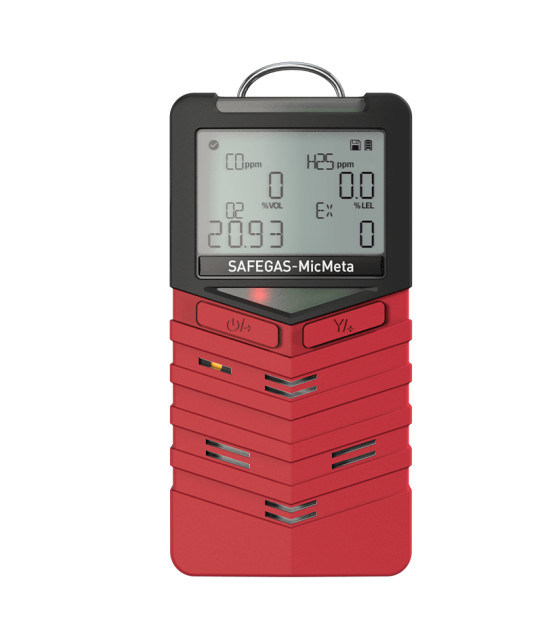

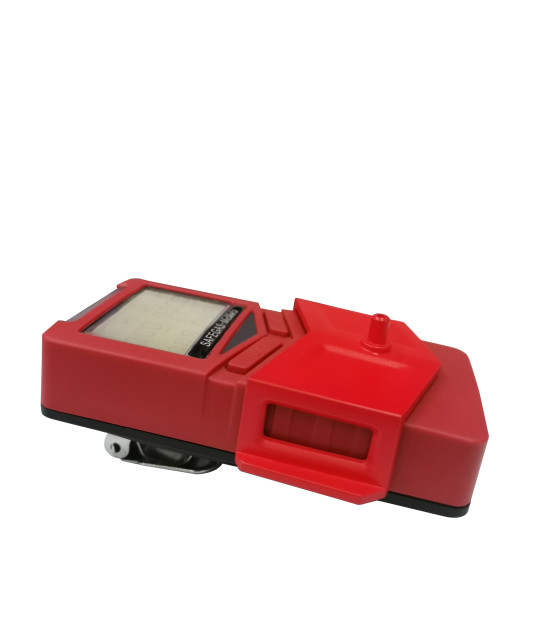

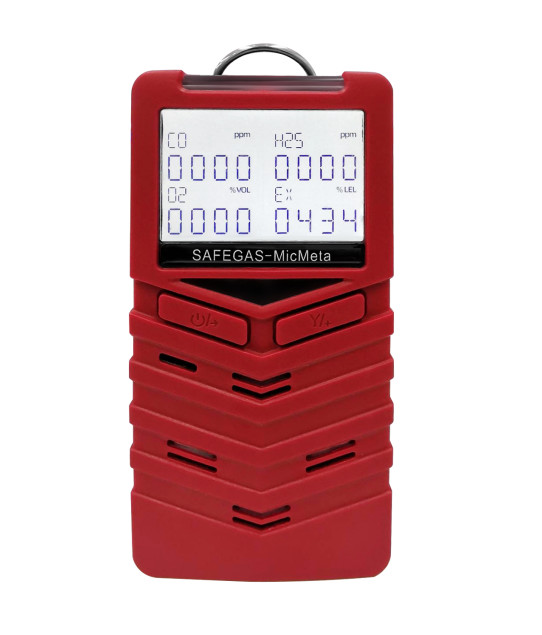

Product Pictures
Product Advantages
1)Compact and Lightweight
Small size with light weight (240g), this instrument is robust and durable, can endure drops of up to 1.5 meters. With IP66/IP68, it can effectively waterproof and dustproof.
2)User-Friendly Operation
With two buttons to operate, make the opetration easier.
3)Bright Visual Alarm
It features a wide-angle visual alarm bar for increased visibility.
4)EMC Tested
It has successully passed EMC anti-static interference tests, ensuring reliable operation in various environments.
5)Ergonomic Design
It comes with a comfortable, wear-resistant back clip that is lightweight for easy carrying.
Product specification
| Sampling method | Diffusion suction |
| Gas type | CL2 AND CLO2 |
| Measure range | Customize, CL2 0-200PPM, CLO2 0-50PPM |
| Resolution | 0.1PPM, 1PPM |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Disaply | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bar, as well as on-screen alarm status indication, alarm lock; Diagnostic alarms and battery undervoltage alarms, man down alarms, all sensor alarm value is settable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade |
IECEx: Ex ia IIC T4 Ga, Ex ia I Ma,
ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |
Gas
Micmeta can detect 1-5 gases, here's some gases Micmeta can detect:
Product Application
Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure the consistency of product quality. We have more than 100 independent intellectual property patents in design and development;In production, we have skilled technical workers and a complete industrial line, which can grasp the production and quality of products throughout the process;and our company has rich overseas sales experience and a professional sales team, can provide customers with 7*24h considerate service.
We have professional R&D department, thet have been engaged in gas detect industrial for about 25 years.They have professional knowledge and rich experience,can provide customers with professional technical after-sales service.
We carry out a strict quality management system and take the principle of quality first as the core to produce gas detector,Therefore, we have been recognized by authoritative organizations and obtained ISO9001 and ISO14001 certifications to provide customers with safe and environmentally friendly products.
Our products have obtained IECEx and ATEX explosion-proof certification, so our detectors can be used in hazardous areas such as mines, underground and oil plants. We are the first and currently the only manufacturer in China who obtain this certification, products without explosion-proof certification are prohibited from being used in dangerous areas.
Our core components, such as ICs or sensors, use imported brands like Honeywell, CITY and Alpha, which improving the accuracy of our product,stabilizing the product's service life, ensuring the accuracy of detection and protecting the safety of customers' lives.
Our complete product line and stable inventory provide customers with fast delivery. If the order quantity is less than 10 pcs, we usually deliver them within 3 days. If the quantity exceeds 100 pcs, under normal circumstances,we can deliver it within half a month.
FAQs
Q1: What is a gas detector?
A1: Gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, fixed gas detector, etc.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, that is, the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
