O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process

Basic Information
Place of Origin: China
Brand Name: safegas
Certification: ATEX/IECEX
Model Number: YT98-H
Minimum Order Quantity: 1 piece
Price: 560USD
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 8000 pcs per month
Detail Information
Detected Gas: SO2,CO Measure Range: Specified According To Application
Gas: EX/LEL/CH4/O2/CO/H2S/CO2(optional) Sensor Type: Specified According To Application
Language: Chinese/English Alarm Type: Light+Sound+Vibration
Detection Principle: Pumping Electrochemical, NDIR, Catalytic, PID, Etc Weight: 3.4kg (3.8kg With Alarm Light)
Size: 286*202*96mm (H X W X D) Sampling: Built In Pump
Display: High-light Nixie Tube Display
Highlight:

O3 Ozone Gas Detector

,

Ozone Toxic Gas Detector

,

Wall Mount Ozone Gas Detector


Product Description

Product video

O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 0




Our advantages

O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 1

Product description

O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 2O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 3O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 4O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 5O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 6O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 7

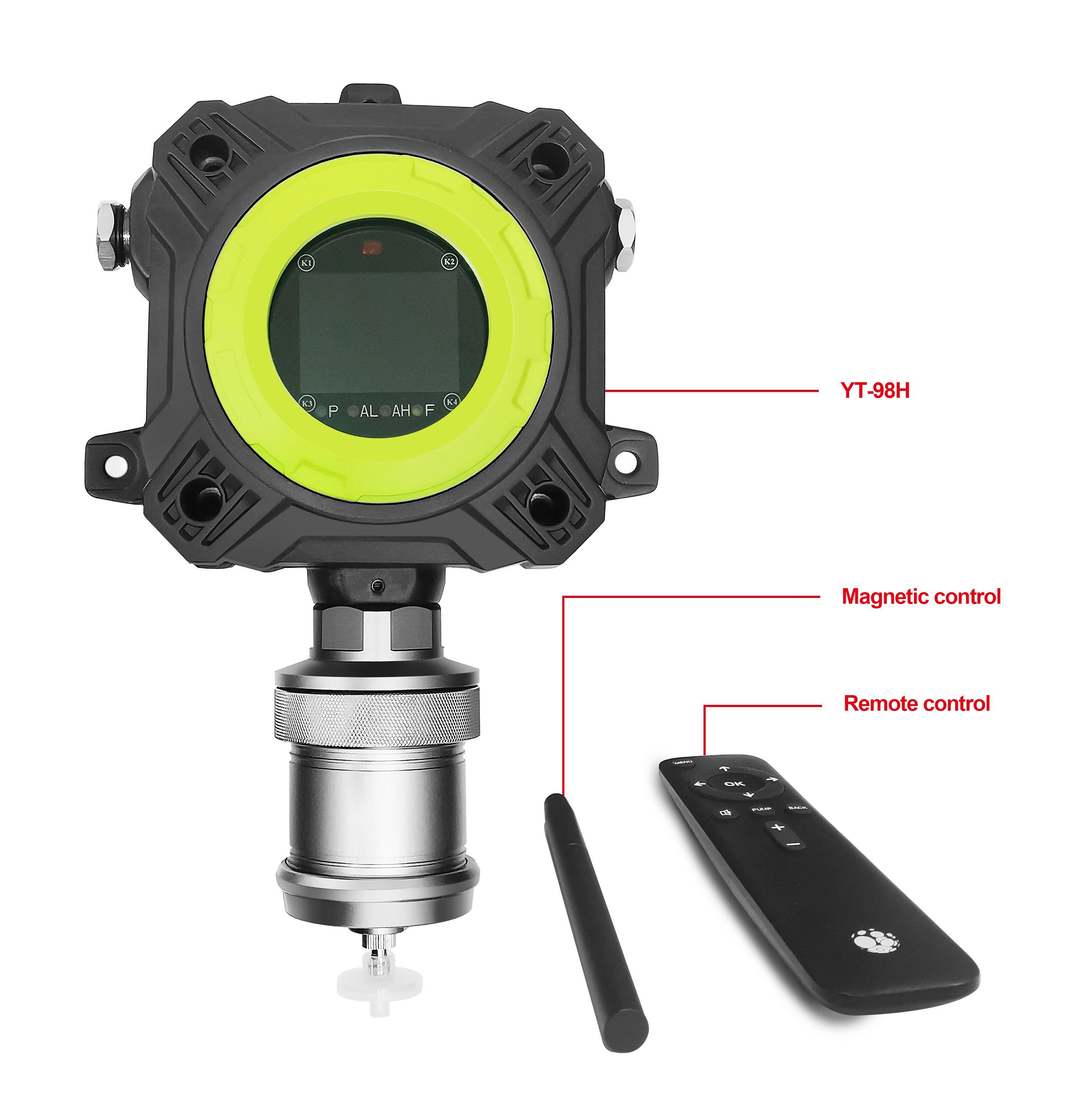

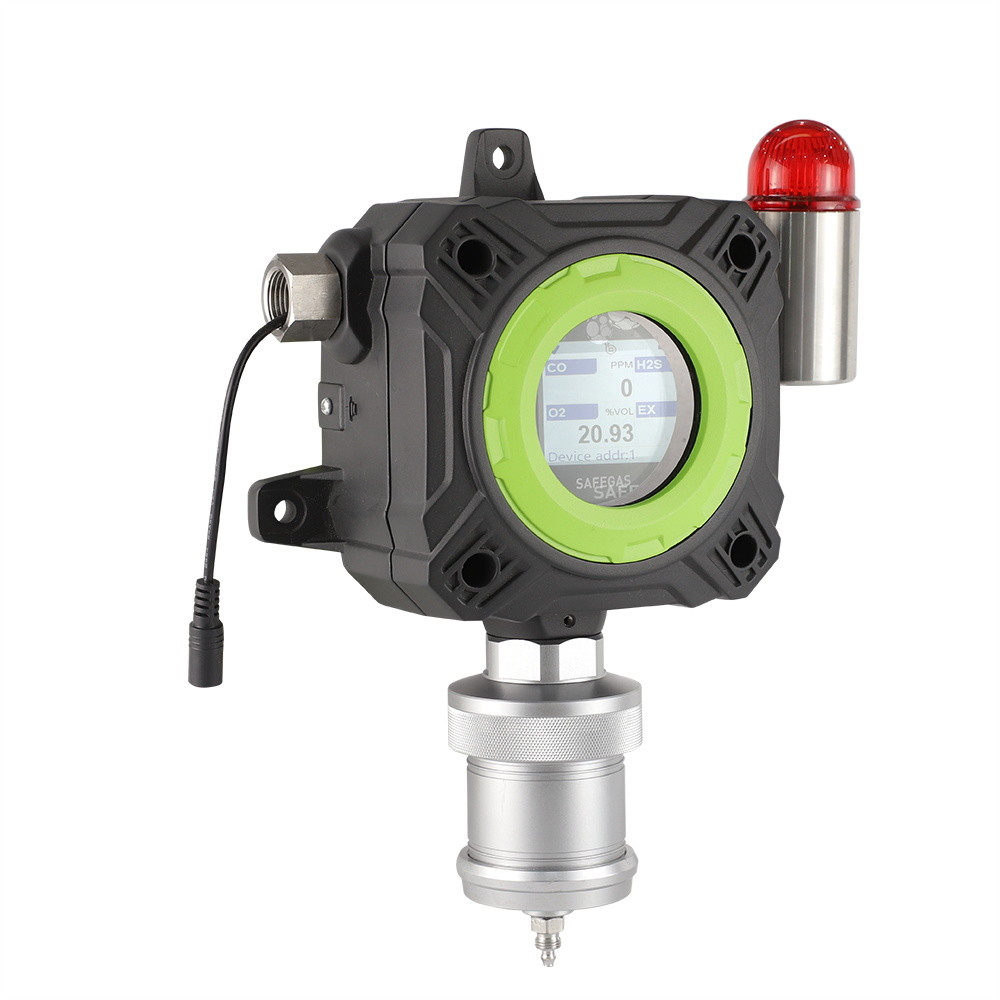

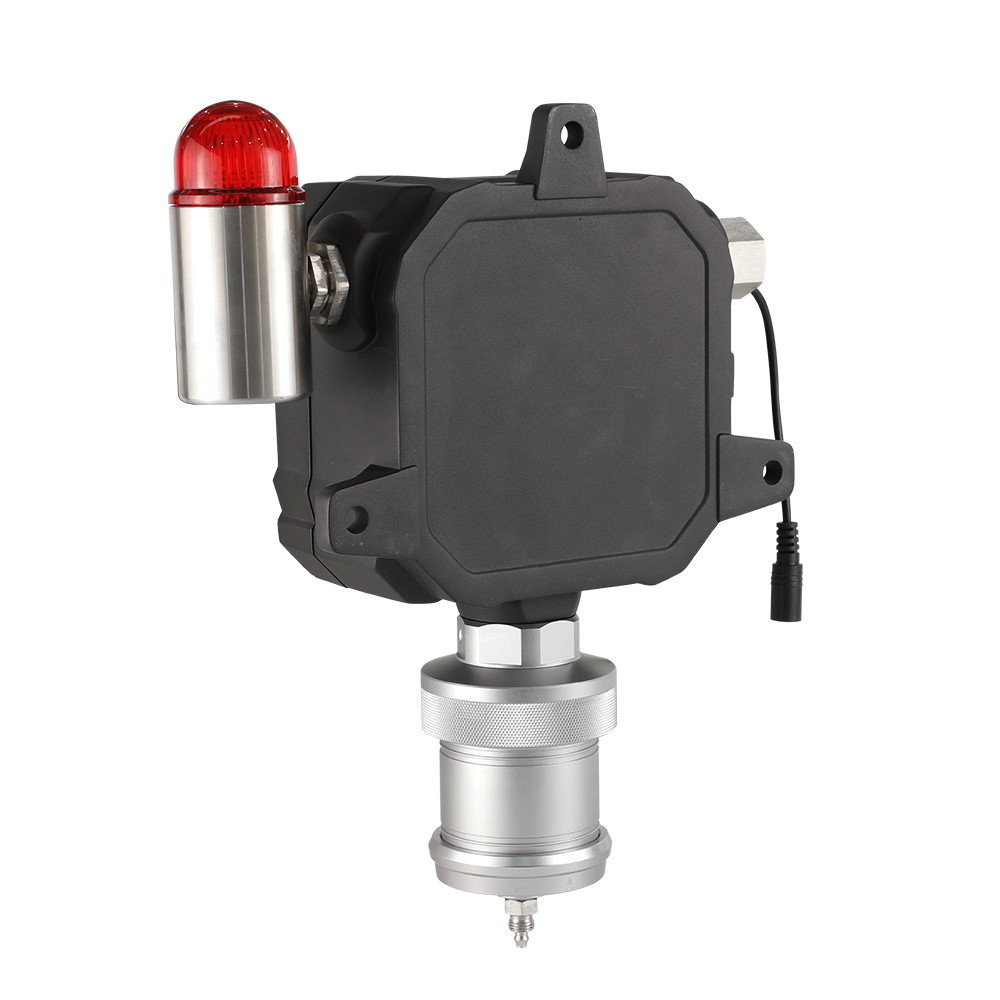

YT-98H-D/YT-98H-D-A series is a fixed single &multi gas detector. It is able detect 1-6 kinds of gases simultaneously and continuously. With IECEx, ATEX certified and non-contact magnetic wand design, it can be installed and operated in hazardous areas. It supports 3-wire 4-20mA, RS485 Modbus, relay and optional Hart signal output, making it compatible with most control systems. With optional wireless data transmission so user can view real time data on lap top,mobile phone remotely.



Product advantage



  • Up to 6 kinds ofgases can be detected simultaneously.In complex and multi-gas environments, it is able to saving installation time and effort
  • With wireless communicate function, uploading data to cloud platform so user is able to check and download data remotely.There is also SMSand E-mail alarm alert function in real time.(optional)
  • With manually span and zero calibration function,making gas monitoring more accurate and more reliable.
  • Standard 4-20mA analog signal, RS485 modbus signal and relay signal output, optional HART output.
  • Standard infrared remote control,optional non-contact magnetic wand control.
  • With sound and light alarm function, there is sound and light alarm when reaching the alarm point.(optional)
  • With fault alarm, will send alarm when sensor disconnect.
  • IP66 protection grade, water proof and dust proof





O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 8O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 9O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 10O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 11O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 12O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 13

company profile



In 2010, Shenzhen Yuante Technology Co., Limited was established. For 16 years, we have been committed to the design, production, and sales of high-end gas detection equipment and systems. Our gas detectors are the foundation of our business, and we have developed production lines and solutions for various industries, including Household Appliances.



Over the past decade of rapid development, we have become an important supplier. We adhere to a management philosophy that emphasizes market orientation, innovation, quality, and development. Our corporate culture and standardized management have enabled us to assemble a talented team, including an efficient R & D team.



The accuracy and fast response of our detectors are our hallmarks. By leveraging our measurement experience and unique solutions, through independent R & D and learning from international technologies, our products have outperformed domestic brands and are on par with global leaders. We are constantly striving for improvement to meet the diverse demands of our customers.

O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 14O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 15O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 16O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 17O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 18O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 19O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 20

certifications

O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 21

FAQ

O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 22O3 Ozone Gas Detector Fix Wall Mount Toxic Gas Detector Monitoring Disinfection Process 23

specification

Sampling method Built in pump
Pump flow rate 0.35-0.5 L/Min
Gas detected Ozone(O3),VOC, Oxygen(O2), Combustible gases(EX/LEL), Carbon monoxide(CO), Hydrogen sulfide(H2S), according to customer's
requirements
Measure Range Specified according to application
Resolution O3: 0.01ppm, 0.1ppm
VOC: 0.001ppm, 0.01ppm, 0.1ppm, 1ppm
O2: 0.01%VOL
EX: 1%LEL/0.01%VOL
CO: 0.1ppm/1PPM/1ppm
H2S: 0.01ppm/0.1PPM
Response time(T90):
≤10 seconds
Signal output 4-20mA, RS485, 1 set of relay output; 1-5VDC(optional), 2 sets of relay output(optional)
Display:
High-light nixie tube display
Zero shift
≤±1%(FS/year)
Connection mode
G1/2 external thread explosion-proof flexible pipe
Operating time 24H
Size 286*202*96mm (H x W x D)
Weight 3.4kg (3.8kg with alarm light)
Protection grade:

IP65
