Detail Information

Measure Range:	Specified According To Application	Gas:	EX/LEL/CH4/O2/CO/H2S/CO2（optional)
Sensor Type:	Specified According To Application	Language:	Chinese/English
Alarm Type:	Light+Sound+Vibration	Detection Principle:	Pumping Electrochemical, NDIR, Catalytic, PID, Etc
Weight:	3.4kg (3.8kg With Alarm Light)	Size:	28620296mm (H X W X D)
Sampling:	Built In Pump	Display:	High-light Nixie Tube Display
Highlight:	Industrial Grade Gas Detection Monitors , Grain Warehouse Gas Detection Monitors , PH3 Gas Detection Monitors

Product Description

Product video

Our advantages

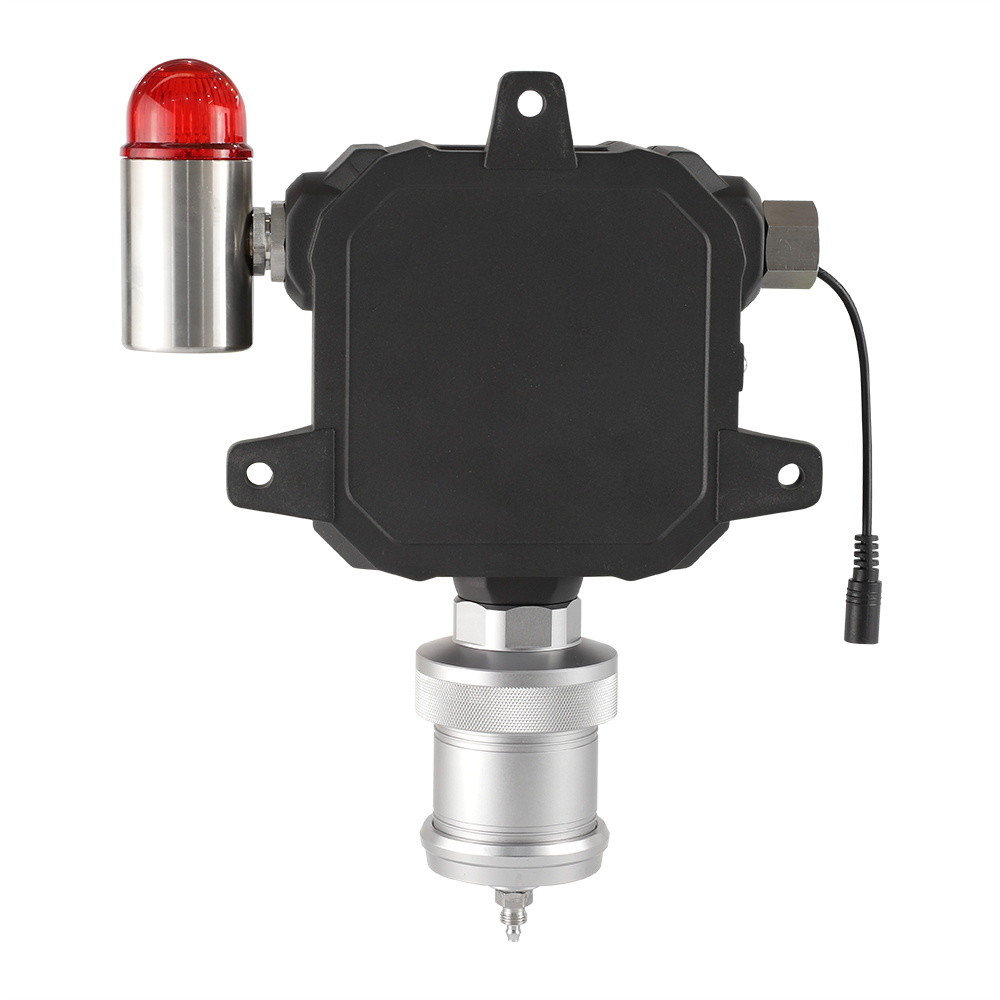

PH3 Phosphine N2 Gas Detection Monitors Industrial Grade Fixed For Grain Warehouse 1

Product description

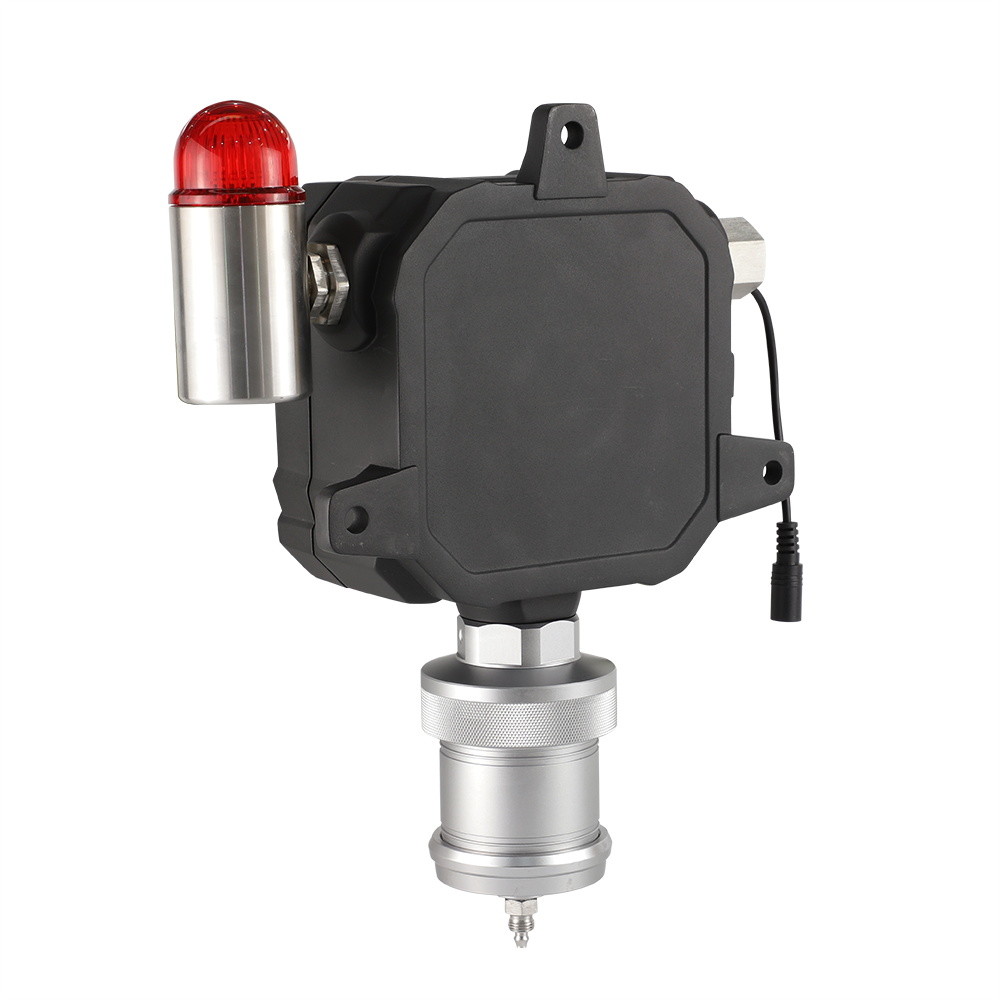

PH3 Phosphine N2 Gas Detection Monitors Industrial Grade Fixed For Grain Warehouse 2

YT-98H-D/YT-98H-D-A series is a fixed single &multi gas detector. It is able detect 1-6 kinds of gases simultaneously and continuously. With IECEx, ATEX certified and non-contact magnetic wand design, it can be installed and operated in hazardous areas. It supports 3-wire 4-20mA, RS485 Modbus, relay and optional Hart signal output, making it compatible with most control systems. With optional wireless data transmission so user can view real time data on lap top,mobile phone remotely.

Product advantage

Up to 6 kinds ofgases can be detected simultaneously.In complex and multi-gas environments, it is able to saving installation time and effort
With wireless communicate function, uploading data to cloud platform so user is able to check and download data remotely.There is also SMSand E-mail alarm alert function in real time.(optional)
With manually span and zero calibration function,making gas monitoring more accurate and more reliable.
Standard 4-20mA analog signal, RS485 modbus signal and relay signal output, optional HART output.
Standard infrared remote control,optional non-contact magnetic wand control.
With sound and light alarm function, there is sound and light alarm when reaching the alarm point.(optional)
With fault alarm, will send alarm when sensor disconnect.
IP66 protection grade, water proof and dust proof

PH3 Phosphine N2 Gas Detection Monitors Industrial Grade Fixed For Grain Warehouse 8

company profile

Established in 2010, Shenzhen Yuante Technology Co., Limited has been focused on the design, production, and sales of high-end gas detection equipment and systems for 16 years. Our gas detectors are the core of our offerings, and we have developed production lines and solutions for various industries, such as Electronic and Municipal Engineering.

After about 10 years of rapid development, we have emerged as an influential force in the market. We adhere to a management concept that values market orientation, innovation, quality, and development. Our corporate culture and management system have attracted a host of talents, forming a capable management and R & D team.

The essence of our detectors lies in their accuracy and rapid response. Relying on years of measurement experience and unique solutions, through independent R & D, cooperation, and learning from overseas technologies, our products have surpassed domestic brands and are closing in on global brands. We are continuously seeking improvement and advancement to meet the diverse requirements of our customers.

PH3 Phosphine N2 Gas Detection Monitors Industrial Grade Fixed For Grain Warehouse 14

certifications

FAQ

specification

Sampling method	Built in pump
Pump flow rate	0.35-0.5 L/Min
Gas detected	Ozone(O3),VOC, Oxygen(O2), Combustible gases(EX/LEL), Carbon monoxide(CO), Hydrogen sulfide(H2S), according to customer's requirements
Measure Range	Specified according to application
Resolution	O3: 0.01ppm, 0.1ppm VOC: 0.001ppm, 0.01ppm, 0.1ppm, 1ppm O2: 0.01%VOL EX: 1%LEL/0.01%VOL CO: 0.1ppm/1PPM/1ppm H2S: 0.01ppm/0.1PPM
Response time(T90):	≤10 seconds
Signal output	4-20mA, RS485, 1 set of relay output; 1-5VDC(optional), 2 sets of relay output(optional)
Display:	High-light nixie tube display
Zero shift	≤±1%(FS/year)
Connection mode	G1/2 external thread explosion-proof flexible pipe
Operating time	24H
Size	28620296mm (H x W x D)
Weight	3.4kg (3.8kg with alarm light)
Protection grade:	IP65

Tag:

Place of Origin:	China
Brand Name:	safegas
Certification:	ATEX/IECEX
Model Number:	YT98-H

Minimum Order Quantity:	1 piece
Price:	560USD
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	8000 pcs per month
