Gas: | PH3 | Measure Range: | Specified According To Application |
---|---|---|---|
Sensor Type: | Electrochemical, Catalytic Combustion | Language: | Chinese/English |
Alarm Type: | Light+Sound+Vibration | Sampling: | Suction |
Working Environment: | -40 ℃ ~ 70 ℃, <95% RH (no Dew) | Weight: | 300g |
Size: | 205*75*32mm | ||
Highlight: | Portable Phosphine PH3 Detector,High Accuracy Phosphine PH3 Detector,PH3 Gas Leakage Detector |
Product advantage
1.Original imported first- class brand sensor.
2.(Optional)High speed data transmission by USB, which can download and print data.

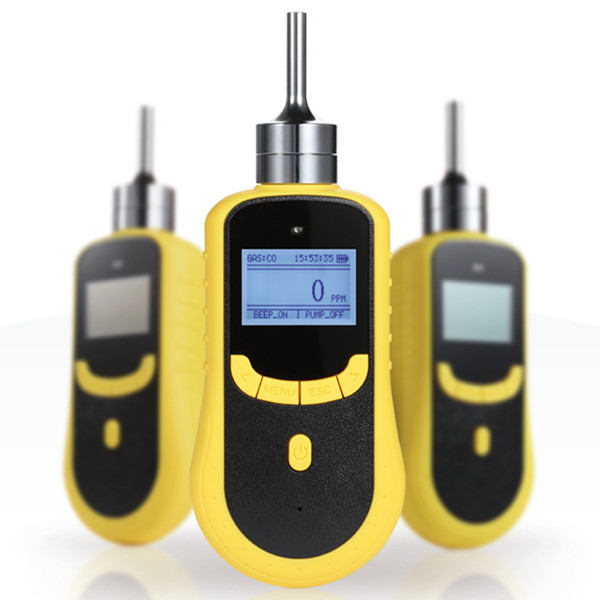

3.LCD dot matrix display, the gas type, unit, concentration.
4.Local time can be showed on the screen.
5.Support Chinese and English operation, easy to shift.
6.The gas concentration unit PPM and mg/m³ can be shift quickly.

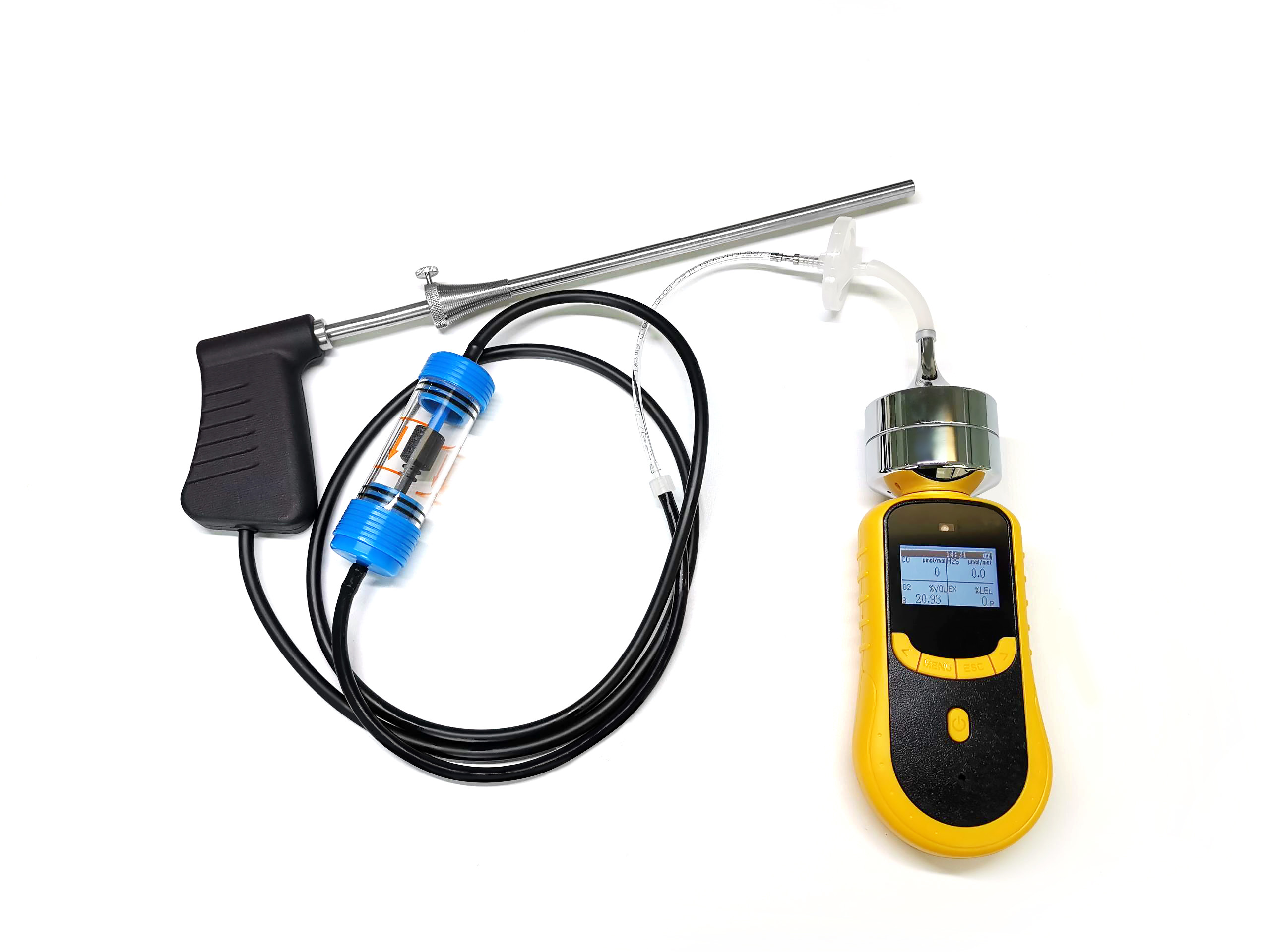

7.Built-in micro sampling pump, 10 grades of suction are available.
8.Explosion-proof certification, explosion-proof frade:Exia IIC t4 Ga..
Gas type | PH3 |
Sensor type | Specified according to application |
Sampling Method | Suction |
Measure Range | Specified according to application |
Resolution | Specified according to application |
Precision | ≤± 3% F.S. |
Signal Output | High-speed data transmission by USB, available for data downloading and printing(optional) |
Response Time | ≤10S |
Display: | LCD Display |
Zero shift | ≤±1%(F.S/year) |
Operating language | Chinese/English |
Size | 205*75*32mm |
Weight | 300g |
Repeatability |
≤±1% |
