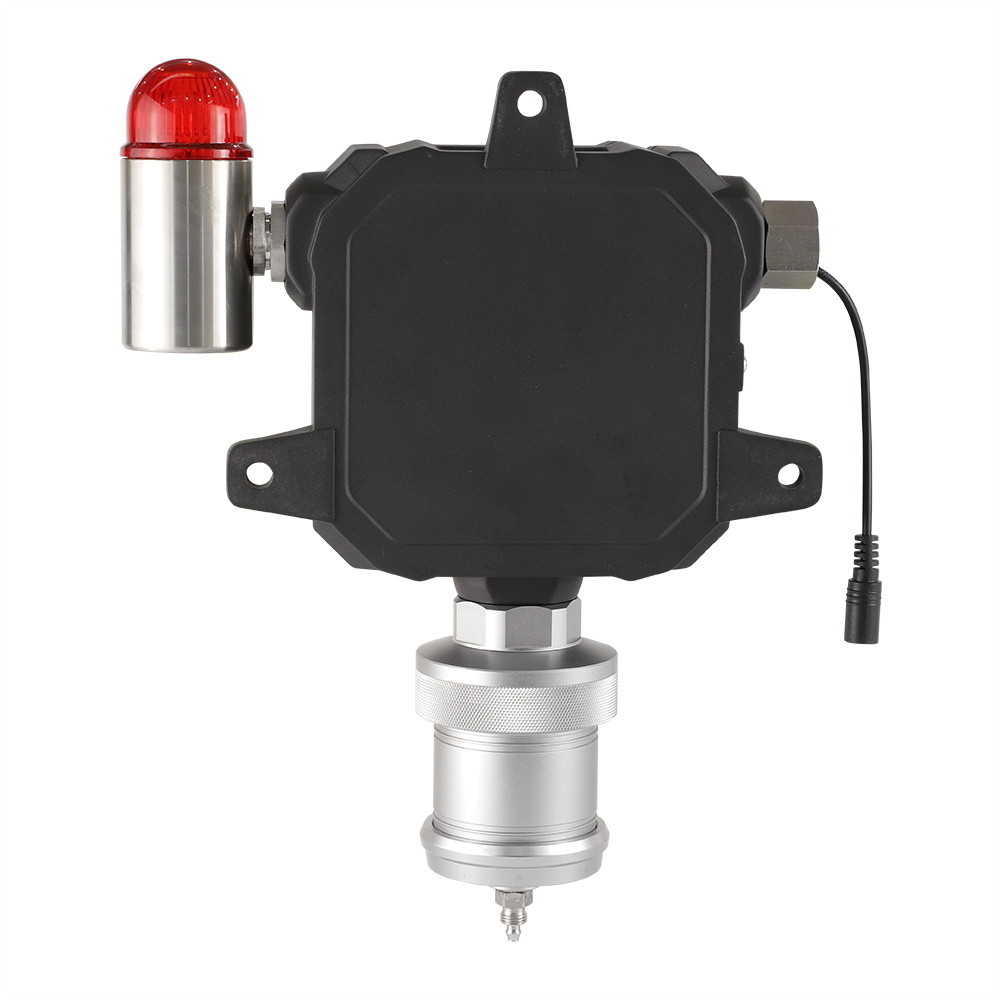

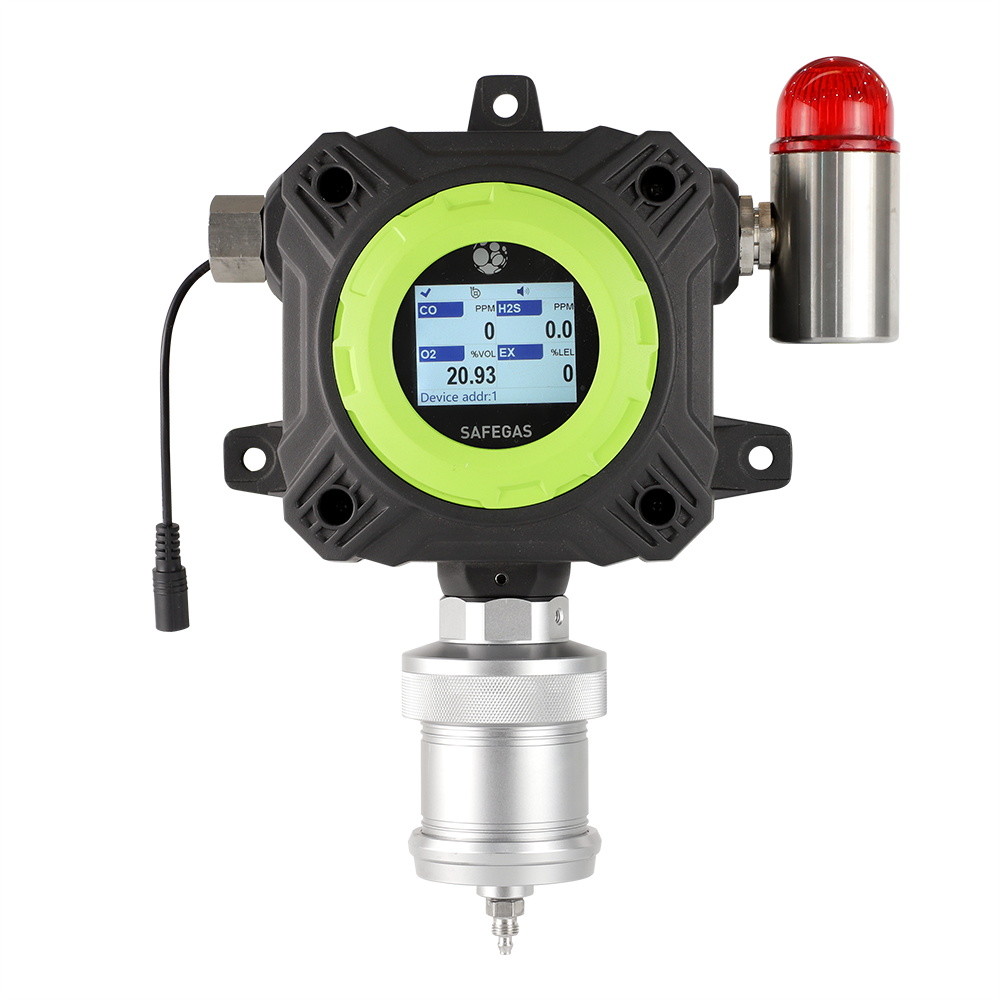

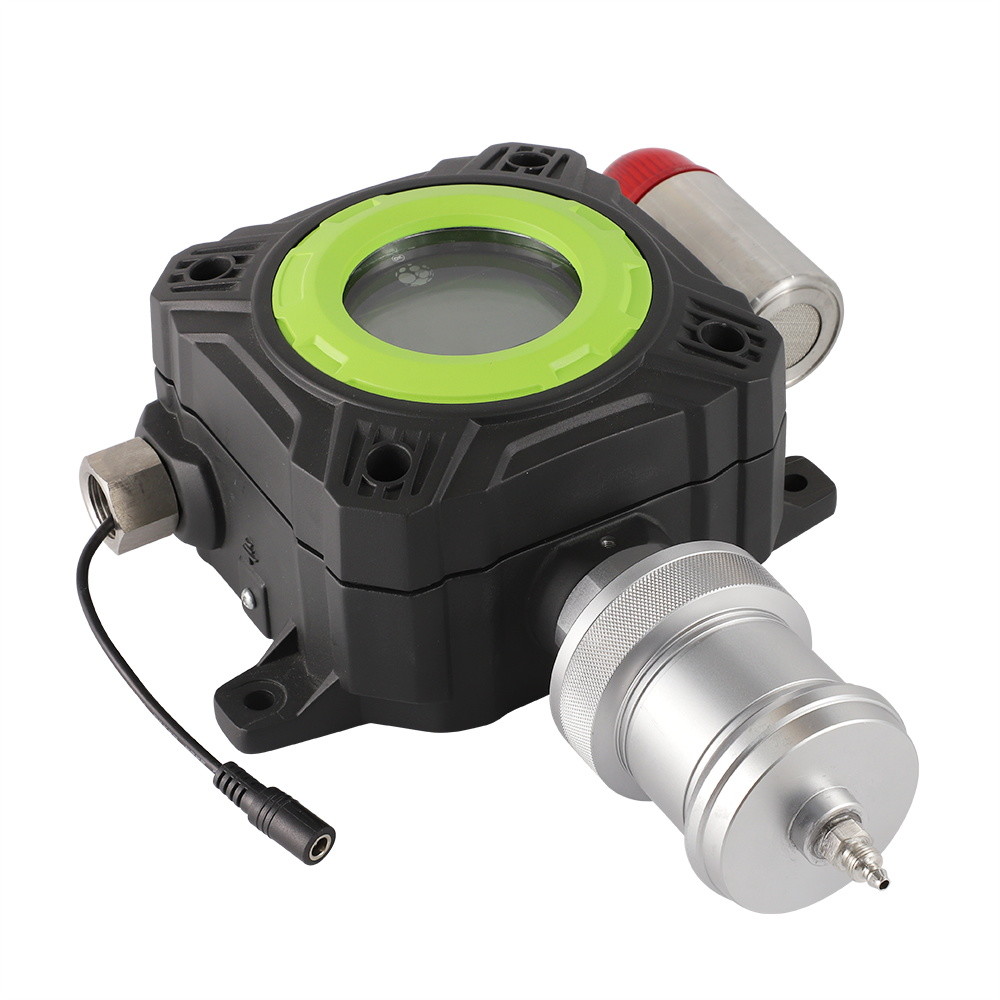

Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications

Basic Information
Place of Origin: China
Brand Name: safegas
Certification: ATEX/IECEX
Model Number: YT98-H
Minimum Order Quantity: 1 piece
Price: 620USD
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 8000 pcs per month
Detail Information
Measure Range: 0-500PPM/0-2000PPM Gas: CO H2S O2 LEL
Sensor Type: Specified According To Application Language: Chinese/English
Alarm Type: Light+Sound+Vibration Detection Principle: Pumping Electrochemical, NDIR, Catalytic, PID, Etc
Weight: 3.4kg (3.8kg With Alarm Light) Size: 286*202*96mm (H X W X D)
Sampling: Built In Pump Display: High-light Nixie Tube Display
Highlight:

Customizable Fixed Gas Detector

,

CO H2S O2 LEL Gas Detector


Product Description

Product video

Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 0




Our advantages

Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 1

Product description

Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 2Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 3Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 4Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 5Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 6Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 7

YT-98H-D/YT-98H-D-A series is a fixed single &multi gas detector. It is able detect 1-6 kinds of gases simultaneously and continuously. With IECEx, ATEX certified and non-contact magnetic wand design, it can be installed and operated in hazardous areas. It supports 3-wire 4-20mA, RS485 Modbus, relay and optional Hart signal output, making it compatible with most control systems. With optional wireless data transmission so user can view real time data on lap top,mobile phone remotely.



Product advantage



  • Up to 6 kinds ofgases can be detected simultaneously.In complex and multi-gas environments, it is able to saving installation time and effort
  • With wireless communicate function, uploading data to cloud platform so user is able to check and download data remotely.There is also SMSand E-mail alarm alert function in real time.(optional)
  • With manually span and zero calibration function,making gas monitoring more accurate and more reliable.
  • Standard 4-20mA analog signal, RS485 modbus signal and relay signal output, optional HART output.
  • Standard infrared remote control,optional non-contact magnetic wand control.
  • With sound and light alarm function, there is sound and light alarm when reaching the alarm point.(optional)
  • With fault alarm, will send alarm when sensor disconnect.
  • IP66 protection grade, water proof and dust proof





Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 8Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 9Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 10Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 11Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 12Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 13

company profile



In 2010, Shenzhen Yuante Technology Co., Ltd. embarked on its journey in the gas monitoring equipment and systems field. Our gas detector is the foundation of our business, and we have developed ten product series and targeted solutions for a variety of industries. In the petroleum and chemical industries, our detectors are essential for preventing gas leaks and ensuring the safety of personnel. In the pharmaceutical and energy sectors, they help maintain a secure and efficient production environment. The environmental protection and electronics industries rely on our advanced gas detection technology, and in municipal engineering, agriculture and forestry, and small household appliances, our products improve safety and functionality.



After nearly ten years of rapid progress, Yuante has emerged as a leading force in the domestic gas monitoring equipment and systems market. In 2019, we received the national high-tech enterprise certification, a recognition of our technological innovation and R & D capabilities. Multiple products have obtained international and domestic explosion-proof certifications, such as IECEx and ATEX, attesting to their quality and safety. We also adhere to strict quality and environmental management systems, as demonstrated by our ISO9001 and ISO14001 certifications. Our extensive intellectual property portfolio, with over 100 patents, provides a solid basis for our continued success and growth.

Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 14Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 15Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 16Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 17Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 18Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 19Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 20

certifications

Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 21

FAQ

Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 22Customizable Fixed Gas Detector for CO H2S O2 LEL Detection Based on Specific Applications 23

specification

Sampling method Built in pump
Pump flow rate 0.35-0.5 L/Min
Gas detected Ozone(O3),VOC, Oxygen(O2), Combustible gases(EX/LEL), Carbon monoxide(CO), Hydrogen sulfide(H2S), according to customer's
requirements
Measure Range Specified according to application
Resolution O3: 0.01ppm, 0.1ppm
VOC: 0.001ppm, 0.01ppm, 0.1ppm, 1ppm
O2: 0.01%VOL
EX: 1%LEL/0.01%VOL
CO: 0.1ppm/1PPM/1ppm
H2S: 0.01ppm/0.1PPM
Response time(T90):
≤10 seconds
Signal output 4-20mA, RS485, 1 set of relay output; 1-5VDC(optional), 2 sets of relay output(optional)
Display:
High-light nixie tube display
Zero shift
≤±1%(FS/year)
Connection mode
G1/2 external thread explosion-proof flexible pipe
Operating time 24H
Size 286*202*96mm (H x W x D)
Weight 3.4kg (3.8kg with alarm light)
Protection grade:

IP65
