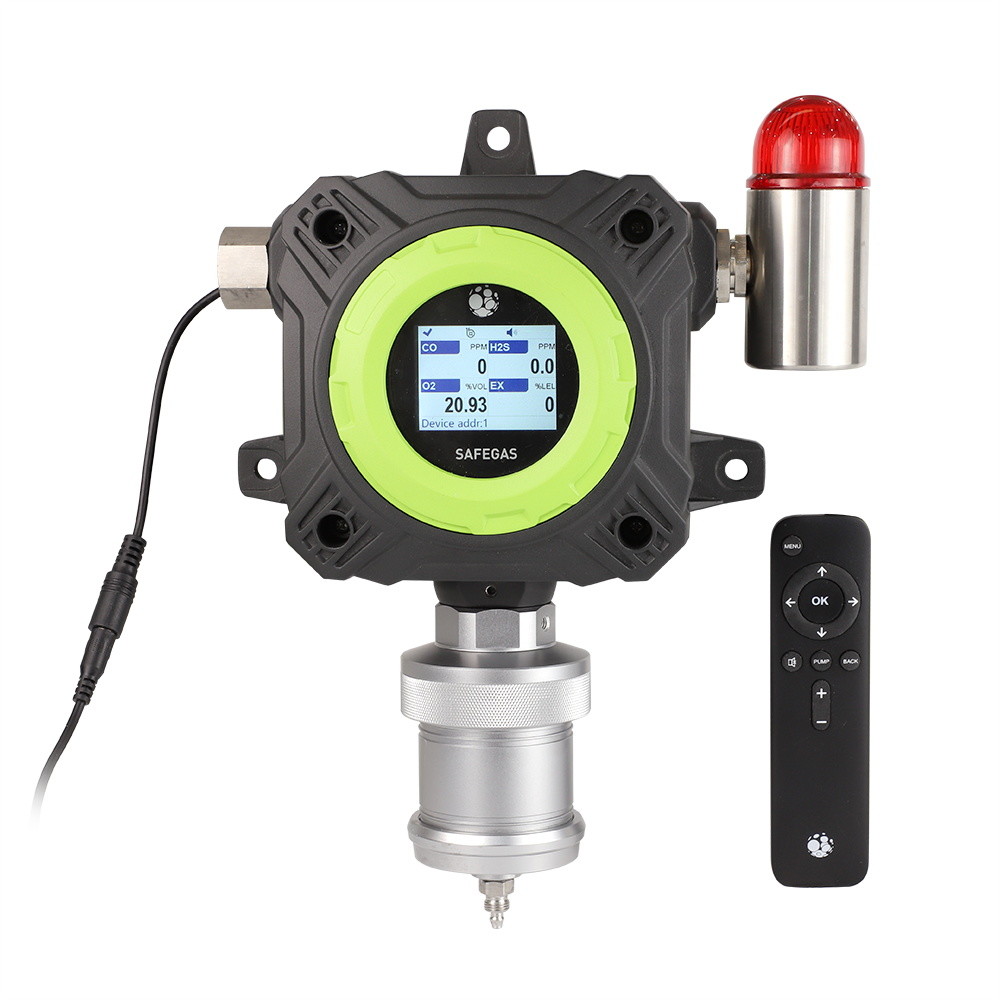

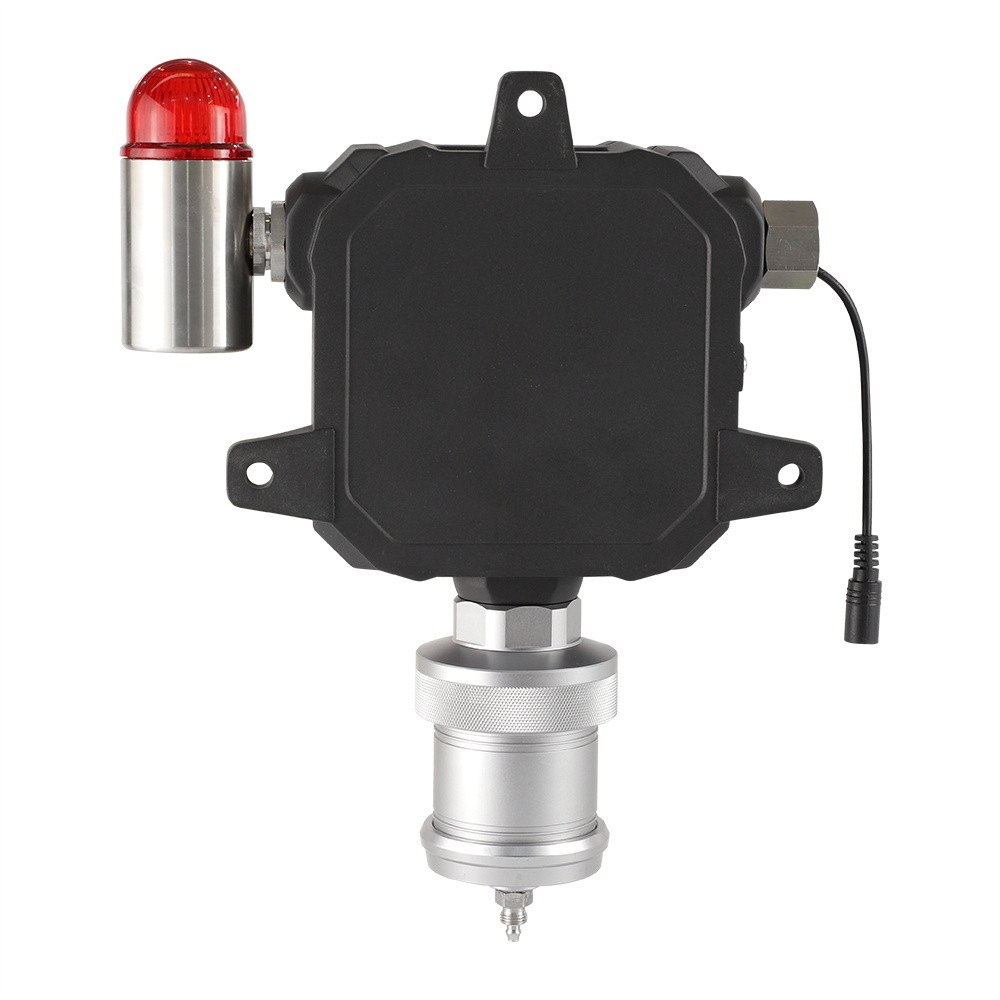

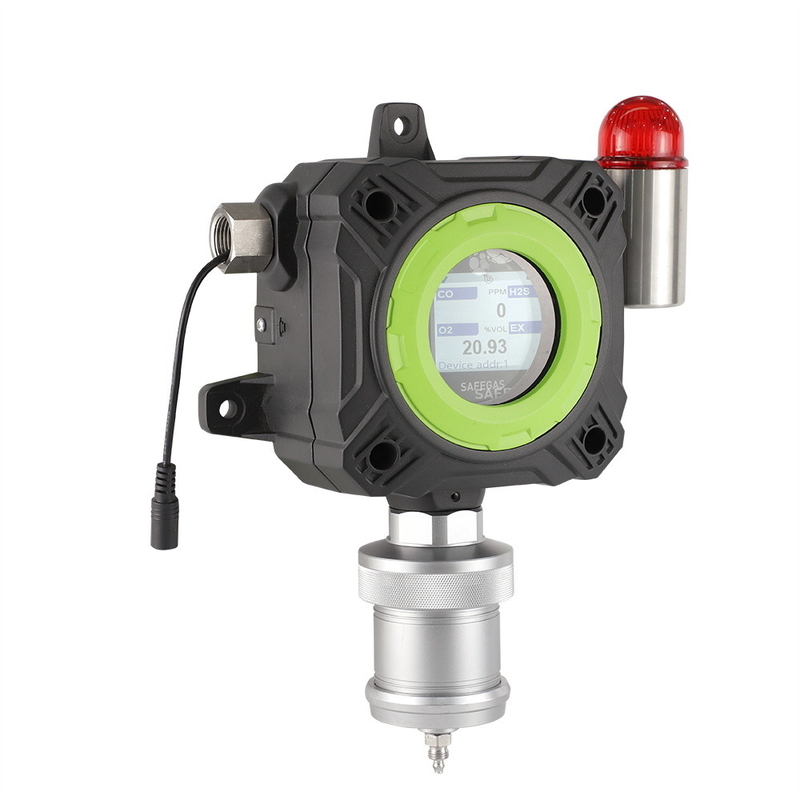

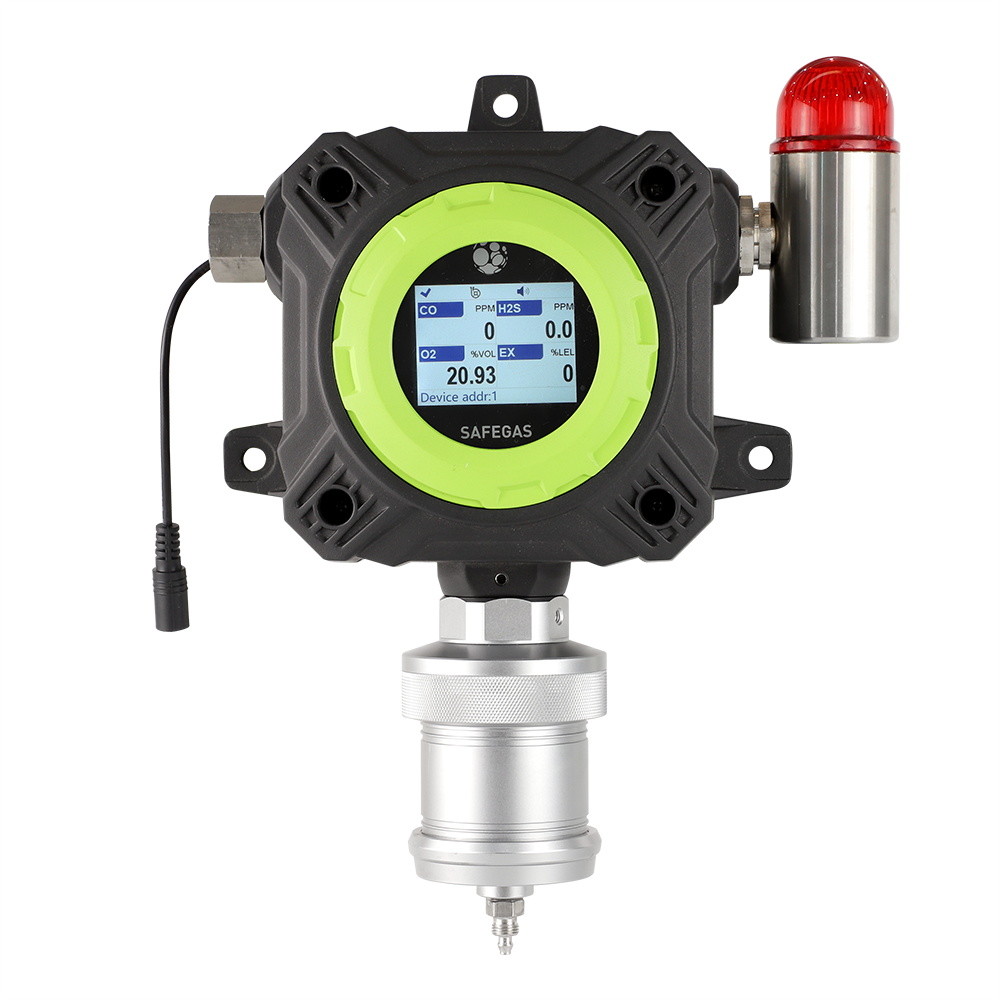

Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus

Basic Information
Place of Origin: China
Brand Name: safegas
Certification: ATEX/IECEX
Model Number: YT98-H
Minimum Order Quantity: 1 piece
Price: 820USD
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 8000 pcs per month
Detail Information
Measure Range: 0-500PPM/0-2000PPM Gas: VOC
Sensor Type: Specified According To Application Language: Chinese/English
Alarm Type: Light+Sound+Vibration Detection Principle: Pumping Electrochemical, NDIR, Catalytic, PID, Etc
Weight: 3.4kg (3.8kg With Alarm Light) Size: 286*202*96mm (H X W X D)
Sampling: Built In Pump Display: High-light Nixie Tube Display
Highlight:

4-20mA Toxic Gas Detector

,

Fixed VOC Gas Detector

,

Industry Grade Toxic Gas Detector


Product Description

Product video

Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 0




Our advantages

Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 1

Product description

Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 2Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 3Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 4Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 5Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 6Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 7

YT-98H-D/YT-98H-D-A series is a fixed single &multi gas detector. It is able detect 1-6 kinds of gases simultaneously and continuously. With IECEx, ATEX certified and non-contact magnetic wand design, it can be installed and operated in hazardous areas. It supports 3-wire 4-20mA, RS485 Modbus, relay and optional Hart signal output, making it compatible with most control systems. With optional wireless data transmission so user can view real time data on lap top,mobile phone remotely.



Product advantage



  • Up to 6 kinds ofgases can be detected simultaneously.In complex and multi-gas environments, it is able to saving installation time and effort
  • With wireless communicate function, uploading data to cloud platform so user is able to check and download data remotely.There is also SMSand E-mail alarm alert function in real time.(optional)
  • With manually span and zero calibration function,making gas monitoring more accurate and more reliable.
  • Standard 4-20mA analog signal, RS485 modbus signal and relay signal output, optional HART output.
  • Standard infrared remote control,optional non-contact magnetic wand control.
  • With sound and light alarm function, there is sound and light alarm when reaching the alarm point.(optional)
  • With fault alarm, will send alarm when sensor disconnect.
  • IP66 protection grade, water proof and dust proof





Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 8Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 9Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 10Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 11Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 12Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 13

company profile



Shenzhen Yuante Technology Co., Ltd., established in 2010, has been focusing on the R & D, production, and sales of gas monitoring equipment and systems. Our gas detector is our core product, and we have developed ten series of products and specific solutions for diverse industries. In the petroleum and chemical industries, our detectors offer accurate gas detection to prevent potential hazards. In the pharmaceutical and energy sectors, they ensure the safety and quality of operations. The environmental protection and electronics industries benefit from our state-of-the-art gas monitoring technology, and in municipal engineering, agriculture and forestry, and small household appliances, our products enhance safety and performance.



Over the past decade, we have achieved significant growth and have become a leading brand in the domestic gas monitoring equipment and systems market. In 2019, we were granted the national high-tech enterprise certification, highlighting our technological innovation and R & D efforts. Several of our products have achieved international and domestic explosion-proof certifications, such as IECEx and ATEX, guaranteeing their safety and reliability. We also follow strict quality and environmental management systems, as evidenced by our ISO9001 and ISO14001 certifications. With over 100 patents for independent intellectual property rights, we are positioned for continued growth and success in the industry.

Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 14Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 15Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 16Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 17Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 18Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 19Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 20

certifications

Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 21

FAQ

Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 22Industry Grade Industrial Toxic Gas Detector Fixed VOC Gas Detector 4-20mA RS485 Modbus 23

specification

Sampling method Built in pump
Pump flow rate 0.35-0.5 L/Min
Gas detected Ozone(O3),VOC, Oxygen(O2), Combustible gases(EX/LEL), Carbon monoxide(CO), Hydrogen sulfide(H2S), according to customer's
requirements
Measure Range Specified according to application
Resolution O3: 0.01ppm, 0.1ppm
VOC: 0.001ppm, 0.01ppm, 0.1ppm, 1ppm
O2: 0.01%VOL
EX: 1%LEL/0.01%VOL
CO: 0.1ppm/1PPM/1ppm
H2S: 0.01ppm/0.1PPM
Response time(T90):
≤10 seconds
Signal output 4-20mA, RS485, 1 set of relay output; 1-5VDC(optional), 2 sets of relay output(optional)
Display:
High-light nixie tube display
Zero shift
≤±1%(FS/year)
Connection mode
G1/2 external thread explosion-proof flexible pipe
Operating time 24H
Size 286*202*96mm (H x W x D)
Weight 3.4kg (3.8kg with alarm light)
Protection grade:

IP65
