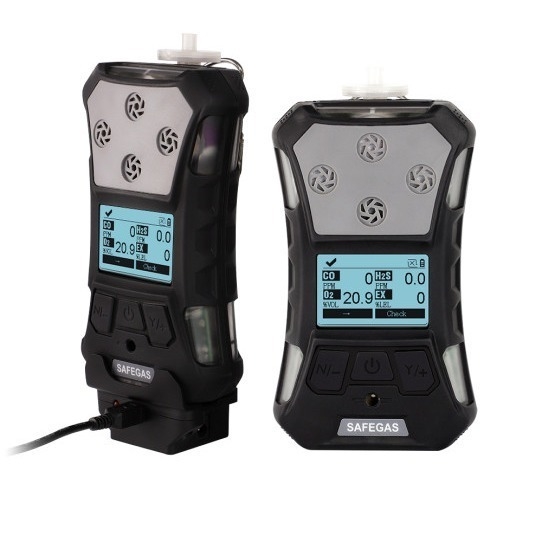

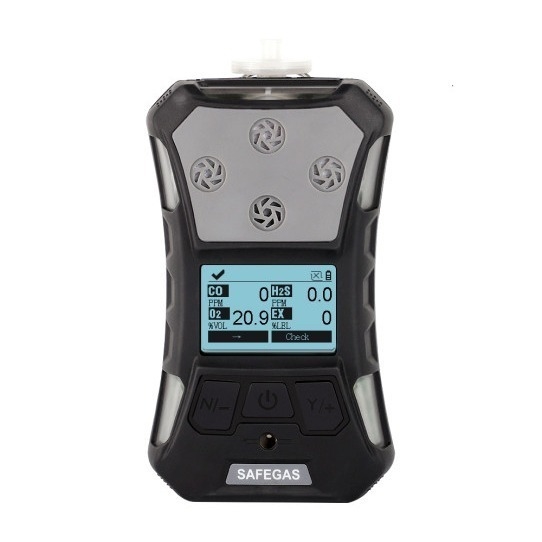

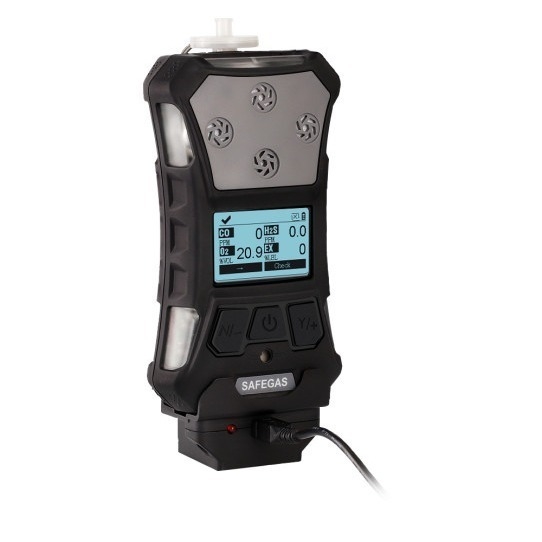

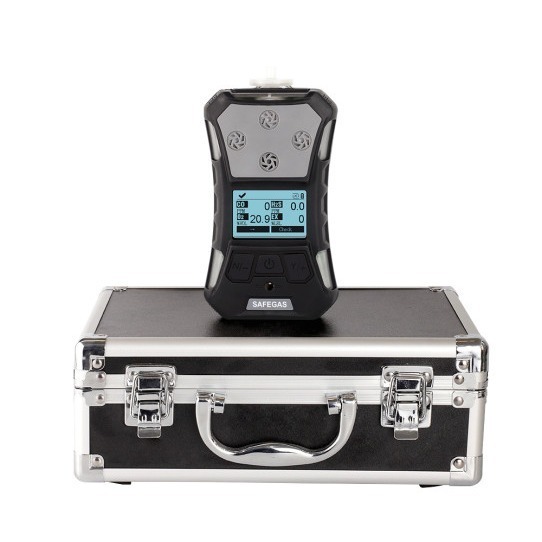

Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated

Basic Information
Place of Origin: China
Brand Name: safegas
Certification: ATEX/IECEX
Model Number: SKY3000
Minimum Order Quantity: 1 piece
Price: 880USD
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 8000 pcs per month
Detail Information
Product Name: Portable Gas Detector Measure Range: Specified According To Application
Gas: EX/LEL/CH4/O2/CO/H2S/CO2(optional) Sensor Type: Specified According To Application
Language: Chinese/English Alarm Type: Light+Sound+Vibration
Detection Principle: Pumping Electrochemical, NDIR, Catalytic, PID, Etc Weight: 365g (including Battery, Belt Clip And Filter)
Size: 157*84.5*59.5mm (including Back Clip/water Trap Filter) (length * Width * Height) Sampling: Pump Suction
Display: Monochrome Graphics (160 X96) ,screen Can Be Automatically Flipped
Highlight:

0-1000PPM H2 Portable Detector

,

H2 Leakage Portable Detector

,

Pump Suction Portable Detector


Product Description

Product video


Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 0




Our advantages

Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 1

Product description

Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 2Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 3

Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 4Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 5Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 6Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 7

SKY3000 is a IECEX/ATEX/EMC certified portable multigas detector. It is suction type with built-in pump to detect up to 6 gas types in 1 device. The standard gas type is multi 4 (CO H2S O2 LEL) gases. There are thousands of gas types for selection to support very wide applications.It’s with wireless communication so user can access to real-time data and alarm status remotely. The standard data log function to export data to PC and no need software.



Product advantage

  • IP67 water & dust resistant and 3 meter drop resistant case, rugged and durable designs
  • Standard man down alarm function
  • Real time value, TWA, STEL, MAX, MIN multiple numerical display
  • One press to restore factory settings.
  • Large graphical display can rotate 180°
  • Standard water trap filter to protect the sensor
  • With docking station to perform daily bump test and calibration (Optional)Wireless data transmission including Lora, Bluetooth (Optional)
  • Support backlight function the backlight time can be manually set
  • Low power consumption, long stand by time
  • Support firmware upgrade remotely





Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 8Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 9

company profile



Shenzhen Yuante Technology Co., Limited was founded in 2010 and has been a stalwart in the gas detection field for 16 years. Our technical prowess is unrivaled. We design, produce, and sell advanced gas detection equipment and systems, with gas detectors being the crown jewels of our portfolio. We've developed specialized solutions for Municipal Engineering and Agriculture and Forestry sectors, leveraging our technical expertise.
In just 10 years, we've become a significant player in the market. Our management concept, emphasizing market, innovation, quality, and development, has attracted a pool of brilliant minds. Our management and R & D team are the driving force behind our technological advancements.
Our detectors are characterized by their high accuracy and rapid response. Through independent R & D, international cooperation, and continuous learning, our products have not only surpassed domestic products but are also on par with global leaders. We're constantly investing in R & D to stay ahead in the technology race.


Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 10Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 11Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 12Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 13Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 14Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 15Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 16

certifications

Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 17

FAQ

Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 18Pump Suction Sampling Portable Detector For H2 Leakage 0-1000PPM/0-2000PPM IECEX/ATEX Certificated 19

specification

Gas type Specified according to application
Sensor type Specified according to application
Sampling Method Pump suction
Measure Range Specified according to application
Resolution Specified according to application
Response time(T90):
≤10 seconds
Automatically test
and calibrate after
power-on
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Display:
monochrome graphics (160 x96) ,screen can be automatically flipped
Data Record:
Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported
Battery:
3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours: More than 15 hours in continuous pumping mode
Size 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height)
Weight 365g (including battery, belt clip and filter)
Protection grade:

IP67/IP68
