Portable Gas Detector Diffusion Sampling Minisize CO2 and O2 Detector For Safety Detection

Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: ATEX/EMC/IECEX
Model Number: Micmeta
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton(22*16*11cm)
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 3000 pieces per month
Detail Information
Gas Type: CO2 And O2 Working Method: Diffusion Sampling
Response Time(T90): ≤30 Seconds Calibration Platform: Optional Docking Station To Perform Daily Calibration And Bump Test
Battery: Lithium Battery, 3.7V Rechargeable Battery Wireless Transmission(Optional): Bluetooth / Lora
Working Hours: About 24 Hours Charging Time: Less Than 6 Hours
Certification: ATEX, CN, IECEX Protection Grade: IP66/IP68
Weight(with Internal Battery): 240g Data Record: 1000 Sets
Events Record: 100 Sets
Highlight:

CO2 and O2 Portable Gas Detector

,

Minisize CO2 and O2 Detector

,

Diffusion Sampling Portable Gas Detector


Product Description

Why choose us?

1. R&D team experience: over 25 years.

2. Company certification: ISO9001, ISO45001

3. Product certification: IECEx (the only one in China), ATEX, CE

4. Delivery: 5-7 days

5. Yearly capacity: 80,000 units

6. Service: Professional sales staff provide 7*24 hours service





Product specification

Sampling method Diffusion suction
Gas type

CO2 and O2

Measure range

CO2 0-5000PPM, O2 0-30%VOL

Resolution

CO2 1PPM, O2 0.1%VOL

Response time ≤60S (T90)
Precision ≤±5%FS or ±10% (depends on the specific sensor
Language Chinese/English
Automatically test and calibrate after power-on Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system
Disaply Segment code LCD display
Calibration platform Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional)
Data record 1000 sets data records and 100 sets events records
Alarm 95dB buzzer (@30cm), vibration alarm and flashing red bar, as well as on-screen alarm status indication, alarm lock; Diagnostic alarms and battery undervoltage alarms, man down alarms, all sensor alarm value is settable.
Battery 3.7V rechargeable lithium battery, battery capacity 2300mA
Working hours Standby time 18h, charging time <6h
Wireless transmission Bluetooth transmission function (optional), Lora transmission function (optional)
Explosion-proof grade IECEx: Ex ia IIC T4 Ga, Ex ia I Ma,
ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma
(EU regulations) 2004/108/EC(EMC), 94/9/EC(ATEX), CE
Protection grade IP66/IP68
Working temperature -20°C~55°C
Humidity 0-95%RH (non-condensing)
Environmental pressure 86~106Kpa
Size 113*60*32mm (length * width * height)
Weight 200g (with lithium battery)




Product Overview

MicMeta is a multi-gas detector with IP66/IP68 protection, under normal circumstances, Micmeta can detect 1-4 gases at the same time. In the case of two conventional range gases, CO and H2S, it can detect up to 5 gases at the same time.


Micmeta has obtained three explosion-proof certifications: IECEX, ATEX, and China Explosion-proof. The explosion-proof level is Ex ia IICT4 Ga/Ex ia I Ma, and it can be used in Zone 0 and Zone 1 at the same time.


Micmeta uses an LCD screen, and the display interface supports switching between Chinese and English, and the gas unit can be switched. Two-level sound and light alarm, the alarm point can be set by yourself, optional PC software to download the detected data. Optional docking station to realize easy bump testing, calibration, configuration and data recording.





Product Pictures

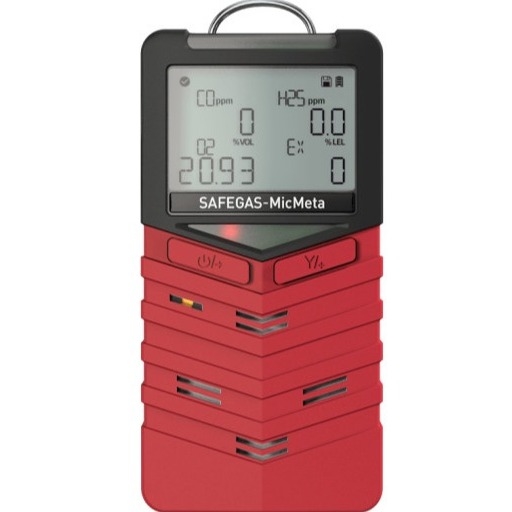

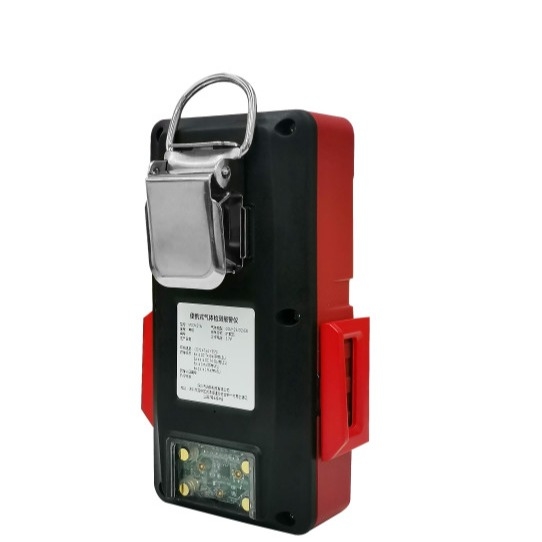

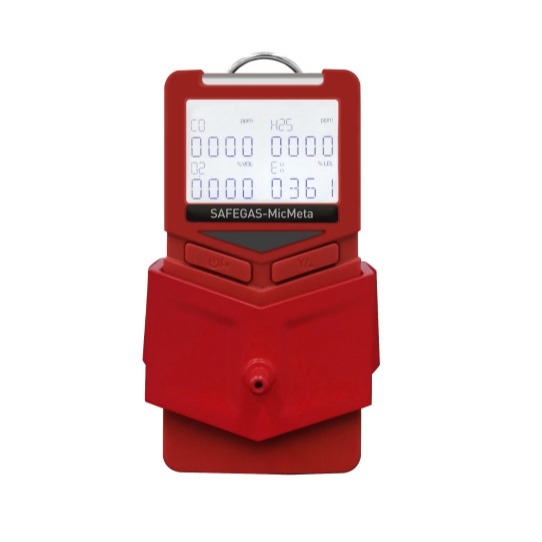

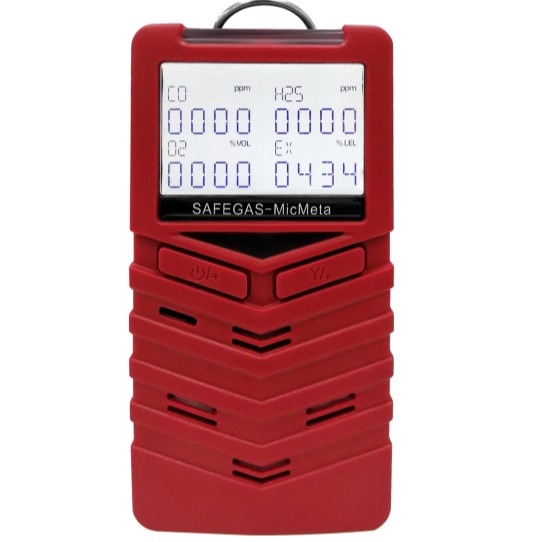

Portable Gas Detector Diffusion Sampling Minisize CO2 and O2 Detector For Safety Detection 0



Portable Gas Detector Diffusion Sampling Minisize CO2 and O2 Detector For Safety Detection 1

Portable Gas Detector Diffusion Sampling Minisize CO2 and O2 Detector For Safety Detection 2

Portable Gas Detector Diffusion Sampling Minisize CO2 and O2 Detector For Safety Detection 3

Portable Gas Detector Diffusion Sampling Minisize CO2 and O2 Detector For Safety Detection 4



Product Advantages
1)Compact and Lightweight

Small size with light weight (240g), this instrument is robust and durable, can endure drops of up to 1.5 meters. With IP66/IP68, it can effectively waterproof and dustproof.
2)User-Friendly Operation

With two buttons to operate, make the opetration easier.
3)Bright Visual Alarm

It features a wide-angle visual alarm bar for increased visibility.
4)EMC Tested

It has successully passed EMC anti-static interference tests, ensuring reliable operation in various environments.
5)Ergonomic Design

It comes with a comfortable, wear-resistant back clip that is lightweight for easy carrying.





Product Application

Chemical Industry

Environmental Monitoring

Healthcare Applications

Automotive Industry

Industrial Safety

Wastewater Treatment

Greenhouse Gas Monitoring

Oil and Gas Exploration

Food and Beverage Production

Mining and Mining Operations





As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure the consistency of product quality. We have more than 100 independent intellectual property patents in design and development;In production, we have skilled technical workers and a complete industrial line, which can grasp the production and quality of products throughout the process;and our company has rich overseas sales experience and a professional sales team, can provide customers with 7*24h considerate service.



We have professional R&D department, thet have been engaged in gas detect industrial for about 25 years.They have professional knowledge and rich experience,can provide customers with professional technical after-sales service.

Portable Gas Detector Diffusion Sampling Minisize CO2 and O2 Detector For Safety Detection 5

We carry out a strict quality management system and take the principle of quality first as the core to produce gas detector,Therefore, we have been recognized by authoritative organizations and obtained ISO9001 and ISO14001 certifications to provide customers with safe and environmentally friendly products.



Our products have obtained IECEx and ATEX explosion-proof certification, so our detectors can be used in hazardous areas such as mines, underground and oil plants. We are the first and currently the only manufacturer in China who obtain this certification, products without explosion-proof certification are prohibited from being used in dangerous areas.

Portable Gas Detector Diffusion Sampling Minisize CO2 and O2 Detector For Safety Detection 6

Our core components, such as ICs or sensors, use imported brands like Honeywell, CITY and Alpha, which improving the accuracy of our product,stabilizing the product's service life, ensuring the accuracy of detection and protecting the safety of customers' lives.



Our complete product line and stable inventory provide customers with fast delivery. If the order quantity is less than 10 pcs, we usually deliver them within 3 days. If the quantity exceeds 100 pcs, under normal circumstances,we can deliver it within half a month.



Portable Gas Detector Diffusion Sampling Minisize CO2 and O2 Detector For Safety Detection 7
