Name: Portable Multi Gas Detector with Diffusion Sampling IP66/IP68 Protection and 24 Hours Working Time for Safety Detection
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: Micmeta
Price: 2,210.00 USD
Availability: InStock

Detail Information

Gas Type:	CO2 And O2	Working Method:	Diffusion Sampling
Response Time(T90):	≤30 Seconds	Calibration Platform:	Optional Docking Station To Perform Daily Calibration And Bump Test
Battery:	Lithium Battery, 3.7V Rechargeable Battery	Wireless Transmission(Optional):	Bluetooth / Lora
Working Hours:	About 24 Hours	Charging Time:	Less Than 6 Hours
Certification:	ATEX, CN, IECEX	Protection Grade:	IP66/IP68
Weight(with Internal Battery):	240g	Data Record:	1000 Sets
Events Record:	100 Sets
Highlight:	CO2 and O2 Portable Gas Detector , Minisize CO2 and O2 Detector , Diffusion Sampling Portable Gas Detector

Product Description

Portable Gas Detector Diffusion Sampling Minisize CO2 and O2 Detector For Safety Detection

Why Choose Us

R&D team experience: over 25 years
Company certification: ISO9001, ISO45001
Product certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly capacity: 80,000 units
Service: Professional sales staff provide 7*24 hours service

Product Specifications

Specification	Details
Sampling method	Diffusion suction
Gas type	CO2 and O2
Measure range	CO2 0-5000PPM, O2 0-30%VOL
Resolution	CO2 1PPM, O2 0.1%VOL
Response time	≤60S (T90)
Precision	≤±5%FS or ±10% (depends on the specific sensor)
Language	Chinese/English
Automatically test and calibrate	Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit	PPM and mg/m³ can be switched and displayed by one key
Display	Segment code LCD display
Calibration platform	DKM-MicMeta docking station (optional)
Data record	1000 sets data records and 100 sets events records
Alarm	95dB buzzer (@30cm), vibration alarm and flashing red bar, on-screen alarm status indication
Battery	3.7V rechargeable lithium battery, 2300mAh capacity
Working hours	Standby time 18h, charging time <6h
Wireless transmission	Bluetooth (optional), Lora (optional)
Explosion-proof grade	IECEx: Ex ia IIC T4 Ga, Ex ia I Ma ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma
EU regulations	2004/108/EC(EMC), 94/9/EC(ATEX), CE
Protection grade	IP66/IP68
Working temperature	-20°C~55°C
Humidity	0-95%RH (non-condensing)
Environmental pressure	86～106Kpa
Size	113×60×32mm (length × width × height)
Weight	200g (with lithium battery)

Product Overview

MicMeta is a multi-gas detector with IP66/IP68 protection that can detect 1-4 gases simultaneously. With two conventional range gases (CO and H2S), it can detect up to 5 gases simultaneously.
The device has obtained three explosion-proof certifications: IECEX, ATEX, and China Explosion-proof with explosion-proof level Ex ia IICT4 Ga/Ex ia I Ma, suitable for use in Zone 0 and Zone 1 simultaneously.
Features include LCD screen with Chinese/English language support, gas unit switching, two-level sound and light alarm with customizable alarm points, optional PC software for data download, and optional docking station for bump testing, calibration, configuration and data recording.

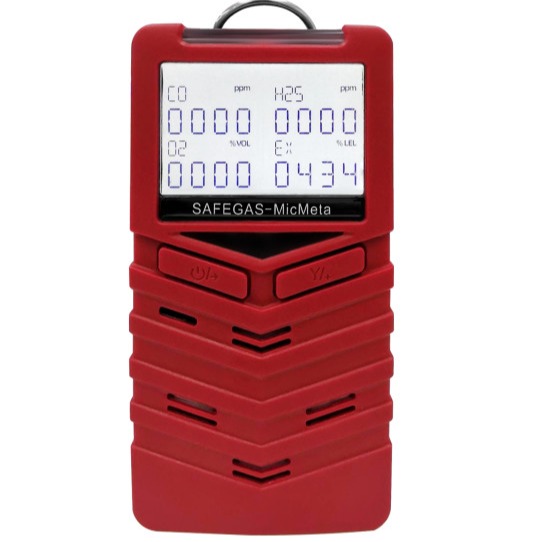

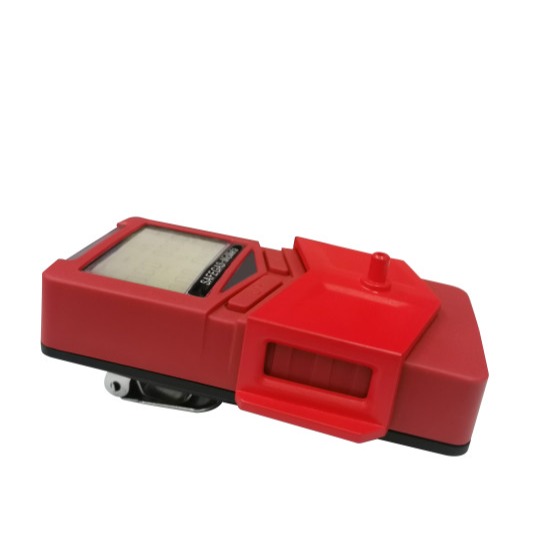

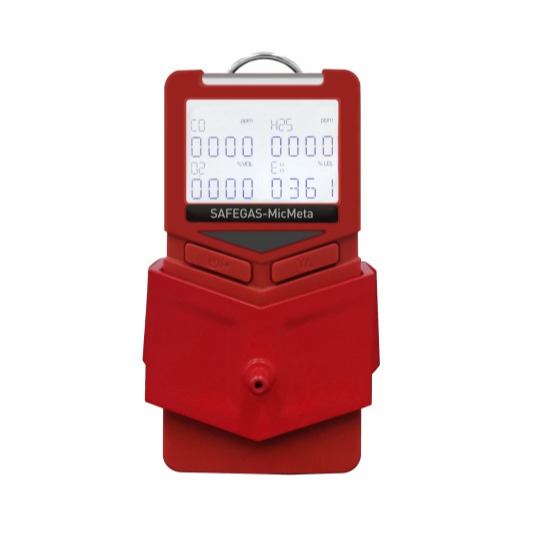

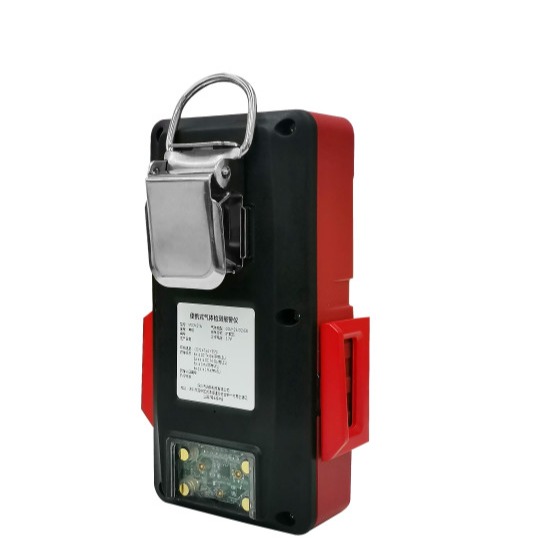

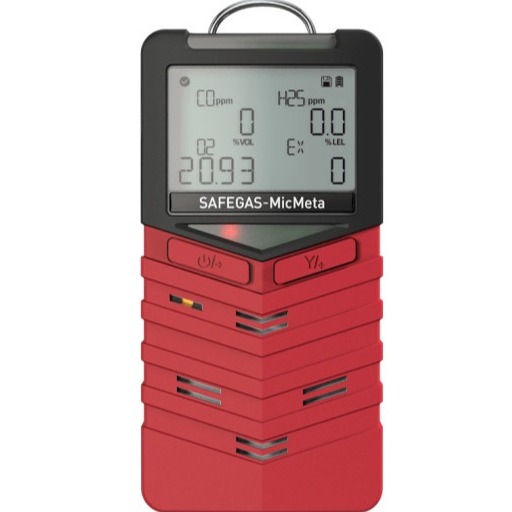

Product Images

Product Advantages

Compact and Lightweight

Small size with light weight (240g), robust and durable construction withstands drops up to 1.5 meters. IP66/IP68 rating provides effective waterproof and dustproof protection.

User-Friendly Operation

Simple two-button operation makes the device easy to use with minimal training required.

Bright Visual Alarm

Features a wide-angle visual alarm bar for increased visibility in various lighting conditions.

EMC Tested

Successfully passed EMC anti-static interference tests, ensuring reliable operation in various industrial environments.

Ergonomic Design

Comfortable, wear-resistant back clip that is lightweight for easy carrying during extended use.

Product Applications

Chemical IndustryEnvironmental MonitoringHealthcare ApplicationsAutomotive IndustryIndustrial SafetyWastewater TreatmentGreenhouse Gas MonitoringOil and Gas ExplorationFood and Beverage ProductionMining and Mining Operations

Manufacturing Excellence

As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure consistent product quality.

R&D Expertise: Our professional R&D department has over 25 years of experience in gas detection industry, providing customers with professional technical after-sales service.

Quality Assurance: We implement strict quality management systems with quality-first principles, recognized by authoritative organizations with ISO9001 and ISO14001 certifications.
Safety Certifications: Our products have obtained IECEx and ATEX explosion-proof certification, making them suitable for hazardous areas including mines, underground facilities, and oil plants. We are the first and currently the only manufacturer in China with this certification.

Premium Components: Core components including ICs and sensors use imported brands, improving accuracy, stabilizing service life, ensuring detection precision, and protecting customer safety.
Fast Delivery: Complete product line and stable inventory enable quick delivery - typically within 3 days for orders under 10 units, and within half a month for orders exceeding 100 units.
