Gas Detected: | CO2 And O2 | Detection Principle: | Infrared Ray(CO2), Electrochemical(O2) |
---|---|---|---|
Power: | 12-24V DC | Accuracy: | ≤±2-5%FS |
Response Time(T90): | 15-30s | Repeatability: | ≤±1% |
Pump Flow: | 0.35-0.5 L/Min | Temperature: | –20℃~55℃ |
Humidity(no Condensation): | 0-95%RH(no Condensation) | Alarm(Optional): | Buzzer, Alarm Status Prompt On The Display Screen, High And Low Alarm Values Can Be Set By Customer |
Highlight: | CO2 and O2 Fixed Gas Detector,Internal Pump CO2 and O2 Detector,Relay Signal Output Fixed Gas Detector |
Specificiation
Gas Detected |
CO2 and O2 |
||
Detection principle |
Infrared Ray(CO2), Electrochemical(O2) |
||
Install methode | Wall-mounted, piping type, flow-type(according to the detected environment) | ||
Measure Range |
CO2 0-5000PPM, O2 0-30%VOL |
||
Resolution |
CO2 1PPM, O2 0.1%VOL |
||
Accuracy | ≤±2-5%FS | ||
Signal Output | 4-20MA, RS485, relay | ||
Response Time(T90) | 15-30s(depending on the specific sensor) | Recovery Time | ≤10S |
Repeatability | ≤±1% | Display | 2.4-inch color display, resolution 320*240 |
Operating language | English/Chinese | Display content | gas molecular formula, concentration, unit, pump status, etc |
Temperature | -20ºC~55ºC | Humidity | 0-95%RH |
Explosion-Proof | IECEX: Ex db IIC T6 Gb ATEX : Ex db IIC T6 Gb |
Degree of protection | IP66 |
Alarm mode | Sound, light | Operating time | 24h |
Dimensions | 43*27*15cm | Weight | 4.6kg |
Product Description
YT-98H/YT-98H-A Fixed Gas Detector
YT-98H is a built-in pump-suction single & multi gas detector,with IECEx, ATEX certificate and non-contact magnetic wand design, it can be installed and operated in explosion proof areas, Oil & Gas industry. In addition to a 3-wire 4 to 20-mA output with relays, it also offers HART, Modbus protocols, making it compatible with most control systems. With optional wireless function, operator can view data on laptop, mobile phone or cloud system remotely.
Built-in high-suction long-life vacuum pump, the normal continuous working time of the pump is more than 12,000 hours. Compared with the traditional diffusion sampling method, the response detection speed is faster. It can be installed in a normal open area or underground restricted confined space to detect the gas concentration in the high altitude , effectively protecting the personal safety of maintenance personnel.
2.4-inch high-definition color screen, simulated menu icon, Chinese and English interface can be switched. Up to six gases can be detected at the same time, the higt and low alarm values are settable, and the unit can be switched.
Infrared remote control without opening the cover operation, three-wire 4-20mA, RS485, 1 group of relay output (up to 2 groups are optional), external sound and light alarm does not occupy relays.Optional 0-10V, 0-5V, 1-5V output.
Explosion-proof, lightning protection, anti-static, surge protection, waterproof, protection level IP65 Optional: sound and light alarm (integrated or external), water vapor filter cartridge, normal temperature automatic dehumidification drainage system, normal temperature dehumidification filtration manual drainage system, high temperature flue gas pretreatment system.
Wireless transmission transmitter and receiver (2km, 5km, 8km unobstructed), 2G, 4G wireless signal transmission (unlimited distance, can choose mobile phone card or data card, mobile phone card needs to be recharged). Data monitoring cloud platform: After the data is uploaded to the server, the user can read it remotely from the server, and multiple people can manage and read it at the same time, realizing record storage, real-time viewing, and other functions.
Product Picture--YT-98H(with display)

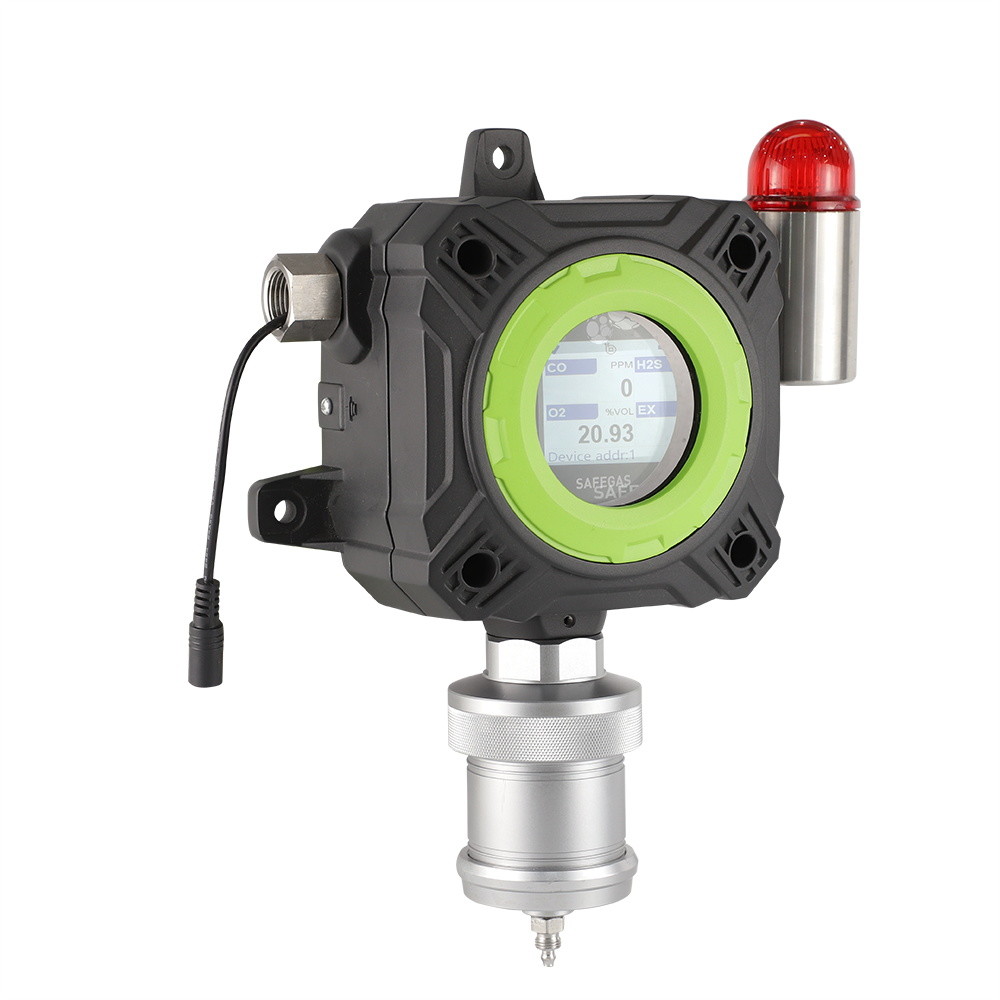

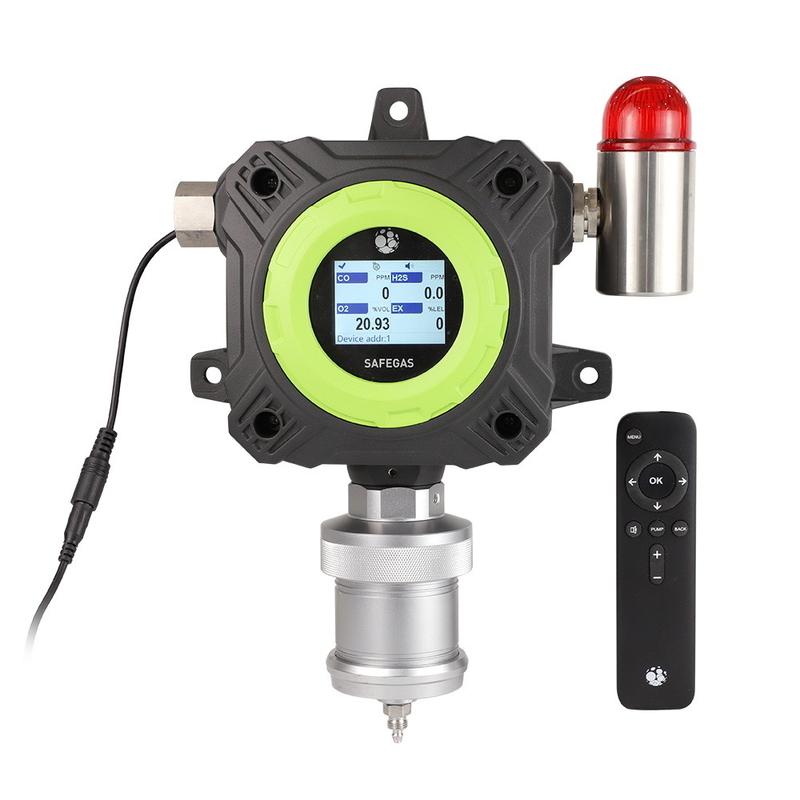

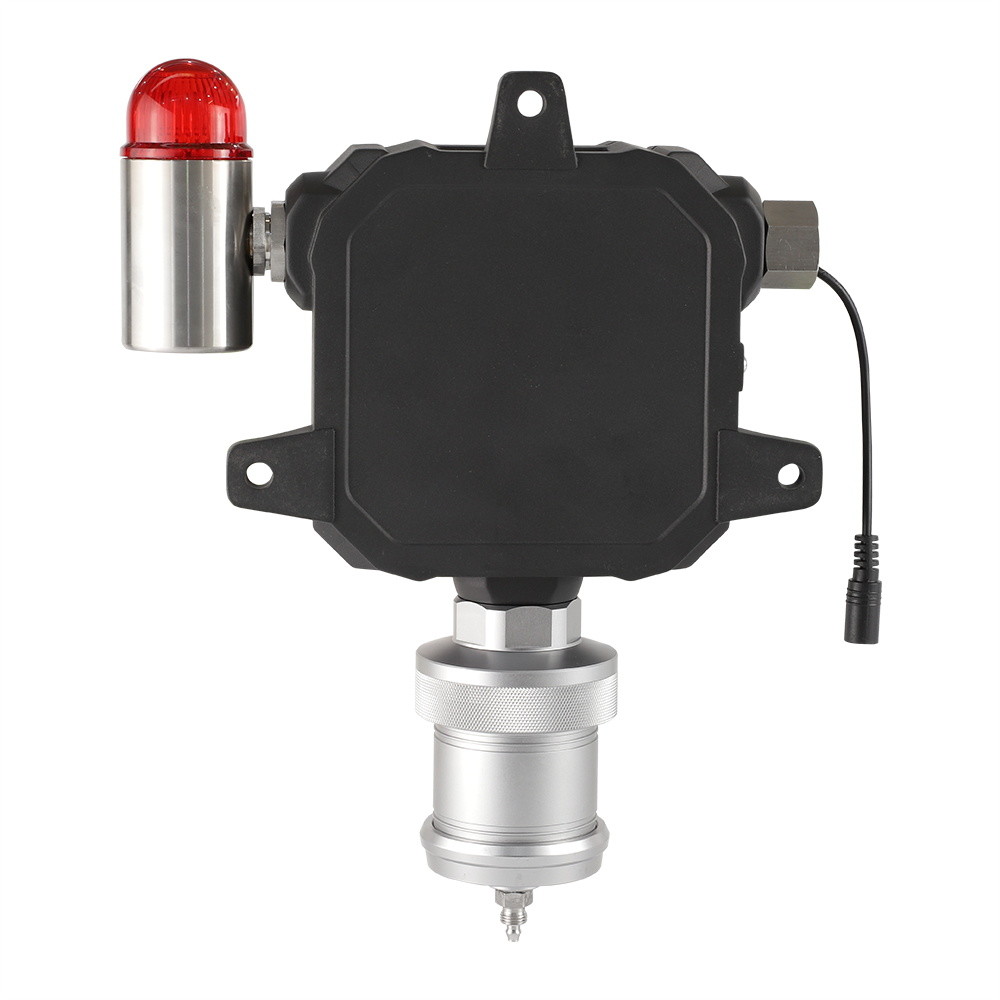

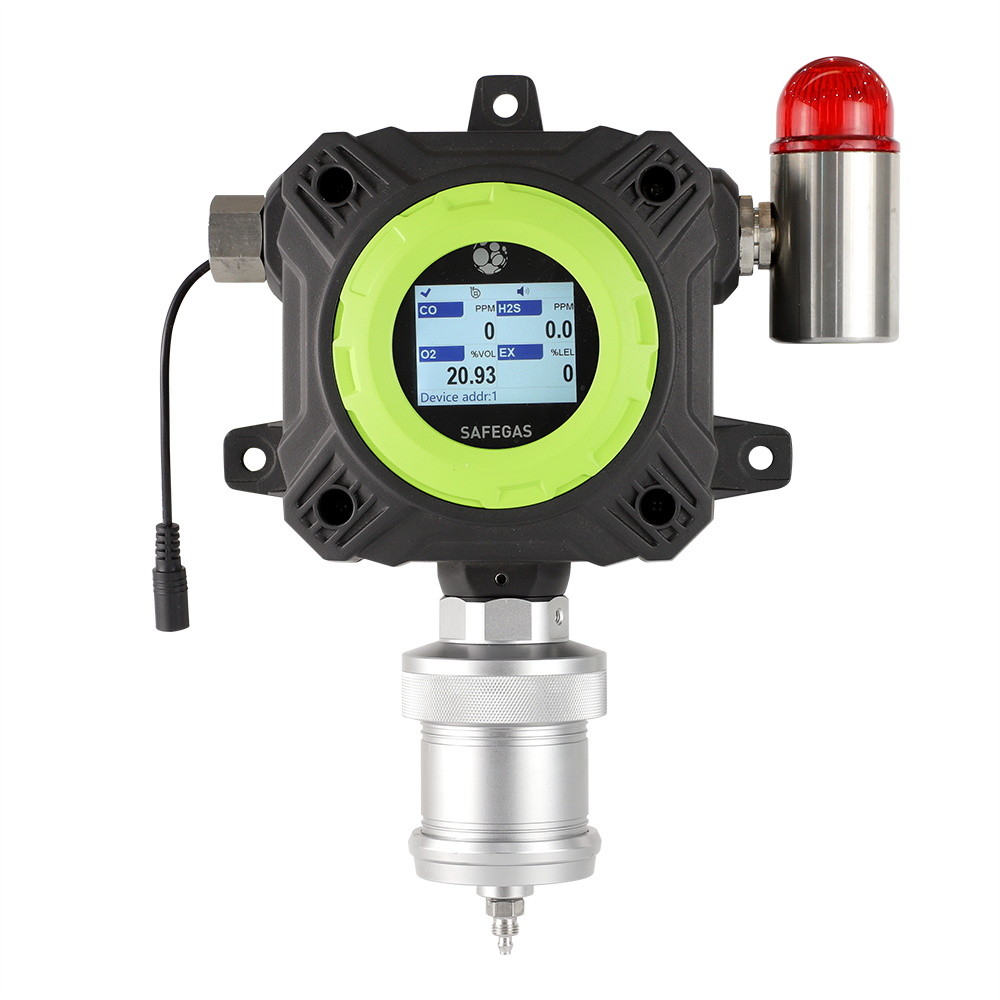

Product Picture--YT-98H-A(with display and alarm light)
Product Advantage
1.Up to 6 kinds of gases can be detected at the same time.
2.In complex and multi-gas environments, multiple installations can be reduced, saving time and effort 2.4-inch industrial-grade high-definition color screen
with a resolution of 320*240 and a wide viewing angle of 120 degrees
3.With wireless module, data can be uploaded to the cloud platform, environmental protection bureau or other platforms, providing SMS reminder function, the transmission signal is not limited by distance, and can be viewed in real time on mobile phones and computers.(optional)
4.With internal suction pump, fast response
5.With full software automatic verification function and zero calibration function, making gas monitoring more accurate and more reliable
6.Standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output
7.Standard infrared remote control, which can remotely control the detector and modify the detector settings
8.With sound and light alarm function, there is sound and light alarm when reaching the alarm point.(optional)
