Gas Type: | CO, H2S, NH3 | Sampling Method: | Pump Suction |
---|---|---|---|
Measure Range: | CO 0-1000PPM, NH3 0-100PPM, H2S 0-100PPM | Resolution: | CO 1PPM, NH3 0.1PPM, H2S 0.1PPM |
Certification: | CE,ATEX,IECEx,ISO | Language: | Chinese/English/ Russian /Customized |
Alarm Mode: | Buzzer , LED And Vibration | Power: | With 3.7V Rechargeable Lithium Battery |
Working Hour: | More Than 15 Hours(with Pump Running) | Data Record: | Can Store 100000 Sets Data |
Single Package Size:: | 34cm*24cm*14cm | Single Gross Weight:: | 1.64kg |
Highlight: | CO H2S NH3 Multi Gas Detector,Lithium Battery Multi Gas Detector,Confined Space Multi Gas Detector |
Specifications
Sampling method | Pump suction |
Gas type | CO, NH3, H2S |
Measure range | CO 0-1000PPM, NH3 0-100PPM, H2S 0-100PPM |
Resolution | CO 1PPM, NH3 0.1PPM, H2S 0.1PPM |
Response time | ≤10 seconds |
Precsiion | ≤±1%F.S |
Language | English(Other languages can be customized) |
Automatically test and calibrate after power-on | Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
Unit | PPM and mg/m³ can be switched |
Disaply | monochrome graphics (160 x96) ,screen can be automatically flipped |
Backlight | The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
Data record | Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
Battery | 3.7V rechargeable lithium battery, battery capacity 2200mA |
Working hours | More than 15 hours in continuous pumping mode |
Charger | Travel charger with DC interface, charging time ≥ 4 hours |
Explosion-proof grade | IECEX/ATEX(II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga |
Certification (EU regulations) |
2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX) |
Protection grade | IP67/IP68 |
Working temperature | -20ºC~+50ºC |
Humidity | 0~90%RH(no condensation) |
Environmental pressure | 86~106Kpa |
Size | 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
Weight | 365g (including battery, belt clip and filter) |
Bluetooth function(Optional) | Gas Concentration Meter O2 LEL H2S CO CO2 data can be transmitted to the mobile phone or PC in real time |
Product Description
SKY3000 Portable gas detector
SKY3000 series is a high-performance portable gas detector that can detect multiple gases (Oxygen compounds VOC, combustible gas and toxic gas) at the same time and has man down alarm function.The device has humanized operation functions such as one-key security detection, one-key storage, automatic image flipping, as well as the man down alarm function; With optionalBluetooth transmission function, allowing safety personnel to obtain real-time data and the alarm status.
It has obtained international IECEX, ATEX explosion-proof certification and Chinese explosion-proof certification; As it passed the antistatic test, and the protection level reaches IP67; With safer product design and the module designwhich makes the detection faster, and the compact ergonomic design makes the device easy carrying; The instrument is mainly working in suction mode. When the air pump fails or in special emergency situations , it can automatically switch to the diffusion sampling method, thereby improving the protection to a new Level.
The explosion-proof Grade of the SKY3000 series is Ex ia IIC T4 Ga,which is applicable to the explosive gas mixture zone 0, zone 1, and zone 2 of the factory with grades ⅡA, ⅡB, and ⅡC and temperature group T1~T4.

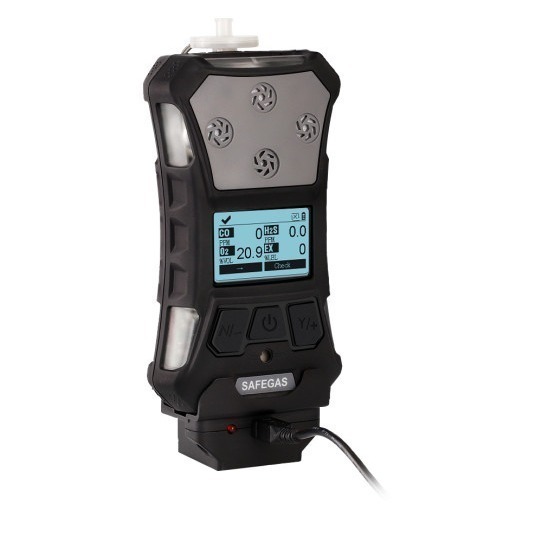

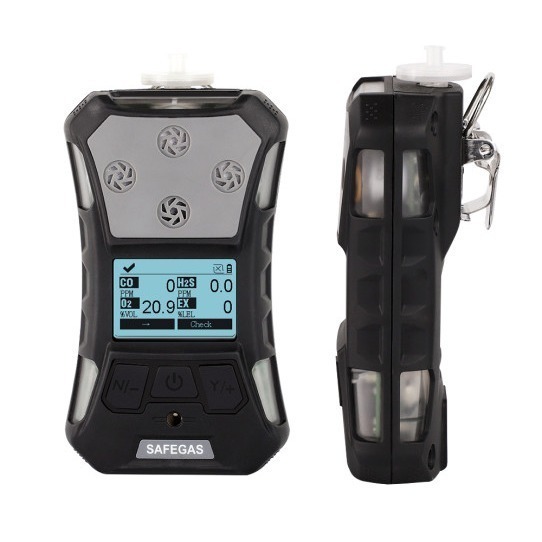

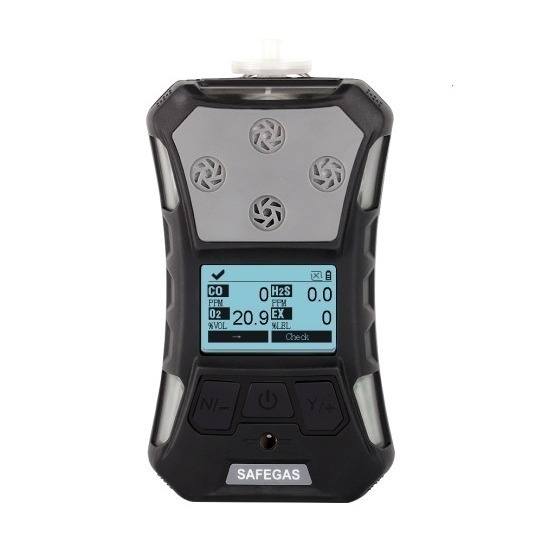

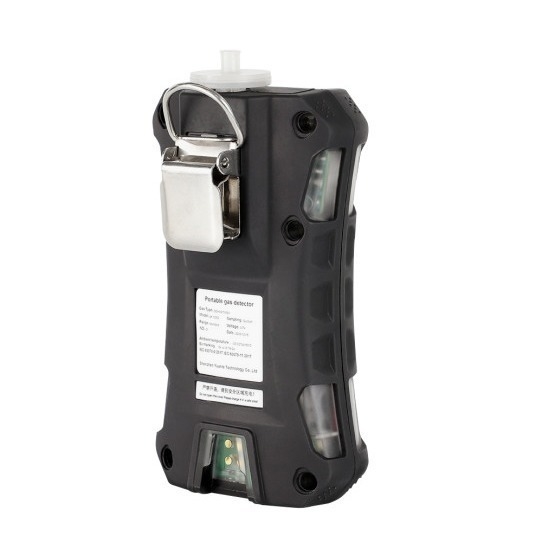

Product Picture
This device is widely used in these filed:
●Petrochemical & Chemcial Industry
●Municipal Engineering & Utilities
●Agricultral & Environmental Protection
●Electronic
●Food & Pharmaceutical Industry
Application photos:
Product configuration
Standard accessories:
●Gas detector 1 piece
●12V/1A DC power adapter 1 piece
●USB cable 1 piece
●User manual 1 piece
●Warranty card 1 piece
●Filter 1 piece
●Aluminum suitcase 1 piece
