Gas Type: | CO, NH3, H2S | Sampling Way: | Diffusion Sampling |
---|---|---|---|
Docking Station: | Optional Docking Station To Perform Daily Calibration And Bump Test | Battery: | Rechargeable 3.7V Lithium Battery |
Wireless Transmission: | Optional Bluetooth Or Lora | Working Hours: | About 24 Hours |
Charging Time: | Less Than 6 Hours | Certification: | ATEX, CN, IECEx |
Protection Grade: | IP66/IP68 | Weight: | 240g |
Data Record: | 1000 Sets | Events Record: | 100 Sets |
Highlight: | CO NH3 H2S 3 in 1 Detector,IP66/IP68 Multi Gas Detector,3 in 1 Multi Gas Detector |
Product specification
Sampling method | Diffusion suction |
Gas type | CO, NH3, H2S |
Measure range | CO 0-1000PPM, NH3 0-100PPM, H2S 0-100PPM |
Resolution | CO 1PPM, NH3 0.1PPM, H2S 0.1PPM |
Response time | ≤60S (T90) |
Precision | ≤±5%FS or ±10% (depends on the specific sensor |
Language | Chinese/English |
Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
Disaply | Segment code LCD display |
Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
Data record | 1000 sets data records and 100 sets events records |
Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bar, as well as on-screen alarm status indication, alarm lock; Diagnostic alarms and battery undervoltage alarms, man down alarms, all sensor alarm value is settable. |
Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
Working hours | Standby time 18h, charging time <6h |
Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
Explosion-proof grade | IECEx: Ex ia IIC T4 Ga, Ex ia I Ma, ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma |
(EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
Protection grade | IP66/IP68 |
Working temperature | -20°C~55°C |
Humidity | 0-95%RH (non-condensing) |
Environmental pressure | 86~106Kpa |
Size | 113*60*32mm (length * width * height) |
Weight | 200g (with lithium battery) |
Product Overview

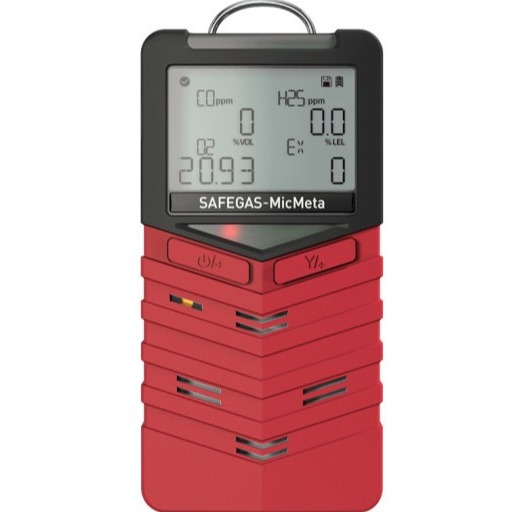

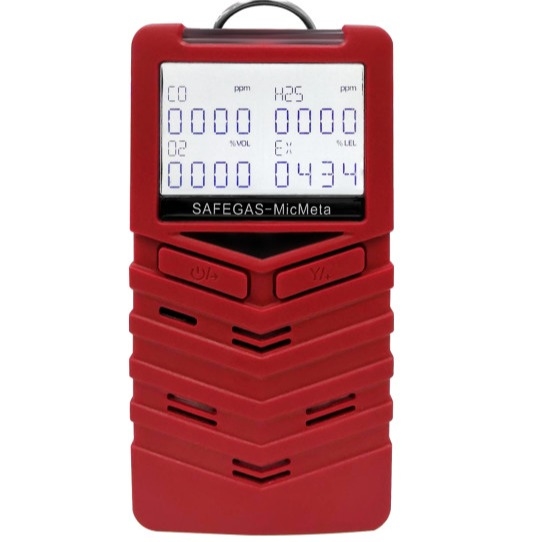

MicMeta is a multi-gas detector with IP66/IP68 protection level. Under normal circumstances, Micmeta can detect 1-4 gases at the same time. In the case of two conventional range gases CO and H2S, if the gases contain CO and H2S, then Micmeta can detect total 5 gases.
Micmeta has obtained explosion-proof certifications from IECEX, ATEX, and China Explosion-proof, with an explosion-proof level of Ex ia IICT4 Ga/Ex ia I Ma, and Micmeta can be used in both Zone 0 and Zone 1.

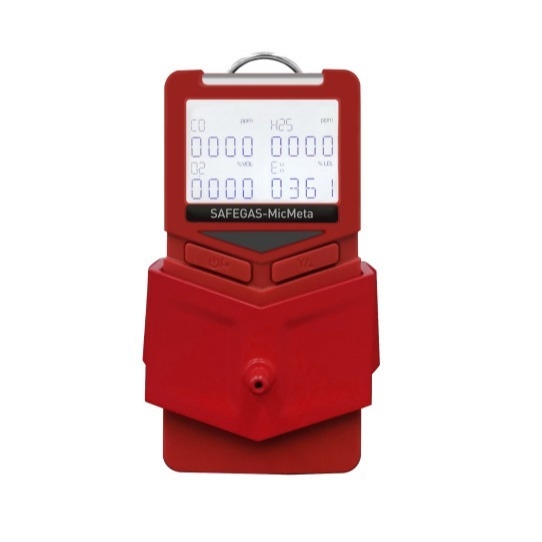

Micmeta uses an LCD screen, and the display interface supports switching between Chinese and English, and the gas units can be switched. Two-level sound and light alarm, the alarm point can be set by user. Optional docking station for easy bump test, calibration, configuration and data recording.
Product Pictures
Gas
Micmeta can detect 1-5 gases, here's some gases Micmeta can detect:
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
FAQs
Q1: What is a gas detector?
A1: Gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, fixed gas detector, etc.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, that is, the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
