Detail Information

Measure Range:	0-100PPM/0-500PPM	Gas:	NH3
Sensor Type:	Specified According To Application	Language:	Chinese/English
Alarm Type:	Light+Sound+Vibration	Detection Principle:	Pumping Electrochemical, NDIR, Catalytic, PID, Etc
Weight:	3.4kg (3.8kg With Alarm Light)	Size:	28620296mm (H X W X D)
Sampling:	Built In Pump	Display:	High-light Nixie Tube Display
Highlight:	Fixed NH3 Gas Detector , Wholesale Ammonia Gas Monitor , Medical Ammonia Gas Monitor

Product Description

Product video

Our advantages

Wholesale IECEX ATEX Medical Fixed Ammonia Gas Monitor Fixed NH3 Gas Detector RS485 MODBUS 1

Product description

Wholesale IECEX ATEX Medical Fixed Ammonia Gas Monitor Fixed NH3 Gas Detector RS485 MODBUS 2

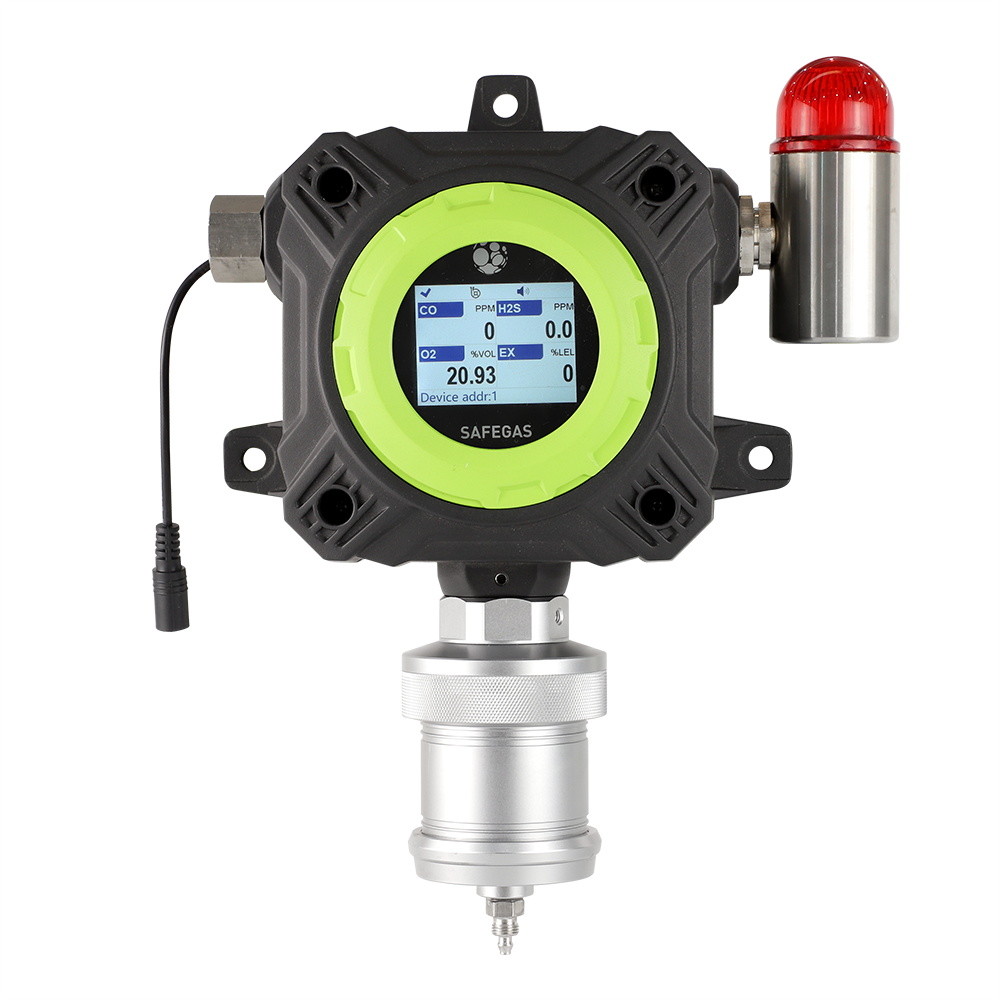

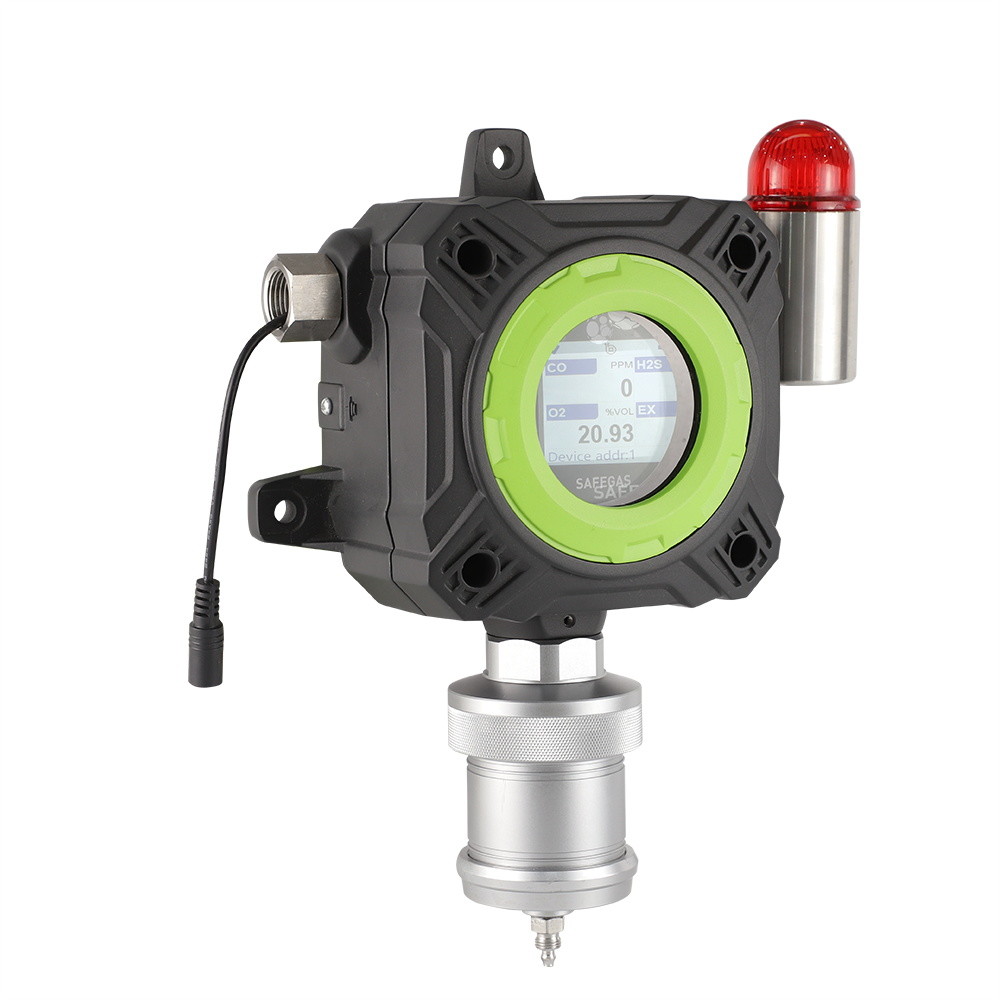

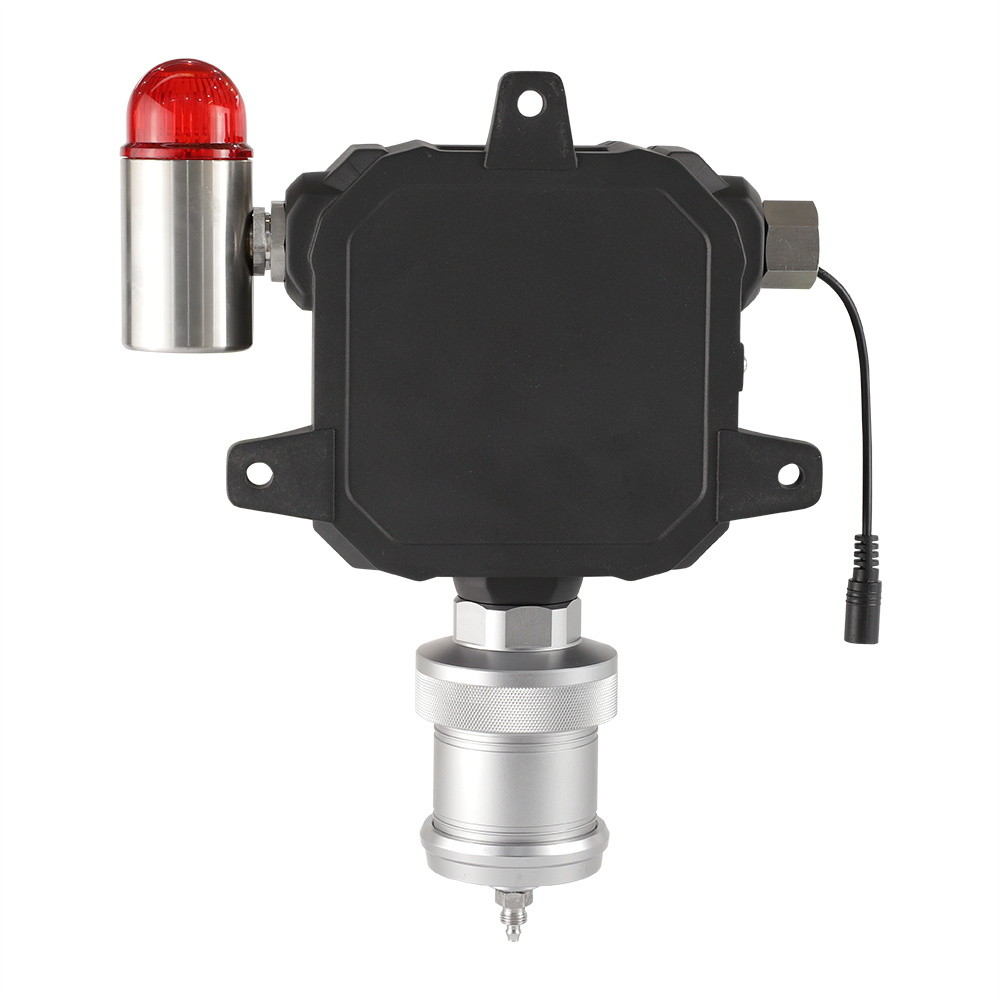

YT-98H-D/YT-98H-D-A series is a fixed single &multi gas detector. It is able detect 1-6 kinds of gases simultaneously and continuously. With IECEx, ATEX certified and non-contact magnetic wand design, it can be installed and operated in hazardous areas. It supports 3-wire 4-20mA, RS485 Modbus, relay and optional Hart signal output, making it compatible with most control systems. With optional wireless data transmission so user can view real time data on lap top,mobile phone remotely.

Product advantage

Up to 6 kinds ofgases can be detected simultaneously.In complex and multi-gas environments, it is able to saving installation time and effort
With wireless communicate function, uploading data to cloud platform so user is able to check and download data remotely.There is also SMSand E-mail alarm alert function in real time.(optional)
With manually span and zero calibration function,making gas monitoring more accurate and more reliable.
Standard 4-20mA analog signal, RS485 modbus signal and relay signal output, optional HART output.
Standard infrared remote control,optional non-contact magnetic wand control.
With sound and light alarm function, there is sound and light alarm when reaching the alarm point.(optional)
With fault alarm, will send alarm when sensor disconnect.
IP66 protection grade, water proof and dust proof

Wholesale IECEX ATEX Medical Fixed Ammonia Gas Monitor Fixed NH3 Gas Detector RS485 MODBUS 8

company profile

In 2010, Shenzhen Yuante Technology Co., Limited came into existence. During the past 16 years, it has specialized in the design, production, and sales of high-quality gas detection equipment and systems. Gas detectors serve as the company's core products, and it provides customized production lines and solutions for industries like Oil, Chemical, Medicine, and Energy. Following around 10 years of vigorous development, Yuante has established itself as an important supplier. The company adheres unwaveringly to management ideas of market orientation, innovation impetus, quality for survival, and development for growth. Its corporate culture embodies friendliness, openness, and strictness. Thanks to standardized management, it has gathered a group of outstanding talents and formed a capable management and R & D team. The employees cooperate harmoniously in product R & D, production, and maintenance, and have a deep understanding of the customer-first concept and a strong service ethic, thus gaining the trust and support of customers. The essential element of a detector is its accuracy and swift response. Relying on years of measurement experience and unique solutions, through independent R & D, collaborative work, and learning from the latest overseas technologies, Yuante's products have excelled over domestic brands and are competitive in the global market. The company is always exploring methods for development and advancement to meet the varied demands of its customers.

Wholesale IECEX ATEX Medical Fixed Ammonia Gas Monitor Fixed NH3 Gas Detector RS485 MODBUS 14

certifications

FAQ

specification

Sampling method	Built in pump
Pump flow rate	0.35-0.5 L/Min
Gas detected	Ozone(O3),VOC, Oxygen(O2), Combustible gases(EX/LEL), Carbon monoxide(CO), Hydrogen sulfide(H2S), according to customer's requirements
Measure Range	Specified according to application
Resolution	O3: 0.01ppm, 0.1ppm VOC: 0.001ppm, 0.01ppm, 0.1ppm, 1ppm O2: 0.01%VOL EX: 1%LEL/0.01%VOL CO: 0.1ppm/1PPM/1ppm H2S: 0.01ppm/0.1PPM Specified according to application and sensor type
Response time(T90):	≤10 seconds
Signal output	4-20mA, RS485, 1 set of relay output; 1-5VDC(optional), 2 sets of relay output(optional)
Display:	High-light nixie tube display
Zero shift	≤±1%(FS/year)
Connection mode	G1/2 external thread explosion-proof flexible pipe
Operating time	24H
Size	28620296mm (H x W x D)
Weight	3.4kg (3.8kg with alarm light)
Protection grade:	IP65

Tag:

Place of Origin:	China
Brand Name:	safegas
Certification:	ATEX/IECEX
Model Number:	YT98-H

Minimum Order Quantity:	1 piece
Price:	700USD
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	8000 pcs per month
