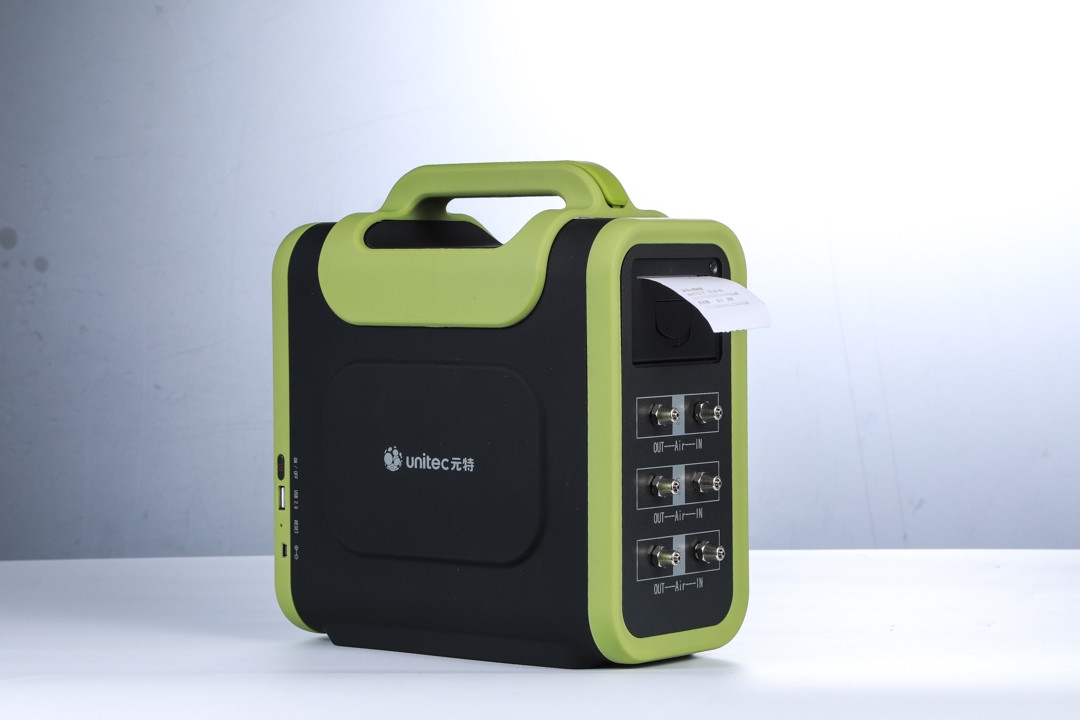

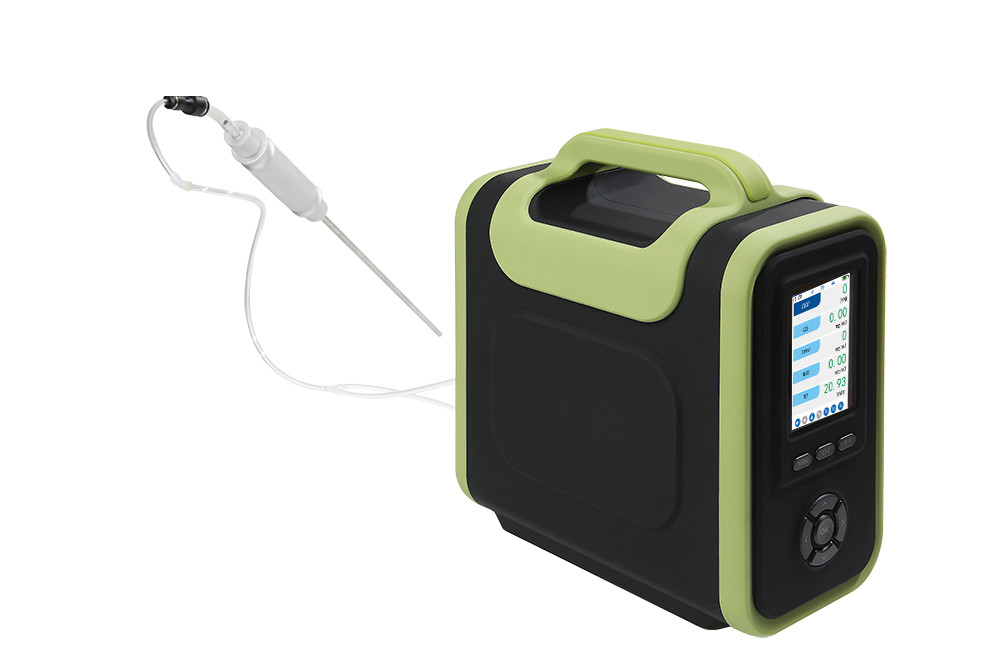

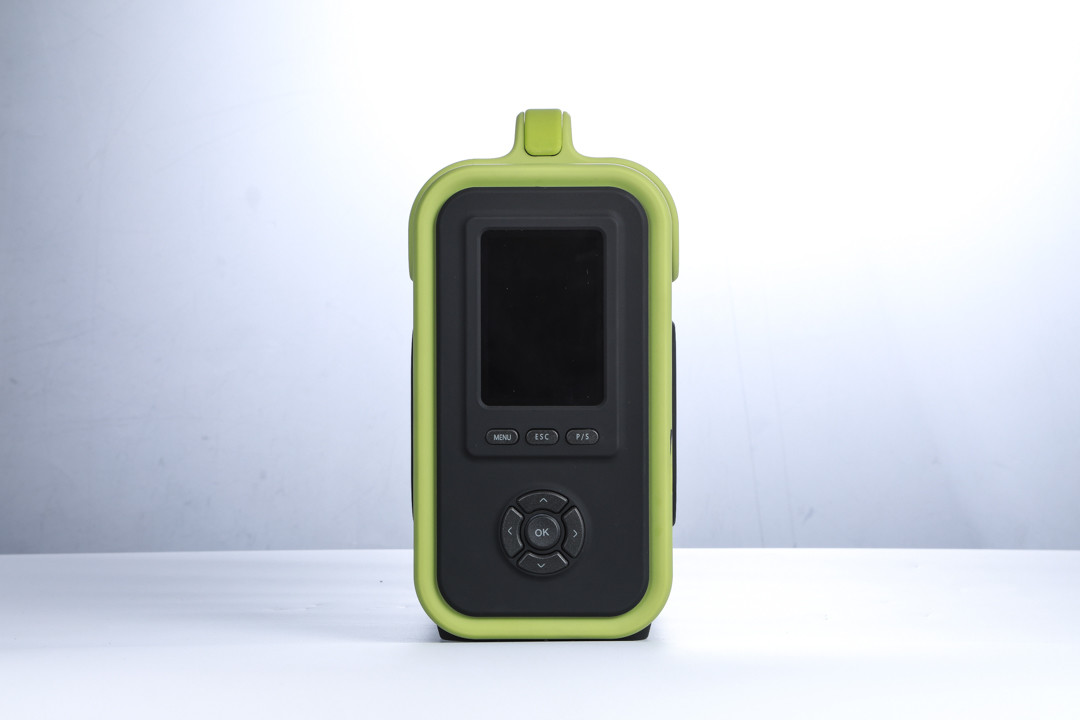

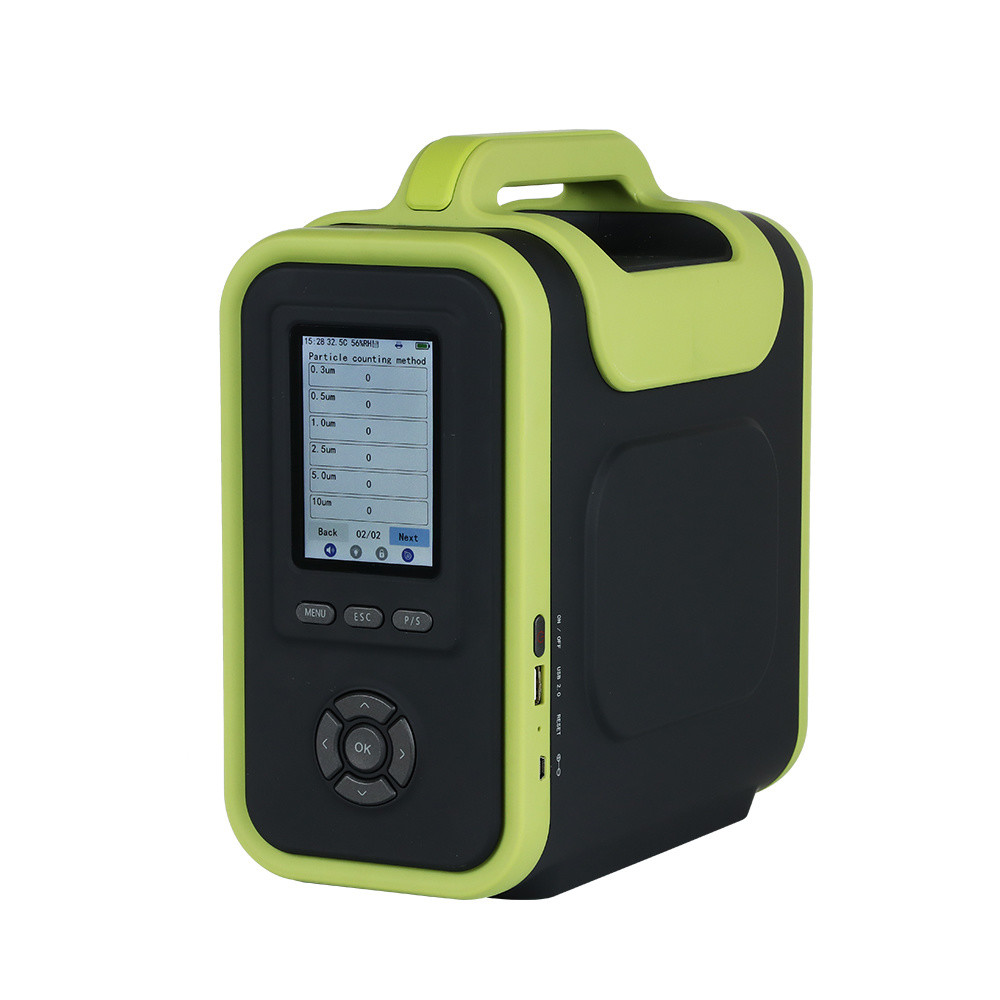

Name: SKY8000 Modular Multi Gas Detector with High Customizability and Multiple Security Protection for Flue Gas Analysis
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SKY8000
Price: 2,210.00 USD
Availability: InStock

Detail Information

Detecting Gas:	NO, H2S, O2, SO2, CO, LEL	Sampling Method:	Pumping Suction
Color:	Green With Black	Power:	Rechargeable Lithium Polymer Battery
Weight:	3.7kg	Humidity(no Condensation):	0~95%RH
Temperature:	-20℃ To +50℃	Warranty:	1 Year
Probe Specifications:	Required, Select According To The Temperature And Probe Length	Print Function:	Optional With Internal Portable Printer Or External Bluetooth Printer
Wireless Transmit:	Optional, By 4G, LORA, WIFI
Highlight:	CO Multi Gas Detector , flue gas detection Multi Gas Detector , High concentration Multi Gas Detector

Product Description

High Concentration NO, H2S, O2, SO2, CO, LEL Multi Gas Detector For Flue Gas Detection

Product Overview

The SKY8000 is a portable gas analysis instrument designed for industrial waste gas, air pollution source emission detection, boiler flue gas, automobile exhaust gas, and indoor air analysis applications. This analytical instrument can flexibly detect 1-18 types of gases with 1-3 selectable modules, each corresponding to one pump. The internal modular structure enables separate air intake for disturbing gases, effectively avoiding cross-interference between gases.

Features include a 3.5-inch high-definition IPS LCD color screen with 150-degree wide viewing angle and Chinese/English operation interface. Safety features include fall alarm, password protection, and safety reminders. An optional high-temperature probe allows monitoring in harsh high-temperature and high-humidity environments. The large-capacity lithium battery provides extended standby time, while the high-strength engineering material casing with ergonomic design enhances user experience.

Product Advantages

Modern exterior design with 3.5-inch high-definition color screen
Modular internal structure
High customizability
Flexible multi-pump system
Multiple display modes
Data storage capability
Multiple security protection features
User-friendly operation

Product Specifications

Sensors	Electrochemical (NO, H2S, O2, SO2, CO), Catalytic Combustion (LEL)
Gas Detected	NO, H2S, O2, SO2, CO, LEL
Measure Range	NO 0-4000PPM, H2S 0-300PPM, LEL 0-100%LEL, O2 0-25%VOL, SO2 0-5000PPM, CO 0-10000PPM
Resolution	1PPM (NO, H2S, SO2, CO), 1%LEL (LEL), 0.1%VOL (O2)
Display	Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status
Alarm	Buzzer, red LED and alarm status on display, fault alarm, pump abnormal alarm, low battery alarm
Data Storage	Independent SD memory card, Max.32G, automatic measurement data recording with customizable time intervals
Data Transmission	RS485 signal output, USB interface data transmission with upper computer software for data download, analysis and printing
Print Function (Optional)	Optional internal portable printer or external Bluetooth printer
Print Content (Optional)	Text, graphics, barcode, QR code, curves, characters, etc.
Charger	Standard Mini-USB charging port with 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer)
Language	Chinese/English
Wireless Network (Optional)	Bluetooth
Network Frequency	2.4G high frequency
Wireless Transmission Distance	Bluetooth less than 10m
Probe Specifications	The flue gas environment must be equipped with a high temperature probe gun, resistant to high temperatures of 600°C or 1000°C. Probe lengths available: 0.3m, 0.7m and 1m.

Standard Accessories

User manual
Certificate/warranty card
8G large capacity SD card (larger capacity available by customization)
Charging adapter
Water trap filter
Intake sampling probe
1000mm hose
Non-toxic, odorless, explosion-proof, waterproof, heat-resistant, high-low temperature resistant, corrosion-resistant suitcase

Optional Accessories

Built-in thermal printer
High temperature flue gas detector set

Application Case

Italy Exhaust Gas Treatment Company Detects VOC Concentration: SKY8000-VOC Application Case

Detection Requirements:

A company using toluene as a solvent in daily production generates significant VOC gas harmful to environment and human health. The customer provides VOC exhaust gas treatment services and needs to compare VOC concentration before and after treatment to assess effectiveness. Required: portable device for pipeline sampling port detection with water vapor and dust presence, plus data recording for comparative analysis.

Solution:

SKY8000-VOC with original imported PID principle VOC sensor

Solution Features:

Meets all customer requirements
Original imported PID VOC sensor provides higher detection accuracy and stability compared to electrochemical sensors
Built-in 32G memory card stores over 1 million records at 5-second intervals
3.5-inch high-definition color screen with curve mode for clear gas concentration trend visualization
Standard filter effectively removes water vapor and dust to protect sensors
Sampling probe withstands 100°C temperatures for convenient pipeline sampling

Why Choose Us?

R&D team experience: over 25 years
Company certification: ISO9001, ISO45001
Product certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly capacity: 80,000 units
Service: Professional sales staff provide 7*24 hours service

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we provide complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.

Product Line

Our product range includes portable types, fixed types and controller panels:

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H

Certifications

Our products hold international certifications including IECEX, ATEX, CE, TEST Report, ISO 9001, and ISO 45001. The IECEX and ATEX explosion-proof certifications ensure product quality comparable to international brands at competitive prices.

Companies We Cooperated With

We have provided gas detection solutions to major companies including Huawei, Coca-Cola, Samsung, Nestlé and others.

Logos of companies Safegas has collaborated with including Huawei, Coca-Cola, Samsung and Nestlé

Frequently Asked Questions

Q1: Are you a manufacturer or trading company?

A1: We are a professional manufacturer specializing in gas detectors for more than 10 years.

Q2: What is the MOQ?

A2: Usually it is 1 piece.

Q3: How about the quality of your products?

A3: Our products use imported sensors and components and are fully certified.

Q4: How long is the warranty time of the products?

A4: The warranty period is 1 year from factory date, and we provide lifetime maintenance.

Tag:

Place of Origin:	China
Brand Name:	SAFEGAS
Certification:	Chinese EX certificate
Model Number:	SKY8000

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	10 work days
Payment Terms:	T/T,Western Union
Supply Ability:	300 pieces per month
