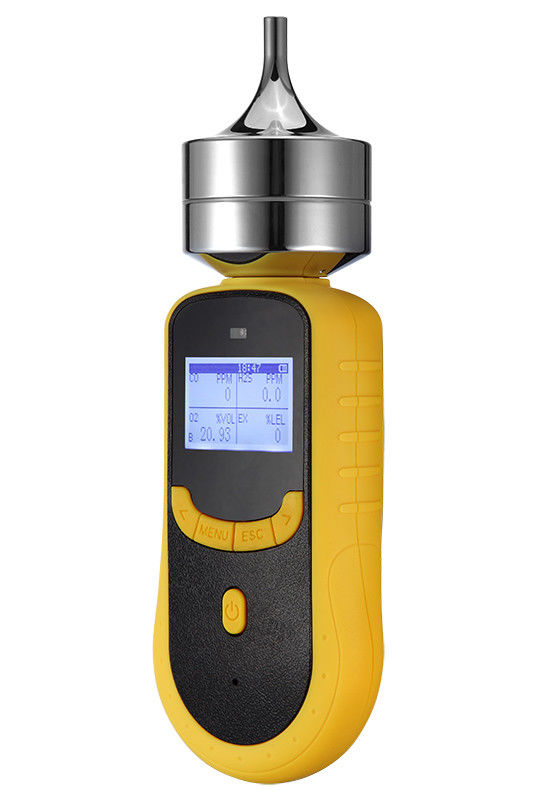

C2H4 And NH3 Detector For Cold Storage Concentration Detector High Resolution 0.5ppb
Product Overview

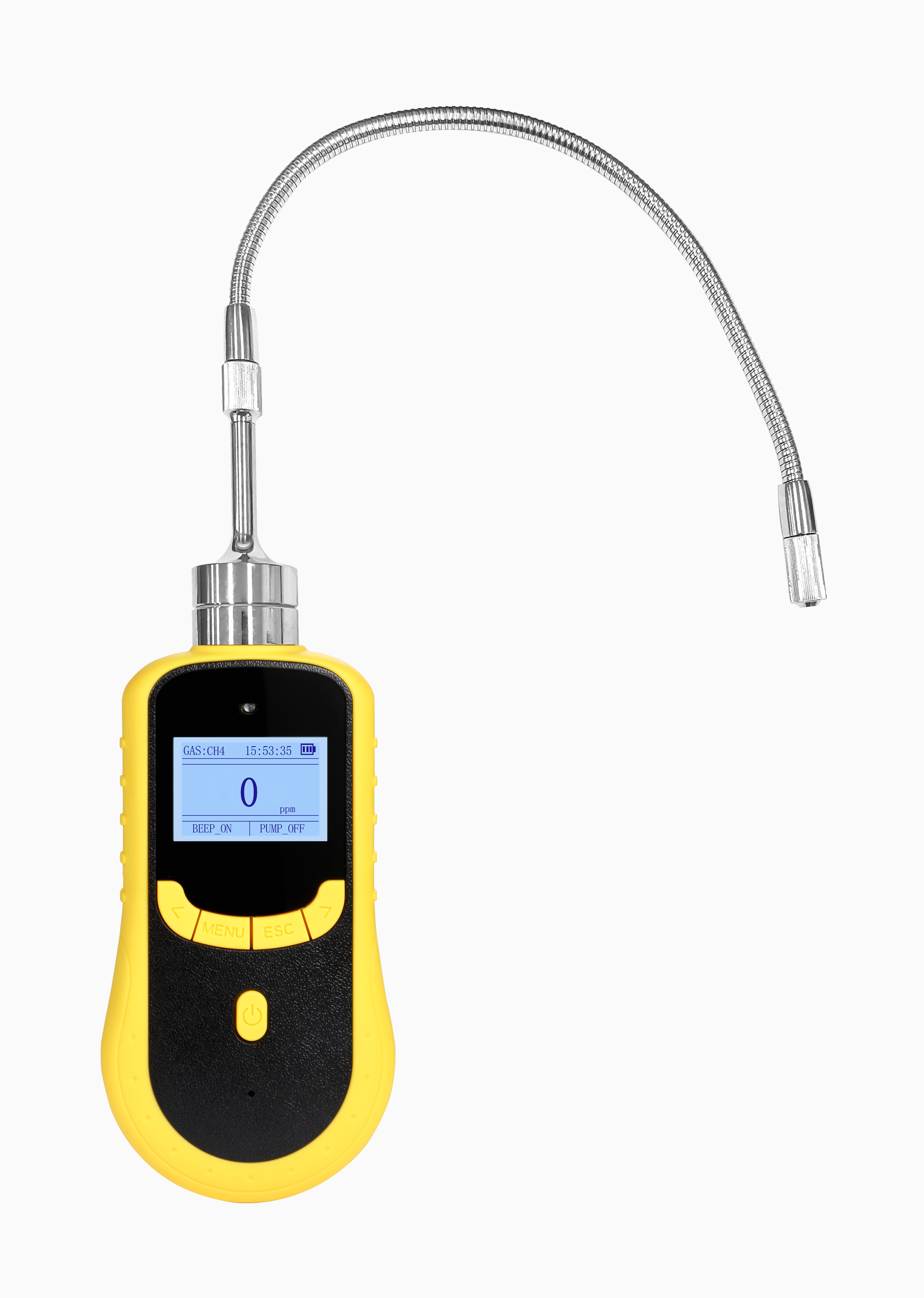

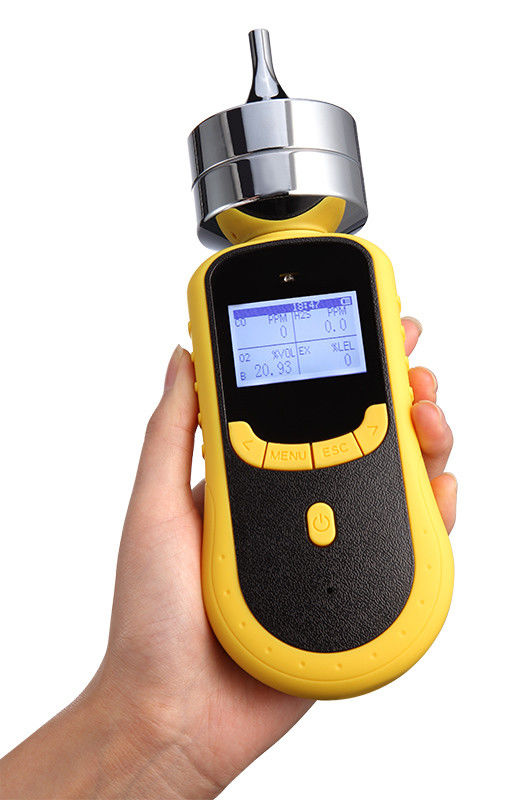

SKY2000 series gas detector is a high-precision, fast-response gas measuring equipment. The built-in sampling pump features rapid sampling speed and large flow rate, ensuring optimal detector response time. With its unique compact design and high-strength engineering plastic shell, it is suitable for various industrial environments and applications.
The SKY2000 detector is equipped with a built-in sampling pump featuring 10-level adjustable suction and high flow rates up to 800ml/min, guaranteeing excellent response performance.
Applications
This device is widely used in these fields:
- Petrochemical & Chemical Industry
- Municipal Engineering & Utilities
- Agricultural & Environmental Protection
- Electronics
- Food & Pharmaceutical Industry
Product Advantages
Employing original imported first-class brand sensors
Optional high-speed USB data transmission for data downloading and printing
LCD dot matrix display showing gas type, unit, concentration, and local time
Support for Chinese and English operation with easy switching
Built-in micro sampling pump with 10 adjustable suction grades
Explosion-proof certification: Ex ia IIC T4 Ga
Product Functions
- Monitor specified gas concentration in environment and enclosed spaces with alarm capability
- Automatic calibration and zero calibration functions for accurate and reliable detection
- One-button factory settings restoration for trouble-free operation
- Large capacity lithium polymer rechargeable battery
- Adjustable pump suction with controllable suction amount
- High-strength engineering plastic shell: non-slip, waterproof, dustproof, and explosion-proof
- Elegant aluminum alloy carrying case
Product Specifications
| Parameter |
Specification |
| Gas Detected |
C2H4, NH3 |
| Measure Range |
C2H4 0-1PPM, NH3 0-500PPM |
| Detection Principle |
PID (C2H4), Electrochemical (NH3) |
| Instrument Lifespan |
Sensors: 2-3 years, Instruments: ≥5 years |
| Linearity Error |
±2% FS |
| Response Time |
T90 < 30S (25℃) |
| Sampling Method |
Pumping Suction |
| Resolution |
C2H4 0.5PPB, NH3 1PPM |
| Signal Output (Optional) |
High-speed USB data transmission |
| Operating Language |
Chinese/English |
| Temperature Range |
-20℃ ~ 50℃ |
| Explosion-Proof |
Ex ia II CT4 |
| Alarm Mode |
Sound, Light, Vibration |
| Dimensions |
205 × 75 × 32mm |
| Recovery Time |
≤10S |
| Display |
LCD Dot Matrix |
| Gas Unit |
Switchable Units |
| Humidity |
0-90% RH |
| Degree of Protection |
IP66 |
| Operating Time |
100h (pump off) |
| Weight |
300g |
Gas Detection Capabilities
SKY2000 can detect 1-6 gases simultaneously. The system supports detection of various industrial and environmental gases beyond the standard C2H4 and NH3 configuration.
Standard Configuration
- SKY2000 Detector (1 set)

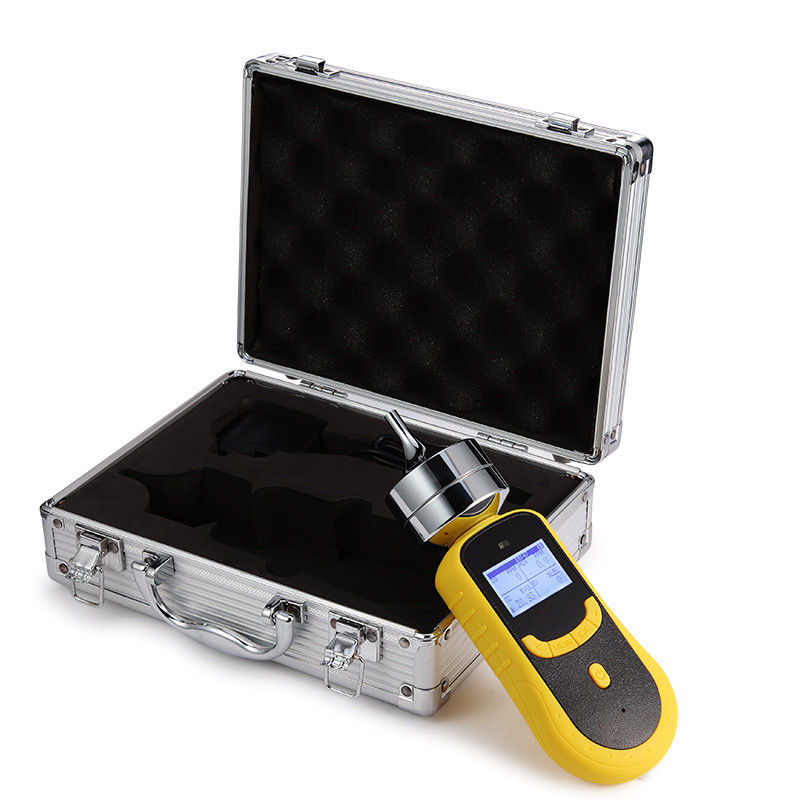

- Aluminum Carrying Case (1 set)
- Charging Adapter (1 set)
- User Manual (1 set)
- Qualification Certificate (1 set)
Application Case Study
Brazil XX Decoration Company Formaldehyde Detection
Detection Requirements: Customer required formaldehyde testing services post-decoration to determine if indoor formaldehyde concentrations were within safe ranges.
Solution: SKY2000-CH2O with original imported formaldehyde sensor, featuring data storage and export functionality.
Solution Features:
- Built-in pump suitable for detecting adsorbent gases like formaldehyde
- Original imported formaldehyde sensor ensuring accuracy and stability
- Sensor range 0-10ppm with 0.01ppm resolution for compliance with national standards
- One-key switching between mg/m³ and ppm units
- Data storage and export capability for 100,000 data sets
Why Choose Us?
R&D Team Experience: Over 25 years
Company Certifications: ISO9001, ISO45001
Product Certifications: IECEx, ATEX, CE
Delivery: 5-7 days
Yearly Capacity: 80,000 units
Service: Professional 7×24 hours support
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Product Line
Portable Types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed Types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller Panels: YT-1100H, YT-1600H
Certifications
Our products hold international certifications including: IECEX ATEX CE TEST Report ISO 9001 ISO 45001
Our international explosion-proof certifications ensure product quality comparable to global brands at competitive prices.
Corporate Partners
We are proud to have collaborated with industry leaders including Huawei, Coca-Cola, Samsung, Nestlé, and other major corporations.
Frequently Asked Questions
Q1: What is a gas detector?
A1: A gas detector is an instrument for detecting gas leakage concentrations, including portable and fixed gas detectors.
Q2: What does a gas detector detect?
A2: Combustible gases (natural gas, liquefied gas, coal gas, acetylene, etc.) and toxic gases (carbon monoxide, hydrogen sulfide, ammonia, chlorine, etc.).
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of gas - the volume of pollutants contained in one million volumes of air. For example, 30ppm ammonia means 30 volumes of ammonia per million volumes of air.
