Product Overview
The SKY8000 is a portable gas analysis instrument. It is widely used in industrial waste gas, air pollution source emission detection, boiler flue gas, automobile exhaust gas, indoor air analysis and other applications. The analytical instrument can flexibly detect 1-18 kinds of gases; 1-3 modules can be selected, each module corresponds to one pump, and the internal structure is modularized to take separate air intake for the disturbing gas, effectively avoiding cross interference between gases.
Adopt 3.5-inch high-definition IPS LCD color screen, 150 degree wide viewing angle, Chinese and English operation interface; fall alarm, password protection, safety reminder and other functions for safety upgrade; optional high temperature probe can monitor the gas concentration in harsh high temperature and high humidity environment; The large-capacity lithium battery has a long standby time; the instrument casing is made of high-strength engineering materials, and its unique shape design and practical ergonomic operation can inprove users using feeling.
Product Advantages
Exterior atmosphere, 3.5-inch high-definition color screen
Modular internal structure
High customizability
Flexible, multi-pump system
Multiple display modes coexist
Data Storage
Multiple security protection
Powerful and more user-friendly

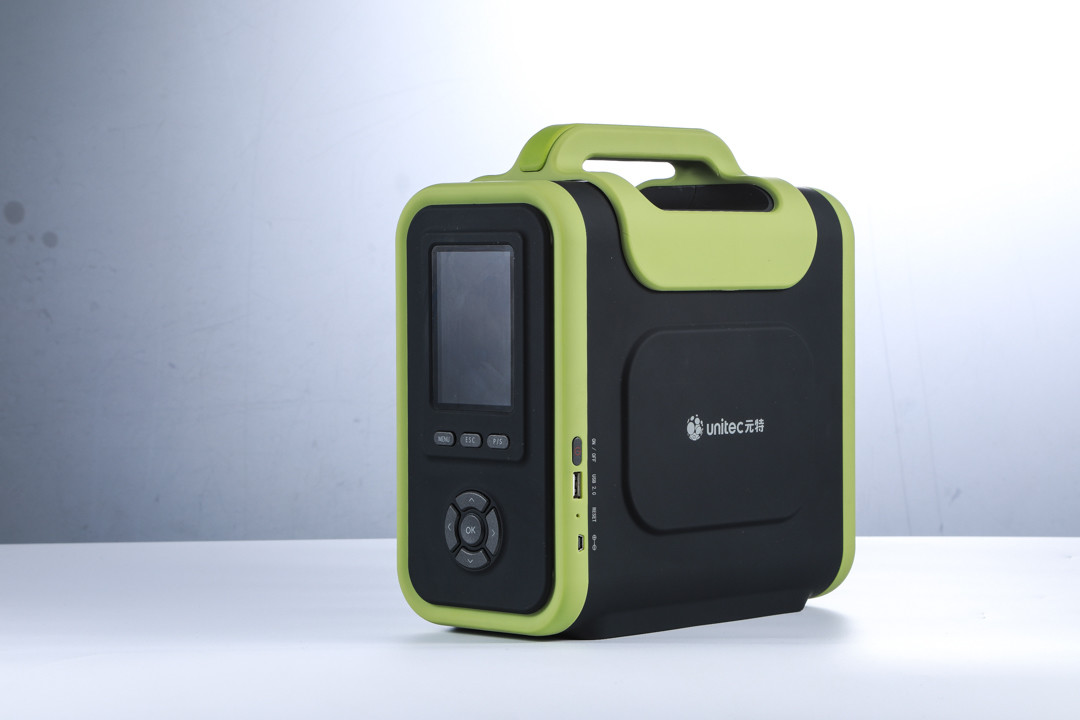

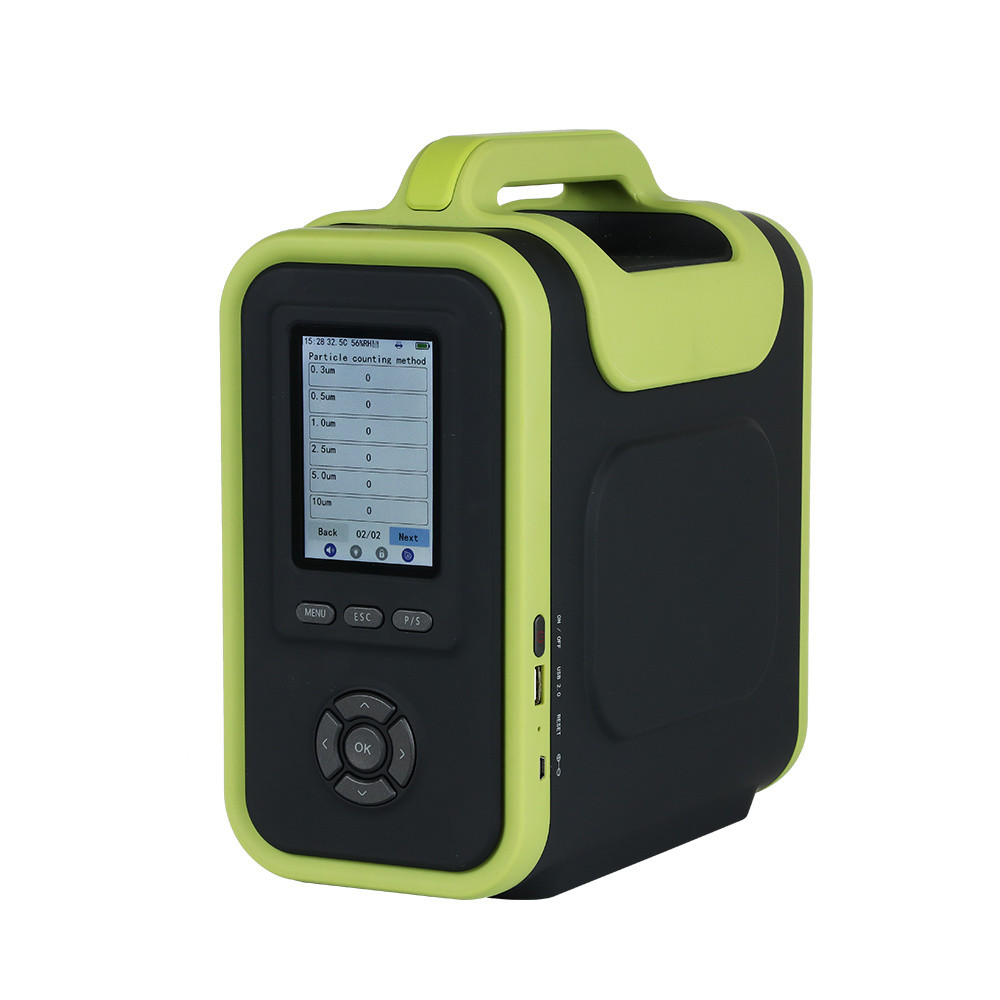

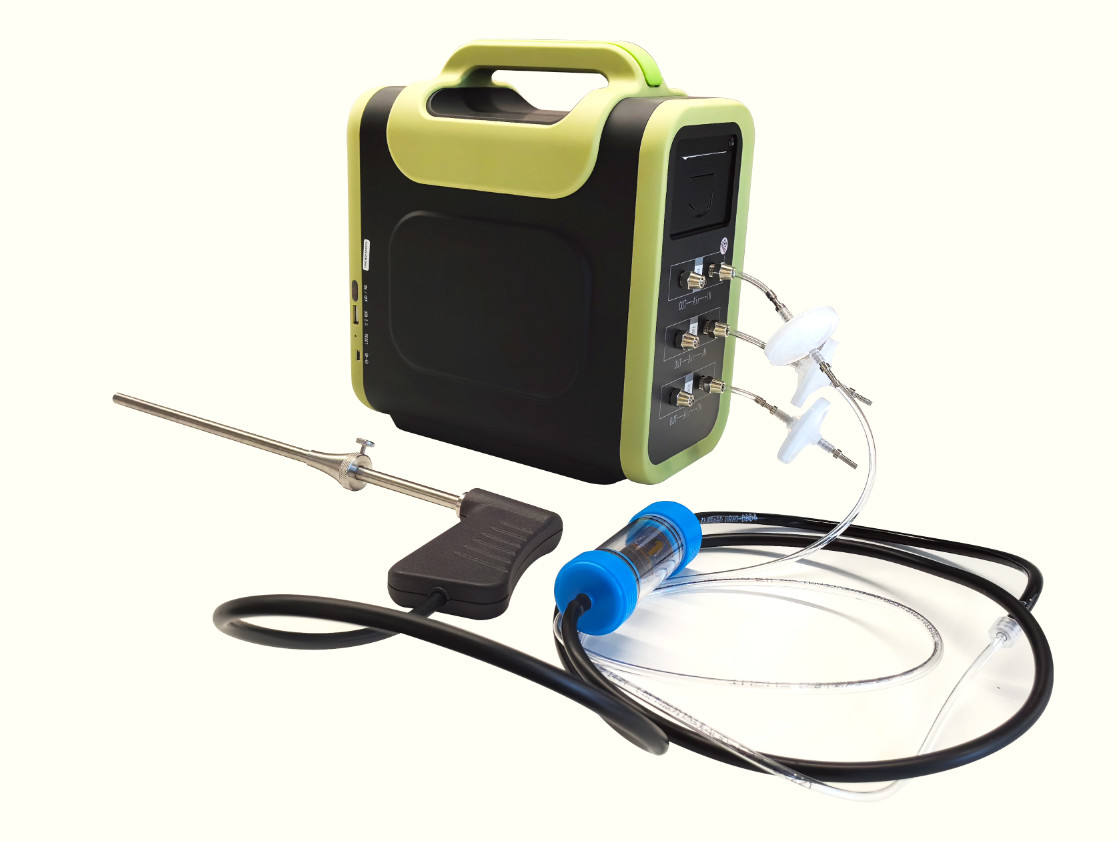

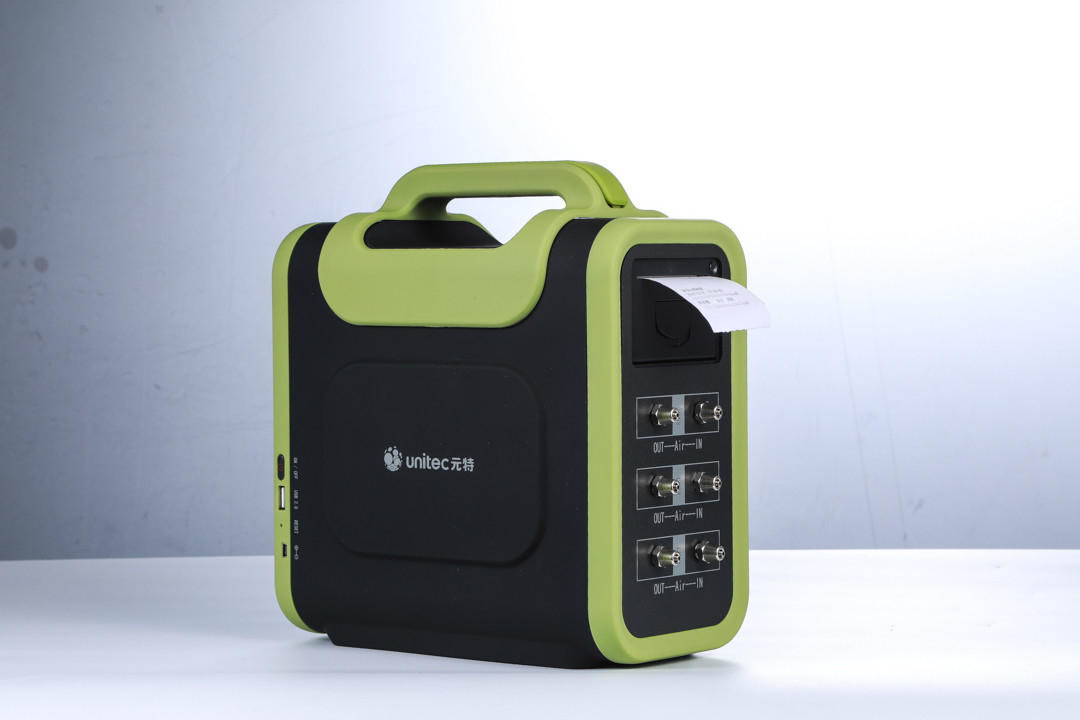

Product Pictures
![]()
Producta Specificiation
| Sensors |
|
Electrochemical / IR / Semidonductor / PID / Laser / Catalytic Combustion...
|
| Gas detected |
|
NO, H2S, O2, SO2, CO, LEL, NH3, CO2, N2, NO2, H2, CH4......, up to 18 gases
|
| Measure range |
|
Can be customized
|
| Resolution |
|
Can be customized
|
| Display |
|
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status |
| Alarm |
|
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm |
| Data storage |
|
Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval. |
| Data transmission and download |
|
RS485 singnal output,USB interface data transmission, with the upper computer software, can download storage, analyze and print data |
| Print function(Optional) |
|
Optional with internal portable printer or external bluetooth printer |
| Print content(Optional) |
|
Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. |
| Charger |
|
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer ) |
| Language |
|
Chinese/English |
| Wireless network (optional) |
|
Bluetooth |
| Network frequency |
|
2.4G high frequency. |
| wireless transmission distance |
|
Bluetooth is less than 10m |
| Probe specifications |
|
The flue gas environment must be equipped with a high temperature probe gun, which can be resistant to high temperatures of 600°C or 1000°C. The probe length can be 0.3m, 0.7m and 1m. |
Attachment configuration list
Standard accessories:
1) One User manual
2) One certificate/warranty card
3) One 8G large capacity SD card (more capacity needs to be customized)
4) One charging adapters
5) One water trap filter
6) One intake sampling probe
7) One 1000mm hose
8) One non-toxic, odorless, explosion-proof, waterproof, heat-resistant, high-low temperature resistant, corrosion-resistant suitcase
Optional accessories:
1) Printer (built-in thermal printer) one
2) A set of high temperature flue gas detectors
Application case
SKY8000 Series are widely used in Agriculture, industry, research LABS, chemical plants, smelters...... Here's an application case for your reference:
Malaysia Xx Center for Disease Control and Prevention Detects Air Quality: SKY8000-M16 Application Case
Detection requirements:
The Center for Disease Control and Prevention needs an air quality detector that can detect 16 types of gases, the device should provide high-resolution, high-precision detection, with data record and print function.
Solution:
SKY8000-M16, SKY8000 with original imported gas sensors.
Solution features:
1. The recommended device meets customer needs.
2. The H2S, SO2, NO, NO2, O3, NH3 sensor equipped for SKY8000 is a high-performance gas sensor specially used for ambient air detection, with high resolution and low detection limit. The C6H6, C7H8, C8H10 are PID principle sensor, the detection accuracy is higher and the detection accuracy and stability are more guaranteed.
3. SKY8000 has a built-in 32G memory card for storing detected data. The storage interval can be adjusted, when the interval is set to 5 seconds, the device can store more than 1 million records. The detected data can be viewed on the instrument or exported through the USB disk (standard accessories).
4. Equipped with a built-in printer, the SKY8000 can print real-time or historical concentration , which is convenient for the user to analyze on site.The data cannot be modified, which ensured the authenticity of the data.
Detected gas, measure range and resolution:
1. CO:0-1000 PPM , 1 PPM
2.CO2:0-5%VOL , 0.01%VOL
3.CH2O:0-10PPM , 0.001PPM
4.H2S:0-20 PPM , 0.001 PPM
5. SO2: 0-10PPM , 0.001PPM
6. NO: 0-10PPM , 0.001PPM
7. NO2: 0-10PPM , 0.001PPM
8. O3: 0-1PPM , 0.001PPM
9. NH3: 0-100 PPM , 0.01 PPM
10. C6H6: 0-10PPM , 0.001PPM
11. C7H8:0-10PPM , 0.001PPM
12. C8H10: 0-10PPM , 0.001PPM
13. VOC: 0-10PPM , 0.001PPM
14. PM2.5,PM10:0-500µg/m3 , 0.01µg/m3
15. C2HCL3: 0-10PPM , 0.001PPM
16. C2CL4: 0-10PPM , 0.001PPM
